LOVOL TD824-1F461F36K Tractor Parts Catalogue 06

Meppon Parts Posted on by

1004-4TART82PA02-08 10.8-飞轮及启动齿圈 FLYWHEEL & STARTER RING



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

T63640800K1 T31162121B T63616008 T2185103 T33117127

飞轮部齿圈 飞轮 螺栓 垫圈

FLYWHEEL ASSEMBLY GEAR RING FLYWHEEL

BOLT WASHER

1

1

1

10

10

2011-01_

2011-01_

2011-01_

2011-01_

2011-01_

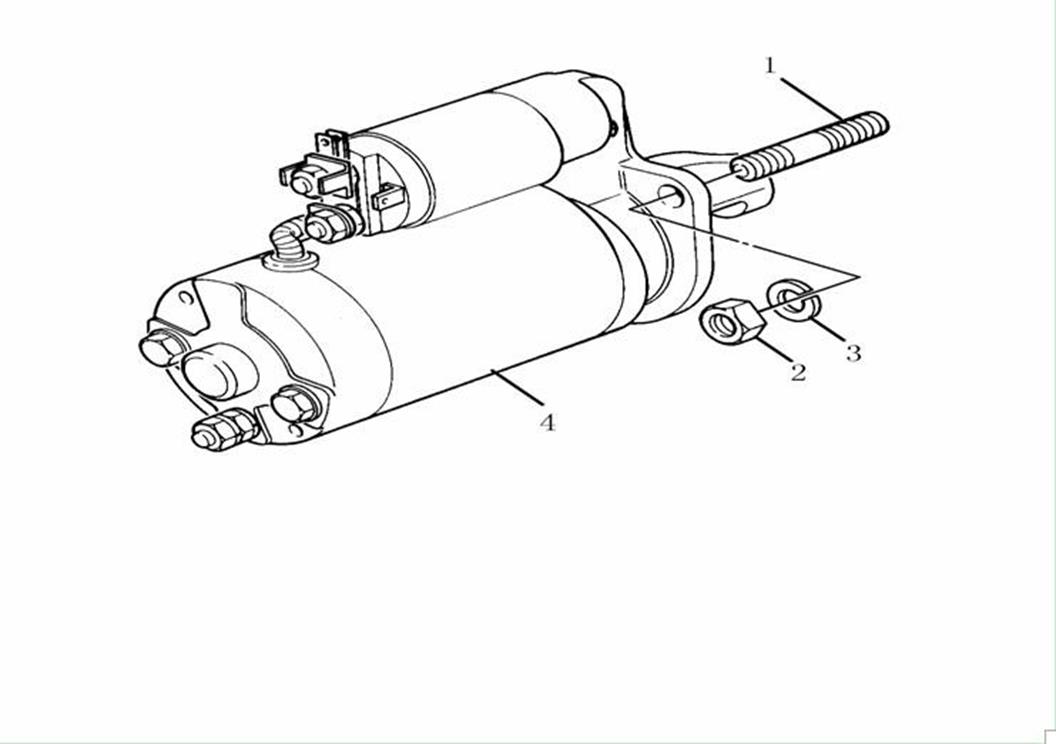

1004-4TART82PA02-09 10.9-起动电机 STARTING MOTOR



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

T2313C078 GBT6170-M10 GBT93-D10 T73701018

双头螺柱螺母M10弹簧垫圈起动电机

8.8-A3L STUD NUT M10 SPRING WASHER

Motor Starter

3

3

3

1

2011-01_

2011-01_

2011-01_

2011-01_

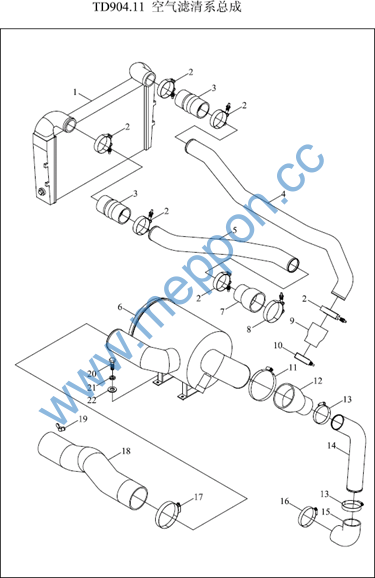

TD904.11 11-空气滤清系总成 11-AIR CLEANER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD904.11.2

中冷器

INTERCOOLER

1

2011-11_

10

SLTB42

环箍

Clip

1

2011-11_

11

Q676127

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

1

2011-11_

12

TD904.11-11

空滤器连接胶管一

AIR FILTER CONNECTING RUBBER PIPE 1

1

2011-11_

13

Q67676

环箍

Clip

2

2011-11_

14

TD904.11-01

空滤器连接管

AIR FILTER CONNECTING PIPE

1

2011-11_

15

TD904.11-12

空滤器连接胶管二

AIR FILTER CONNECTING RUBBER PIPE 2

1

2011-11_

16

Q67683

环箍

Clip

1

2011-11_

17

Q676108

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

1

2011-11_

18

TD904.11-02

进气软管

AIR INLET HOSE

1

2011-11_

19

GBT62-M10-A3L

蝶形螺母

BUTTERFLY NUT

1

2011-11_

2

SLTB54

环箍

Clip

6

2011-11_

20

GBT5783-M10×25-A3L

螺栓

BOLT

4

2011-11_

21

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

22

GBT95-10-A0P

垫圈

WASHER

4

2011-11_

3

TD904.11-03

接管

CONNECTING TUBE

2

2011-11_

4

TD904.11-05

中冷器出气管

AIR OUTLET PIPE OF INTERCOOLER

1

2011-11_

5

TD904.11-06

中冷器进气管

AIR INLET PIPE OF INTERCOOLER

1

2011-11_

6

TD904.11.1

空滤器总成

AIR FILTER ASSEMBLY

1

2011-11_

6.1

TD904.11.1-05

空滤器滤芯

AIR FILTER ELEMENT

0

2011-11_

7

TD904.11-07

接管二

CONNECTING TUBE 2

1

2011-11_

8

SLTB74

环箍

Clip

1

2011-11_

9

TD904.11-04

接管一

TUBE 1

1

2011-11_








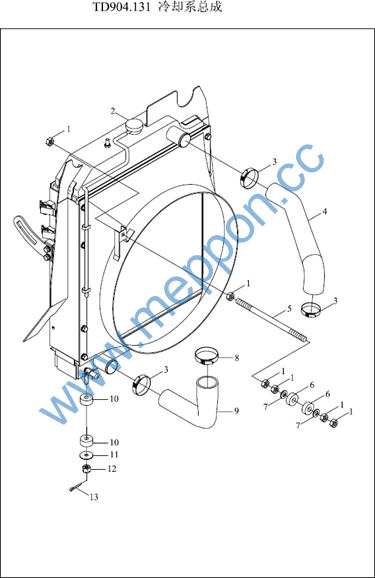

TD904.131 13.1-冷却系总成 13.1-COOLING SYSTEM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6172.1-M10-A3L

螺母

NUT

6

2011-11_

10

FT650.13.112

橡胶垫块

RUBBER PAD BLOCK

4

2011-11_

11

FT650.13.116

垫片

WASHER

2

2011-11_

12

GBT6178-M10-A3L

1型六角开槽螺母

NUT (PAGE81)

2

2011-11_

13

GBT91-2.5X28-A0P

开口销

PIN

2

2011-11_

2

TD904.131.1

散热器总成

RADIATER ASSEMBLY

1

2011-11_

3

Q67664

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

3

2011-11_

4

TD904.131-01

水箱进水胶管

WATER TANK INLET RUBBER HOSE

1

2011-11_

5

JBT953-M10X280-Q-A2L

等长双头螺柱

STUD

1

2011-11_

6

FT650.13.135

橡胶垫块

RUBBER PAD BLOCK

2

2011-11_

7

GBT97.1-10-A0P

平垫圈

WASHER

2

2011-11_

8

Q67670

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

1

2011-11_

9

TD800.131-02

水箱出水胶管

WATER TANK OUTLET RUBBER HOSE

1

2011-11_








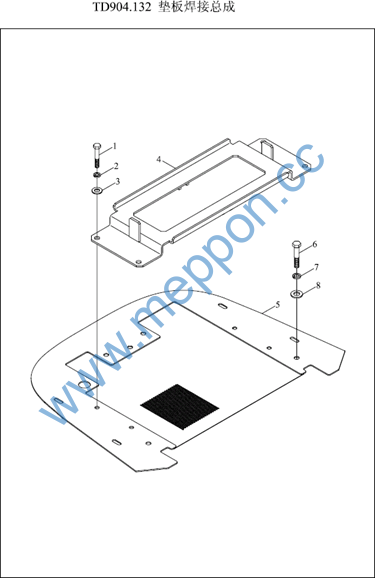

TD904.132 13.2-垫板焊接总成 13.2-MAT BOARD WELDMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X25-A3L

螺栓

BOLT

4

2011-11_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

3

GBT97.1-10-AOP

垫圈

WASHER

4

2011-11_

4

TD800.132.2

电瓶安装支架

BATTERY INSTALLATION BRACKET

1

2011-11_

5

TD800.132A.1

水箱垫板焊合

RADIATOR BACKING BOARD WELDMENT

1

2011-11_

6

GBT5783-M12X25-A3L

六角头螺栓

BOLT

2

2011-11_

7

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

2

2011-11_

8

GBT97.1-12-A0P

平垫圈

WASHER

2

2011-11_








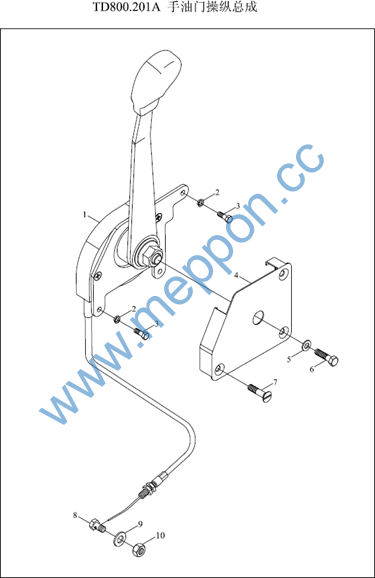

TD800.201A 20.1-手油门操纵总成 20.1-HAND THROTTLE CONTROL ASSSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA700.201A-01

手油门总成

HANDLE THROTTLE ASSEMBLY

1

2010-06_

2

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

3

2011-11_

3

GBT5781-M6X25-A2L

六角头螺栓

BOLT

3

2011-11_

4

FT700.20.324

手油门盖

HAND THROTTLE COVER

1

2011-11_

5

GBT5780-M10X45-A3L

六角头螺栓

BOLT

1

2011-11_

6

GBT96-10-A0P

垫圈

WASHER

1

2011-11_

7

GBT68-M8X45-A2L

开槽沉头螺钉

SCREW

3

2011-11_

8

FT650.20.133

紧固螺钉

LOCKING SCREW

1

2011-11_

9

GBT97.1-8-A0P

平垫圈

WASHER

1

2011-11_








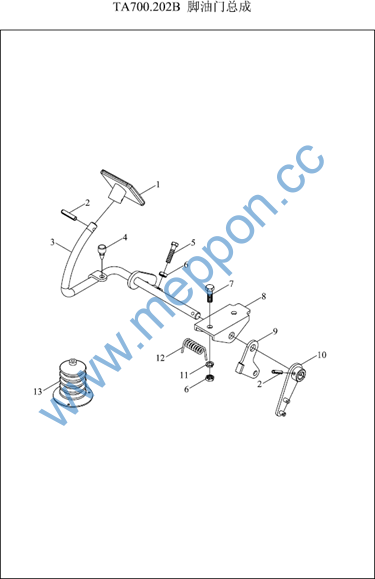

TA700.202B 20.2-脚油门总成 20.2-FOOT THRORRLE ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT650.20.101

脚踏板

FOOT PEDAL

1

2011-11_

10

FT650.20.011

脚油门摇臂焊合

FOOT THROTTLE ROCKER ARM WELDMENT

1

2011-11_

11

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

12

FT650.20.104

扭簧

TORSION SPRING

1

2011-11_

13

FT65.45.393

油门踏板密封套

THROTTLE PEDAL SEAL SLEEVE

1

2011-11_

2

GBT879.1-5X20-A0P

销

PIN

2

2004-01_

3

FT800.20.013

脚踏板摇臂焊合

FOOT PEDAL ROCKER ARM WELDMENT

1

2011-11_

4

FT650.20.107

橡胶塞

RUBBER RING

1

2011-11_

5

GBT5781-M8X45-A2L

六角头螺栓

BOLT

1

2011-11_

7

GBT5781-M8X20-A2L

六角头螺栓

BOLT

2

2011-11_

7

GBT5781-M8X20-A2L

六角头螺栓

BOLT

2

2011-11_

8

FT650.20.108

油门支架

THROTTLE PEDESTAL

1

2011-11_

9

FT650.20.114

手油门摇臂

HAND THROTTLE ROCKER

1

2011-11_
