FT800.56.001a-3 56.3-悬挂机构总成-3 SUSPENSION ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.56.112d

LOWER PULL ROD BRACKET

1

2011-11_

10

FT800.56A.041

LIFTING ROD REAR CONNECTING PIN WELDMENT

2

2011-11_

11

FT800.56A.261

RETAINER PLATE

2

2011-11_

12

GBT899-M16X95-8.8-A2L

8.8-A3L STUD

6



13

FT800.56.102d

SUPPORT ROD OF LOWER PULL ROD

1

2011-11_

2

GBT93-16-A0P

SPRING WASHER

6

2011-11_

3

GBT6170-M16-A2L

NUT

6

2011-11_

4

GBT72-M8X16-A2L

A2L SCREW

2

2011-11_

4

GBT72-M8X16-A2L

A2L SCREW

2

2011-11_

5

GBT119-B20X35

PIN

2

2011-11_

6

FT800.56.124

PIN

2

2011-11_

7

FT800.56.015b

LIFTING ROD ASSEMBLY

2

2011-11_

7.1

FT800.56.020a

UPPER SCREW ROD RIVET ASSEMBLY

2

2011-11_

7.2

FT800.56.265

TRAPEZOIDAL NUT

2

2011-11_

7.3

FT800.56.031a

LIFTING ROD GUIDE PIPE WELDMENT

2

2011-11_

7.4

FT800.56A.259



2

2011-11_

7.5

FT800.56.258b

LIFTING ROD FORK

2

2011-11_

7.5

FT800.56.258b

LIFTING ROD FORK

2

2011-11_

7.6

FT800.56A.264

LEFT TRAPEZOIDAL NUT

2

2011-11_

7.7

JBT7940.1-M10X1

STRAIGHT PRESSURE FILLING OIL CUP

2

2011-11_

8

FT800.56.262

WASHER

2

2011-11_

9

FT800.56.115

SPRING LOCKING PIN II

2

2011-11_

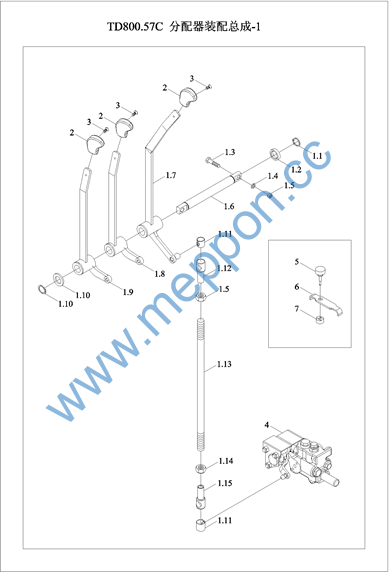

TD800.57C-1 57.1-分配器装配总成-1 DISTRIBUTOR INSTALLATION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.57C.1

DISTRIBUTOR CONTROL MECHANISM ASSEMBLY

1

2011-11_

1.1

GBT894.1-18

RETAINER RING

2

2013-10_

1.1

GBT894.1-20

BLCOKING RING

2

2011-11_

1.1

TF1004.583A.9-03

WASHER

1

2013-10_

1.1

GBT6170-M8-A2L

NUT

3

2011-11_

1.11

FT800A.57.107

CLIP HEAD

2

2011-11_

1.12

FT800A.57.108

SPHERICAL SURFACE CONNECTING COVER

1

2011-11_

1.13

FT800A.57.109a

CONTROL PULL ROD

1

2011-11_

1.14

GBT6170-M8-LH-8-A2L

NUT

1

2011-11_

1.15

FT700.58E.103

LEFT BALL SURFACE CONNECTING COVER

1

2011-11_

1.15

FT700.58E.103

LEFT BALL SURFACE CONNECTING COVER

1

2011-11_

1.2

FT800A.57.103a

LIMITING SLEEVE I

1

2013-10_

1.3

FT800A.57.011

OPERATING ARM WELDED ASSEMBLY

1

2011-11_

1.3

GBT5783-M8X30-8.8-A2L

BOLT

2

2013-10_

1.4

GBT93-8-A0P

WASHER

2

2013-10_

1.4

TB504.552-04

HANDLE HEAD ASSEMBLY

1

2010-10_

1.5

GBT6170-M8-8-A2L

I-TYPE HEXAGON NUT

3

2013-10_

1.5

GBT68-M4X10-A2L



1

2011-11_

1.6

FT800A.57.102a

FIXING SHAFT

1

2013-10_

1.6

FT800A.57.103

LIMITING SLEEVE I

2

2011-11_

1.7

FT800A.57.102

FIXING SHAFT

1

2011-11_

1.7

TD800.57C.1.1

CONTROL ARM ASSEMBLY

1

2013-10_

1.8

GBT5783-M8X30-A2L

BOLT

2

2011-11_

1.8

TD800.57C.1.2

CONTROL ARM ASSEMBLY

1

2013-10_

1.9

TD800.57C.1.3

CONTROL ARM ASSEMBLY

1

2013-10_








TD800.57C-1 57.1-分配器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.9

2

3

3

4



5

GBT93-8 FT800A.57.020 FT65.57.014

GBT68-M4X10-4.8-A2L FT800A.57.124



FT65.57.104

WASHER 8 DISTRIBUTER ASSEMBLY

ADJUSTING HANDLE HEAD ASSEMBLY SCREW

LOCATING BENDING PLATE LOCATING NUT

2

1

2

1

2



2

2011-11_

2011-11_

2011-11_

2013-10_

2011-11_



2011-11_

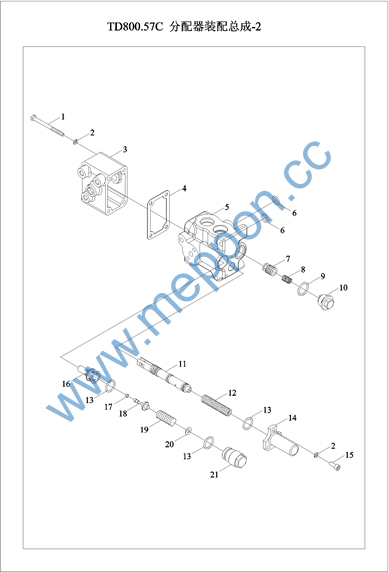

TD800.57C-2 57.2-分配器装配总成-2 DISTRIBUTOR INSTALLATION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.5

FT800A.57.020

DISTRIBUTER ASSEMBLY

1

2011-11_

1

GBT5783-M6X75

BOLT

4

2011-11_

10

T30.57.102-1

OIL RETURN VALVE PLUG

1

2011-11_

11

T30.57.122A

MAIN CONTROL VALVE

1

2011-11_

12

T30.57.112

MAIN VALVE SPRING

1

2011-11_

13

GBT3452.1-19X2.65

O-SEAL RING

3

2011-11_

14

T30.57.113

MAIN VALVE FRONT COVER

1

2011-11_

15

GBT70-M6X16

SCREW

3

2011-11_

16

T30.57.127

SAFETY VALVE SEAT

1

2011-11_

17

T30.57.128

SAFETY VALVE PLUG

1

2011-11_

18

T30.57.107

SAFETY VALVE BODY

1

2011-11_

18

T30.57.107

SAFETY VALVE BODY

1

2011-11_

19

T30.57.106

SAFETY VALVE SPRING

1

2011-11_

2

GBT93-6

WASHER

7

2011-11_

20

FT65.57.133

ADJUSTING WASHER

1

2010-01_

20

T30.57.156~158

ADJUSTING WASHER

1

2013-10_

21

T30.57.105

SPRING SEAT OF SAFETY VALVE

1

2011-11_

3

FT800A.57.122

SIDE COVER

1

2011-11_

4

T30.57.118

GASKET 0.5

1

2011-11_

5

T30.57.115-2A

DISTRIBUTOR HOUSING

1

2011-11_

6

GBT3452.1-11.8X2.65

O-SEAL RING

2

2011-11_

6

GBT3452.1-11.8X2.65

O RING

2

2011-11_

7

T30.57.104-2

OIL RETURN VALVE BODY

1

2011-11_

8

T30.57.103-1

SPRING

1

2011-11_

9

GBT3452.1-21.2X2.65

O-SEAL RING

1

2011-11_








TD800.57C-3 57.3-分配器装配总成-3 DISTRIBUTOR INSTALLATION ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.57.020

DISTRIBUTER ASSEMBLY

1

2011-11_

1

T30.57.145B

ONE-WAY VALVE PLUG

1

2011-11_

10

T30.57.140-1

DOWNWARD VALVE SPRING

1

2011-11_

11

GBT308-φ5.0000G40b

BALL

1

2013-10_

11

GBT308-5-G100-b

BALL

1

2010-01_

12

T30.57.139

DOWNWARD VALVE BODY

1

2011-11_

13

T30.57.114

PUSH PIN

1

2011-11_

14

T30.57.138

DOWNWARD VALVE SLEEVE

1

2011-11_

15

T30.57.159~161

ADJUSTING WASHER

999

2013-10_

2

GBT3452.1-22.4X2.65

O-SEAL RING

1

2013-10_

2

FT800A.57.013

SINGLE FRICTION DISC ASSEMBLY

1

2013-07_

3

T30.57.144B

ONE-WAY VALVE SPRING

1

2011-11_

4

T30.57.164

ONE-WAY VALVE BODY GASKET

1

2011-11_

5

T30.57.142B

ONE-WAY VALVE BODY

1

2011-11_

6

T30.57.143B

ONE-WAY VALVE SEAT

1

2011-11_

7

GBT3452.1-19X2.65

O-SEAL RING

3

2011-11_

8

T30.57.137

DOWNWARD VALVE PLUG

1

2011-11_

9

GBT3452.1-16X1.8

O-SEAL RING

1

2011-11_

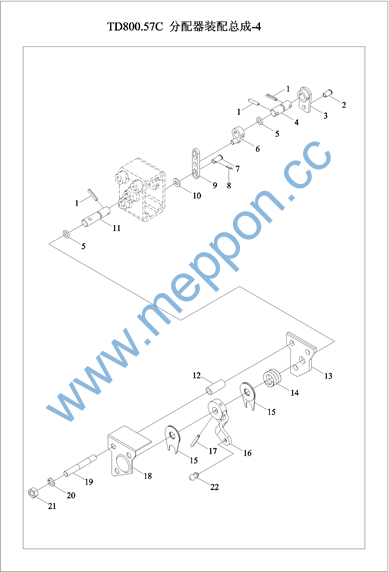

TD800.57C-4 57.4-分配器装配总成-4 DISTRIBUTOR INSTALLATION ASSEMBLY-4



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.57.020

DISTRIBUTER ASSEMBLY

1

2011-11_

1

GBT879-5X24

PIN

3

2011-11_

10

GBT97.1-8

WASHER

1

2011-11_

11

FT800A.57.120

HANDLE SHAFT

1

2011-11_

12

FT800A.57.119

LIMITING SLEEVE 4

3

2011-11_

13

FT800A.57.114

FIXED PLATE

1

2011-11_

14

FT800A.57.112

SPRING

1

2011-11_

15

FT800A.57.013

SINGLE FRICTION DISC ASSEMBLY

2

2011-11_

16

FT800A.57.118

CONTROL CRANK

1

2011-11_

17

GBT879-5X35

PIN

1

2011-11_

18

FT800A.57.110

RETAINER PLATE

1

2011-11_

19

GBT899-GM10-M10X60-8.8

BOLT

3

2011-11_

2

E300.57.135

PIN

1

2011-11_

20

GBT93-10

WASHER 10

3

2011-11_

21

GBT6170-M10

NUT M10

3

2011-11_

22

FT800A.57.113

BALL JOINT

1

2013-10_

3

T30.57.133-2

FEEDBACK ARM

1

2011-11_

4

T30.57.109

FEEDBACK SHAFT

1

2011-11_

5

GBT3452.1-9.5X2.65

O RING

2

2011-11_

6

T30.57.120

FEEDBACK ARM

1

2011-11_

7

T30.57.125

PIN

1

2011-11_

8

GBT91-2X12

PIN

1

2011-11_

9

T30.57.119

UPPER PART U-HOOK

1

2011-11_

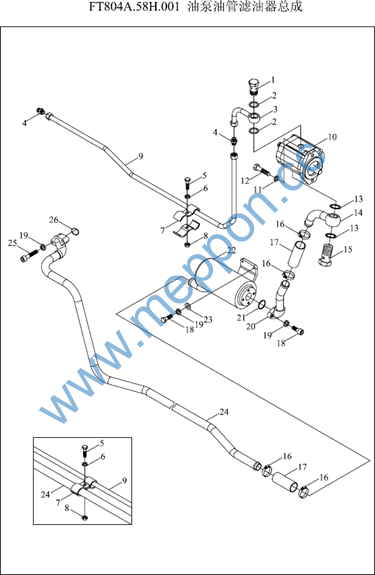

FT804A.58H.001 58-油泵油管滤油器总成 58-OIL PUMP/PIPE/FILTER ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT700.58G.103

HOLLOW BOLT -2

1

2004-01_

10

FT700.58G.010

GEAR PUMP

1

2004-01_

10

FT700.58B.020

GEAR PUMP

1

2009-01_

11

GBT93-10-A0P

WASHER

2

2011-11_

12

GBT5783-M10X30-A3L

BOLT

2

2011-11_

13

JBT982-27

COMBINED SEAL GASKET

2

2011-11_

13

JBT982-27

COMBINED SEAL GASKET

2

2011-11_

14

FT750.58.050

OIL SUCTION SHORT PIPE WELDMENT-2

1

2011-11_

14

FT750.58.050

OIL SUCTION SHORT PIPE WELDMENT-2

1

2011-11_

15

FT700.58G.101

HOLLOW BOLT -1

1

2011-11_

16

JBT8870-d40

HOOP

4

2011-11_

17

FT650.58.105

RUBBER HOSE

2

2011-11_

18

GBT5783-M8X20-A2L

BOLT

4

2011-11_

19

GBT93-8-A0P

WASHER

6

2011-11_

2

JBT982-22

COMBINED SEAL GASKET

2

2009-01_

2

JBT982-18

COMBINED SEAL GASKET

2

2004-01_

2

JBT982-18

COMBINED SEAL GASKET

2

2004-01_

20

FT750.58.040

OIL SUCTION SHORT PIPE WELDMENT-1

1

2011-11_

21

GBT3452.1-32.5X2.65G

O-SEAL RING

1

2011-11_

22

FT804A.58.080

OIL FILTER ASSEMBLY

1

2011-11_

22.1

FT804A.58.080-01

FILTER

1

2011-11_

23

GBT97.1-8-A0P

WASHER

2

2011-11_

24

FT750.58.030

OIL SUCTION LONG PIPE WELDMENT

1

2011-11_

25

GBT5783-M8X50-A2L

BOLT

2



26

GBT3452.1-26.5X2.65G

O-SEAL RING

1

2011-11_








FT804A.58H.001 58-油泵油管滤油器总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

FT700.58G.021

PRESSURE OIL PIPE WELDMENT-1

1

2004-01_

3

TD800.581.2

OIL PUMP OUTPUT PIPE WELDMENT

1

2011-09_

3

FT700.58G.021a

PRESSURE OIL PIPE WELDMENT-1

1

2009-01_

4

FT700.58A.101

JOINT

2

2011-11_

5

GBT5783-M6X30-A2L

BOLT

3

2011-11_

6

GBT93-6-A0P

SPRING WASHER

3

2011-11_

7

FT650.58.060

OIL PIPE CLAMP AND RUBBER WASHER

6

2011-11_

8

GBT6170-M6-A2L

NUT

3

2011-11_

9

FT804A.58.020

PRESSURE OIL PIPE ASSEMBLY-2

1

2011-11_

9

FT804A.58.020a

HIGH PRESSURE OIL PIPE ASSEMBLY

1

2011-09_
