TD904.582A-1 58.2.1-多路阀油管总成-1 MULTI-WAY VALVE OIL PIPE ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT654.58.020

多路阀总成

MULTI-WAY VALVE ASSEMBLY

1

2011-11_

10

FT804A.58L.021

操纵杆焊合-1

CONTROL ROD WELDMENT-1

1

2011-11_

11

FT804A.58L.133

右旋拉杆叉

RIGHT REVOLVING PULL ROD FORK

2

2011-11_

12

FT804A.58L.134

拉杆

PULL ROD

2

2011-11_

13

FT804A.58L.136

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

2

2011-11_

2

GBT91-2X12-A0P

开口销

PIN

10

2011-11_

3

GBT97.1-6-A0P

平垫圈

WASHER

8

2011-11_

4

GBT882-B6X24-A0P

销轴

PIN

2

2011-11_

5

FT654.58.103

联接板

CONNECTING PLATE

4

2011-11_

6

FT804A.58L.132

摇臂

ROCKER

2

2011-11_

7

GBT882-B6X28-A0P

销轴

PIN

6

2011-11_

8

FT65.57.013

手柄头总成

HANDLE HEAD ASSEMBLY

2

2004-01_

8

FT65.57.013

手柄头总成

HANDLE HEAD ASSEMBLY

2

2004-01_

8

TB504.552-04

手柄头总成

HANDLE HEAD ASSEMBLY

2

2010-10_

9

FT804A.58L.022

操纵杆焊合-2

CONTROL ROD WELDMENT-2

1

2011-11_

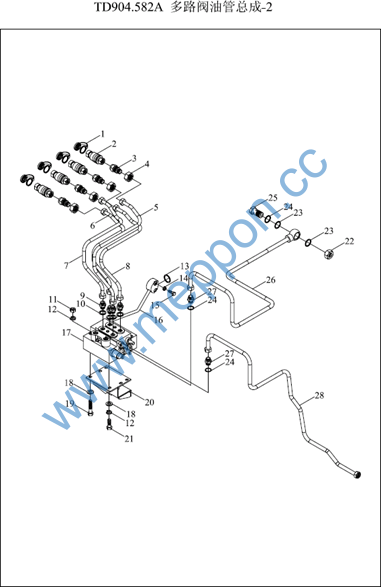

TD904.582A-2 58.2.2-多路阀油管总成-2 MULTI-WAY VALVE OIL PIPE ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT354.58A.103

防尘盖

DUSTPROOF COVER

4

2011-11_

10

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

10

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

11

GBT6170-M10-A3L

螺母

NUT

3

2013-07_

12

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

13

GBT3452.1-12.5X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

14

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

15

GBT5783-M8X35-A2L

六角头螺栓

BOLT

2

2013-07_

16

FT904.58A.020

分配器进油管焊合

DISTRIBUTOR OIL INLET PIPE WELDMENT

1

2011-11_

17

FT654.58.020

多路阀总成

MULTI-WAY VALVE ASSEMBLY

1

2011-11_

18

GBT95-10-A0P

垫圈

WASHER

4

2011-11_

19

GBT5782-M10X70-A2L

六角头螺栓

BOLT

3

2011-11_

2

FT654.58.010a

快换接头

QUICK CHANGING JOINT

4

2011-11_

20

FT804.58L.012

多路阀安装支架焊合

MULTI-WAY VALVE INSTALLATION BRACKET

1

2011-11_

21

GBT5783-M10X20-A3L

螺栓

WELDMENT

1

2011-11_


BOLT



22

FT800.55.151

放油螺母



1

2011-11_

23

JBT982-20

组合密封垫圈

OIL DISCHARGING NUT

2

2011-11_

24

JBT982-22

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

25

TD904.582-01

放油空心螺栓

COMBINED SEAL GASKET

1

2007-10_

25

FT804.58.101

空心螺栓

OIL DISCHARGING HOLLOW BOLT

1

2004-01_


HOLLOW BOLT



26

FT804.58L.013

回油管焊合-1



1

2011-11_

27

FT654.58B.102

卡套式端直通接头体1

OIL RETURN PIPE WELDMENT-1

2

2011-11_

28

FT904.58A.010

多路阀进油管总成

STRAIGHT THREAD JOINT BODY 1

1

2011-11_

3

FT654.58B.101b

油管接头

MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY

4

2011-11_

4

GBT6173-M27X2-A0P

六角薄螺母

JOINT

4

2011-11_








TD904.582A-2 58.2.2-多路阀油管总成-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

FT804.58.040 FT804.58.060 FT804.58.030 FT804.58.050 FT804.58.112

输出油管焊合-1-2输出油管焊合-2-1输出油管焊合-1-1输出油管焊合-2-2卡套式端直通接头体

OIL OUTLET PIPE WELDMENT-1-2 OIL OUTLET PIPE WELDMENT-2-1 OIL OUTLET PIPE WELDMENT-1-1 OIL OUTLET PIPE WELDMENT-2-2 STRAIGHT PIPE JOINT BODY

1

1

1

1

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_








TD800.583A 58.3-单路液压输出总成 58.3-SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

FT354.58A.103 FT354.58A.030 FT754.58.102 GBT6173-M27X2-A3L FT800.55.021

防尘盖 快换接头油管接头

六角薄螺母

液压输出管焊合

DUSTPROOF COVER QUICK CHANGING JOINT JOINT

NUT

HYDRAULIC OUTPUT PIPE WELDMENT

1

1

1

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

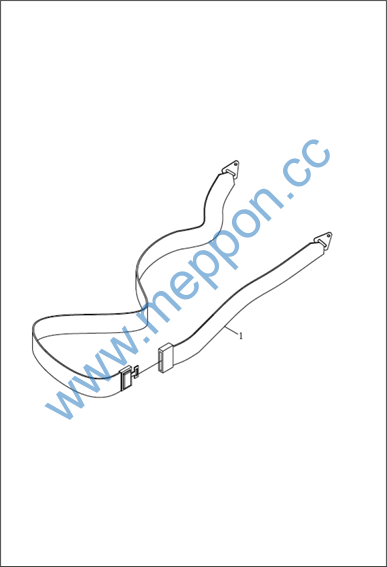

TA600.62ZC 62-安全带 62-SAFETY BELT



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TA600.62

安全带安装总成

SAFETY BELT INSTALLATION ASSEMBLY

1

2012-01_

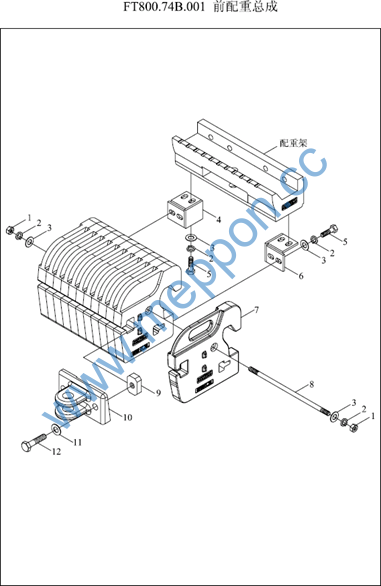

FT800.74B.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M16-8-A3L

1型六角螺母

NUT

2

2011-11_

10

FT650.74.107

牵引耳

TOWING LUG

1

2011-11_

11

GBT97.1-20-A0P

垫圈

WASHER

2

2011-11_

11

GBT97.1-20-A0P

垫圈

WASHER

2

2011-11_

12

GBT5785-M20X1.5X80-A3L

螺栓

BOLT

2

2011-11_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

10

2011-11_

3

GBT97.1-16-A0P

垫圈

WASHER

10

2011-11_

4

FT700.74B.010

右固定块焊接总成

RIGHT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

5

GBT5783-M16X35-A3L

六角头螺栓

BOLT

8

2011-11_

6

FT700.74B.011

左固定块焊接总成

LEFT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

7

FT800.74B.106a

配重块

BALLAST

11

2011-11_

8

F700.74B.107

联接螺栓

CONNECTING BOLT

1

2011-11_

9

FT650.74.108

牵引螺母

TOWING NUT

2

2004-01_

9

TA700.741-02

牵引板

TOWING PLATE

2

2009-12_

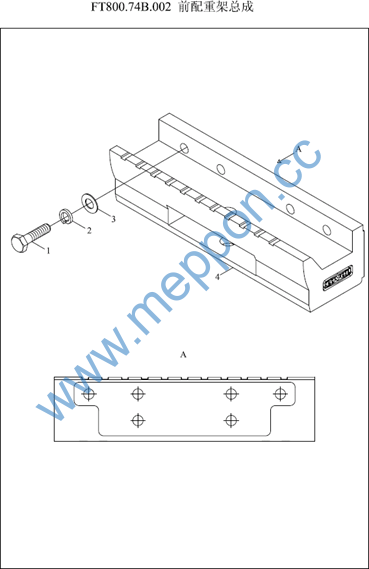

FT800.74B.002 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

4

GBT5785-M18X1.5X70-10.9-A3L GBT93-18-AOP

GBT97.1-18-A0P FT800.74B.105a FT800.74B.105

六角头螺栓弹簧垫圈 平垫圈

配重架配重架

BOLT

SPRING WASHER WASHER

BALLAST BRACKET BALLAST BRACKET

6

6

6

1

1

2004-01_

2004-01_

2004-01_

2009-08_

2008-03_
