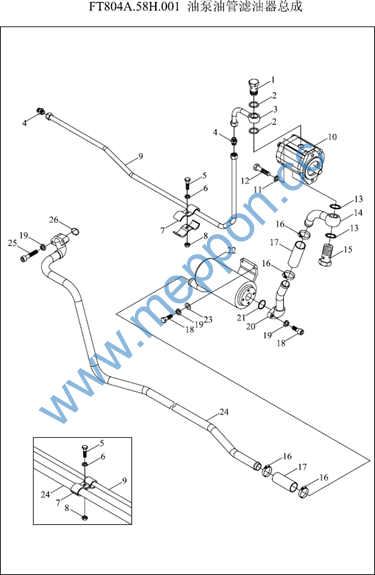

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

FT700.58G.021

压力油管焊合-1

PRESSURE OIL PIPE WELDMENT-1

1

2004-01_

3

TD800.581.2

油泵出油管焊合

OIL PUMP OUTPUT PIPE WELDMENT

1

2011-09_

3

FT700.58G.021a

压力油管焊合-1

PRESSURE OIL PIPE WELDMENT-1

1

2009-01_

4

FT700.58A.101

卡套式直通接头体

JOINT

2

2011-11_

5

GBT5783-M6X30-A2L

螺栓

BOLT

3

2011-11_

6

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

3

2011-11_

7

FT650.58.060

油管夹与胶垫胶合

OIL PIPE CLAMP AND RUBBER WASHER

6

2011-11_

8

GBT6170-M6-A2L

螺母

NUT

3

2011-11_

9

FT804A.58.020

压力油管总成-2

PRESSURE OIL PIPE ASSEMBLY-2

1

2011-11_

9

FT804A.58.020a

高压油管总成

HIGH PRESSURE OIL PIPE ASSEMBLY

1

2011-09_

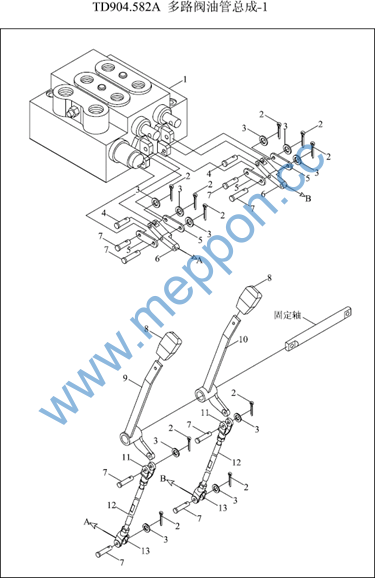

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT654.58.020

多路阀总成

MULTI-WAY VALVE ASSEMBLY

1

2011-11_

10

FT804A.58L.021

操纵杆焊合-1

CONTROL ROD WELDMENT-1

1

2011-11_

11

FT804A.58L.133

右旋拉杆叉

RIGHT REVOLVING PULL ROD FORK

2

2011-11_

12

FT804A.58L.134

拉杆

PULL ROD

2

2011-11_

13

FT804A.58L.136

左旋拉杆叉

LEFT REVOLVING PULL ROD FORK

2

2011-11_

2

GBT91-2X12-A0P

开口销

PIN

10

2011-11_

3

GBT97.1-6-A0P

平垫圈

WASHER

8

2011-11_

4

GBT882-B6X24-A0P

销轴

PIN

2

2011-11_

5

FT654.58.103

联接板

CONNECTING PLATE

4

2011-11_

6

FT804A.58L.132

摇臂

ROCKER

2

2011-11_

7

GBT882-B6X28-A0P

销轴

PIN

6

2011-11_

8

FT65.57.013

手柄头总成

HANDLE HEAD ASSEMBLY

2

2004-01_

8

FT65.57.013

手柄头总成

HANDLE HEAD ASSEMBLY

2

2004-01_

8

TB504.552-04

手柄头总成

HANDLE HEAD ASSEMBLY

2

2010-10_

9

FT804A.58L.022

操纵杆焊合-2

CONTROL ROD WELDMENT-2

1

2011-11_

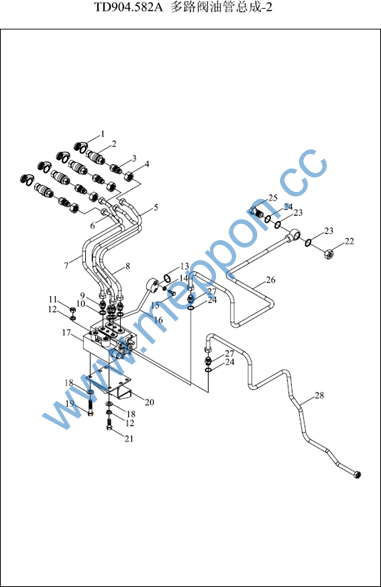

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT354.58A.103

防尘盖

DUSTPROOF COVER

4

2011-11_

10

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

10

JBT982-18

组合密封垫圈

COMBINED SEAL GASKET

4

2011-11_

11

GBT6170-M10-A3L

螺母

NUT

3

2013-07_

12

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

13

GBT3452.1-12.5X2.65G

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

14

GBT93-8-A0P

垫圈

WASHER

2

2011-11_

15

GBT5783-M8X35-A2L

六角头螺栓

BOLT

2

2013-07_

16

FT904.58A.020

分配器进油管焊合

DISTRIBUTOR OIL INLET PIPE WELDMENT

1

2011-11_

17

FT654.58.020

多路阀总成

MULTI-WAY VALVE ASSEMBLY

1

2011-11_

18

GBT95-10-A0P

垫圈

WASHER

4

2011-11_

19

GBT5782-M10X70-A2L

六角头螺栓

BOLT

3

2011-11_

2

FT654.58.010a

快换接头

QUICK CHANGING JOINT

4

2011-11_

20

FT804.58L.012

多路阀安装支架焊合

MULTI-WAY VALVE INSTALLATION BRACKET

1

2011-11_

21

GBT5783-M10X20-A3L

螺栓

WELDMENT

1

2011-11_

BOLT

22

FT800.55.151

放油螺母

1

2011-11_

23

JBT982-20

组合密封垫圈

OIL DISCHARGING NUT

2

2011-11_

24

JBT982-22

组合密封垫圈

COMBINED SEAL GASKET

3

2011-11_

25

TD904.582-01

放油空心螺栓

COMBINED SEAL GASKET

1

2007-10_

25

FT804.58.101

空心螺栓

OIL DISCHARGING HOLLOW BOLT

1

2004-01_

HOLLOW BOLT

26

FT804.58L.013

回油管焊合-1

1

2011-11_

27

FT654.58B.102

卡套式端直通接头体1

OIL RETURN PIPE WELDMENT-1

2

2011-11_

28

FT904.58A.010

多路阀进油管总成

STRAIGHT THREAD JOINT BODY 1

1

2011-11_

3

FT654.58B.101b

油管接头

MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY

4

2011-11_

4

GBT6173-M27X2-A0P

六角薄螺母

JOINT

4

2011-11_

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

FT804.58.040 FT804.58.060 FT804.58.030 FT804.58.050 FT804.58.112

输出油管焊合-1-2输出油管焊合-2-1输出油管焊合-1-1输出油管焊合-2-2卡套式端直通接头体

OIL OUTLET PIPE WELDMENT-1-2 OIL OUTLET PIPE WELDMENT-2-1 OIL OUTLET PIPE WELDMENT-1-1 OIL OUTLET PIPE WELDMENT-2-2 STRAIGHT PIPE JOINT BODY

1

1

1

1

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

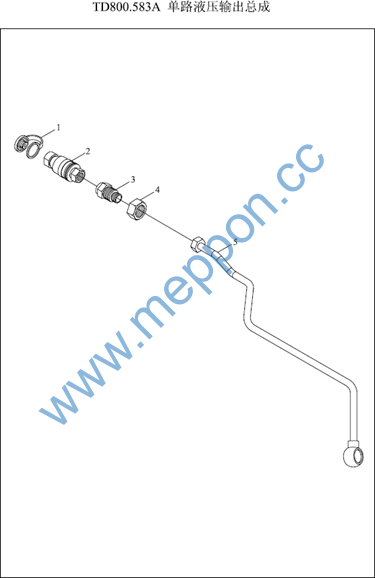

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

FT354.58A.103 FT354.58A.030 FT754.58.102 GBT6173-M27X2-A3L FT800.55.021

防尘盖 快换接头油管接头

六角薄螺母

液压输出管焊合

DUSTPROOF COVER QUICK CHANGING JOINT JOINT

NUT

HYDRAULIC OUTPUT PIPE WELDMENT

1

1

1

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

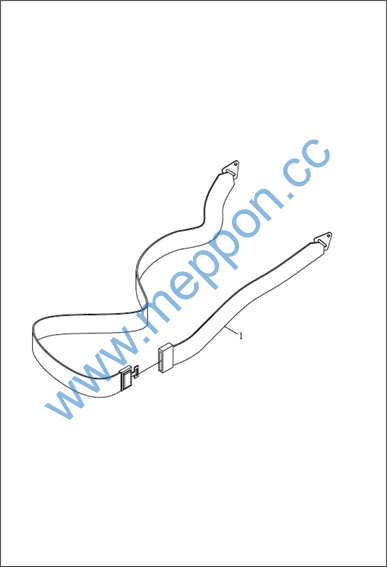

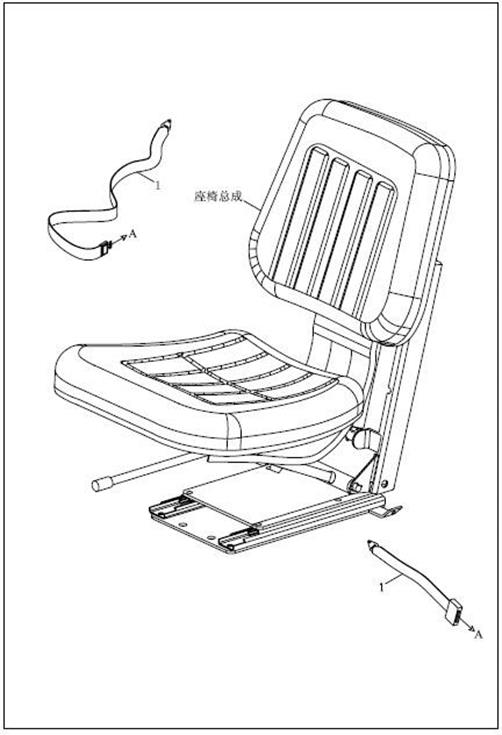

1

TA600.62

安全带安装总成

SAFETY BELT INSTALLATION ASSEMBLY

1

2012-01_
