LOVOL TD820-1F461A4K Tractor Parts Catalogue 17

Meppon Parts Posted on by

FT800.56.001a-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.56.032b

上拉杆固定卡组合

UPPER PULL ROD FIXED CLIP COMBINATION

1

2011-11_

1.1

GBT91-2.5X14-A0P

开口销

PIN

2

2011-11_

1.1

GBT91-2.5X14-A0P

开口销

PIN

2

2011-11_

1.2

FT800.56.035d

连接板焊合件

CONNECTING PLATE WELDMENT

1

2011-11_

1.3

GBT97.1-8-A0P

平垫圈

WASHER

2

2011-11_

1.4

FT800.56.263a

固定卡

LOCKING CLAMP

1

2011-11_

2

FT800.56.017

上拉杆总成

UPPER PULL ROD ASSEMBLY

1

2011-11_

2.1

FT800.56.247

上拉杆前销

UPPER PULL ROD FRONT PIN

1

2004-01_

2.1

FT800.56.017.1

上拉杆前销

UPPER PULL ROD FRONT PIN

1

2009-11_

2.2

FT800.56.223

锁销环

LOCKING PIN RING

1

2011-11_

2.3

FT800.56.224

锁销

PIN

1

2011-11_

2.4

FT800.56.025

上拉杆前调节螺杆挤压总成

UPPER PULL ROD FRONT ADJUSTING SCREW

1

2011-11_

2.5

FT800.56.024

调节螺管手柄焊合总成

EXTRUSION ASSEMBL

1

2011-11_

2.6

FT800.56.029

上拉杆锁紧螺帽总成

ADJUSTING SCREW HANDLE WELDMENT

1

2011-11_

2.7

FT800.56.023

上拉杆后调节螺杆挤压总成

ASSEMBLY

1

2011-11_


UPPER PULL ROD LOCKING NUT ASSEMBLY



2.8

FT800.56.027

上拉杆销及锁销总成

UPPER PULL ROD REAR ADJUSTING SCREW

1

2011-11_


EXTRUSION ASSEMBLY




UPPER PULL ROD PIN AND LOCK PIN




ASSEMBLY

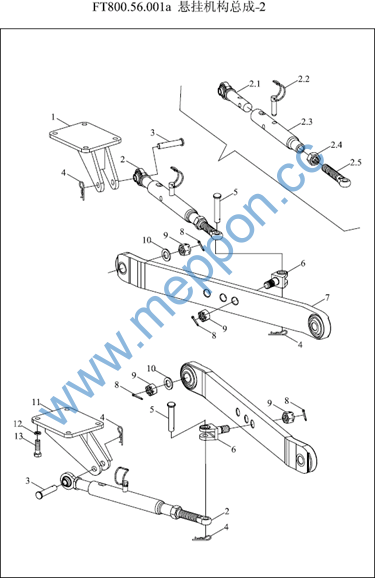

FT800.56.001a-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.56.026

右限位杆连接叉焊合总成

RIGHT LIMITING ROD CONNECTING FORK WELD

1

2011-11_

10

GBT95-24-A0P

平垫圈

ASSEMBLY

2

2011-11_

11

FT800.56.014

左限位杆连接叉焊合总成

WASHER

1

2011-11_

12

GBT5783-M16X40-A3L

六角头螺栓

LEFT LIMITING ROD CONNECTING FORK WELD

8

2011-11_

13

GBT93-16-AOP

垫圈

ASSEMBLY

8

2011-11_


BOLT



2

FT800.56.011a

限位杆总成

WASHER

2

2011-11_

2.1

FT800.56.018

限位杆铆合总成



2

2011-11_

2.2

FT800.56.019

限位杆锁销总成

LIMIT ROD ASSEMBLY

2

2011-11_

2.3

FT800.56.036

限位杆导管焊合

LIMIT ROD RIVET ASSEMBLY

2

2011-11_

2.4

FT800.56.264

梯形螺母

LIMIT ROD LOCK PIN ASSEMBLY

2

2011-11_


LIMIT ROD GUIDE PIPE WELDMENT



2.5

FT800.56.107

调节螺杆

TRAPEZOIDAL NUT

2

2011-11_

3

FT800.56.101

销轴



2

2011-11_

4

FT800.56.207

弹簧锁销

ADJUSTING SCREW

6

2011-11_

5

FT800.56.103

销轴

PIN

2

2011-11_

6

FT800.56.104

限位杆螺栓

SPRING LOCK PIN

2

2011-11_


PIN



7

FT800.56.012a

下拉杆焊接总成

LIMIT ROD BOLT

2

2011-11_

8

GBT91-5X40-AOP

开口销



4

2011-11_

9

GBT9459-M24X2-A3L

六角开槽薄螺母

LOWER PULL ROD WELDMENT ASSEMBLY

4

2011-11_


PIN




NUT

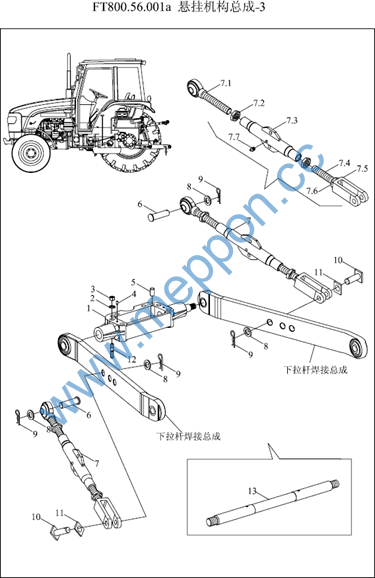

FT800.56.001a-3 56.3-悬挂机构总成-3 SUSPENSION ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800.56.112d

下拉杆支架

LOWER PULL ROD BRACKET

1

2011-11_

10

FT800.56A.041

提升杆后联接销焊合

LIFTING ROD REAR CONNECTING PIN

2

2011-11_

11

FT800.56A.261

挡板

WELDMENT

2

2011-11_

12

GBT899-M16X95-8.8-A2L

双头螺柱

RETAINER PLATE

6



13

FT800.56.102d

下拉杆支承杆

8.8-A3L STUD

1

2011-11_


SUPPORT ROD OF LOWER PULL ROD



2

GBT93-16-A0P

弹簧垫圈



6

2011-11_

3

GBT6170-M16-A2L

螺母

SPRING WASHER

6

2011-11_

4

GBT72-M8X16-A2L

开槽锥端定位螺钉

NUT

2

2011-11_

4

GBT72-M8X16-A2L

开槽锥端定位螺钉

A2L SCREW

2

2011-11_

5

GBT119-B20X35

圆柱销

A2L SCREW

2

2011-11_


PIN



6

FT800.56.124

销轴



2

2011-11_

7

FT800.56.015b

提升杆总成

PIN

2

2011-11_

7.1

FT800.56.020a

上螺杆铆合总成

LIFTING ROD ASSEMBLY

2

2011-11_

7.2

FT800.56.265

梯形螺母

UPPER SCREW ROD RIVET ASSEMBLY

2

2011-11_

7.3

FT800.56.031a

提升杆导管焊合

TRAPEZOIDAL NUT

2

2011-11_


LIFTING ROD GUIDE PIPE WELDMENT



7.4

FT800.56A.259

螺杆



2

2011-11_

7.5

FT800.56.258b

提升杆叉



2

2011-11_

7.5

FT800.56.258b

提升杆叉

LIFTING ROD FORK

2

2011-11_

7.6

FT800.56A.264

左旋梯形螺母

LIFTING ROD FORK

2

2011-11_

7.7

JBT7940.1-M10X1

直通式压注油杯

LEFT TRAPEZOIDAL NUT

2

2011-11_


STRAIGHT PRESSURE FILLING OIL CUP



8

FT800.56.262

垫圈



2

2011-11_

9

FT800.56.115

弹簧锁销Ⅱ

WASHER

2

2011-11_


SPRING LOCKING PIN II

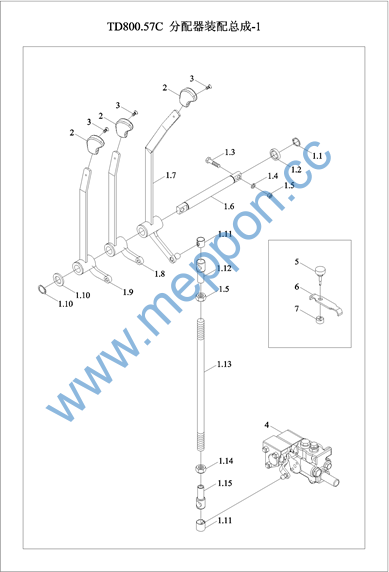

TD800.57C-1 57.1-分配器装配总成-1 DISTRIBUTOR INSTALLATION ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.57C.1

分配器操纵机构总成

DISTRIBUTOR CONTROL MECHANISM ASSEMBLY

1

2011-11_

1.1

GBT894.1-18

挡圈

RETAINER RING

2

2013-10_

1.1

GBT894.1-20

挡圈20

BLCOKING RING

2

2011-11_

1.1

TF1004.583A.9-03

垫圈

WASHER

1

2013-10_

1.1

GBT6170-M8-A2L

螺母

NUT

3

2011-11_

1.11

FT800A.57.107

夹头

CLIP HEAD

2

2011-11_

1.12

FT800A.57.108

球面联接盖

SPHERICAL SURFACE CONNECTING COVER

1

2011-11_

1.13

FT800A.57.109a

操纵拉杆

CONTROL PULL ROD

1

2011-11_

1.14

GBT6170-M8-LH-8-A2L

1型六角螺母

NUT

1

2011-11_

1.15

FT700.58E.103

左旋球面联接盖

LEFT BALL SURFACE CONNECTING COVER

1

2011-11_

1.15

FT700.58E.103

左旋球面联接盖

LEFT BALL SURFACE CONNECTING COVER

1

2011-11_

1.2

FT800A.57.103a

限位套1

LIMITING SLEEVE I

1

2013-10_

1.3

FT800A.57.011

操纵臂焊合总成

OPERATING ARM WELDED ASSEMBLY

1

2011-11_

1.3

GBT5783-M8X30-8.8-A2L

六角头螺栓

BOLT

2

2013-10_

1.4

GBT93-8-A0P

垫圈

WASHER

2

2013-10_

1.4

TB504.552-04

手柄头总成

HANDLE HEAD ASSEMBLY

1

2010-10_

1.5

GBT6170-M8-8-A2L

Ⅰ型六角螺母

I-TYPE HEXAGON NUT

3

2013-10_

1.5

GBT68-M4X10-A2L

开槽双头螺钉



1

2011-11_

1.6

FT800A.57.102a

固定轴

FIXING SHAFT

1

2013-10_

1.6

FT800A.57.103

限位套1

LIMITING SLEEVE I

2

2011-11_

1.7

FT800A.57.102

固定轴

FIXING SHAFT

1

2011-11_

1.7

TD800.57C.1.1

操纵臂压合总成1

CONTROL ARM ASSEMBLY

1

2013-10_

1.8

GBT5783-M8X30-A2L

螺栓

BOLT

2

2011-11_

1.8

TD800.57C.1.2

操纵臂压合总成1

CONTROL ARM ASSEMBLY

1

2013-10_

1.9

TD800.57C.1.3

操纵臂压合总成2

CONTROL ARM ASSEMBLY

1

2013-10_








TD800.57C-1 57.1-分配器装配总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1.9

2

3

3

4



5

GBT93-8 FT800A.57.020 FT65.57.014

GBT68-M4X10-4.8-A2L FT800A.57.124



FT65.57.104

垫圈8

分配器总成

调节手柄头总成开槽沉头螺钉 定位弯板



定位螺母

WASHER 8 DISTRIBUTER ASSEMBLY

ADJUSTING HANDLE HEAD ASSEMBLY SCREW

LOCATING BENDING PLATE LOCATING NUT

2

1

2

1

2



2

2011-11_

2011-11_

2011-11_

2013-10_

2011-11_



2011-11_

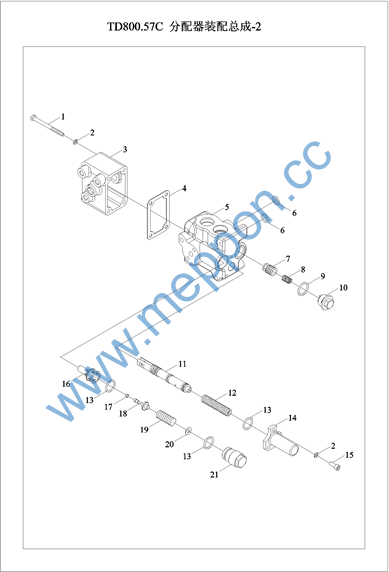

TD800.57C-2 57.2-分配器装配总成-2 DISTRIBUTOR INSTALLATION ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.5

FT800A.57.020

分配器总成

DISTRIBUTER ASSEMBLY

1

2011-11_

1

GBT5783-M6X75

螺栓

BOLT

4

2011-11_

10

T30.57.102-1

回油阀堵塞

OIL RETURN VALVE PLUG

1

2011-11_

11

T30.57.122A

主控制阀

MAIN CONTROL VALVE

1

2011-11_

12

T30.57.112

主阀弹簧

MAIN VALVE SPRING

1

2011-11_

13

GBT3452.1-19X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

3

2011-11_

14

T30.57.113

主阀前盖

MAIN VALVE FRONT COVER

1

2011-11_

15

GBT70-M6X16

内六角圆柱头螺钉

SCREW

3

2011-11_

16

T30.57.127

安全阀座

SAFETY VALVE SEAT

1

2011-11_

17

T30.57.128

安全阀堵头

SAFETY VALVE PLUG

1

2011-11_

18

T30.57.107

安全阀体

SAFETY VALVE BODY

1

2011-11_

18

T30.57.107

安全阀体

SAFETY VALVE BODY

1

2011-11_

19

T30.57.106

安全阀弹簧

SAFETY VALVE SPRING

1

2011-11_

2

GBT93-6

垫圈

WASHER

7

2011-11_

20

FT65.57.133

调整垫片

ADJUSTING WASHER

1

2010-01_

20

T30.57.156~158

调整垫片

ADJUSTING WASHER

1

2013-10_

21

T30.57.105

安全阀弹簧座

SPRING SEAT OF SAFETY VALVE

1

2011-11_

3

FT800A.57.122

侧盖

SIDE COVER

1

2011-11_

4

T30.57.118

纸垫

GASKET 0.5

1

2011-11_

5

T30.57.115-2A

分配器壳体

DISTRIBUTOR HOUSING

1

2011-11_

6

GBT3452.1-11.8X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

2

2011-11_

6

GBT3452.1-11.8X2.65

O形密封圈

O RING

2

2011-11_

7

T30.57.104-2

回油阀体

OIL RETURN VALVE BODY

1

2011-11_

8

T30.57.103-1

回油阀弹簧

SPRING

1

2011-11_

9

GBT3452.1-21.2X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

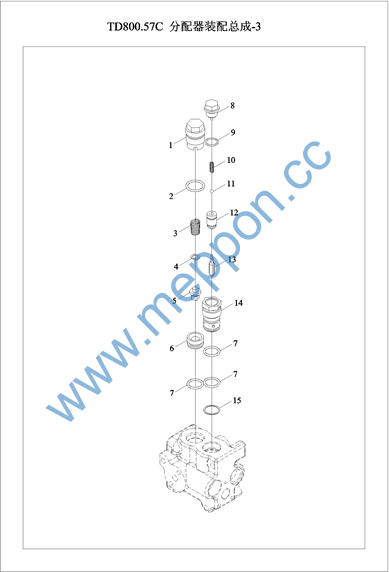

TD800.57C-3 57.3-分配器装配总成-3 DISTRIBUTOR INSTALLATION ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.57.020

分配器总成

DISTRIBUTER ASSEMBLY

1

2011-11_

1

T30.57.145B

单向阀堵塞

ONE-WAY VALVE PLUG

1

2011-11_

10

T30.57.140-1

下降阀弹簧

DOWNWARD VALVE SPRING

1

2011-11_

11

GBT308-φ5.0000G40b

钢球

BALL

1

2013-10_

11

GBT308-5-G100-b

钢球

BALL

1

2010-01_

12

T30.57.139

下降阀体

DOWNWARD VALVE BODY

1

2011-11_

13

T30.57.114

推销

PUSH PIN

1

2011-11_

14

T30.57.138

下降阀套

DOWNWARD VALVE SLEEVE

1

2011-11_

15

T30.57.159~161

调整垫片

ADJUSTING WASHER

999

2013-10_

2

GBT3452.1-22.4X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

1

2013-10_

2

FT800A.57.013

单面摩擦盘总成

SINGLE FRICTION DISC ASSEMBLY

1

2013-07_

3

T30.57.144B

单向阀弹簧

ONE-WAY VALVE SPRING

1

2011-11_

4

T30.57.164

单向阀体垫

ONE-WAY VALVE BODY GASKET

1

2011-11_

5

T30.57.142B

单向阀体

ONE-WAY VALVE BODY

1

2011-11_

6

T30.57.143B

单向阀座

ONE-WAY VALVE SEAT

1

2011-11_

7

GBT3452.1-19X2.65

液压气动用O形橡胶密封圈

O-SEAL RING

3

2011-11_

8

T30.57.137

下降阀堵塞

DOWNWARD VALVE PLUG

1

2011-11_

9

GBT3452.1-16X1.8

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_
