LOVOL TD820-1F461A4K Tractor Parts Catalogue 13
TD800.458 45.8-后连接装置总成 45.8–REAR CONNECTING EQUIPMENT ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT5782-M16X140-A2L |
六角头螺栓 |
BOLT |
4 |
2011-11_ |
|
10 |
GBT6170-M16-A3L |
螺母M16-A3L |
NUT M16-A3L |
8 |
2011-11_ |
|
2 |
GBT93-16-A0P |
弹簧垫圈 |
SPRING WASHER |
8 |
2011-11_ |
|
3 |
GBT96.1-16-A0P |
垫圈16-A0P |
WASHER |
8 |
2011-11_ |
|
4 |
FT800A.45.112 |
减震垫座 |
SHOCK ABSORBER SEAT |
8 |
2011-11_ |
|
5 |
FT800A.45.110 |
减震块 |
ABSORBER |
8 |
2011-11_ |
|
6 |
FT800A.45.111 |
间管 |
SPACER SPOOL |
4 |
2011-11_ |
|
7 |
FT800A.45.014 |
地板后连接焊合件 |
FLOOR REAR CONNECTING WELDMENT |
2 |
2011-11_ |
|
8 |
GBT5783-M16X90-8.8-A2L |
六角头螺栓 |
BOLT |
4 |
|
|
9 |
GBT97.1-16-A0P |
垫圈 |
WASHER |
4 |
2011-11_ |

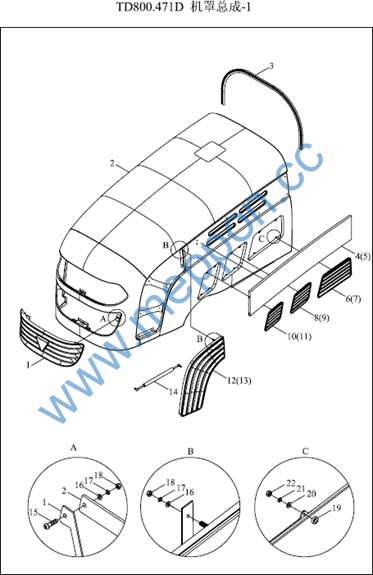

TD800.471D-1 47.1.1-机罩总成-1 BONNET ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
TG1204.471A-05 |
机罩前脸网眼板 |
BONNET FRONT MESH BOARD |
1 |
2011-11_ |
|
10 |
FT800B.47.306 |
左前下栅格 |
LEFT FRONT LOWER GRID |
1 |
2011-11_ |
|
11 |
FT800B.47.307 |
右前下栅格 |
RIGHT FRONT LOWER GRID |
1 |
2011-11_ |
|
11 |
FT800B.47.307 |
右前下栅格 |
RIGHT FRONT LOWER GRID |
1 |
2011-11_ |
|
12 |
TG1204.471A-03 |
机罩左侧网眼板 |
BONNET LEFT MESH PLATE |
1 |
2011-11_ |
|
12 |
TG1204.471A-03 |
机罩左侧网眼板 |
BONNET LEFT MESH PLATE |
1 |
2011-11_ |
|
13 |
TG1204.471A-04 |
机罩右侧网眼板 |
BONNET RIGHT MESH PLATE |
1 |
2011-11_ |
|
14 |
TD800.471-01 |
机罩气弹簧 |
BONNET PNEUMATIC SPRING |
2 |
2011-11_ |
|
15 |
GBT5783-M6X16－A3L |
螺栓 |
BOLT |
20 |
2013-07_ |
|
16 |
GBT97.1-6-A0P |
平垫圈 |
WASHER |
20 |
2011-11_ |
|
17 |
GBT93-6-A0P |
弹簧垫圈 |
SPRING WASHER |
20 |
2011-11_ |
|
18 |
GBT6170-M6-A2L |
螺母 |
NUT |
20 |
2011-11_ |
|
19 |
TB400B.471-18 |
垫块 |
PAD BLOCK |
24 |
2011-11_ |
|
2 |
TD800.471D.1 |
机罩焊合 |
BONNET WELDMENT |
1 |
2011-11_ |
|
20 |
GBT97.1-5-A0P |
垫圈 |
WASHER |
40 |
2011-11_ |
|
21 |
GBT93-5-A0P |
标准型弹簧垫圈 |
WASHER |
40 |
2011-11_ |
|
22 |
GBT6170-M5-A2L |
1型六角螺母 |
NUT |
40 |
2011-11_ |
|
3 |
FT800B.47.242 |
机罩密封条 |
BONNET SEAL STRIP |
1 |
2011-11_ |
|
4 |
FT800B.47.304 |
左后装饰板 |
LEFT REAR ADORN BOARD |
1 |
2011-11_ |
|
5 |
FT800B.47.305 |
右后装饰板 |
RIGHT REAR ADORN BOARD |
1 |
2011-11_ |
|
6 |
FT800B.47.310 |
左后下栅格 |
LEFT REAR LOWER GRID |
1 |
2011-11_ |
|
7 |
FT800B.47.311 |
右后下栅格 |
RIGHT REAR LOWER GRID |
1 |
2011-11_ |
|
7 |
FT800B.47.311 |
右后下栅格 |
RIGHT REAR LOWER GRID |
1 |
2011-11_ |
|
8 |
FT800B.47.308 |
左中下栅格 |
LEFT MIDDLE LOWER GRID |
1 |
2011-11_ |
|
9 |
FT800B.47.309 |
右中下栅格 |
RIGHT MIDDLE LOWER GRID |
1 |
2011-11_ |

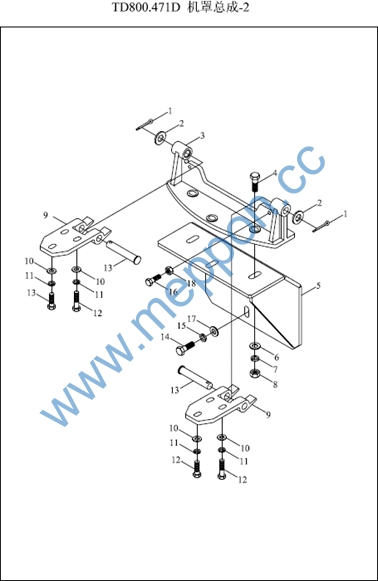

TD800.471D-2 47.1.2-机罩总成-2 BONNET ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT91-5X32-A0P |
开口销 |
PIN |
2 |
2011-11_ |
|
10 |
GBT97.1-10-A0P |
平垫圈 |
WASHER |
6 |
2011-11_ |
|
11 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
6 |
2011-11_ |
|
12 |
GBT5783-M10X30-A3L |
螺栓 |
BOLT |
6 |
2011-11_ |
|
13 |
GBT882-B16X90-A0P |
销轴 |
PIN |
2 |
2013-07_ |
|
14 |
GBT5783-M12X30-A3L |
螺栓 |
BOLT |
3 |
2011-11_ |
|
15 |
GBT93-12-A0P |
弹簧垫圈 |
SPRING WASHER |
3 |
2011-11_ |
|
16 |
GBT5783-M10X40-A3L |
螺栓 |
BOLT |
2 |
2011-11_ |
|
17 |
GBT97.1-12-A0P |
平垫圈 |
WASHER |
3 |
2011-11_ |
|
18 |
GBT6170-M10-A3L |
螺母 |
NUT |
2 |
2011-11_ |
|
2 |
GBT97.1-16-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
3 |
FT800B.47B.162 |
铰链下座 |
HINGE LOWER SEAT |
1 |
2011-11_ |
|
4 |
GBT5782-M12X50-A3L |
螺栓 |
BOLT |
3 |
2011-11_ |
|
5 |
TD800.471D.2.1 |
机罩下支架焊合 |
BONNET LOW BRACKET WELDMENT |
1 |
2011-11_ |
|
6 |
GBT97.1-12-A0P |
平垫圈 |
WASHER |
3 |
2011-11_ |
|
7 |
GBT93-12-A0P |
弹簧垫圈 |
SPRING WASHER |
3 |
2011-11_ |
|
8 |
GBT6170-M12-A3L |
螺母 |
NUT |
3 |
2011-11_ |
|
9 |
FT800B.47B.161 |
铰链上座 |
HINGE UPPER SEAT |
2 |
2011-11_ |

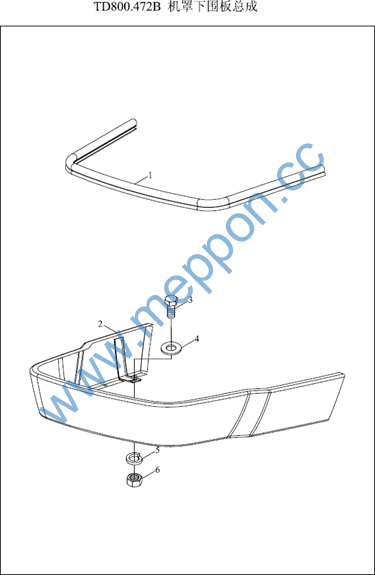

TD800.472B 47.2-机罩下围板总成 47.2-BONNET LOW PLATE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 3 4 5 |
FT800B.47.241 TD800.472B.1 GBT5783-M8X25-A2L GBT97.1-8-A0P GBT93-8-A0P |
机罩下围板密封条机罩下围板焊合 螺栓 平垫圈垫圈 |
BONNET LOW PLATE SEAL STRIP BONNET LOW PLATE WELDMENT BOLT WASHER WASHER |
1 1 6 6 6 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_ |

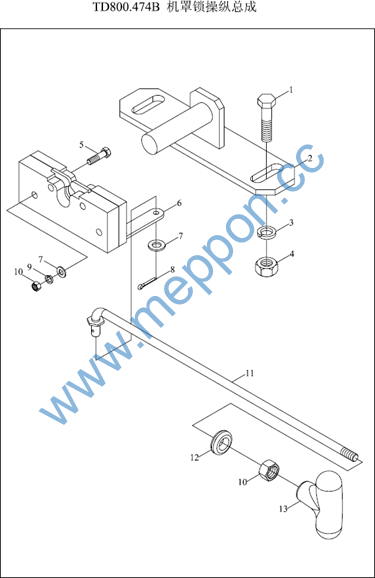

TD800.474B 47.4-机罩锁操纵总成 47.4-BONNET LOCK CONTROL ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT5783-M10X30-A3L |
螺栓 |
BOLT |
2 |
2011-11_ |
|
1 |
GBT5783-M8X30-A3L |
六角头螺栓全螺纹 |
BOLT |
2 |
2009-04_ |
|
10 |
GBT6170-M6-A2L |
螺母 |
NUT |
5 |
2011-11_ |
|
11 |
TD800.474B.2 |
拉杆焊合 |
WELDED PUSHING ROD |
1 |
2011-11_ |
|
12 |
TB450.473-02 |
胶圈 |
RUBBER RING |
1 |
2011-11_ |
|
13 |
FT800A.47.056 |
手柄总成 |
HANDLE ASSEMBLY |
1 |
2011-11_ |
|
2 |
TD800.474B.1 |
机罩锁柱焊合 |
BONNET LOCK COLUMN WELDMENT |
1 |
2011-11_ |
|
2 |
TD800.474B.1 |
机罩锁柱焊合 |
BONNET LOCK COLUMN WELDMENT |
1 |
2011-11_ |
|
3 |
GBT93-10-A0P |
标准型弹簧垫圈 |
WASHER |
2 |
2011-11_ |
|
4 |
GBT97.1-8-A0P |
平垫圈 |
WASHER |
2 |
2009-04_ |
|
4 |
GBT97.1-10-A0P |
平垫圈 |
WASHER |
2 |
2011-11_ |
|
5 |
GBT5783-M6X35-8.8-A1L |
六角头螺栓 |
BOLT |
4 |
|
|
6 |
TH350.473-01 |
机罩锁 |
BONNET LOCK |
1 |
|
|
6 |
TG1654.471A.2.1-01 |
机罩锁 |
BONNET LOCK |
1 |
2011-02_ |
|
7 |
GBT97.1-6-A0P |
平垫圈 |
WASHER |
5 |
2011-11_ |
|
8 |
GBT91-1.6X26-A0P |
开口销 |
PIN |
1 |
2011-11_ |
|
9 |
GBT93-6-A0P |
弹簧垫圈 |
SPRING WASHER |
4 |
2011-11_ |

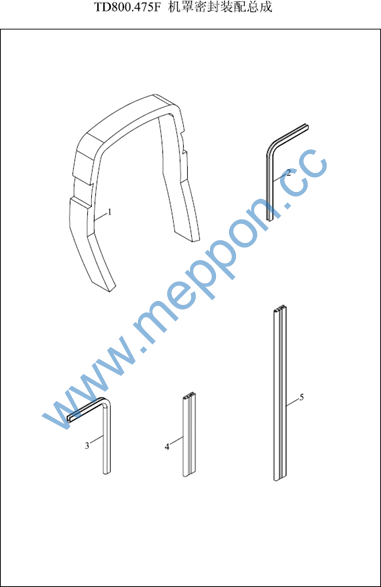

TD800.475F 47.5-机罩密封装配总成 47.5-BONNET SEAL INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 3 4 5 |
TD800.475F-01 TD800.475B-06 TD800.475F-04 TD800.475F-03 TD800.475F-02 |
密封块 密封压条 密封压条（一）密封条（二） 密封条（一） |
PACKING WASHER SEAL PRESSURE STRIP SEAL PRESSURE STRIP (1) SEALING STRIP (2) SEAL PIECE（1） |
1 1 1 1 2 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ 2011-11_ |

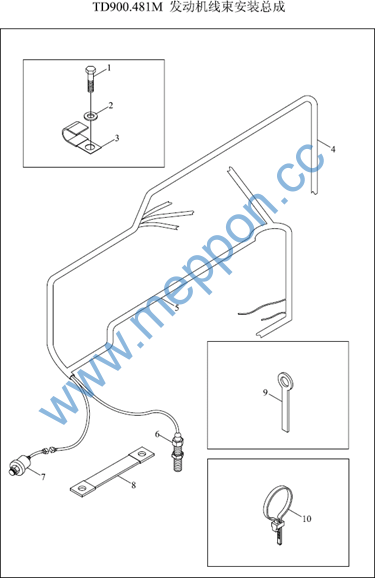

TD900.481M 48.1-发动机线束安装总成 48.1-ENGINE HARNESS INSTALLATION ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
10 |
Q67405100 |
塑料紧箍带 |
PLASTIC FASTEN STRIP |
6 |
2011-11_ |
|
2 |
GBT93-8-A0P |
垫圈 |
WASHER |
2 |
2011-11_ |
|
3 |
FT65.48.095 |
线束紧固夹（一） |
HARNESS TIGHTEN CLIP (1) |
2 |
2011-11_ |
|
4 |
FT800.48D.028 |
空调干燥器线束 |
AIR CONDITION DESICCATOR HARNESS |
1 |
2011-11_ |
|
5 |
TD900.481M.1 |
发动机线束总成 |
ENGINE HARNESS ASSEMBLY |
1 |
2011-11_ |
|
6 |
TD800.481F.2 |
转速传感器 |
RPM SENSOR |
1 |
2011-11_ |
|
7 |
FT700.48G.073a |
机油压力传感器 |
OIL PRESSURE SENSOR |
1 |
2004-01_ |
|
7 |
FT65.48.073a |
机油压力传感器 |
OIL PRESSURE SENSOR |
1 |
2010-01_ |
|
8 |
TD800.481F.3 |
搭铁线 |
WIRE GROUND |
1 |
2011-11_ |
|
9 |
TA600.486-01 |
线束紧固夹 |
HARNESS TIGHTEN CLIP |
1 |
2011-11_ |
