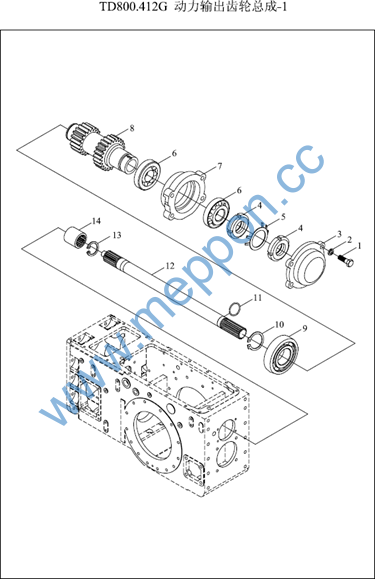

TD800.412G-1 41.2.1-动力输出齿轮总成-1 PTO GEAR ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X40-A3L

螺栓

BOLT

4



1

GBT5783-M10X45-A3L

螺栓

BOLT

4

2011-11_

10

GBT894.1-45

挡圈

RETAINER RING

1

2011-11_

11

GBT895.2-30

挡圈

RETAINER RING

1

2011-11_

12

FT800.41.105

动力输出传动轴

PTO TRANSMISSION SHAFT

1

2011-11_

13

GBT893.1-28

挡圈

RETAINER RING

1

2011-11_

14

FT800.37.106

动力输出轴连接套

PTO SHAFT CONNECTING SLEEVE

1

2011-11_

2

GBT93-10-A0P

标准型弹簧垫圈

WASHER

4

2011-11_

3

FT800A.41.117

双联齿轮轴承座压盖

DUAL GEAR BEARING SEAT PRESS COVER

1

2011-11_

4

GBT812-M48X1.5

螺母48X1.5

NUT

2

2004-01_

5

GBT858-48

圆螺母用止动垫圈

THRUST RING

1

2011-11_

6

GBT297-30210

圆锥滚子轴承

BEARING

2

2011-11_

7

FT800A.41.116

动力输出双联齿轮后轴承座

REAR BEARING SEAT OF PTO DUAL GEAR

1

2011-11_

8

TD800.412G-01

动力输出主动双联齿轮

PTO DRIVING DUAL GEAR

1

2011-11_

9

GBT276-6309

深沟球轴承

BEARING

1

2011-11_

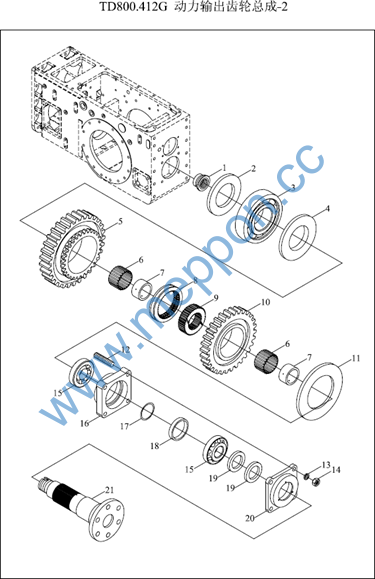

TD800.412G-2 41.2.2-动力输出齿轮总成-2 PTO GEAR ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.139

动力输出传动轴锁紧螺母

PTO TRANSMISSION SHAFT LOCKNUT

1

2011-11_

10

TD800.412G-02

动力输出高档被动齿轮

PTO HIGH GEAR DRIVEN GEAR

1

2011-11_

11

FT800A.41.142

动力输出传动轴后挡圈

REAR CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_

12

GBT899-AM14-M14X1.5X65-A3L

双头螺柱

8.8-A3L STUD

4

2011-11_

12

GBT899-AM14-M14X1.5X65-A3L

双头螺柱

8.8-A3L STUD

4

2011-11_

13

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

13

GBT93-14-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_

14

GBT6176-M14X1.5-A3L

2型六角螺母

HEXAGON NUT, TYPE-2

4

2011-11_

15

GBT297-30212

圆锥滚子轴承

BEARING

2

2011-11_

16

FT800A.41.124

动力输出传动轴后轴承座

REAR BEARING SEAT OF PTO TRANSMISSION

1

2011-11_


SHAFT



17

FT800A.41.152

调整垫片



9999

2011-11_

18

FT800A.41.153

挡圈

ADJUSTING WASHER

1

2004-01_

19

GBT9877.1-FB70X90X10D

内包骨架旋转轴唇形密封

RETAINER RING

2

2011-11_

2

FT800A.41.140

动力输出传动轴前挡圈

O RING

1

2011-11_

20

FT800A.41.125

动力输出传动轴后油封座

FRONT CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_


REAR OIL SEAL SEAT OF PTO TRANSMISSION



21

FT800A.41.108

动力输出传动轴

SHAFT

1

2011-11_

3

GBT276-6210

深沟球轴承



1

2011-11_

4

FT800A.41.141

动力输出传动轴中间挡圈

PTO TRANSMISSION SHAFT

1

2011-11_

4

FT800A.41.141

动力输出传动轴中间挡圈

BEARING

1

2011-11_

5

TD800.412F-03

动力输出低档被动齿轮

MIDDLE CIRCLIP OF PTO TRANSMISSION SHAFT

1

2011-11_


MIDDLE CIRCLIP OF PTO TRANSMISSION SHAFT



6

QLWZB120-K68X78X34

滚动轴承

PTO LOW GEAR DRIVEN GEAR

2

2011-11_

7

FT800A.41.113

动力输出高档齿轮滑套



2

2011-11_

8

FT800.37.118

Ⅲ-Ⅳ档啮合套

ROLLING BEARING

1

2011-11_

9

FT800.37.119

Ⅲ-Ⅳ档啮合齿座

PTO HIGH GEAR SLIDING SLEEVE

1

2011-11_


Ⅲ-Ⅳ SHIFT COLLAR

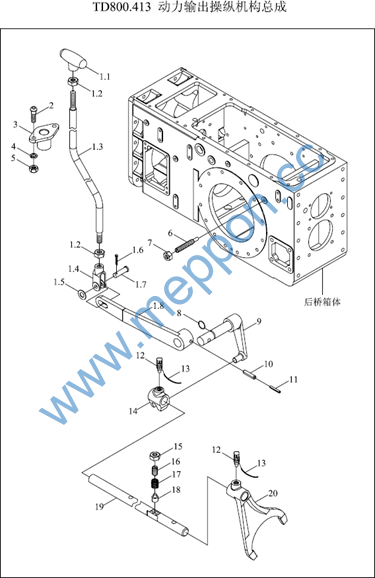

TD800.413 41.3-动力输出操纵机构总成 41.3-PTO CONTROL MECHANISM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT800A.41.147

动力输出操纵杆

PTO CONTROL ROD

1

2011-11_

1.1

FT800A.41.013

动力输出操纵杆总成

PTO CONTROL ROD ASSEMBLY

1

2011-11_

1.2

GBT6170-M10-A2L

螺母

NUT

2

2004-01_

1.3

FT65.38.051

拉压手柄

PULL/PRESS HANDLE

1

2011-11_

1.4

FT804.42.150

拉杆前叉

PULL ROD FRONT FORK

1

2011-11_

1.5

GBT97.1-8-A0P

平垫圈

WASHER

1

2004-01_

1.6

GBT91-3X20-A0P

开口销

PIN

1

2013-07_

1.7

GBT882-B8X26-A2L

销轴

PIN

1

2004-01_

1.8

FT800A.41.146

动力输出摇臂

PTO ROCKER

1

2013-07_

10

GBT879.1-8X35

弹性圆柱销

PIN

1



11

GBT879.1-5X35

弹性圆柱销

PIN

1

2011-11_

12

FT800.37.194

紧定螺钉

LOCKING SCREW

2

2011-11_

13

FT800A.41.241

热镀锌钢丝

ZINC-COATED STEEL WIRE

2

2011-11_

14

FT800.41.240

拨头

FORK HEAD

1

2011-11_

15

GBT6172.1-M16-A3L

螺母

NUT

1

2011-11_

16

TD800.41-03

锥端紧定螺钉

TAPER LOCKING SCREW

1

2011-11_

17

FT800.41.246

锁定销弹簧

LOCKING PIN SPRING

1

2011-11_

17

FT800.41.246

锁定销弹簧

LOCKING PIN SPRING

1

2011-11_

18

FT800.41.245

锁定销

LOCKING PIN

1

2011-11_

19

FT800.41.106a

拨插轴

FORK SHAFT

1

2010-05_

19

FT800.41.106

拨叉轴

FORK SHAFT

1



2

GBT818-M6X16-A2L

十字槽盘头螺钉

SCREW

2

2004-01_

20

FT800A.41.114

动力输出高低档拨叉

PTO HIGH AND LOW GEAR FORK

1

2011-11_

3

FT800A.41.173

密封衬座

SEAL LINER SEAT

1

2011-11_

4

GBT93-6-A0P

弹簧垫圈

SPRING WASHER

2

2004-01_








TD800.413 41.3-动力输出操纵机构总成(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

GBT6170-M6-A2L TD800.41-04 GBT6170-M12-A3L GBT3452.1-17X1.8G FT800.41.011

螺母

紧定螺钉螺母

液压气动用O形橡胶密封圈动力输出操纵内摇臂总成

NUT

LOCKING SCREW NUT

O-SEAL RING

PTO CONTROL INNER ROCKER ASSEMBLY

2

1

1

1

1

2004-01_

2011-11_





2011-11_

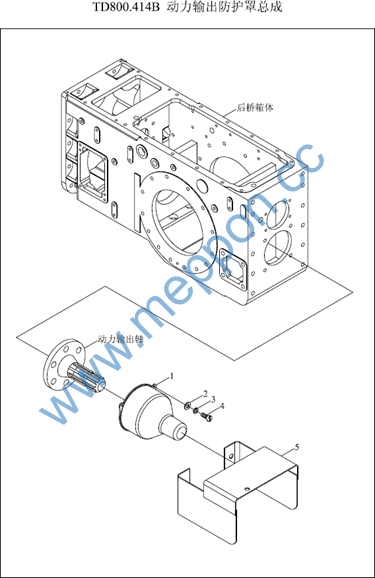

TD800.414B 41.4-动力输出防护罩总成 41.4-PTO BONNET INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5

TD800.411A-02 GBT97.1-5-A0P GBT93-5-A0P GBT65-M5X12-A2L FT800A.41.016

动力输出轴头护罩垫圈

标准型弹簧垫圈开槽圆柱头螺钉防护罩焊合

PTO SHAFT HOOD SHIELD WASHER

WASHER SCREW

SHIELD WELDMENT

1

2

2

2

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

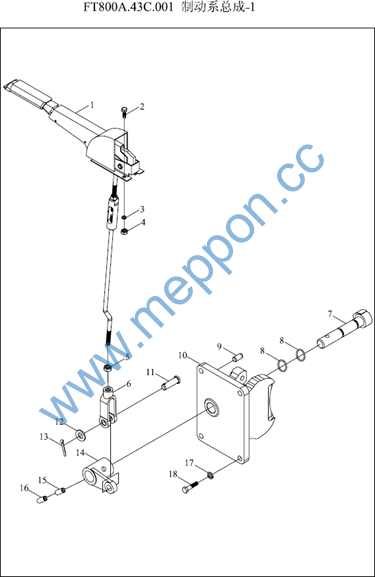

FT800A.43C.001 43-制动系总成 43-BRAKE SYSTEM ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

0

FT800A.43C.001-1

43.1-制动系总成-1

43BRAKING SYSTEM ASSEMBLY-1

0

2011-11_

0

FT800A.43C.001-2

43.2-制动系总成-2

43BRAKING SYSTEM ASSEMBLY-2

0

2011-11_

0

FT800A.43C.001-3

43.3-制动系总成-3

43BRAKING SYSTEM ASSEMBLY-3

0

2011-11_

0

FT800A.43C.001-5

43.5-制动系总成-5

43BRAKING SYSTEM ASSEMBLY-5

0

2011-11_

0

FT800A.43C.001-6

43.6-制动系总成-6

43BRAKING SYSTEM ASSEMBLY-6

0

2011-11_

0

FT800A.43C.001-7

43.7-制动系总成-7

BREAKE SYSTEM ASSEMBLY-7

0

2011-11_

0

FT800A.43C.001-4

43.4-制动系总成-4

43BRAKING SYSTEM ASSEMBLY-4

0

2011-11_

11

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

9

GBT882-B10X30

销轴

PIN

1

2011-11_
