LOVOL TD1SA904-013K Tractor Parts Catalogue 27

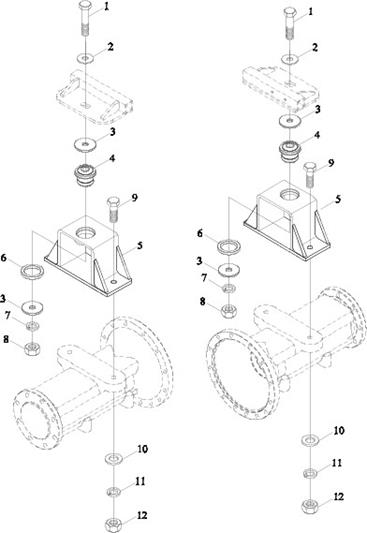

TS06458010000 REAR CONNECTING ASSEMBLY
TS06458010000 REAR CONNECTING ASSEMBLY
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
TS06458010000 |
REARCONNECTINGASSEMBLY |
1 |
|||
|
1 |
GBT5782-M20X100-10.9-A3L |
HEXAGON BOLT |
2 |
||
|
2 |
TS06457010011 |
FRONT CONNECTING WASHER |
2 |
||
|
3 |
TD800.457B.1-02 |
RETAINER RING (2) |
4 |
||
|
4 |
TS06457010010 |
SHOCK ABSORBER |
2 |
||
|
5 |
TS06458010002 |
SEAT WELDMENT |
2 |
||
|
6 |
TS04457010023 |
RUBBER RING |
2 |
||
|
7 |
GBT93-20-A0P |
STANDARD SPRING WASHER |
2 |
||
|
8 |
GBT6170-M20-10-A3L |
HEXAGON NUT, TYPE-1 |
2 |
||
|
9 |
GBT5783-M16X80-10.9-A3L |
HEXAGON BOLT |
4 |
||
|
10 |
GBT97.1-16-A0P |
FLAT WASHER |
4 |
||
|
11 |
GBT93-16-A0P |
STANDARD SPRING WASHER |
4 |
||
|
12 |
GBT6170-M16-10-A3L |
HEXAGON NUT, TYPE-1 |
4 |

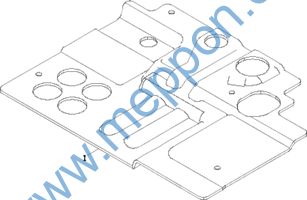

TS06459010000 INSULATION LAYER
TS06459010000 INSULATION LAYER
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
1 |
TS06459010000 TS06459010001 |
INSULATION LAYER INSULATIONLAYER |
1 1 |

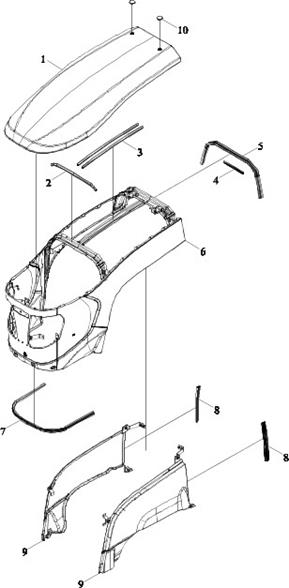

TS06471010000 BONNET ASSEMBLY-1
TS06471010000 BONNET ASSEMBLY-1
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
1 |
TS06471012001 |
BONNET UP COVER PLATE |
1 |
||
|
2 |
TS06471010007 |
FRONT SHOCK WASHER |
1 |
||
|
3 |
TS06471010004 |
MIDDLE SHOCK WASHER |
2 |
||
|
4 |
TS06471010008 |
BACK SHOCK RUBBER STRIP |
1 |
||
|
5 |
TS06471010001 |
BONNET REAR SEAL STRIP |
1 |
||
|
6 |
TS06471011000 |
BONNET WELDMENT ASSEMBLY |
1 |
||
|
7 |
TS06471010002 |
FRONT LOWER CUSHION RUBBER PIECE |
1 |
||
|
8 |
TS06471010006 |
SEAL STRIP |
2 |
||
|
9 |
TS06471014000 |
LOWER SIDE PLATE |
1 |
||
|
10 |
TS06471010005 |
RUUBERPLUG |
2 |

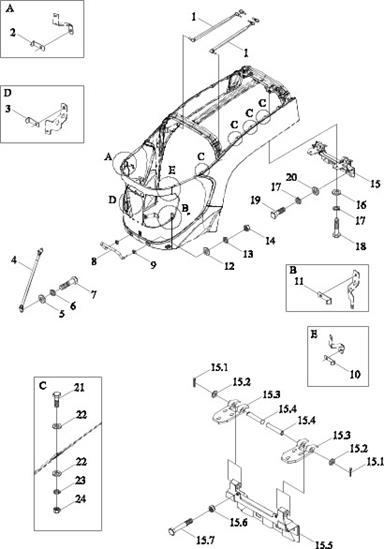

TS06471010000 BONNET ASSEMBLY-2
TS06471010000 BONNET ASSEMBLY-2
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
1 |
TS06471019000 |
BONNET PNEUMATIC SPRING ASSEMBLY |
2 |
||
|
2 |
TS06471011040 |
UPTER SUPPORT PLATE |
1 |
||
|
3 |
TS06471011041 |
LOWER SUPPORT PLATE |
1 |
||
|
4 |
TS06471010003 |
BONNET PULL WIRE |
1 |
||
|
5 |
GBT97.1-8-A0P |
FLAT WASHER |
1 |
||
|
6 |
GBT93-8-A0P |
STANDARD SPRING WASHER |
1 |
||
|
7 |
GBT5783-M8X20-8.8-A2L |
HEXAGON BOLT |
1 |
||
|
8 |
TS04471010003 |
HANDLE |
1 |
||
|
9 |
TD800.471A-05 |
WASHER |
2 |
||
|
10 |
TS06471011038 |
SUPPORT PLATE |
1 |
||
|
11 |
TS06471011039 |
SUPPORT PLATE |
1 |
||
|
12 |
GBT97.1-12-A0P |
FLAT WASHER |
2 |
||
|
13 |
GBT93-12-A0P |
STANDARD SPRING WASHER |
6 |
||
|
14 |
GBT6170-M12-8-A3L |
HEXAGON NUT, TYPE-1 |
2 |
||
|
15 |
TS06471013000 |
BONNET HINGE ASSEMBLY |
1 |
||
|
15.1 |
GBT91-5X32-A0P |
SPLIT PIN |
2 |
||
|
15.2 |
GBT97.1-16-A0P |
FLAT WASHER |
2 |
||
|
15.3 |
FT800B.47B.161 |
HINGE UPPER SEAT |
2 |
||
|
15.4 |
GBT882-B16X90-A0P |
PIN SHAFT |
2 |
||
|
15.5 |
TS06471013001 |
BONNET LOW BRACKET WELDMENT |
1 |
||
|
15.6 |
GBT6170-M8-8-A2L |
HEXAGON NUT, TYPE-1 |
2 |
||
|
15.7 |
GBT5783-M8X50-8.8-A2L |
HEXAGON BOLT |
2 |
||
|
16 |
GBT97.1-10-A0P |
FLAT WASHER |
6 |
TS06471010000 BONNET ASSEMBLY-2 (cont’d.)
|
No. |
Part No. |
Description |
Version |
QTY. |
Remark |
|
17 |
GBT93-10-A0P |
STANDARD SPRING WASHER |
6 |
||
|
18 |
GBT5783-M10X35-8.8-A3L |
HEXAGON BOLT |
6 |
||
|
19 |
GBT5783-M12X35-8.8-A3L |
HEXAGON BOLT |
4 |
||
|
20 |
GBT96.1-12-A0P |
BIG WASHER |
4 |
||
|
21 |
GBT5783-M6X16-8.8-A2L |
HEXAGON BOLT |
21 |
||
|
22 |
GBT97.1-6-A0P |
FLAT WASHER |
36 |
||
|
23 |
GBT93-6-A0P |
STANDARD SPRING WASHER |
21 |
||
|
24 |
GBT6170-M6-8-A2L |
HEXAGON NUT, TYPE-1 |
21 |
TS06473020000 BONNET PNEUMATIC SPRING BRACKET ASSEMBLY
