FT800A.44.001 44-座椅安装总成 44SEAT INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

2

3

4

FT800A.44.011 GBT5783-M12X35-A3L GBT5783-M12X35-A3L GBT93-12-A0P GBT97.1-12-A0P

座椅总成螺栓

螺栓

弹簧垫圈平垫圈

SEAT ASSEMBLY BOLT

BOLT

SPRING WASHER WASHER

1

4

4

4

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_







TD824.452 45.2-地板总成 45.2-FLOOR ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark


TD824.452-2 TD824.452-1

地板总成-2地板总成-1

FLOOR ASSEMBLY-2 FLOOR ASSEMBLY-1



2012-05_

2012-05_








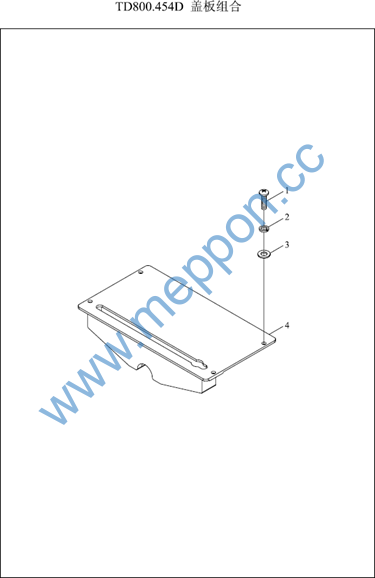

TD800.454D 45.4-盖板组合 45.4-COVER PLATE COMBINATION



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

GBT818-M5X16-A2L GBT93-5-AOP GBT97.1-5-AOP FT800A.45.097

十字槽盘头螺钉标准型弹簧垫圈平垫圈

盖板组合

SCREW WASHER WASHER

COVER PLATE COMBINATION

4

4

4

1





2011-11_

2011-11_

2011-11_








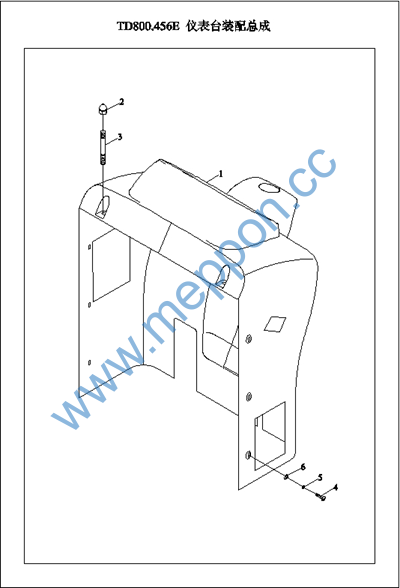

TD800.456E 45.6-仪表台装配总成 45.6-DASHBOARD INSTALLATION ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

TD800.456E.1 FT65.45.999

GBT901-M6X40-8.8-A1L GBT818-M6X20-4.8-A2L GBT93-6-A0P



GBT97.1-6-A0P

仪表台总成 1型六角螺母等长双头螺柱

十字槽盘头螺钉弹簧垫圈



平垫圈

DASHBOARD ASSEMBLY NUT

STUD SCREW

SPRING WASHER WASHER

1

2

2

6

6



6

2012-05_

2012-05_

2012-05_

2012-05_

2012-05_



2012-05_








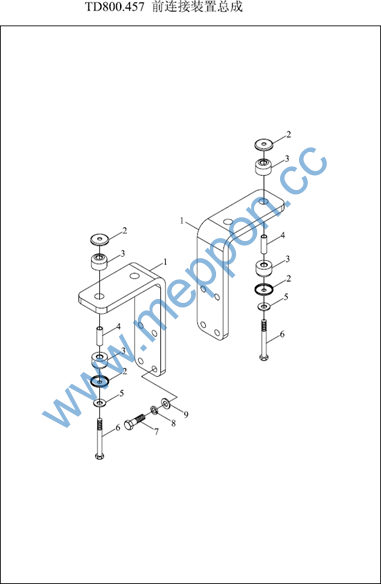

TD800.457 45.7-前连接装置总成 45.7-FRONT CONNECTION EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TD800.457-01

前连接板

FRONT CONNECTING PLATE

2

2011-11_

2

FT800A.45.112

减震垫座

SHOCK ABSORBER SEAT

8

2011-11_

3

FT800A.45.110

减震块

ABSORBER

8

2011-11_

4

FT800A.45.111

间管

SPACER SPOOL

4

2011-11_

5

GBT96-16-A0P

大垫圈

WASHER

4

2011-11_

6

GBT5782-M16X130-A2L

六角头螺栓

BOLT

4

2011-11_

7

GBT5783-M16X45

螺栓

BOLT

8



8

GBT97.1-16-A0P

垫圈

WASHER

8

2011-11_

9

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

8

2011-11_








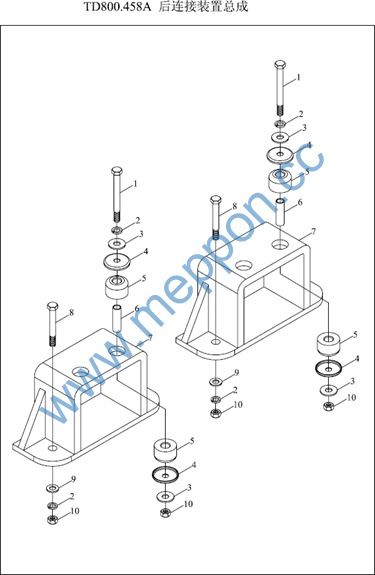

TD800.458A 45.8-后连接装置总成 45.8–REAR CONNECTING EQUIPMENT ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5782-M16X160-A2L

六角头螺栓

BOLT

4

2011-11_

10

GBT6170-M16-A3L

螺母 M16-A3L

NUT

8

2011-11_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

8

2011-11_

3

GBT96.1-16-A0P

垫圈16-A0P

WASHER

8

2011-11_

4

FT800A.45.112

减震垫座

SHOCK ABSORBER SEAT

8

2011-11_

5

FT800A.45.110

减震块

ABSORBER

8

2004-01_

5

TD800.457B.1.2

减震块

ABSORBER

8

2009-06_

5

TD800.457B.1.2

减震块

ABSORBER

8

2009-06_

6

FT800A.45.111

间管

SPACER SPOOL

4

2011-11_

7

FT800A.45C.014

地板后连接焊合件

FLOOR REAR CONNECTING WELDMENT

2

2011-11_

8

GBT5783-M16X90-8.8-A2L

六角头螺栓

BOLT

4

2004-01_

9

GBT97.1-16-A0P

垫圈

WASHER

4

2011-11_








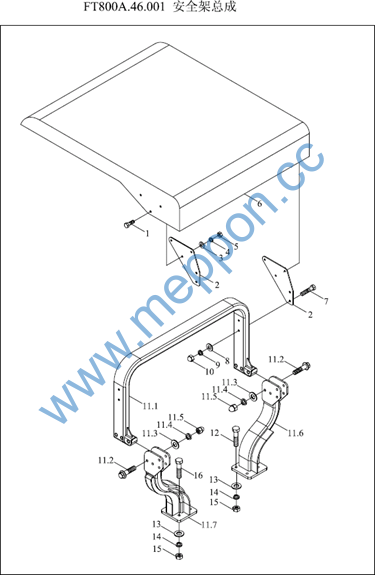

FT800A.46.001 46-安全架总成 46-SAFETY FRAME ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M10X30-A3L

螺栓

BOLT

6

2011-11_

10

GBT802-M12-A2L

螺母

NUT

4



11

FT800A.46.040

支撑梁安装总成

SUPPORT BEAM INSTALLATION ASSEMBLY

1

2011-11_

11

FT800A.46.040

支撑梁安装总成

SUPPORT BEAM INSTALLATION ASSEMBLY

1

2011-11_

11.1

FT800A.46.010

安全架上梁总成

SAFETY FRAME UPPER BEAM ASSEMBLY

1

2011-11_

11.1

FT800A.46.010

安全架上梁总成

SAFETY FRAME UPPER BEAM ASSEMBLY

1

2011-11_

11.2

GBT5782-M16X100-A2L

六角头螺栓

BOLT

6

2011-11_

11.3

GBT95-16-A0P

垫圈

WASHER

6

2011-11_

11.4

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

6

2011-11_

11.5

GBT802-M16

组合式盖形螺母

NUT

6



11.6

FT800A.46.030

右支撑梁总成

RIGHT SUPPORT BEAM ASSEMBLY

1

2011-11_

11.7

FT800A.46.020

左支撑梁总成

LEFT SUPPORT BEAM ASSEMBLY

1

2011-11_

12

GBT5782-M16X90-A2L

六角头螺栓

BOLT

8

2011-11_

13

GBT96-16-A0P

大垫圈

WASHER

8

2011-11_

14

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

8

2011-11_

15

GBT6170-M16-A3L

螺母 M16-A3L

NUT

8

2011-11_

2

FT800A.46.101

遮阳棚固定板

SHADOW LOCKING PLATE

2

2011-11_

3

FT400.46.021

垫圈合件

WASHER UNIT

6

2011-11_

4

GBT93-10-A0P

标准型弹簧垫圈

WASHER

6

2011-11_

5

GBT802-M10-6

组合式盖形螺母

NUT

6

2011-11_

6

FT65.46A.012

遮阳棚总成

SHADOW ASSEMBLY

1

2004-01_

6

FT800A.46.480

遮阳棚

SHADOW

1

2011-05_

7

GBT5782-M12x80-A2L

螺栓

BOLT

4

2011-11_

8

GBT95-12-A0P

垫圈12-A0P

WASHER

4

2011-11_

9

GBT93-12-A0P

弹簧垫圈

SPRING WASHER

4

2011-11_
