TA700.56E-1 56.1-悬挂机构总成-1(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

5

6

7

8

9

FT700.56D.103 FT700.56D.102 GBT6170-M8-A3L GBT5783-M8X25-A3L

GBT899-GM16-M16X50-10.9-A3L

隔套 连接板螺母 螺栓

双头螺柱

SPACER BUSH CONNECTING PLATE NUT

BOLT

8.8-A3L STUD

2

1

1

1

4

2013-01_

2013-01_

2013-01_

2013-01_

2013-01_










TA700.56E-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT700.56D.013a

下拉杆焊接总成

LOWER PULL ROD WELDMENT ASSEMBLY

2

2013-01_

1

FT700.56D.013a

下拉杆焊接总成

LOWER PULL ROD WELDMENT ASSEMBLY

2

2013-01_

10

TA700.56D.2a

限位链左支架焊合

LIMIT CHAIN LEFT STENTS AND WELDING

1

2013-01_

11

FT65.56.106

下拉杆联接销

LOWER PULL ROD CONNECTING PIN

2

2013-01_

12

GBT93-12-A0P

垫圈

WASHER

2

2013-01_

13

FT65.56.107

定位螺钉

LOCATING SCREW

2

2013-01_

2

TA700.56D.1a

限位链总成

LIMIT CHAIN ASSEMBLY

2

2013-01_

2.1

TD800.56G.1-02

连接叉

CONNECTING ROD FORK

1

2013-01_

2.2

TA700.56D.1.2

左旋调节螺栓总成

LEVOROTATORY ADJUSTING BOLT ASSEMBLY

1

2013-01_

2.3

GBT6170-M20-LH-8-A9L

1型六角螺母

NUT

1

2013-01_

2.4

TA700.56D.1-01

调节螺管

ADJUSTING SOLENOID

1

2013-01_

2.5

GBT6170-M20-8-A3L

1型六角螺母

NUT

1

2013-01_

2.6

TA700.56D.1.1

右旋调节螺栓总成

DEXTRAL ADJUSTING BOLT ASSEMBLY

1

2013-01_

3

TA700.56D-02a

限位链前联接销

LIMIT CHAIN LINK PIN

2

2013-01_

5

TA700.56D.3a

限位链右支架焊合

LIMIT CHAIN RIGHT STENTS AND WELDING

2

2013-01_

6

TA700.56D-01a

套

COVER

4

2013-01_

7

TD800.56G.4

锁链总成

CHAINS ASSEMBLY

2

2013-01_

8

GBT93-24-A0P

标准型弹簧垫圈

WASHER

2

2013-01_

9

GBT6171-M24X2-8-A3L

1型六角螺母

NUT

2

2013-01_

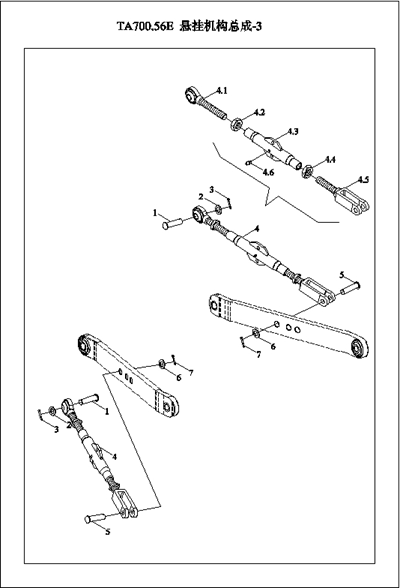

TA700.56E-3 56.3-悬挂机构总成-3 SUSPENSION ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.56.102

提升杆上联接销

LIFTING ROD UPPER CONNECTING PIN

2

2013-01_

2

FT65.56.103

垫圈

WASHER

2

2013-01_

3

GBT91-5X32-A0P

开口销

PIN

2

2013-01_

4

FT65.56.012b

提升杆总成

LIFTING ROD ASSEMBLY

2

2013-01_

4

TA700.56A.5

提升杆总成

LIFTING ROD ASSEMBLY

2

2013-04_

4.1

FT65.56.025a

提升杆上调节杆组合

LIFTING ROD UPPER ADJUSTING ROD

1

2013-01_

4.2

FT65.56.117

锁紧螺母右

COMBINATION

1

2013-01_

4.3

FT65.56.024

提升杆螺套焊合件

LOCKING NUT (RIGHT)

1

2013-01_

4.4

FT65.56.150

锁紧螺母左

LIFTING ROD SCREW SLEEVE WELDMENT

1

2013-01_

4.5

FT65.56.116a

提升杆下联接叉

LOCKING NUT (LEFT)

1

2013-01_


LIFTING ROD LOWER CONNECTING FORK



4.6

JBT7940.1-M6

直通式压注油杯



1

2013-01_

5

FT65.56.151

提升杆下联接销

STRAIGHT PRESSURE FILLING OIL CUP

2

2013-01_

6

FT65.56.152

垫圈

LIFTING ROD LOWER CONNECTING PIN

2

2013-01_

7

GBT91-6.3X45-A0P

开口销

WASHER

2

2013-01_


PIN










FT700.74B.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT6170-M16-A3L

螺母 M16-A3L

NUT

2

2011-11_

10

FT650.74.107

牵引耳

TOWING LUG

1

2011-11_

11

GBT97.1-20-A0P

垫圈

WASHER

2

2011-11_

11

GBT97.1-20-A0P

垫圈

WASHER

2

2011-11_

12

GBT5785-M20X1.5X80-A3L

螺栓

BOLT

2

2011-11_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

10

2011-11_

3

GBT97.1-16-A0P

垫圈

WASHER

10

2011-11_

4

FT700.74B.010

右固定块焊接总成

RIGHT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

5

GBT5783-M16X35-A3L

六角头螺栓

BOLT

8

2011-11_

6

FT700.74B.011

左固定块焊接总成

LEFT FIXING BLOCK WELDMENT ASSEMBLY

1

2011-11_

7

FT700.74B.106a

配重块

BALLAST

11

2011-11_

8

F700.74B.107

联接螺栓

CONNECTING BOLT

1

2011-11_

9

TA700.741-02

牵引板

TOWING PLATE

2

2009-12_

9

FT650.74.108

牵引螺母

TOWING NUT

2

2004-01_

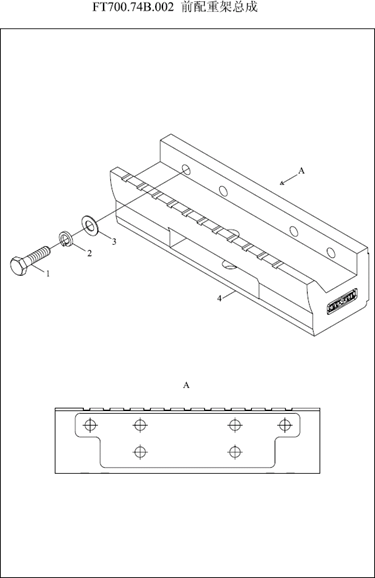

FT700.74B.002 74-前配重架总成 74-FRONT BALLAST BRACKET ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

GBT5785-M18X1.5X70-10.9-A3L GBT93-18-AOP

GBT97.1-18-A0P FT700.74B.105a

六角头螺栓弹簧垫圈 平垫圈

配重架

BOLT

SPRING WASHER WASHER

BALLAST BRACKET

6

6

6

1

2004-01_

2004-01_

2004-01_

2011-11_








FT650.91.001 91-后配重总成 91-REAR BALLAST ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT5783-M16X40-A3L

六角头螺栓

BOLT

6

2011-11_

2

GBT93-16-A0P

弹簧垫圈

SPRING WASHER

6

2012-09_

3

FT650.34.104

垫圈

WASHER

6

2011-11_

4

FT650.34.101

后配重

REAR BALLAST

6

2011-11_

5

FT650.34.103

后配重螺钉

REAR BALANCE WEIGHT SCREW

12

2011-11_

6

FT650.34.102

后配重螺钉1

REAR BALLAST SCREW 1

6

2011-11_

7

GBT97.1-16-140HV

垫圈

WASHER

6



8

GBT6170-M16-A3L

螺母 M16-A3L

NUT

6

2011-11_








1004C-P4TRT75N06-1 气缸体-1 CYLINDER BLOCK-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TZZ50265

机体（总成）

CYLINDER BLOCK ASSEMBLY

1

2011-11_

10

T32418124

碗堵

COREHOLE PLUG

1

2011-11_

11

T31134165

衬套

SLEEVE

1

2011-11_

12

T32416119

堵

PLUG

1

2011-11_

13

T32417134

堵

PLUG

1

2011-11_

14

T64404002

堵

PLUG

1

2011-11_

15

T0650588

堵

PLUG

1

2011-11_

16

T32168212

堵

PLUG

1

2011-11_

17

T714030009

垫圈

WASHER

1

2011-11_

18

T4138A017

冷却喷嘴阀

PISTON COOLING JET

4

2011-11_

19

T3861A027

冷却喷嘴总成

COOLING NOZZLE ASSEMBLY

4

2011-11_

2

T3711H121

机体

BLOCK

1

2011-11_

20

T721050003

后油封

REAR OIL SEAL

1

2011-11_

21

T3211C002

螺栓

BOLT

6

2011-11_

22

T3211C002

螺栓

BOLT

4

2011-11_

3

T3135X062

缸套

CYLINDER LINER

4

2011-11_

4

T32166329

大瓦螺栓

BOLT

10

2011-11_

5

T3271H004A

介轮轴

SHAFT

1

2011-11_

6

T3774A004

挺杆腔堵

PLUG

4

2011-11_

7

T33142111

定位套

LOCATING SLEEVE

10

2011-11_

8

T32418122

碗堵

COREHOLE PLUG

6

2011-11_

9

T0650710

碗堵

COREHOLE PLUG

6

2011-11_
