TA704.311-6 31.6-前驱动桥总成-6 FRONT DRIVING AXLE ASSEMBLY-6



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

.2

704.31.015

主动锥齿轮总成

DRIVING TAPER GEAR ASSEMBLY

1

2011-11_

1

504.31.155-2

主动圆锥齿轮

DRIVING TAPER GEAR

1

2011-11_

10

HG4-692-67-SD50X72X12

油封

OIL SEAL

1

2011-11_

11

504.31.157-2A

隔圈



1

2011-11_

12

504.31.159-1

螺母

NUT

1

2011-11_

13

504.31.150

后骨架油封

REAR FRAMEWORK OIL SEAL

1

2011-11_

14

504.31.152

后摆轴防尘罩

REAR SWING SHAFT DUSTPROOF COVER

1

2011-11_

15

GBT1152-M10X1

油杯

OIL CUP

8

2011-11_

16

704.31.171

后摆轴轴承座

REAR SWING SHAFT BEARING SEAT

1

2011-11_

17

504.31.170-1

后衬套

REAR BUSH

1

2011-11_

2

GBT308-5

钢球

BALL

1

2011-11_

3

GBT3452.1-31.5X1.8

液压气动用O形橡胶密封圈

O-SEAL RING

1

2011-11_

4

GBT297-30308

轴承

BEARING

1

2011-11_

5

GBT1235-110X3.1

O形圈

O-RING

1

2011-11_

5

GBT1235-110X3.1

O形圈

O-RING

1

2011-11_

6

504.31.156

调整垫片

ADJUSTING WASHER

1

2011-11_

6

504.31.156

调整垫片

ADJUSTING WASHER

1

2011-11_

7

504.31.154-2

主动原锥齿轮轴承座

DRIVING TAPER GEAR BEARING SEAT

1

2011-11_

8

GBT297-32207

圆锥滚子轴承

BEARING

1

2011-11_

9

504.31.153-1

隔套

SPACER BUSH

1

2011-11_


504.31.170

后衬套

REAR BUSH

1

1998-08_

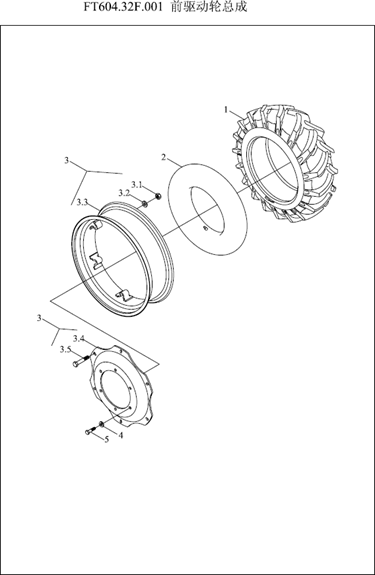

FT604.32F.001 32-前驱动轮总成 32-FRONT DRIVING WHEEL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT2979-8.3-24-6PR-R

拖拉机驱动轮普通断面斜交结构外胎

DRIVING WHEEL OUTER TUBE

2

2013-02_

1

GBT2979-8.3-24-6PR

拖拉机驱动轮普通断面斜交结构外胎

DRIVING WHEEL OUTER TUBE

2

2004-01_

2

GBT2979-8.3-24-R

拖拉机驱动轮内胎

DRIVING WHEEL INNER TUBE

2

2013-02_

2

GBT2979-8.3-24

拖拉机驱动轮内胎

DRIVING WHEEL INNER TUBE

2

2004-01_

3

FT604.32F.011

轮辋辐板总成

RIM SPOKE ASSEMBLY

2

2011-11_

3.1

GBT6171-M16X1.5-10-A3L

1型六角螺母

NUT

12

2011-11_

3.2

FT800.34.108

平垫圈

WASHER

12

2011-11_

3.3

FT604.32F.012

轮辋焊合

WHEEL RIM WELD

2

2011-11_

3.4

FT654.32.102

辐板

SPOKE PLATE

2

2011-11_

3.5

FT650.34.107

轮辋螺栓

RIM BOLT

12

2011-11_

4

FT654.32.104

垫圈

WASHER

12

2011-11_

4

FT654.32.104

垫圈

WASHER

12

2011-11_

5

GBT5786-M16X1.5X40-10.9-A3L

六角头螺栓

BOLT

12

2011-11_

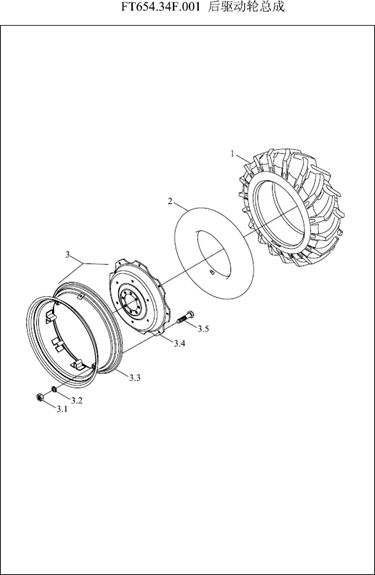

FT654.34F.001 34-后驱动轮总成 34-REAR DRIVE WHEEL ASSEMBLY



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT1192-14.9-30-10PR

拖拉机驱动轮普通断面斜交结构外胎

DRIVING WHEEL OUTER TUBE

2

2011-11_

1

GBT1192-14.9-30-10PR

拖拉机驱动轮普通断面斜交结构外胎

DRIVING WHEEL OUTER TUBE

2

2011-11_

2

GBT1192-14.9-30

拖拉机驱动轮内胎

DRIVING WHEEL INNER TUBE

2

2011-11_

3

FT654.34F.011

轮辋辐板总成

RIM SPOKE ASSEMBLY

2

2011-11_

3.1

GBT6171-M16X1.5-10-A3L

1型六角螺母

NUT

16

2011-11_

3.2

FT800.34.108

平垫圈

WASHER

16

2011-11_

3.3

FT654.34F.012

轮辋焊合

WHEEL RIM WELD

2

2011-11_

3.4

FT650.34.105b

轮辐

SPOKE

2

2011-11_

3.5

FT650.34.107

轮辋螺栓

RIM BOLT

16

2011-11_

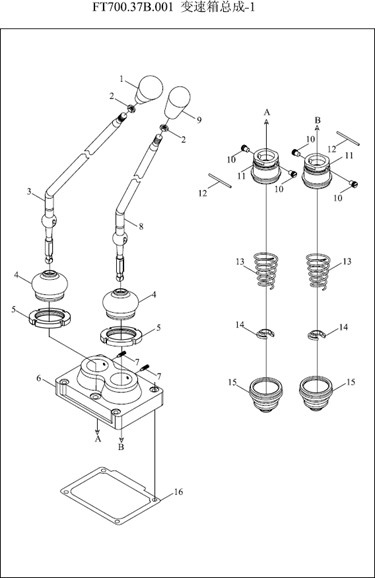

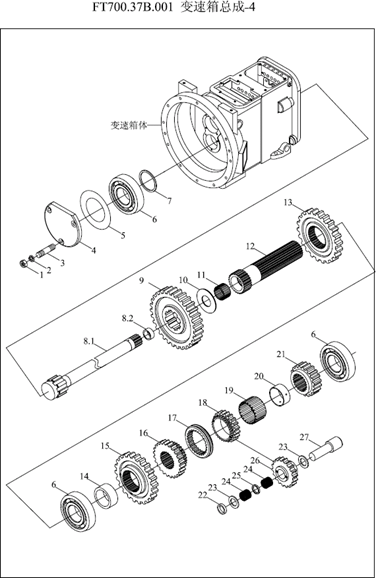

FT700.37B.001-1 37.1-变速箱总成-1 GEARBOX ASSEMBLY-1



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT700.37.014

主变速手柄球总成

MAIN GEARSHIFT HANDLE BALL ASSEMBLY

1

2011-11_

10

FT800.37.193

变速杆定位销

GEARLEVER LOCATING PIN

4

2011-11_

11

FT700.37.198

变速杆座

GEARLEVER SEAT

2

2011-11_

12

TF1004.374-02

低碳钢丝

LOW CARBON STEEL WIRE

2

2011-11_

13

FT800.37.137

变速杆弹簧

GEARLEVER SPRING

2

2011-11_

14

FT800.37.182

变速杆弹簧挡圈

GEARLEVER SPRING RETAINER RING

2

2011-11_

15

FT700.37.197

变速杆内密封套

GEARLEVER INNER SEAL SLEEVE

2

2011-11_

15

FT700.37.197

变速杆内密封套

GEARLEVER INNER SEAL SLEEVE

2

2011-11_

16

FT65.37.110

换档杆总成衬片

GEARSHIFT LEVER ASSEMBLY LINER

1

2011-11_

2

GBT6172.1-M10-A3L

螺母

NUT

2

2011-11_

3

FT700.37.157

主变速杆

MAIN GEARLEVER

1

2011-11_

4

FT800.37.138

变速杆防尘罩

GEARLEVER DUSTPROOF BONNET

2

2011-11_

5

FT800.37.191

变速杆座锁定螺母

GEARLEVER SEAT LOCKING NUT

2

2011-11_

6

FT700.37.151

变速箱盖

GEARBOX COVER

1

2011-11_

7

GBT75-M8X12-A2L

开槽长圆柱端紧定螺钉

SCREW

2

2011-11_

8

FT700.37B.158

副变速杆

AUXILIARY GEARLEVER

1

2011-11_

9

FT65.37D.015

副变速手柄球总成

AUXILIARY GEARSHIFT HANDLE BALL

1

2011-11_


ASSEMBLY

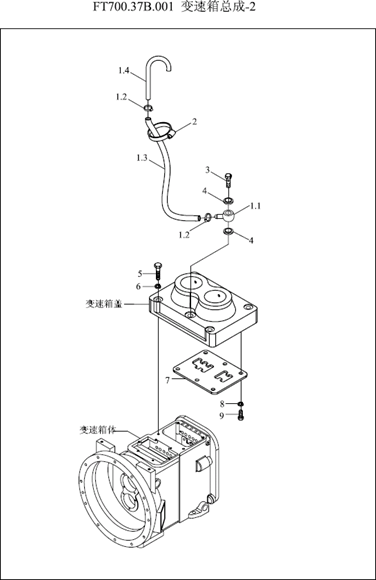

FT700.37B.001-2 37.2-变速箱总成-2 GEARBOX ASSEMBLY-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT65.37.016

呼吸管总成

BREATH PIPE ASSEMBLY

1

2011-11_

1.1

FT65.37.186

管接头

PIPE JOINT

1

2011-11_

1.2

Q67516

A型蜗杆传动式软管环箍

A-TYPE WORM TRANSMISSION HOSE CLAMP

2

2011-11_

1.3

FT65.37.188

呼吸软管

BREATH HOSE

1

2011-11_

1.4

FT65.37.187

呼吸钢管

BREATH STEEL PIPE

1

2011-11_

2

JBT8870-d50

喉箍

HOOP

1

2011-11_

3

FT800.40.172

空心螺栓

HOLLOW BOLT

1

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

4

JBT982-14

组合密封垫圈

COMBINED SEAL GASKET

2

2011-11_

5

GBT5780-M10X55-A2L

六角头螺栓

BOLT

4

2011-11_

6

GBT93-10-AOP

垫圈

WASHER

4

2011-11_

7

FT700.37B.159

限位板

LIMIT PLATE

1

2011-11_

8

GBT93-8-A0P

垫圈

WASHER

6

2011-11_

9

GBT5783-M8X16-A2L

螺栓

BOLT

6

2011-11_

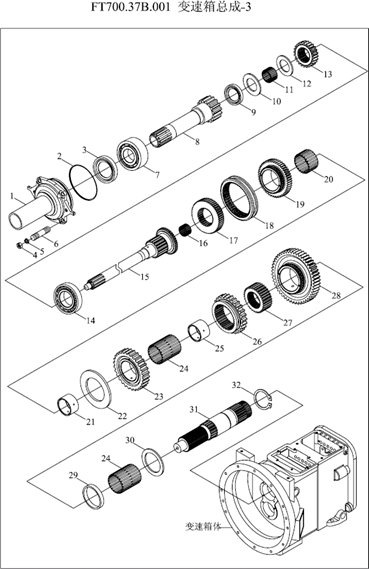

FT700.37B.001-3 37.3-变速箱总成-3 GEARBOX ASSEMBLY-3



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT700.37.102

第一轴承座

FIRST BEARING SEAT

1

2011-11_

10

FT700.37.194

轴承垫圈

BEARING CUSHION RING

1

2011-11_

11

JBT7918-K35X42X25

向心滚针和保持架组件

NEEDLE AND CARRIER UNIT

1

2011-11_

12

FT700.37.112

间隙垫圈

CLEARANCE WASHER

1

2011-11_

12

FT700.37.112

间隙垫圈

CLEARANCE WASHER

1

2011-11_

13

FT700.37.103

常啮合主动齿轮

ENGAGING DRIVING GEAR

1

2011-11_

14

GBT283-NUP211E

圆柱滚子轴承

BEARING

1

2011-11_

15

FT700.37.104

第一轴

FIRST SHAFT

1

2011-11_

16

QSFZB019-K30X38X25

滚针

NEEDLE

1

2007-03_

17

FT700.37.140

3四档啮合座

3RD AND 4TH GEAR ENGAGE SEAT

1

2011-11_

18

FT700.37.142

3四档啮合套

3RD AND 4TH GEAR ENGAGE SLEEVE

1

2011-11_

18

FT700.37.142

3四档啮合套

3RD AND 4TH GEAR ENGAGE SLEEVE

1

2011-11_

19

FT700.37.105

二轴3档齿轮

SHAFT-2 3RD GEAR

1

2011-11_

19

FT700.37.105

二轴3档齿轮

SHAFT-2 3RD GEAR

1

2011-11_

2

FT65.37.185

O形密封圈

O RING

1

2011-11_

20

QSFZB019-K56X64X31

滚针

NEEDLE

1

2007-03_

21

FT700.37.130

3档齿轮衬套

3RD GEAR LINING

1

2011-11_

22

FT700.37.134

二3档齿轮垫片

2ND AND 3RD GEAR WASHER

1

2011-11_

23

FT700.37.110

二轴二档齿轮

SHAFT-2 2ND GEAR

1

2011-11_

24

QSFZB019-KK56X64X35ZW

滚针

NEEDLE

2

2007-03_

25

FT700.37.111

二档齿轮衬套

2ND GEAR BUSH

1

2011-11_

26

FT700.37.137

倒档被动齿轮

REVERSE DRIVEN GEAR

1

2011-11_

27

FT700.37.186

倒档啮合座

REVERSE MESHING SEAT

1

2011-11_

28

FT700.37.107

二轴一档齿轮

SHAFT-2 1ST GEAR

1

2011-11_

29

FT700.37.196

隔套

SPACER BUSH

1

2011-11_








FT700.37B.001-3 37.3-变速箱总成-3(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

GBT9877.1-FB45X62X8F

内包骨架旋转轴唇形密封

O RING

1

2011-11_

30

FT700.37.195

一档齿轮垫片

1ST GEAR WASHER

1

2011-11_

31

FT700.37.106

第二轴

II SHAFT

1

2011-11_

32

GBT894.1-55

轴用弹性挡圈

SNAP RING

1

2011-11_

4

GBT6170-M10-A3L

螺母

NUT

4

2011-11_

5

GBT93-10-AOP

垫圈

WASHER

4

2011-11_

6

GBT898-GM10-M10X20-8.8-A3L

双头螺柱

8.8-A3L STUD

4

2011-11_

7

GBT296-3211A

双列角接触球轴承

BEARING

1

2011-11_

8

FT700.37.108

动力输出主动齿轮

PTO DRIVING GEAR

1

2011-11_

9

FT700.37E.110

油封

OIL SEAL

1

2011-11_
