LOVOL TC2A604-010K Tractor Parts Catalogue 16
TB400.457B Front Connection Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.457B |
Front connection assembly |
1 |
||
1 |
TB400.457B-02 |
Circlip |
4 |
|
2 |
TB400.457B-01 |
Shock absorbing block |
2 |
|
3 |
TB400.457B.2 |
Right front connection weldment |
1 |
|
4 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
5 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
6 |
GB/T 5783-M16×80-8.8-A3L |
Hex bolt |
2 |
|
7 |
GB/T 5783-M12×35-8.8-A3L |
Hex bolt |
8 |
|
8 |
GB/T 93-12-A0P |
Standard spring washer |
8 |
|
9 |
GB/T 97.1-12-A0P |
Flat washer |
8 |
|
10 |
TB400.457B.1 |
Left front connection weldment |
1 |
145
Foton TC2A604-010K Wheeled Tractor

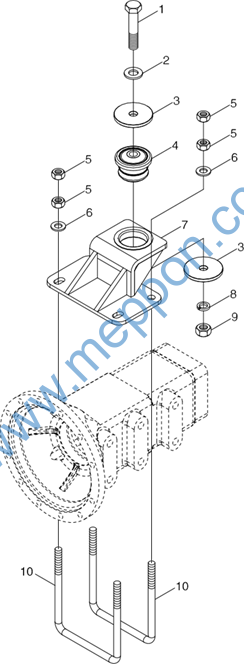

TB400.458B Rear Connection Assembly
146
Foton TC2A604-010K Wheeled Tractor
TB400.458B Rear Connection Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400.458B |
Rear connection assembly |
1 |
||
1 |
GB/T 5783-M16×90-8.8-A2L |
Hex bolt |
2 |
|
2 |
GB/T 97.1-16-A0P |
Flat washer |
2 |
|
3 |
TB400.457B-02 |
Circlip |
4 |
|
4 |
TB400.457B-01 |
Shock absorbing block |
2 |
|
5 |
GB/T 6170-M14-A3L |
Type 1 hex nut |
16 |
|
6 |
GB/T 97.1-14-A0P |
Flat washer |
8 |
|
7 |
TB400.458B.1 |
Rear connection weldment |
2 |
|
8 |
GB/T 93-16-A0P |
Standard spring washer |
2 |
|
9 |
GB/T 6170-M16-A3L |
Type 1 hex nut |
2 |
|
10 |
FT400.46.350 |
U-bolt |
4 |
147
Foton TC2A604-010K Wheeled Tractor

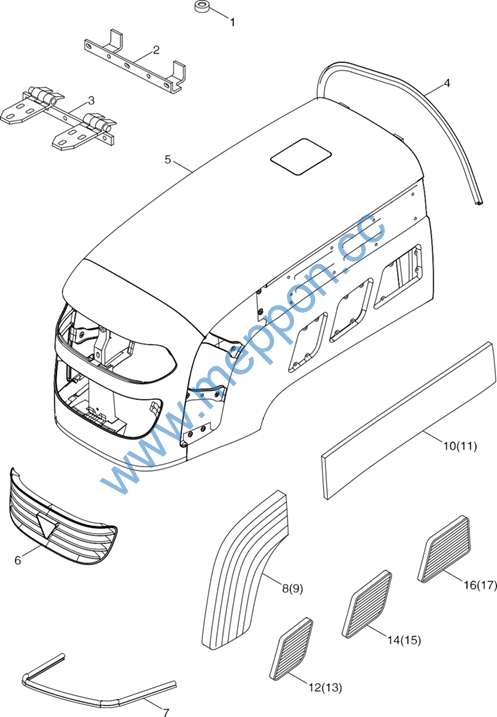

TC02471040000K Bonnet Assembly
148
Foton TC2A604-010K Wheeled Tractor
TC02471040000K Bonnet Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TC02471040000K |
Bonnet assembly |
1 |
||
1 |
TB400B.471-18 |
Backing block |
24 |
|
2 |
TB400B.471-15 |
Hinge chain upper seat |
2 |
|
3 |
TB400B.471-16 |
Hinge chain lower seat |
1 |
|
4 |
TB400B.471-14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.4 |
Bonnet welding assembly |
1 |
|
6 |
TC02471040001K |
Front grid |
1 |
|
7 |
TB400B.471-17 |
Front lower buffer strip |
1 |
|
8 |
TB400B.471-02 |
Left front grid |
1 |
|
9 |
TB400B.471-03 |
Right front grid |
1 |
|
10 |
TB400B.471-04 |
Left rear decorative parts |
1 |
|
11 |
TB400B.471-05 |
Right rear decorative parts |
1 |
|
12 |
TB400B.471-06 |
Left front lower grid |
1 |
|
13 |
TB400B.471-07 |
Right front lower grid |
1 |
|
14 |
TB400B.471-08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471-09 |
Right middle lower grid |
1 |
|
16 |
TB400B.471-10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471-11 |
Right rear lower grid |
1 |
149
Foton TC2A604-010K Wheeled Tractor

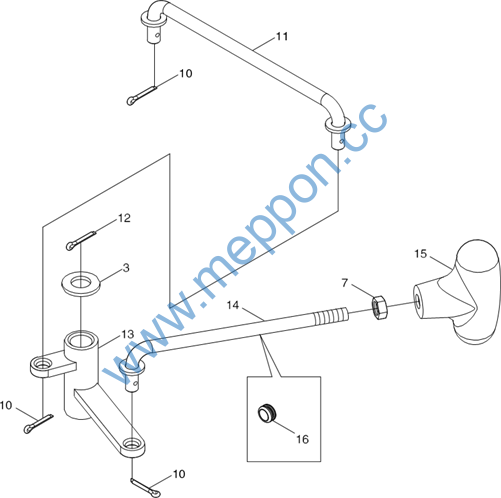

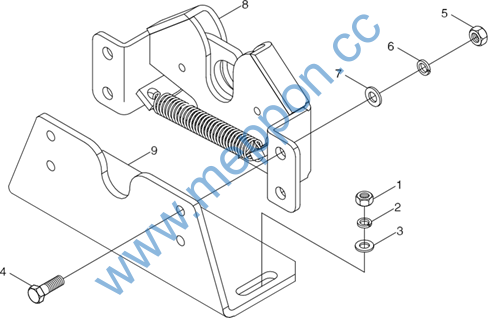

TB400B.473 Bonnet Lock Mechanism Assembly
150
Foton TC2A604-010K Wheeled Tractor
TB400B.473 Bonnet Lock Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock mechanism assembly |
1 |
||
1 |
GB/T 6170-M8-8-A2L |
Type 1 hex nut |
3 |
|
2 |
GB/T 93-8-A0P |
Standard spring washer |
3 |
|
3 |
GB/T 97.1-8-A0P |
Flat washer |
3 |
|
4 |
GB/T 5783-M6×20-8.8-A2L |
Hex bolt |
4 |
|
5 |
GB/T 6170-M6-8-A2L |
Type 1 hex nut |
5 |
|
6 |
GB/T 93-6-A0P |
Standard spring washer |
4 |
|
7 |
GB/T 97.1-6-A0P |
Flat washer |
2 |
|
8 |
TG1204.474.4 |
Bonnet lock assembly |
1 |
|
9 |
TB400B.473-01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91-1.6×16-A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91-2.5×25-A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
TB400B.473.4 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473-02 |
Rubber ring |
1 |
151
Foton TC2A604-010K Wheeled Tractor

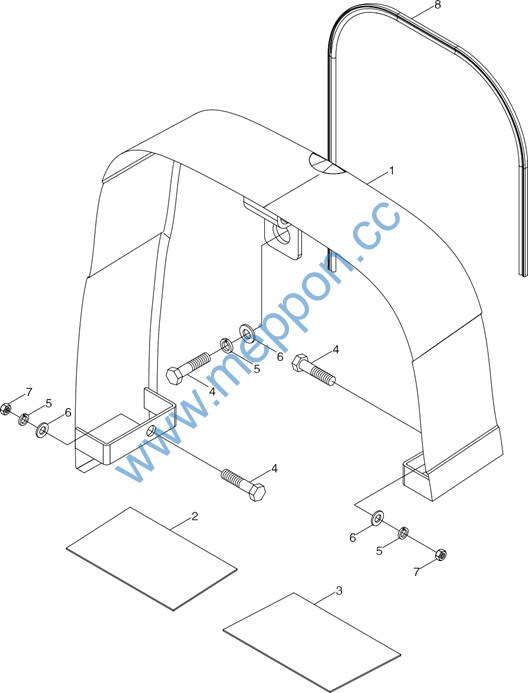

TB550.477D Bonnet Lengthened Plate Assembly
152
Foton TC2A604-010K Wheeled Tractor
TB550.477D Bonnet Lengthened Plate Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB550.477D |
Bonnet lengthened plate assembly |
1 |
||
1 |
TB550.477D.1 |
Bonnet lengthened plate weldment |
1 |
|
2 |
TB550.477D-01 |
Left decoration strip |
1 |
|
3 |
TB550.477D-02 |
Right decoration strip |
1 |
|
4 |
GB/T 5781-M8×30-A2L |
Bolt |
3 |
|
5 |
GB/T 93-8-A0P |
Washer |
3 |
|
6 |
GB/T 97.1-8-A0P |
Washer |
3 |
|
7 |
GB/T 6170-M8-A2L |
Nut |
2 |
|
8 |
TB550.477D-03 |
Bonnet seal strip |
1 |
153
Foton TC2A604-010K Wheeled Tractor

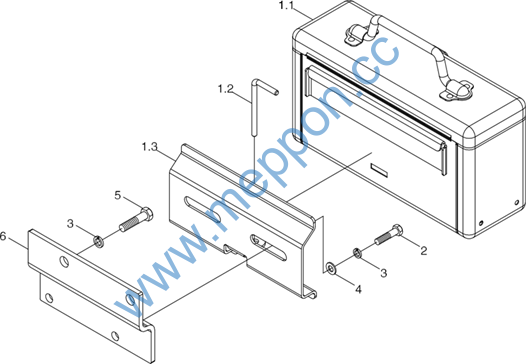

TB400.49 Tool Kit Assembly
