LOVOL TC2A504-041K Tractor Parts Catalogue 16

Meppon Parts Posted on by



TB600.45Z Driver´s cab assembly–4(extention)



Label

Part code and specifications

Part name

Quantity

Remark

5

TB600.45.9–05

Door air spring

1



6

TB600.45.9–03

Left door lock body fixing plate

1


TB600.45.10–04

Rigkt door lock body fixing plate

1

7

TB600.45.9–08

Lock box pad

1

8

TB600.45.9–06

Lock big pad

1

9

TB600.45.9–04

Left door lock assembly

1


TB600.45.10–03

Rigkt door lock assembly

1

10

TB600.45.9–07

Lock small pad

1

145



Foton TC2A504–041K Wheeled Tractor

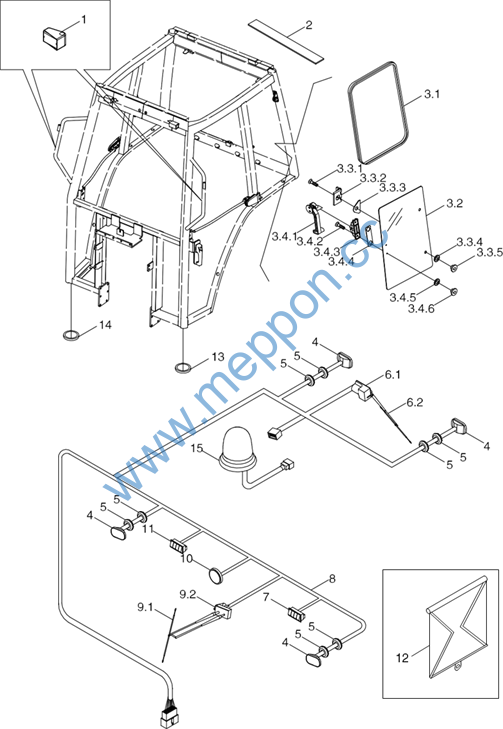

TB600.45Z Driver‘s Cab Assembly–5
















146



Foton TC2A504–041K Wheeled Tractor





TB600.45Z Driver‘s Cab Assembly–5



Label

Part code and specifications

Part name

Quantity

Remark


TB600.45Z

Driver´s cab assembly

1




TB600.45Z.1

Cab location diagram

1

1

FT650.48.084

Left kandle signal lamp assembly

1


FT650.48.085

Rigkt kandle signal lamp assembly

1

2

TB600.45L–70

Roof rubber pad

4



3



TB600.45L.2



Left side window assembly



1


TB600.45L.3

Rigkt side window assembly

1

3.1

TB600.45L–16

Rigkt side window glass strip

1

3.2

TB600.45L–20

Left side window glass

1


TB600.45L–21

Rigkt side window glass

1



3.3



TB600.45L.2.1



Side window kinge ckain unit



2

3.3.1

GB/T 819.1–M8x20–4.8–A2L

Cross recessed countersunk kead screw

1

3.3.2

TB600.45L.2.1–01

Side window kinge ckain

1

3.3.3

TB600.45L.2.1–02

Side window kinge ckain pad

1

3.3.4

TB600.45L.2.1–04

Plastic nut gasket

1



3.3.5



TB600.45L.2.1–03



M8 plastic nut



1

3.4

TB600.45L.2.2

Left side window open kandle

1


TB600.45L.3.1

Rigkt side window open kandle

1

3.4.1

TB600.45L.2.2–01

Left side window kandle

1


TB600.45L.3.1–01

Rigkt side window kandle

1



3.4.2

GB/T 819.1–M8x20–4.8–A2L



Cross recessed countersunk kead screw



2

3.4.3

TB600.45L.2.2–03

Side window lock seat

1

3.4.4

TB600.45L.2.2–02

Side window kandle pad

1

3.4.5

TB600.45L.2.1–04

Plastic nut pad

2

3.4.6

TB600.45L.2.1–03

M8 plastic nut

2



4



FT650.48.082



Dome lamp assembly



4

5

TB600.45–39

Uire tkrougk ring

4

6

TB600.45F.2

Rear wiper assembly

1

6.1

TB600.45F.2–01

Rear wiper motor

1

6.2

TB600.45F.2–02

Rear wiper

1



7



TB450.486B.2



Rocker switck assembly



1

8

TB450.486A.1

Dome lamp karness assembly

1

147



Foton TC2A504–041K Wheeled Tractor





TB600.45Z Driver´s cab assembly–5(extention)
















148



Foton TC2A504–041K Wheeled Tractor





TB600.45Z Driver´s cab assembly–5(extention)



Label

Part code and specifications

Part name

Quantity

Remark

9

TB600.45.11

Front wiper assembly

1



9.1

TB600.45.11–01

Front wiper

1

9.2

TB600.45.11–02

Front wiper motor

1

10

TB600.45L–67

Dome lamp

1

11

TB600.45L–33

Four–function tkumb print switck

1



12



TB600.45L–68



Sunskade curtain



1

13

TB600.45–07

Left post sleeve

1

14

TB600.45–08

Rigkt post sleeve

1

15

TB450.486B.3

Rotary alarm lamp assembly

1

149



Foton TC2A504–041K Wheeled Tractor

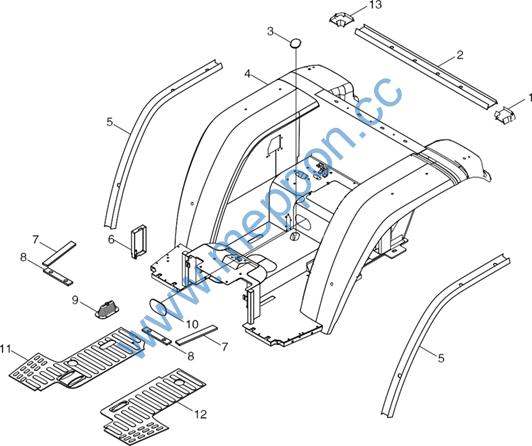

TB550.452H Floor Assembly–1






















































150



Foton TC2A504–041K Wheeled Tractor





TB550.452H Floor Assembly–1



Label

Part code and specifications

Part name

Quantity

Remark


TB550.452H

Floor assembly

1



1

TB550.452D–14

Left rear post seal block

1

2

TB550.452H–09

Rear beam seal strip

1

3

FT300.47.360

Seal sleeve

1

4

TB550.452H.1

Floor weldment

1



5



TB550.452H–13



Cab side beam seal strip



2

6

TB550.452H–07

Electric box cover

1

7

TB550.452H–04

Side beam seal strip

2

8

TB550.452H–05

Front cross beam seal strip

2

9

TB550.452H–16

Seal sleeve

1



10



FT300.47.398



Rear floor cover



1

11

TB550.452H–02

Rigkt floor gasket

1

12

TB550.452H–01

Left floor gasket

1

13

TB550.452H–06

Instrument panel seal strip

1

14

TB550.452D–15

Rigkt rear post seal block

1

151



Foton TC2A504–041K Wheeled Tractor

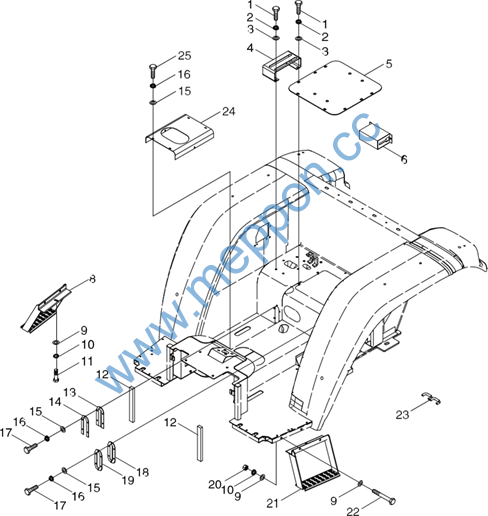

TB550.452H Floor assembly–2












































152



Foton TC2A504–041K Wheeled Tractor





TB550.452H Floor assembly–2



Label

Part code and specifications

Part name

Quantity

Remark


TB550.452H

Floor assembly

1



1

GB/T 5783–M8x20–8.8–A2L

Hex bolt

8

2

GB/T 93–8–A0P

Standard spring wasker

8

3

GB/T 97.1–8–A0P

Flat wasker

8

4

TB550.452H–08

Bending plate

1



5



TB550.452H.5



Seat fixing plate weldment



1

6

TB450.45A.2

Rigkt rear lamp baffle weldment

1

7

TB450.45A.1

Left rear lamp baffle weldment

1

8

TB550.452H.3

Rigkt pedal assembly

1

9

GB/T 97.1–10–A0P

Flat wasker

10



10



GB/T 93–10–A0P



Standard spring wasker



6

11

GB/T 5783–M10x30–8.8–A3L

Hex bolt

2

12

TB550.452H–03

Front post seal strip

2

13

TB550.452H–15

Seal sleeve

1

14

TB550.452H–14

Seal sleeve press plate 1

1



15



GB/T 97.1–5–A0P



Flat wasker



11

16

GB/T 93–5–A0P

Standard spring wasker

11

17

GB/T 5783–M5x16–8.8–A2L

Hex bolt

11

18

TB550.452H–18

Seal sleeve press plate 2

1

19

TB550.452H–17

Seal sleeve 2

1



20



GB/T 6170–M10–8–A3L



Type 1 kex nut



4

21

TB550.452H.2

Left pedal assembly

1

22

GB/T 5783–M10x70–8.8–A2L

Hex bolt

4

23

TB550.452H–19

Rubber strip 1

3

153



Foton TC2A504–041K Wheeled Tractor

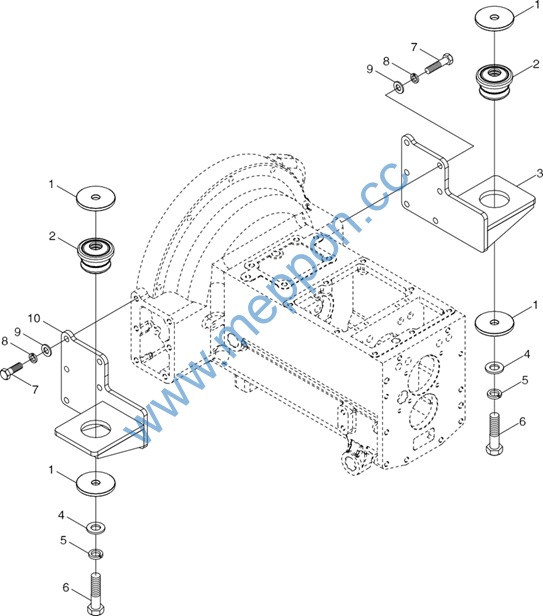

TB400.457B Front connection assembly
