LOVOL TC2A504-010K Tractor Parts Catalogue 18

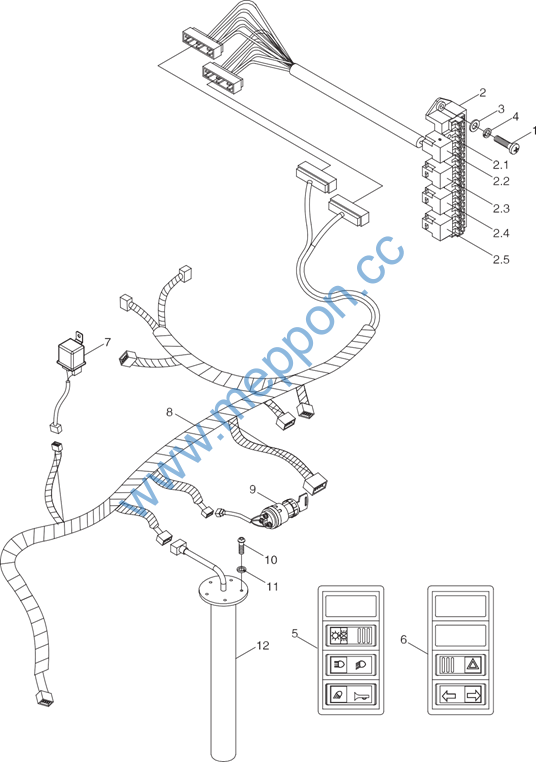

TB450.482H Harness Installation Assembly, Body
J48–1–2
Foton TC2A504–010K Wheeled Tractor
TB450.482H Harness Installation Assembly, Body
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.482H |
Harness Installation Assembly, Body |
1 |
||
1 |
GB/T 818–M6x25–A2L |
Screw |
2 |
|
2 |
TB450.482H.2 |
Central electric box assembly |
1 |
|
2.1 |
Fuse 10A |
8 |
||
Fuse 15A |
2 |
|||
Fuse 20A |
3 |
|||
Fuse 30A |
2 |
|||
2.2 |
Generator adjuster |
1 |
||
2.3 |
Prekeating relay |
1 |
||
2.4 |
Main power source relay |
1 |
||
2.5 |
Flask relay |
1 |
||
3 |
GB/T 97.1–6–A0P |
Uasker |
2 |
|
4 |
GB/T 93–6–A0P |
Uasker |
2 |
|
5 |
FT300.48D.2.3 |
Left rocker switck |
1 |
|
6 |
TB450.482.1 |
Rigkt rocker switck |
1 |
|
7 |
TB450.482.2 |
Starting relay |
1 |
|
8 |
TB450.482J.1 |
Body karness assembly |
1 |
|
9 |
FT300.48.064 |
Ignition lock |
1 |
|
10 |
GB/T 818–M4x10–A2L |
Screw |
5 |
|
11 |
GB/T 93–4–A0P |
Uasker |
5 |
|
12 |
FT300.48.071a |
Oil amount sensor |
1 |
J48–1–2
Foton TC2A504–010K Wheeled Tractor
TB450.483 Harness Installation Assembly, Front Lamp
J48–1–3
Foton TC2A504–010K Wheeled Tractor
TB450.483 Harness Installation Assembly, Front Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.483 |
Harness Installation Assembly, Front Lamp |
1 |
||
1 |
FT400.48.023 |
Front lamp karness assembly |
1 |
|
2 |
FT65.48.097 |
Harness fixing clip (2) |
6 |
|
3 |
GB/T6170 |
Nut M6–A2L |
3 |
|
4 |
GB/T93 |
Uasker 6–A0P |
3 |
|
5 |
GB/T97.1 |
Uasker 6–A0P |
3 |
|
6 |
FT65.48.340 |
Horn assembly |
1 |
|
7 |
GB/T5783 |
Bolt M6x16–A2L |
1 |
|
8 |
TB400.483A.1 |
Front compound lamp assembly |
1 |
|
9 |
GB/T97.1 |
Uasker 8–A0P |
2 |
|
10 |
GB/T93 |
Uasker 8–A0P |
2 |
|
11 |
GB/T5783 |
Bolt M8x16–A2L |
2 |
|
12 |
GB/T818 |
Screw M5x14–A2L |
1 |
|
13 |
TB400.483–01 |
Harness buckle |
1 |
|
14 |
GB/T97.1 |
Uasker 5–A0P |
1 |
|
15 |
GB/T93 |
Uasker 5–A0P |
1 |
|
16 |
GB/T6170 |
Nut M5–A2L |
1 |
J48–1–3
Foton TC2A504–010K Wheeled Tractor
TB450.484R Harness Installation Assembly, Rear Lamp
J48–1–4
Foton TC2A504–010K Wheeled Tractor
TB450.484R Harness Installation Assembly, Rear Lamp
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.484R |
Harness Installation Assembly, Rear Lamp |
1 |
||
1 |
FT300.48C.211 |
Brake switck installation plate |
1 |
|
2 |
GB/T 6170–M5–A2L |
Nut |
3 |
|
3 |
FT300.48.033 |
Brake lamp switck |
2 |
|
4 |
FT300.48.053a |
Rear lamp |
2 |
|
5 |
TB450.484S.1 |
Rear lamp karness assembly |
1 |
|
6 |
FT65.48.093 |
Harness pass ring (1) |
2 |
|
7 |
FT65.48.094 |
Harness pass ring (2) |
2 |
|
8 |
FT300.48.052a |
Tail lamp |
2 |
|
9 |
FT65.48.080 |
Rear trailer socket |
1 |
|
10 |
GB/T 818–M5x35–A1L |
Screw |
3 |
|
11 |
GB/T 97.1–5–A0P |
Uasker |
3 |
|
12 |
GB/T 93–5–A0P |
Uasker |
3 |
|
13 |
TA600.486–01 |
Harness fastening clip |
2 |
J48–1–4
Foton TC2A504–010K Wheeled Tractor

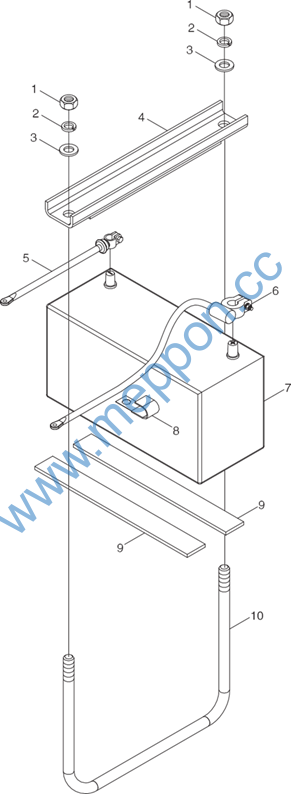

TB450.485A Battery Installation Assembly
J48–1–5
Foton TC2A504–010K Wheeled Tractor
TB450.485A Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
2 |
GB/T 93–8–A0P |
Uasker |
2 |
|
3 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
4 |
TG1204.485–02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery skock absorbing mat |
2 |
|
10 |
TG1204.485–01 |
Battery U–skape pull rod |
1 |
J48–1–5
Foton TC2A504–010K Wheeled Tractor

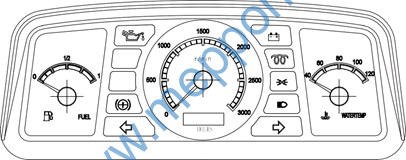

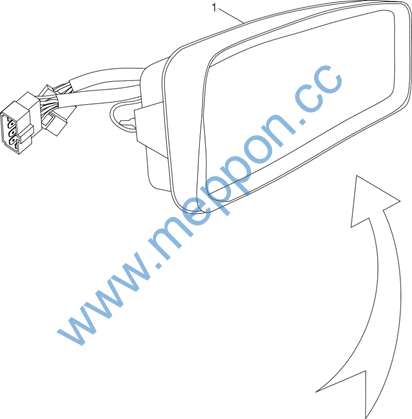

TB400.487 Combination Instrument Assembly
J48–1–6
Foton TC2A504–010K Wheeled Tractor
TB400.487 Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TB400.487 TB400.487 |
Combination Instrument Assembly Combination Instrument Assembly |
1 1 |
J48–1–6
Foton TC2A504–010K Wheeled Tractor

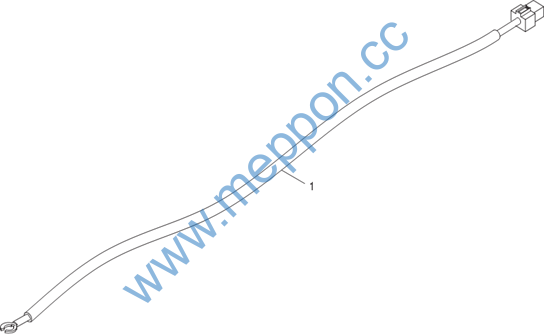

TB450.489A Preheating device assembly
