序号 No.

代码 Code

名称 Description

页次 Page

1

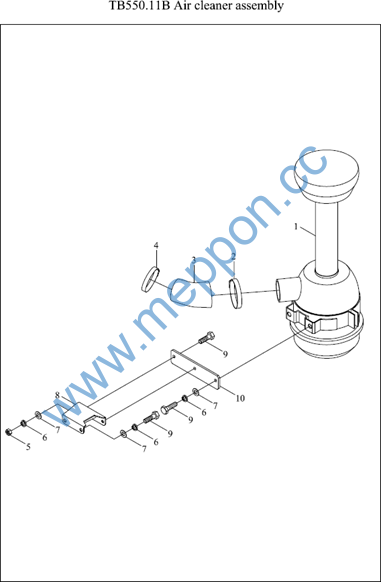

TB550.11B

11-空气滤清系总成

11-AIR CLEANER ASSEMBLY

1

2

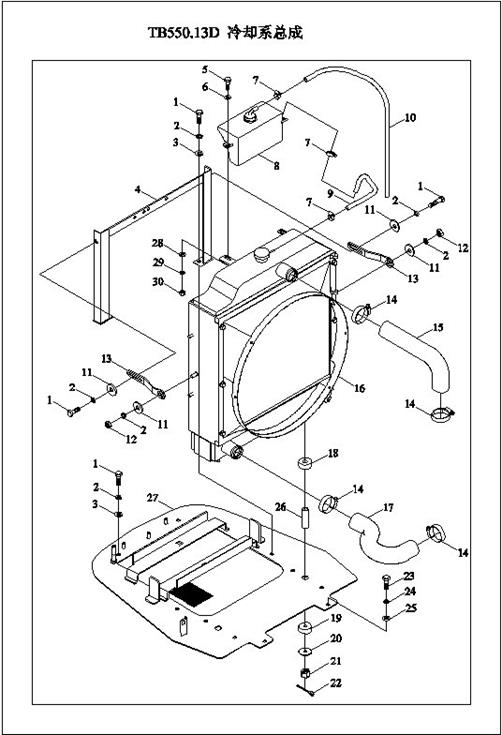

TB550.13D

13-冷却系总成

13-COOLING SYSTEM ASSEMBLY

3

3

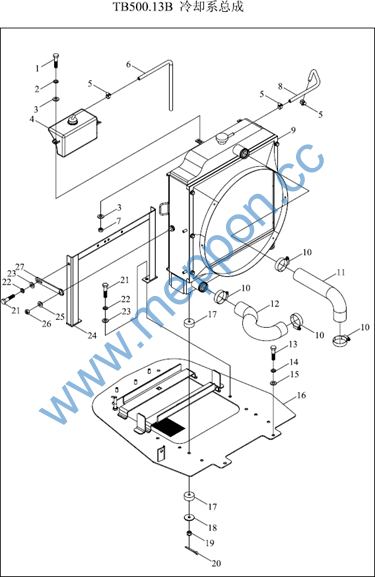

TB500.13B

13-冷却系总成

13-COOLING SYSTEM ASSEMBLY

7

4

TB400.201F

20.1-手油门总成

20.1-HAND THROTTLE ASSEMBLY

11

5

TB400.202G

20.2-脚油门总成

20.2-FOOT THRORRLE ASSEMBLY

13

6

TB400.203B

20.3-拉线总成

20.3-PULL WIRE ASSEMBLY

15

7

TB550.211A

21.1-离合器总成

21.1-CLUTCH ASSEMBLY

17

8

TB504.212

21.2-离合器操纵机构总成

21.2-CLUTCH CONTROL MECHANISM ASSEMBLY

19

9

TB600.22B

22-排气系总成

22-EXHAUST SYSTEM ASSEMBLY

21

10

TB504.311-1

31.1.1-前驱动桥总成-1

FRONT DRIVING AXLE ASSEMBLY-1

23

11

TB504.311-2

31.1.2-前驱动桥总成-2

FRONT DRIVING AXLE ASSEMBLY-2

25

12

TB504.311-3

31.1.3-前驱动桥总成-3

FRONT DRIVING AXLE ASSEMBLY-3

29

13

TB504.311-4

31.1.4-前驱动桥总成-4

FRONT DRIVING AXLE ASSEMBLY-4

33

14

TB504.311-5

31.1.5-前驱动桥总成-5

FRONT DRIVING AXLE ASSEMBLY-5

37

15

TB504.311-6

31.1.6-前驱动桥总成-6

FRONT DRIVING AXLE ASSEMBLY-6

41

16

TB554.312B

31.2-托架总成

31.2-BRACKET ASSEMBLY

43

17

FT404.32F.001

32-前驱动轮总成

32-FRONT DRIVING WHEEL ASSEMBLY

45

18

FT404.34F.001

34-后驱动轮总成

34-REAR DRIVE WHEEL ASSEMBLY

47

19

TB400.371B

37.1-变速箱壳体总成

37.1-GEARBOX HOUSING ASSEMBLY

49

20

TB400.372D-1

37.2.1-主变速总成-1

MAIN TRANSMISSION ASSEMBLY-1

51

21

TB400.372D-2

37.2.2-主变速总成-2

MAIN TRANSMISSION ASSEMBLY-2

55

22

TB450.373B

37.3-副变速总成

37.3-AUXILIARY GEARSHIFT ASSEMBLY

57

23

TB450.374B-1

37.4.1变速箱操纵机构总成-1

37.4TRANSMISSION CONTROL MECHANISM

59

24

TB450.374B-2

37.4.2变速箱操纵机构总成-2

GEARBOX CONTROL MECHANISM ASSEMBLY-2

61

25

TB554.381

38.1-梭式换档总成

38.1-SHUTTLE SHIFT ASSEMBLY

65

序号 No.

代码 Code

名称 Description

页次 Page

26

TB504.382-1

38.2.1-后桥中央传动总成-1

REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1

67

27

TB504.382-2

38.2.2-后桥中央传动总成-2

REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2

69

28

TB554.383A

38.3-差速锁操纵机构总成

38.3-DIFFERENTIAL LOCK CONTROL MECHANISM

71

29

TB504.384

38.4-后桥壳体总成

38.4-REAR AXLE HOUSING ASSEMBLY

73

30

TB554.385

38.5-梭式换档机构总成

38.5-SHUTTLE SHIFT MECHANISM ASSEMBLY

75

31

FT300.39.001-1

39.1-最终传动总成-1

39FINAL TRANSMISSION ASSEMBLY -1

79

32

FT300.39.001-2

39.2-最终传动总成-2

39FINAL TRANSMISSION ASSEMBLY -2

83

33

TB504.402B-1

40.1-全液压转向管路总成-1

FULL HYDRAULIC STEERING PIPE ASSEMBLY-1

87

34

TB504.401B

40.1-转向器及转向管柱总成

40.1-REDIRECTOR OR STEERING COLUMN ASSEMBLY

91

35

TB504.402B-2

40.2-全液压转向管路总成-2

FULL HYDRAULIC STEERING PIPE ASSEMBLY-2

93

36

TB400.411C

41.1-动力输出齿轮总成

41.1-PTO GEAR ASSEMBLY

95

37

TB550.412A

41.2-动力输出轴总成

41.2-PTO SHAFT ASSEMBLY

99

38

TB550.413A

41.3-动力输出操纵总成

41.3-PTO CONTROL ASSEMBLY

101

39

TB554.421C

42.1-分动箱箱体总成

42.1-TRANSFER CASE HOUSING ASSEMBLY

105

40

TB454.422

42.2-分动箱传动总成

42.2-TRANSFER CASE TRANSMISSION ASSEMBLY

109

41

TB554.423C

42.3-分动箱操纵总成

42.3-TRANSFER CASE CONTROL ASSEMBLY

111

42

TB504.431

43.1-左制动器总成

43.1-LEFT BRAKE ASSEMBLY

113

43

TB504.432

43.2-右制动器总成

43.2-RIGHT BRAKE ASSEMBLY

115

44

TB504.433-1

43.3.1-制动器操纵机构总成-1

BRAKE CONTROL MECHANISM ASSEMBLY-1

117

45

TB504.433-2

43.3.2-制动器操纵机构总成-2

BRAKE CONTROL MECHANISM ASSEMBLY-2

119

46

TB400.44G

44-座椅安装总成

44SEAT INSTALLATION ASSEMBLY

123

47

TB604.45D

45-驾驶室总成

45-DRIVER’S CAB ASSEMBLY

125

48

TB550.452K

45.2-地板总成

45.2-FLOOR ASSEMBLY

127

49

TB400.457B

45.7-前连接总成

45.7-FRONT CONNECTING ASSEMBLY

129

50

TB400.458B

45.8-后连接总成

45.8-REAR CONNECTING ASSEMBLY

131

序号 No.

代码 Code

名称 Description

页次 Page

51

TB400B.471

47.1-机罩装配总成

47.1-BONNET INSTALLATION ASSEMBLY

133

52

TB400B.473

47.3-机罩锁紧装置总成

47.3-BONNET LOCKING DEVICE ASSEMBLY

135

53

TB550.477D

47.7-机罩加长板总成

47.7-BONNET EXTENSION PLATE ASSEMBLY

137

54

TB450.481L

48.1-发动机线束安装总成

48.1-ENGINE HARNESS INSTALLATION ASSEMBLY

139

55

TB450.482H

48.2-车身线束安装总成

48.2-BODY HARNESS INSTALLATION ASSEMBLY

141

56

TB450.483

48.3-前灯线束安装总成

48.3-FRONT LAMP HARNESS INSTALLATION

143

57

TB450.484R

48.4-后灯线束安装总成

48.4-REAR LAMP HARNESS INSTALLATION ASSEMBLY

145

58

TB450.485A

48.5-蓄电池安装总成

48.5-BATTERY INSTALLATION ASSEMBLY

147

59

TB450.487E

48.7-仪表安装总成

48.7-INSTRUMENT MOUNTING ASSEMBLY

149

60

TB400.49

49-工具箱总成

49-TOOL BOX ASSEMBLY

151

61

TB400.50X

50-燃油箱装配总成

50-FUEL TANK INSTAllation assembly

153

62

FT300.53.001

53-拖挂装置总成

53-TOW EQUIPMENT ASSEMBLY

155

63

TB504.551A

55.1-提升器装配总成

55.1-LIFTER INSTALLATION ASSEMBLY

157

64

TB504.551A-1

55.1-提升器装配总成-1

LIFTER INSTALLATION ASSEMBLY-7-1

159

65

TB504.552C

55.2-提升器操纵机构总成

55.2-LIFTER CONTROL MECHANISM ASSEMBLY

163

66

TB504.551A-2

55.2-提升器装配总成-2

LIFTER INSTALLATION ASSEMBLY-7-2

167

67

TB504.551A-3

55.3-提升器装配总成-3

LIFTER INSTALLATION ASSEMBLY-7-3

169

68

TB504.551A-4

55.4-提升器装配总成-4

LIFTER INSTALLATION ASSEMBLY-4

173

69

TB504.551A-5

55.5-提升器装配总成-5

LIFTER INSTALLATION ASSEMBLY-5

175

70

TB504.551A-6

55.6-提升器装配总成-6

LIFT ASSEMBLY-6

179

71

TB504.551A-7

55.7-提升器装配总成-7

LIFT ASSEMBLY-7

181

72

TB400.56C-1

56.1-悬挂机构总成-1

SUSPENSION MECHANISM ASSEMBLY-1

185

73

TB400.56C-2

56.2-悬挂机构总成-2

SUSPENSION MECHANISM ASSEMBLY-2

189

74

FT550A.58.002

58-分配器进油管总成

58-DISTRIBUTOR OIL INLET PIPE ASSEMBLY

191

75

FT454.58H.001

58-油泵油管总成

193

序号 No.

代码 Code

名称 Description

页次 Page

76

TB300.583A

58.3-单路液压输出总成2

58.3-SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY 2

195

77

TA600.62ZC

62-安全带

62-SAFETY BELT

197

78

FT404.74A.002

74-前配重总成

74-FRONT BALLAST ASSEMBLY

199

79

FT300.74B.001

74-前配重架总成

74-FRONT BALLAST BRACKET ASSEMBLY

201

80

TB400.811

81.1-蒸发器安装总成

81.1-EVAPORATOR INSTALLATION ASSEMBLY

203

81

TB400.812

81.2-冷凝器安装总成

81.2-CONDENSER INSTALLATION ASSEMBLY

207

82

FT300.91.001

91-后配重总成

91-REAR BALLAST ASSEMBLY

211

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

TB550.11Q.1

空滤器总成

AIR FILTER ASSEMBLY

1

2011-11_

1.1

TB550.11Q.1-05

空滤器滤芯

AIR FILTER ELEMENT

1

1.1

TB550.11Q.1-05

空滤器滤芯

AIR FILTER ELEMENT

1

10

TB550.11B-01

空滤器安装板

AIR FILTER INSTALLATION PLATE

1

2011-11_

2

Q67689

喉箍

HOOP

1

2011-11_

3

TB550.11Q-01

进气软管

AIR INLET HOSE

1

2011-11_

4

Q67676

环箍

Clip

1

2011-11_

5

GBT6170-M8-A2L

螺母

NUT

1

2011-11_

6

GBT93-8-A0P

垫圈

WASHER

5

2011-11_

7

GBT97.1-8-A0P

平垫圈

WASHER

5

2011-11_

8

TB550.11B.1

空滤器支架焊合

AIR FILTER BRACKET WELDMENT

1

2004-01_

8

TB550.11B.2

空滤器支架焊合

AIR FILTER BRACKET WELDMENT

1

2010-03_

9

GBT5783-M8X25-A2L

螺栓

5

2011-11_

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

FT650.13.116

垫片

WASHER

2

10

GBT93-6-A0P

垫圈

WASHER

2

11

GBT93-8-A0P

垫圈

WASHER

8

12

GBT96.1-6-A0P

垫圈

WASHER

2

13

GBT96.1-8-A0P

垫圈

WASHER

4

14

GBT97.1-10-A0P

平垫圈

WASHER

2

15

GBT97.1-6-A0P

平垫圈

WASHER

2

16

GBT97.1-8-A0P

平垫圈

WASHER

4

17

Q67650

B型蜗杆传动式软管环箍

B-TYPE WORM TRANSMISSION HOSE CLAMP

4

17

FT450.13.102

水箱出水软管

WATER TANK OUTLET HOSE

1

18

Q676B16

不锈钢喉箍

STAINLESS STEEL HOOP

3

19

TA700.131-01

橡胶垫块

RUBBER PAD BLOCK

2

2

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2

2

GBT5783-M10X20-8.8-A3L

六角头螺栓

BOLT

2

20

TA700.131-02

套管

SLEEVE

2

22

TB400.13C.4

副水箱总成

AUXILIARY RADIATOR ASSEMBLY

1

23

TB500.13-01

水箱进水软管

WATER TANK INLET HOSE

1

23

TB500.13-01

水箱进水软管

WATER TANK INLET HOSE

1

24

TB500.13E.2

拉杆合件

PULL ROD UNIT

2

25

TB500.13Y.2

水箱垫板焊合

RADIATOR BACKING BOARD WELDMENT

1

26

TB500.13Y.5

空滤器安装支架

AIR FILTER ASSEMBLY BRACKET

1

27

TB550.13D.1

散热器总成

RADIATER ASSEMBLY

1

28

TD800.131-11

橡胶垫块

RUBBER PAD BLOCK

2

29

TG1204.13A-08

连接胶管

CONNECTING RUBBER PIPE

1

3

GBT5783-M6X20-8.8-A2L

六角头螺栓

BOLT

2

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

30

4

5

6

7

8

9

TG1204.13A-09

GBT5783-M8X20-8.8-A2L GBT6170-M6-8-A2L GBT6170-M8-8-A2L GBT6178-M10-8-A3L

GBT91-2.5X28-A0P GBT93-10-A0P

呼吸胶管 六角头螺栓

1型六角螺母 Ⅰ型六角螺母 1型六角开槽螺母

开口销

标准型弹簧垫圈

BREATH RUBBER PIPE BOLT

NUT

I-TYPE HEXAGON NUT NUT (PAGE81)

WASHER

1

6

2

2

2

2

2
