LOVOL TC2A454-006K Tractor Parts Catalogue 06
TB400.203B 20.3-拉线总成 20.3-PULL WIRE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 2 3 4 |
FT650.20.014 GBT91-2X16-A0P GBT91-2X12-A0P GBT882-B5X20-A0P FT400.20.018 |
脚油门拉线总成开口销 开口销销轴 熄火拉线总成 |
FOOT THROTTLE WIRE ASSEMBLY PIN PIN PIN EXTINGUISH WIRE ASSEMBLY |
1 2 2 1 1 |
2011-11_ 2010-04_ 2009-01_ 2004-01_ 2011-11_ |

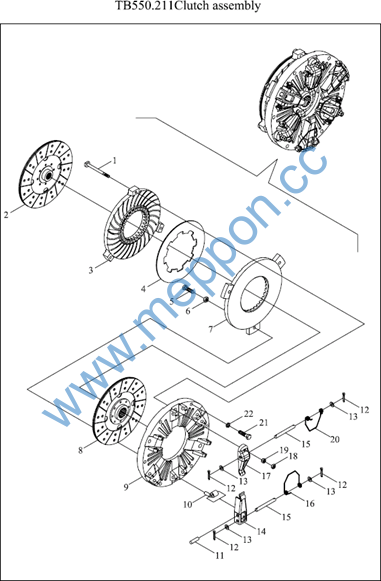

TB550.211 21.1-离合器总成 21.1-CLUTCH ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
FT400.21B.104 |
副离合器拉杆 |
AUXILIARY CLUTCH PULL ROD |
3 |
2011-04_ |
|
10 |
FT400.21B.110 |
顶杆 |
TOP ROD |
3 |
2011-04_ |
|
11 |
FT300.21B.109 |
销轴 |
PIN |
3 |
2011-04_ |
|
12 |
GBT91 |
开口销 3.2×25 |
COTTER PIN 3.2 25 |
10 |
2011-04_ |
|
13 |
GBT848 |
小垫圈8 |
SMALL WASHER 8 |
12 |
2011-04_ |
|
14 |
FT400.21B.107 |
主离合器分离杠杆 |
MAIN CLUTCH RELEASE LEVER |
3 |
2011-04_ |
|
15 |
FT300.21B.111 |
长销 |
LONG PIN |
6 |
2011-04_ |
|
16 |
FT400.21B.108 |
主分离杠杆弹簧 |
MAIN RELEASE LEVER SPRING |
3 |
2011-04_ |
|
17 |
FT400.21B.106 |
副离合器分离杠杆 |
AUXILIARY CLUTCH RELEASE LEVER |
3 |
2011-04_ |
|
18 |
GBT6171 |
1型六角螺母M10X1 |
1-TYPE HEX NUT M10X1 |
3 |
2011-11_ |
|
19 |
FT300.21B.105 |
球头螺母 |
BALL NUT |
3 |
2011-04_ |
|
19 |
FT300.21B.105 |
球头螺母 |
BALL NUT |
3 |
2011-04_ |
|
2 |
FT500A.21B.015 |
副离合器磨擦片总成 |
AUXILIARY CLUTCH FRICTION PLATE |
1 |
|
|
2 |
FT400.21B.015 |
副离合器磨擦片总成 |
ASSEMBLY |
1 |
2004-01_ |
|
20 |
FT300.21B.120 |
副分离杠杆弹簧 |
AUXILIARY CLUTCH FRICTION PLATE |
3 |
2011-04_ |
|
ASSEMBLY |
|||||
|
21 |
GBT5783 |
六角头螺栓 |
AUXILIARY RELEASE LEVER SPRING |
6 |
2011-04_ |
|
22 |
GBT93 |
标准型弹簧垫圈 |
6 |
2011-04_ |
|
|
3 |
FT400.21B.102 |
副离合器压盘 |
BOLT |
1 |
2011-04_ |
|
4 |
TB550.211-01 |
碟形弹簧 |
WASHER |
1 |
2011-04_ |
|
5 |
FT300.21B.114 |
主离合器调整螺钉 |
AUXILIARY CLUTCH PRESSURE PLATE |
3 |
2011-04_ |
|
DISC SPRING |
|||||
|
6 |
GBT6171 |
1型六角螺母M10X1 |
MAIN CLUTCH ADJUSTING SCREW |
3 |
2011-04_ |
|
7 |
FT400.21B.113 |
主离合器压盘 |
1 |
2011-04_ |
|
|
8 |
FT500A.21B.014 |
主离合器磨擦片总成 |
1-TYPE HEX NUT M10X1 |
1 |
|
|
8 |
FT400.21B.014 |
主离合器磨擦片总成 |
MAIN CLUTCH PRESSURE PLATE |
1 |
2004-01_ |
|
9 |
FT400.21B.112 |
离合器盖 |
MAIN CLUTCH FRICTION PLATE ASSEMBLY |
1 |
2011-04_ |

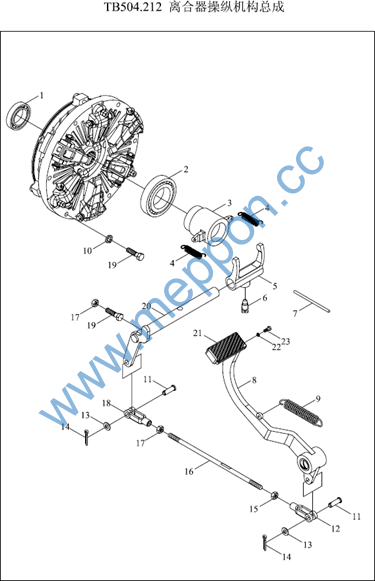

TB504.212 21.2-离合器操纵机构总成 21.2-CLUTCH CONTROL MECHANISM ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 |
GBT276-6204-2RS |
轴承 |
BEARING |
1 |
2011-11_ |
|
10 |
GBT93-10-AOP |
标准型弹簧垫圈 |
WASHER |
6 |
2011-11_ |
|
11 |
GBT882-B10X28 |
销轴 |
PIN |
2 |
2011-11_ |
|
12 |
FT300.43.110 |
拉杆后叉 |
PULL ROD REAR FORK |
1 |
2011-11_ |
|
13 |
GBT97.1-10-A0P |
平垫圈 |
WASHER |
2 |
2011-11_ |
|
14 |
GBT91-3.2X16-A0P |
开口销 |
PIN |
2 |
|
|
15 |
GBT6170-M10-LH-A3L |
螺母 |
NUT |
1 |
2011-11_ |
|
16 |
FT300.21.110 |
拉杆 |
PULL ROD |
1 |
2011-11_ |
|
17 |
GBT6170-M10-A3L |
螺母 |
NUT |
2 |
2011-11_ |
|
18 |
FT300.43.108 |
拉杆前叉 |
PULL ROD FRONT FORK |
1 |
2011-11_ |
|
19 |
GBT5783-M10X40-8.8-A3L |
螺栓 |
BOLT |
7 |
2011-11_ |
|
2 |
TA800.212-02 |
推力轴承99 67 13 |
THRUST BEARING |
1 |
2011-11_ |
|
20 |
FT300.21.013 |
离合器分离叉轴合件 |
CLUTCH RELEASE FORK SHAFT UNIT |
1 |
2011-11_ |
|
21 |
TB504.21-01 |
离合器踏板焊合 |
CLUTCH PEDAL WELDMENT |
1 |
2011-11_ |
|
22 |
GBT93-6-A0P |
弹簧垫圈 |
SPRING WASHER |
2 |
2011-11_ |
|
23 |
GBT5783-M6x16-A2L |
螺栓 |
BOLT |
2 |
2011-11_ |
|
3 |
FT400.21B.101 |
分离轴承座 |
RELEASE BEARING SEAT |
1 |
2011-11_ |
|
4 |
FT300.21.102 |
推力轴承座回位弹簧 |
THRUST BEARING SEAT RETURN SPRING |
2 |
2011-11_ |
|
5 |
FT300.21.103 |
分离拨叉 |
RELEASE SHIFT FORK |
1 |
2011-11_ |
|
6 |
FT300.21.113 |
止动螺钉 |
THRUST SCREW |
1 |
2011-11_ |
|
7 |
TA800.212B-02 |
低碳钢丝 |
LOW CARBON STEEL WIRE |
1 |
2011-11_ |
|
8 |
TB504.21.1 |
离合器踏板体合件 |
CLUTCH PEDAL BODY UNIT |
1 |
2011-11_ |
|
9 |
FT300.43.130 |
踏板回位弹簧 |
PEDAL RETURN SPRING |
1 |
2011-11_ |

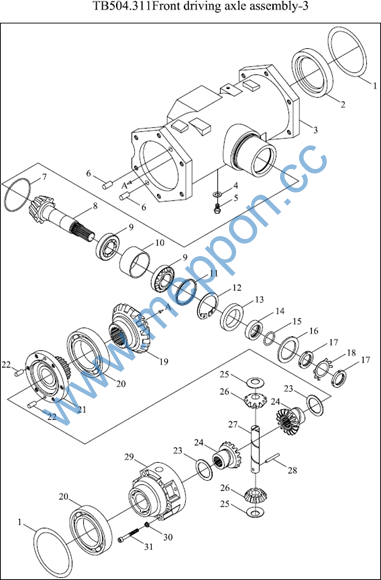

TC02311020000-1 31.1-前驱动桥总成 31.1-FRONT DRIVING AXLE ASSEMBLY
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 4 4 5 |
TC02311020001 FT400.31B.103 GBT93-14-A0P GBT93-14-A0P GBT5783-M14X45-10.9-A3L |
前驱动桥分总成垫圈 弹簧垫圈弹簧垫圈螺栓 |
FRONT DRIVING AXLE SUB-ASSEMBLY WASHER SPRING WASHER SPRING WASHER BOLT |
1 12 8 8 8 |
2014-04_ 2014-04_ 2014-04_ 2014-04_ 2014-04_ |

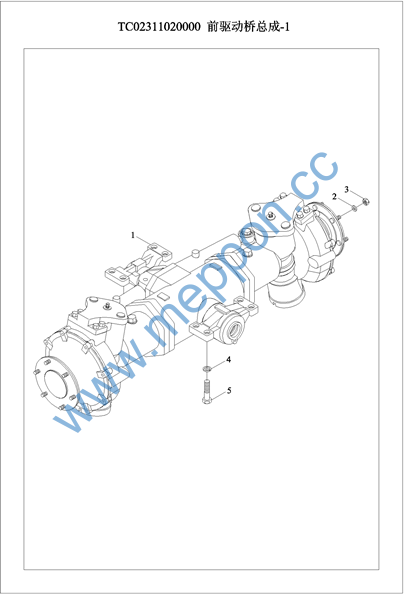

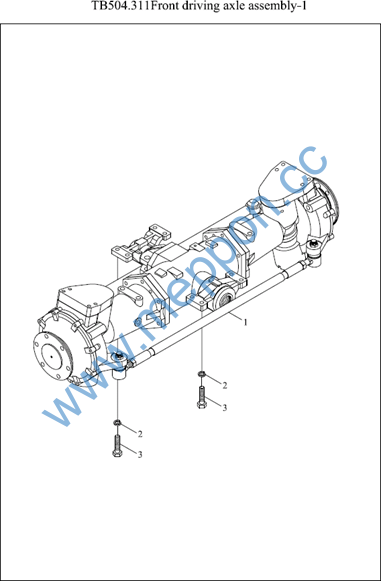

TB504.311-1 31.1.1-前驱动桥总成-1 FRONT DRIVING AXLE ASSEMBLY-1
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
1 2 2 3 |
FT304.31F.011 GBT93-14-A0P GBT93-14-A0P GBT5783-M14X45-10.9-A3L |
前驱动桥分总成弹簧垫圈 弹簧垫圈螺栓 |
FRONT DRIVING AXLE SUB-ASSEMBLY SPRING WASHER SPRING WASHER BOLT |
1 8 8 8 |
2011-11_ 2011-11_ 2011-11_ 2011-11_ |

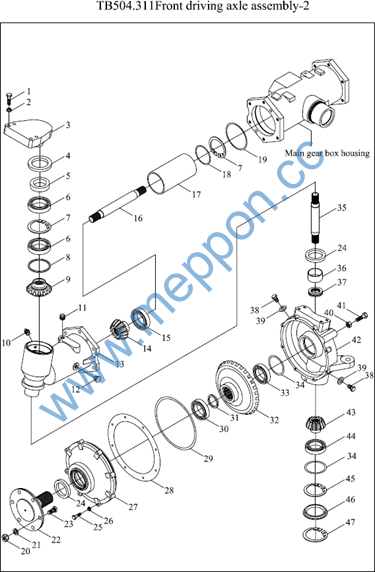

TB504.311-2 31.1.2-前驱动桥总成-2 FRONT DRIVING AXLE ASSEMBLY-2
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
0 |
FT304.31F.011 |
前驱动桥分总成 |
FRONT DRIVING AXLE SUB-ASSEMBLY |
1 |
2011-11_ |
|
1 |
GBT5783-M12×40-8.8-A3L |
六角头螺栓 |
BOLT |
4 |
|
|
10 |
JBT7940.1-M10X1 |
直通式压注油杯 |
STRAIGHT PRESSURE FILLING OIL CUP |
1 |
2011-11_ |
|
11 |
QYXF70-Z3/8″ |
螺塞 |
SCREW PLUG |
1 |
|
|
12 |
GBT1160.2-A10 |
油标 |
DIPSTICK |
1 |
2011-11_ |
|
13 |
FT304.31F.121 |
半轴壳体 |
HALF SHAFT HOUSING |
1 |
2011-11_ |
|
14 |
FT304.31F.126 |
齿轮 |
GEAR |
1 |
2011-11_ |
|
15 |
GBT276-6309 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
16 |
FT304.31F.128 |
花键轴 |
SPLINE SHAFT |
1 |
2011-11_ |
|
17 |
FT304.31F.127 |
套管 |
SLEEVE |
1 |
2011-11_ |
|
18 |
FT304.31F.123 |
调整垫片 |
ADJUSTING WASHER |
1 |
2011-11_ |
|
19 |
FT304.31F.130 |
调整垫片 |
ADJUSTING WASHER |
1 |
2011-11_ |
|
2 |
GBT93-12 |
垫圈 |
WASHER |
4 |
2011-11_ |
|
20 |
GBT6176-M14X1.5-10-A2L |
2型六角螺母 |
HEXAGON NUT, TYPE-2 |
6 |
2004-01_ |
|
21 |
FT304.31F.205 |
垫圈 |
WASHER |
6 |
2011-11_ |
|
22 |
FT304.31F.117 |
前驱动轴 |
FRONT DRIVING SHAFT |
1 |
2011-11_ |
|
23 |
FT304.31F.115 |
滚花螺栓 |
BOLT |
6 |
2011-11_ |
|
24 |
FT304.31F |
浮动油封 |
FLOATING OIL SEAL |
2 |
2011-11_ |
|
24.1 |
65*4.8 |
O形圈 |
O-RING |
5 |
2011-11_ |
|
25 |
GBT5783-M8X35 |
六角头螺栓 |
BOLT |
8 |
2011-11_ |
|
26 |
GBT93-8 |
垫圈8 |
WASHER 8 |
8 |
2011-11_ |
|
27 |
FT304.31F.107 |
端部大盖 |
BIG END COVER |
1 |
2011-11_ |
|
28 |
FT304.31F.190 |
调整垫 |
ADJUSTING GASKET |
1 |
2011-11_ |
|
29 |
GBT3452.1-236X5.3G |
液压气动用O形橡胶密封圈 |
O-SEAL RING |
1 |
2011-11_ |
|
3 |
FT304.31F.124 |
连接盖 |
CONNECTING COVER |
1 |
2011-11_ |
TB504.311-2 31.1.2-前驱动桥总成-2(续)
|
标号 No. |
代号 Code |
名称 Description |
数量 Quantity |
备注 Remark |
|
|
30 |
GBT276-6310 |
轴承 |
BEARING |
1 |
2011-11_ |
|
31 |
FT304.31F.114 |
挡圈 |
RETAINER RING |
2 |
2011-11_ |
|
32 |
FT304.31F.108 |
端部大齿轮 |
BIG END GEAR |
1 |
2011-11_ |
|
33 |
GBT276-6210 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
34 |
FT304.31F.113 |
调整垫 |
ADJUSTING GASKET |
2 |
|
|
35 |
FT304.31F.110 |
端部花键轴 |
END SPLINE SHAFT |
1 |
|
|
36 |
FT304.31F.111 |
衬套 |
SLEEVE |
1 |
2011-11_ |
|
37 |
GBT301-51107 |
轴承 |
BEARING |
1 |
2011-11_ |
|
38 |
FT304.31F.105 |
螺塞 |
SCREW PLUG |
2 |
|
|
38 |
FT304.31F.105 |
螺塞 |
SCREW PLUG |
2 |
|
|
39 |
FT304.31F.106 |
垫圈 |
WASHER |
2 |
2011-11_ |
|
4 |
GBT9877.1-FB80X105X12 |
内包骨架旋转轴唇形密封 |
O RING |
1 |
2011-11_ |
|
40 |
GBT6170-M16 |
螺母 |
NUT |
1 |
2011-11_ |
|
41 |
GBT5783-M16X50-10.9-A3L |
六角头螺栓 |
BOLT |
1 |
|
|
42 |
FT304.31F.109 |
左末端壳体 |
LEFT END HOUSING |
1 |
2011-11_ |
|
43 |
FT304.31F.112 |
端部小齿轮 |
END PINION |
1 |
2011-11_ |
|
44 |
GBT276-6308 |
深沟球轴承 |
BEARING |
1 |
2011-11_ |
|
45 |
GBT893.1-90 |
挡圈90 |
RETAINER RING |
1 |
2011-11_ |
|
46 |
FT304.31F.022 |
密封盖 |
SEAL CAP |
1 |
2011-11_ |
|
47 |
GBT893.1-102 |
孔用弹性挡圈 |
SNAP RING |
1 |
2011-11_ |
|
5 |
FT304.31F.125 |
油封衬套 |
OIL SEAL BUSH |
1 |
2011-11_ |
|
6 |
GBT276-6013 |
深沟球轴承 |
BEARING |
2 |
2011-11_ |
|
7 |
GBT893.1-100 |
孔用弹性挡圈 |
SNAP RING |
2 |
2011-11_ |
|
8 |
FT304.31F.188 |
平垫 |
WASHER |
1 |
2011-11_ |
|
9 |
FT304.31F.122 |
齿轮 |
GEAR |
1 |
2011-11_ |
