序号 No.

代码 Code

名称 Description

页次 Page

1

QC495T45-13-01

10.1-机体总成

CYLINDER BLOCK

1

2

QC495T45-13-10

10.10-气缸盖罩总成

CYLINDER HEAD COVER ASSEMBLY

5

3

QC495T45-13-11

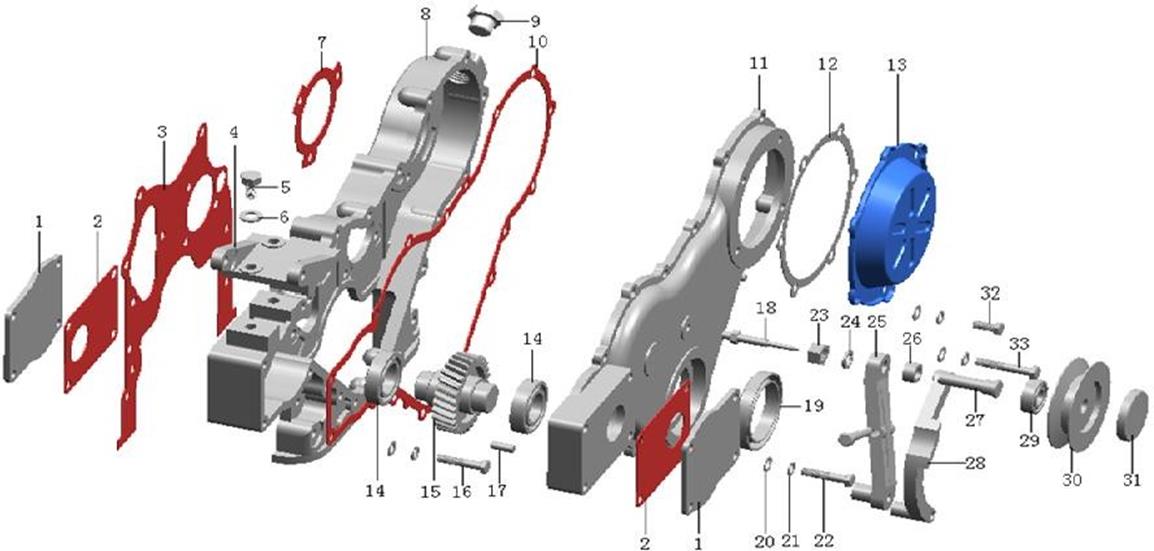

10.11-正时齿轮室总成

TIMING GEAR CASE ASSEMBLY

7

4

QC495T45-13-12

10.12-飞轮壳总成

FLYWHEEL COVER ASSEMBLY

11

5

QC495T45-13-13

10.13-高压油管总成

HIGH PRESSURE OIL PIPE ASSEMBLY

13

6

QC495T45-13-14

10.14-机油泵总成

OIL PUMP ASSEMBLY

15

7

QC495T45-13-15

10.15-呼吸器总成

BREATH ASSEMBLY

17

8

QC495T45-13-16

10.16-机油管路总成

OIL CIRCUIT ASSEMBLY

19

9

QC495T45-13-17

10.17-水泵风扇总成-17

WATER PUMP AND FAN ASSEMBLY-17

21

10

QC495T45-13-18

10.18-喷油泵

OIL INJECTION PUMP

23

11

QC495T45-13-19

10.19-发电机总成

ALTERNATOR ASSY

25

12

QC495T45-13-02

10.2-正时齿轮传动系总成

TIMING GEAR ASSEMBLY-2

27

13

QC495T45-13-20

10.20-燃油供给总成-20

FUEL SUPPLY SYSTEM ASSEMBLY

29

14

QC495T45-13-21

10.21-喷油器总成

FUEL INJECTOR ASSEMBLY

31

15

QC495T45-13-22

10.22-机油滤清器总成

OIL FILTER ASSEMBLY

33

16

QC495T45-13-23

10.23-燃油滤清器总成-23

FUEL FILTER ASSEMBLY-23

35

17

QC495T45-13-24

10.24-起动电机总成

STARTING MOTOR ASSEMBLY

37

18

QC495T45-13-03

10.3-气缸盖总成

CYLINDER HEAD ASSY

39

19

QC495T45-13-04

10.4-活塞、连杆总成

PISTONS & CONNECTING RODS

43

20

QC495T45-13-05

10.5-曲轴、飞轮总成

CRANKSHAFT FLYWHEEL ASSEMBLY

45

21

QC495T45-13-06

10.6-凸轮轴总成

CAMSHAFT ASSY

47

22

QC495T45-13-07

10.7-油底壳总成

OIL SUMP ASSEMBLY

49

23

QC495T45-13-08

10.8-排气管总成-8

EXHAUST PIPE ASSEMBLY-8

51

24

QC495T45-13-09

10.9-进气管总成-9

INTAKE PIPE ASSEMBLY-9

53

25

TB400.11

11-空气滤清系总成

11-AIR CLEANER ASSEMBLY

55

序号 No.

代码 Code

名称 Description

页次 Page

26

TB500.13D

13-冷却系总成

13-COOLING SYSTEM ASSEMBLY

57

27

TB400.201F

20.1-手油门总成

20.1-HAND THROTTLE ASSEMBLY

59

28

TB400.202F

20.2-脚油门总成

20.2-FOOT THRORRLE ASSEMBLY

61

29

TB400.203B

20.3-拉线总成

20.3-PULL WIRE ASSEMBLY

63

30

TB550.211

21.1-离合器总成

21.1-CLUTCH ASSEMBLY

65

31

TB504.212

21.2-离合器操纵机构总成

21.2-CLUTCH CONTROL MECHANISM ASSEMBLY

67

32

TC02311020000-1

31.1-前驱动桥总成

31.1-FRONT DRIVING AXLE ASSEMBLY

69

33

TB504.311-1

31.1.1-前驱动桥总成-1

FRONT DRIVING AXLE ASSEMBLY-1

71

34

TB504.311-2

31.1.2-前驱动桥总成-2

FRONT DRIVING AXLE ASSEMBLY-2

73

35

TB504.311-3

31.1.3-前驱动桥总成-3

FRONT DRIVING AXLE ASSEMBLY-3

77

36

TB504.311-4

31.1.4-前驱动桥总成-4

FRONT DRIVING AXLE ASSEMBLY-4

81

37

TB504.311-5

31.1.5-前驱动桥总成-5

FRONT DRIVING AXLE ASSEMBLY-5

85

38

TB504.311-6

31.1.6-前驱动桥总成-6

FRONT DRIVING AXLE ASSEMBLY-6

89

39

TB554.312

31.2-前托架总成

31.2-FRONT BRACKET ASSEMBLY

91

40

TC02311020000-2

31.2-前驱动桥总成

FRONT DRIVING AXLE ASSEMBLY

93

41

TC02311020000-3

31.3-前驱动桥总成

FRONT DRIVING AXLE ASSEMBLY

95

42

TC02311020000-4

31.4-前驱动桥总成

FRONT DRIVING AXLE ASSEMBLY

97

43

TC02311020000-5

31.5-前驱动桥总成

FRONT DRIVING AXLE ASSEMBLY

99

44

TC02311020000-6

31.6-前驱动桥总成

FRONT DRIVING AXLE ASSEMBLY

101

45

FT404.32F.001

32-前驱动轮总成

32-FRONT DRIVING WHEEL ASSEMBLY

103

46

FT400.34F.001

34-后驱动轮总成

34-REAR DRIVE WHEEL ASSEMBLY

105

47

TB300.35A

35-牵引机构总成

35-TOWING MECHANISM ASSEMBLY

107

48

TB400.371

37.1-变速箱壳体总成

37.1-GEARBOX HOUSING ASSEMBLY

109

49

TB450.372B-1

37.2.1-主变速总成-1

MAIN TRANSMISSION ASSEMBLY-1

111

50

TB450.372B-2

37.2.2-主变速总成-2

MAIN TRANSMISSION ASSEMBLY-2

115

序号 No.

代码 Code

名称 Description

页次 Page

51

TB450.374C-1

37.4-变速箱操纵机构总成

37.4-GEARBOX CONTROL MECHANISM ASSEMBLY

117

52

TB450.374C-2

37.4.2变速箱操纵机构总成-2

GEARBOX CONTROL MECHANISM ASSEMBLY-2

119

53

TB404.382B-1

38.2.1-后桥中央传动总成-1

REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1

123

54

TB404.382B-2

38.2.2-后桥中央传动总成-2

REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2

125

55

TB554.383A

38.3-差速锁操纵机构总成

38.3-DIFFERENTIAL LOCK CONTROL MECHANISM

127

56

FT300.39.001-1

39.1-最终传动总成-1

39FINAL TRANSMISSION ASSEMBLY -1

129

57

FT300.39.001-2

39.2-最终传动总成-2

39FINAL TRANSMISSION ASSEMBLY -2

133

58

TB504.402B-1

40.1-全液压转向管路总成-1

FULL HYDRAULIC STEERING PIPE ASSEMBLY-1

137

59

TB504.401B

40.1-转向器及转向管柱总成

40.1-REDIRECTOR OR STEERING COLUMN ASSEMBLY

141

60

TB504.402B-2

40.2-全液压转向管路总成-2

FULL HYDRAULIC STEERING PIPE ASSEMBLY-2

143

61

TB504.402J-1

40.21-全液压转向总成

FULLY HYDRAULIC STEERING ASSEMBLY

145

62

TB504.402J-2

40.22-全液压转向总成

FULLY HYDRAULIC STEERING ASSEMBLY

149

63

TB400.411D

41.1-动力输出齿轮总成

41.1-PTO GEAR ASSEMBLY

151

64

TB550.412A

41.2-动力输出轴总成

41.2-PTO SHAFT ASSEMBLY

155

65

TB550.413D

41.3-动力输出操纵总成

41.3-PTO CONTROL ASSEMBLY

157

66

TB554.421C

42.1-分动箱箱体总成

42.1-TRANSFER CASE HOUSING ASSEMBLY

161

67

TB454.422

42.2-分动箱传动总成

42.2-TRANSFER CASE TRANSMISSION ASSEMBLY

165

68

TB554.423C

42.3-分动箱操纵总成

42.3-TRANSFER CASE CONTROL ASSEMBLY

167

69

TB504.431

43.1-左制动器总成

43.1-LEFT BRAKE ASSEMBLY

169

70

TB504.432

43.2-右制动器总成

43.2-RIGHT BRAKE ASSEMBLY

171

71

TB504.433-1

43.3.1-制动器操纵机构总成-1

BRAKE CONTROL MECHANISM ASSEMBLY-1

173

72

TB504.433-2

43.3.2-制动器操纵机构总成-2

BRAKE CONTROL MECHANISM ASSEMBLY-2

175

73

TB400.44G

44-座椅安装总成

44SEAT INSTALLATION ASSEMBLY

179

74

TB554.452A

45.2-地板总成

45.2-FLOOR ASSEMBLY

181

75

TB554.452A-1

45.2.1-地板总成-1

FLOOR ASSEMBLY-1

183

序号 No.

代码 Code

名称 Description

页次 Page

76

TB554.452A-2

45.2.2-地板总成-2

FLOOR ASSEMBLY-2

185

77

TB554.452A-3

45.2.3–地板总成-3

FLOOR ASSEMBLY-3

187

78

TB400.457B

45.7-前连接总成

45.7-FRONT CONNECTING ASSEMBLY

189

79

TB400.46H

46-安全架安装总成

46-SAFETY FRAME INSTALLATION ASSEMBLY

191

80

TB400B.471A

47.1-机罩总成

47.1-BONNET ASSEMBLY

195

81

TB400B.473

47.3-机罩锁紧装置总成

47.3-BONNET LOCKING DEVICE ASSEMBLY

197

82

TB550.477E

47.7-机罩加长板总成

47.7-BONNET EXTENSION PLATE ASSEMBLY

199

83

TB450.481F

48.1-发动机线束安装总成

48.1-ENGINE HARNESS INSTALLATION ASSEMBLY

201

84

TB450.482H

48.2-车身线束安装总成

48.2-BODY HARNESS INSTALLATION ASSEMBLY

203

85

TB450.483B

48.3-前灯线束安装总成

48.3-FRONT LAMP HARNESS INSTALLATION

205

86

TB500.484C

48.4-后灯线束安装总成

48.4-REAR LAMP HARNESS INSTALLATION ASSEMBLY

207

87

TB450.485A

48.5-蓄电池安装总成

48.5-BATTERY INSTALLATION ASSEMBLY

211

88

TB400.487

48.7-组合仪表总成

48.7-COMBINED INSTRUMENT ASSEMBLY

213

89

TB400.49

49-工具箱总成

49-TOOL BOX ASSEMBLY

215

90

TB400.50X

50-燃油箱装配总成

50-FUEL TANK INSTAllation assembly

217

91

FT300.53.001

53-拖挂装置总成

53-TOW EQUIPMENT ASSEMBLY

219

92

TB504.551A

55.1-提升器装配总成

55.1-LIFTER INSTALLATION ASSEMBLY

221

93

TB504.551A-1

55.1-提升器装配总成-1

LIFTER INSTALLATION ASSEMBLY-7-1

223

94

TB504.552C

55.2-提升器操纵机构总成

55.2-LIFTER CONTROL MECHANISM ASSEMBLY

227

95

TB504.551A-2

55.2-提升器装配总成-2

LIFTER INSTALLATION ASSEMBLY-7-2

231

96

TB504.551A-3

55.3-提升器装配总成-3

LIFTER INSTALLATION ASSEMBLY-7-3

233

97

TB504.551A-4

55.4-提升器装配总成-4

LIFTER INSTALLATION ASSEMBLY-4

237

98

TB504.551A-5

55.5-提升器装配总成-5

LIFTER INSTALLATION ASSEMBLY-5

239

99

TB504.551A-6

55.6-提升器装配总成-6

LIFT ASSEMBLY-6

243

100

TB504.551A-7

55.7-提升器装配总成-7

LIFT ASSEMBLY-7

245

序号 No.

代码 Code

名称 Description

页次 Page

101

FT500A.56B.001-1

56.1-悬挂机构总成-1

SUSPENSION MECHANISM ASSEMBLY-1

249

102

FT500A.56B.001-2

56.2-悬挂机构总成-2

SUSPENSION MECHANISM ASSEMBLY-2

253

103

FT454.58J.001

58-油泵油管总成

255

104

TB504.582C

58.2-多路阀操纵机构总成

58.2-MULTI-WAY VALVE CONTROL MECHANISM

257

105

TB504.582C-1

58.2.1-多路阀操纵机构总成-1

MULTI-WAY VALVE CONTROL MECHANISM

259

106

TB504.582C-2

58.2.2-多路阀操纵机构总成-2

MULTI-WAY VALVE CONTROL MECHANISM

261

107

TB504.582C-3

58.2.3-多路阀操纵机构总成-3

MULTI-WAY VALVE CONTROL MECHANISM

263

108

TB300.583A

58.3-单路液压输出总成2

58.3-SINGLE-WAY HYDRAULIC OUTPUT ASSEMBLY 2

267

109

TA600.62ZC

62-安全带

62-SAFETY BELT

269

110

FT404.74A.002

74-前配重总成

74-FRONT BALLAST ASSEMBLY

271

111

FT300.74B.001

74-前配重架总成

74-FRONT BALLAST BRACKET ASSEMBLY

273

112

TB400.91

91-后配重总成

91-REAR BALLAST ASSEMBLY

275

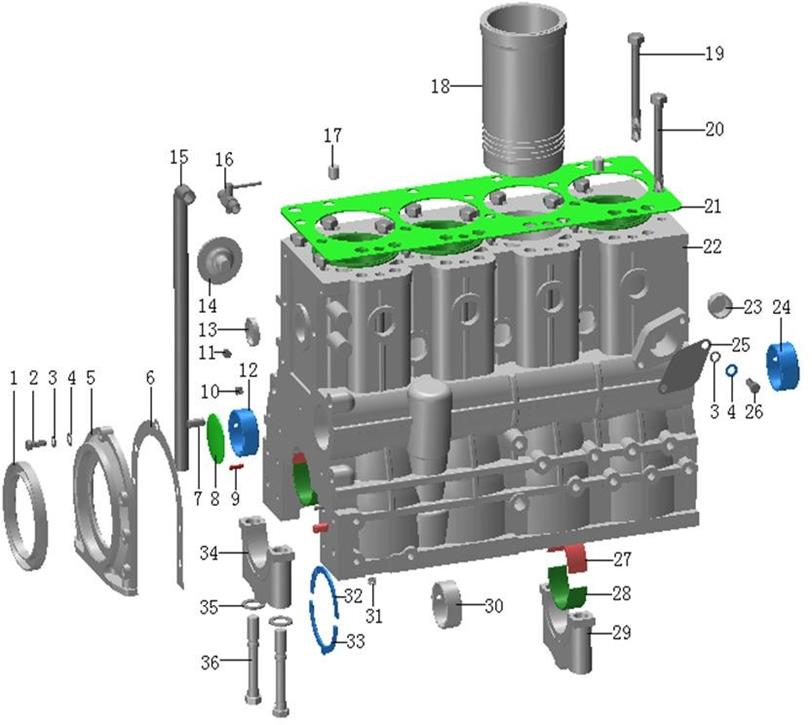

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

GBT9877.1-FB100X130X12

内包骨架旋转轴唇形密封

O RING

1

10

1408500311000

螺塞（ZG3/8〃）

SCREW PLUG

2

11

2409000110700

分油道堵塞

PLUG

5

12

2409000110200

凸轮轴后衬套

REAR BUSH OF CAMSHAFT

1

13

1408500310200

碗形塞

BOWL PLUG

2

13

1408500310200

碗形塞

BOWL PLUG

2

15

2409000103800

放水阀接管

DRAIN VALVE BLOCK

1

16

1408500320000

放水阀部件

DRAIN VALVE BLOCK

1

17

2409500102900

气缸盖定位套

CYLINDER COVER LOCATING BUSH

2

18

2409500100200

气缸套

CYLINDER LINER

4

19

2409000100400

气缸盖螺栓（乙）

CYLINDER COVER BOLT (2)

4

2

GBT5783-M8X30

六角头螺栓

BOLT

5

20

2409000100300

气缸盖螺栓（甲）

CYLINDER COVER BOLT (1)

14

21

2409500100500

缸盖垫

CYLINDER HEAD GASKET

1

22

2409500110000

机体

BLOCK

1

24

2409000110600

凸轮轴前衬套

FRONT BUSH OR CAMSHAFT

1

25

2409500103600

进水口封板

WATER INLET SEAL PLATE

1

26

GBT5783-M8X25

螺栓

BOLT

2

27.28

2409500102500/2600

主轴瓦

MAIN BEARING

5

29

2409500110800

主轴承盖

MAIN BEARING COVER

4

3

GBT93-8

垫圈8

WASHER 8

12

30

2409000110500

凸轮轴中衬套

MIDDLE BUSH OF CAMSHAFT

1

32.33

2409000102200/2100

曲轴止推片

CRANKSHAFT HALFRING

2

34

2409500110400

后主轴承盖

REAR MAIN BEARING COVER

1

36

2409000110900

主轴承盖螺栓

BOLT

10

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

37

4

5

5

6

7

8

9

2409000103700

GBT97.1-8 2409000101800

2409000101800

2409000101900

GBT119.1-B10X25 2409000110300 GBT119.1-B8X20

放水阀部件垫圈

后油封盖后油封盖

后油封盖垫片

圆柱销碗形塞圆柱销

DRAIN VALVE BLOCK WASHER

REAR OIL SEAL COVER REAR OIL SEAL COVER

REAR OIL SEAL COVER GASKET

PIN

BOWL PLUG PIN

1

12

1

1

1

2

1

2

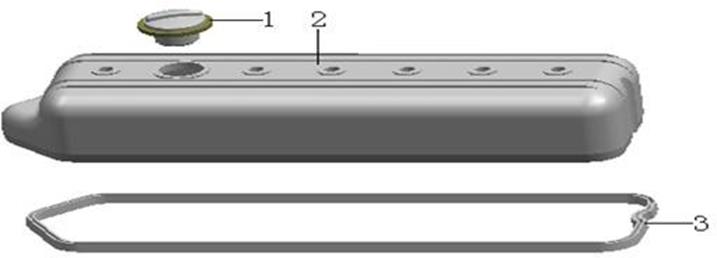

标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1.1

2

3

2409001110101

2409001110201

2409501100201

2409501100300

加油口盖

加油口盖垫圈气缸盖罩

气缸盖罩密封圈

COVER

CAP GASKET

CYLINDER HEAD COVER CYLINDER COVER SEAL RING

1

1

1

1
