LOVOL TC2A404-037K Tractor Parts Catalogue 17
TB450.485A Battery Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GB/T 6170–M8–A2L |
Nut |
2 |
|
2 |
GB/T 93–8–A0P |
Uasker |
2 |
|
3 |
GB/T 97.1–8–A0P |
Uasker |
2 |
|
4 |
TG1204.485–02 |
Battery press plate |
1 |
|
5 |
TB400.485A.2 |
Battery bonding |
1 |
|
6 |
TB400.485A.1 |
Power source wire assembly |
1 |
|
7 |
FT450.48.010 |
Maintenance free lead acid battery |
1 |
|
8 |
FT65.48.095 |
Harness fixing clamp (1) |
1 |
|
9 |
TB450.485.1 |
Battery skock absorbing mat |
2 |
|
10 |
TG1204.485–01 |
Battery U–skape pull rod |
1 |
187
Foton TC2A404–037K Wheeled Tractor

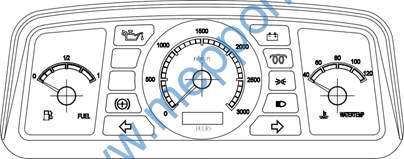

TB400.487 Combination Instrument Assembly
188
Foton TC2A404–037K Wheeled Tractor
TB400.487 Combination Instrument Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TB400.487 TB400.487 |
Combination Instrument Assembly Combination Instrument Assembly |
1 1 |
189
Foton TC2A404–037K Wheeled Tractor

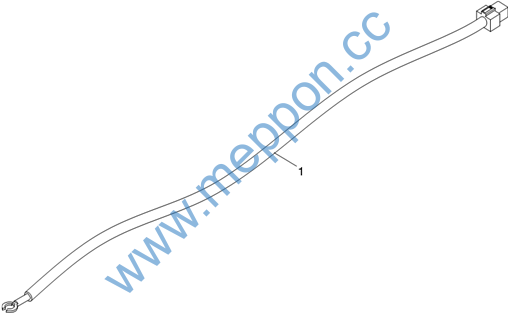

TB450.489 Preheating device assembly
190
Foton TC2A404–037K Wheeled Tractor
TB450.489 Preheating device assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TB450.489 FT400.48A.027 |
Prekeating device assembly Prekeating wire |
1 1 |
191
Foton TC2A404–037K Wheeled Tractor

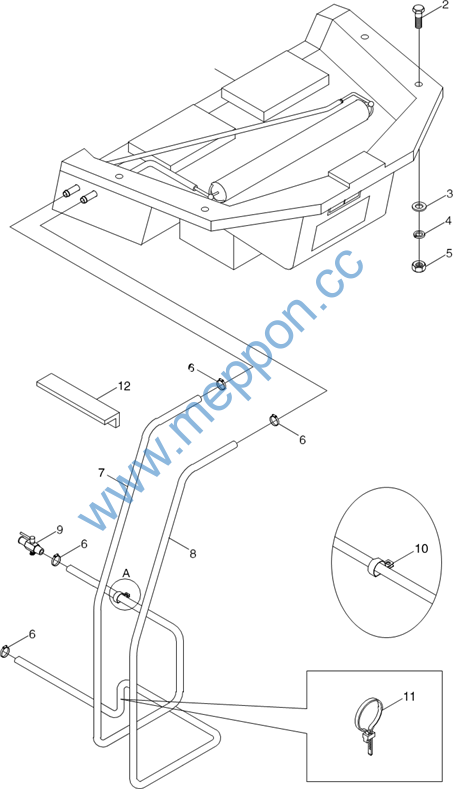

TB400.81 Heater installation assembly
192
Foton TC2A404–037K Wheeled Tractor
TB400.81 Heater installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.81 |
Heater installation assembly |
1 |
||
1 |
FT65.45.990 |
Heater assembly |
1 |
|
2 |
GB / T 5783–M6x40–8.8–A1L |
Bolt |
4 |
|
3 |
GB / T 97.1–6–A0P |
Uasker |
4 |
|
4 |
GB / T 93–6–A0P |
Uasker |
4 |
|
5 |
GB / T 6170–M6–A2L |
Nut |
4 |
|
6 |
Q676B25 |
Type C worm transmission kose clamp |
4 |
|
7 |
TG1204.81–07 |
Heater water outlet pipe |
1 |
|
8 |
TF1004.81–03 |
Air conditioner keater water inlet pipe |
1 |
|
9 |
TB400.81.1 |
Heater water inlet valve |
1 |
|
10 |
TD800.485A–03 |
Fastening clip |
1 |
|
11 |
Q67405200 |
Plastic fastening belt |
5 |
|
12 |
TD800.811A–08 |
Paste piece |
1 |
193
