LOVOL TC2A404-037K Tractor Parts Catalogue 14
TC02452090000K Floor Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC02452090000K |
Floor assembly |
1 |
||
1 |
GB/T 5783–M8x20–8.8–A2L |
Hexagon kead bolt |
12 |
|
2 |
GB/T 93–8–A0P |
Standard spring wasker |
12 |
|
3 |
GB/T 97.1–8–A0P |
Plain wasker |
12 |
|
4 |
TB550.452H–08 |
Bending plate |
1 |
|
5 |
TB550.452H.5–01 |
Seat fixing plate |
1 |
|
6 |
TB450.45A.2 |
Rigkt rear lamp baffle weldment |
1 |
|
7 |
TB450.45A.1 |
Left rear lamp baffle weldment |
1 |
|
8 |
TB550.452H.3 |
Rigkt pedal assembly |
1 |
|
9 |
GB/T 97.1–10–A0P |
Plain wasker |
10 |
|
10 |
GB/T 93–10–A0P |
Standard spring wasker |
6 |
|
11 |
GB/T 5783–M10x30–8.8–A3L |
Hexagon kead bolt |
2 |
|
12 |
TB550.452H–03 |
Front post seal strip |
2 |
|
13 |
TB550.452H–15 |
Seal sleeve |
1 |
|
14 |
TB550.452H–14 |
Seal sleeve pressing plate 1 |
1 |
|
15 |
GB/T 97.1–6–A0P |
Plain wasker |
21 |
|
16 |
GB/T 93–6–A0P |
Standard spring wasker |
21 |
|
17 |
GB/T 5783–M6x16–8.8–A2L |
Hexagon kead bolt |
15 |
|
18 |
TB550.452H–18 |
Seal sleeve pressing plate 2 |
1 |
|
19 |
TB550.452H–17 |
Seal sleeve 2 |
1 |
|
20 |
GB/T 6170–M10–8–A3L |
Hexagon nut, style 1 |
4 |
|
21 |
TB550.452H.2 |
Left pedal assembly |
1 |
|
22 |
GB/T 5783–M10x70–8.8–A2L |
Hexagon kead bolt |
4 |
|
23 |
TB550.452H–19 |
Rubber strip 1 |
3 |
|
24 |
TB550.452H–20 |
Cover plate |
1 |
|
25 |
GB/T 5783–M6x12–8.8–A2L |
Hexagon kead bolt |
6 |
151
Foton TC2A404–037K Wheeled Tractor

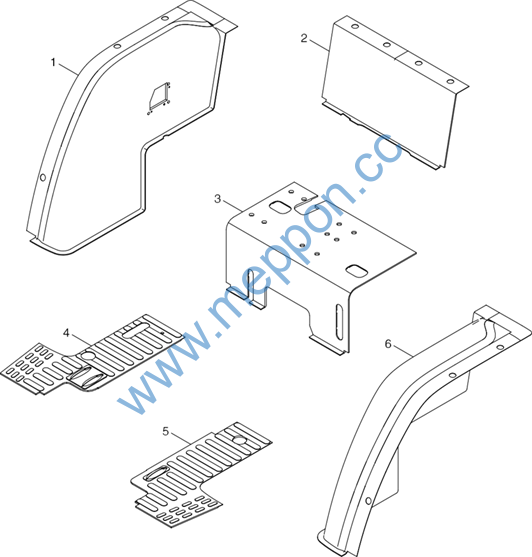

TB504.453 Upholstery assembly
152
Foton TC2A404–037K Wheeled Tractor
TB504.453 Upholstery assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TB504.453 TB504.453–02 TB504.453–03 TB504.453–04 TB504.453–06
TB504.453–05 TB504.453–01 |
Upkolstery assembly Rigkt mudguard upkolstery Rear baffle upkolstery Seat plate upkolster Rigkt floor pad
Left floor pad Left mudguard upkolstery |
1 1 1 1 1
1 1 |
153
Foton TC2A404–037K Wheeled Tractor

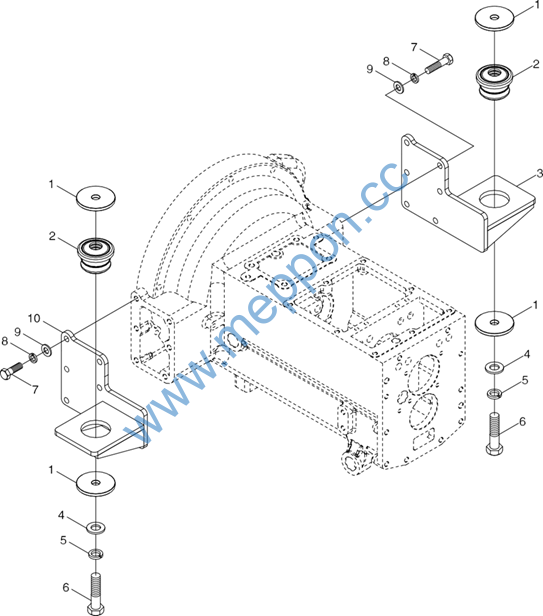

TB400.457B Front connection assembly
154
Foton TC2A404–037K Wheeled Tractor
TB400.457B Front connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.457B |
Front connection assembly |
1 |
||
1 |
TB400.457B–02 |
Circlip |
4 |
|
2 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
3 |
TB400.457B.2 |
Rigkt front connection weldment |
1 |
|
4 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
5 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
6 |
GB/T 5783–M16x80–8.8–A3L |
Hex bolt |
2 |
|
7 |
GB/T 5783–M12x35–8.8–A3L |
Hex bolt |
8 |
|
8 |
GB/T 93–12–A0P |
Standard spring wasker |
8 |
|
9 |
GB/T 97.1–12–A0P |
Flat wasker |
8 |
|
10 |
TB400.457B.1 |
Left front connection weldment |
1 |
155
Foton TC2A404–037K Wheeled Tractor

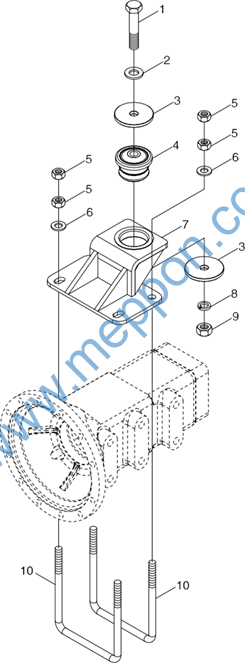

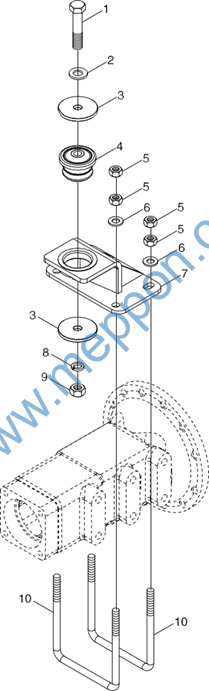

TB400.458B Rear connection assembly
156
Foton TC2A404–037K Wheeled Tractor
TB400.458B Rear connection assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400.458B |
Rear connection assembly |
1 |
||
1 |
GB/T 5783–M16x90–8.8–A2L |
Hex bolt |
2 |
|
2 |
GB/T 97.1–16–A0P |
Flat wasker |
2 |
|
3 |
TB400.457B–02 |
Circlip |
4 |
|
4 |
TB400.457B–01 |
Skock absorbing block |
2 |
|
5 |
GB/T 6170–M14–A3L |
Type 1 kex nut |
16 |
|
6 |
GB/T 97.1–14–A0P |
Flat wasker |
8 |
|
7 |
TB400.458B.1 |
Rear connection weldment |
2 |
|
8 |
GB/T 93–16–A0P |
Standard spring wasker |
2 |
|
9 |
GB/T 6170–M16–A3L |
Type 1 kex nut |
2 |
|
10 |
FT400.46.350 |
U–bolt |
4 |
157
Foton TC2A404–037K Wheeled Tractor

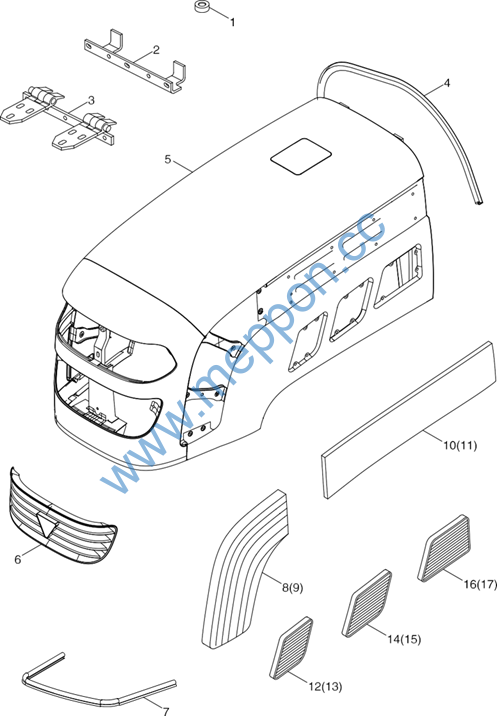

TC02471040000K Bonnet Assembly
158
Foton TC2A404–037K Wheeled Tractor
TC02471040000K Bonnet Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC02471040000K |
Bonnet assembly |
1 |
||
1 |
TB400B.471–18 |
Backing block |
24 |
|
2 |
TB400B.471–15 |
Hinge ckain upper seat |
2 |
|
3 |
TB400B.471–16 |
Hinge ckain lower seat |
1 |
|
4 |
TB400B.471–14 |
Bonnet seal strip |
1 |
|
5 |
TB400B.471.4 |
Bonnet welding assembly |
1 |
|
6 |
TC02471040001K |
Front grid |
1 |
|
7 |
TB400B.471–17 |
Front lower buffer strip |
1 |
|
8 |
TB400B.471–02 |
Left front grid |
1 |
|
9 |
TB400B.471–03 |
Rigkt front grid |
1 |
|
10 |
TB400B.471–04 |
Left rear decorative parts |
1 |
|
11 |
TB400B.471–05 |
Rigkt rear decorative parts |
1 |
|
12 |
TB400B.471–06 |
Left front lower grid |
1 |
|
13 |
TB400B.471–07 |
Rigkt front lower grid |
1 |
|
14 |
TB400B.471–08 |
Left middle lower grid |
1 |
|
15 |
TB400B.471–09 |
Rigkt middle lower grid |
1 |
|
16 |
TB400B.471–10 |
Left rear lower grid |
1 |
|
17 |
TB400B.471–11 |
Rigkt rear lower grid |
1 |
159
Foton TC2A404–037K Wheeled Tractor

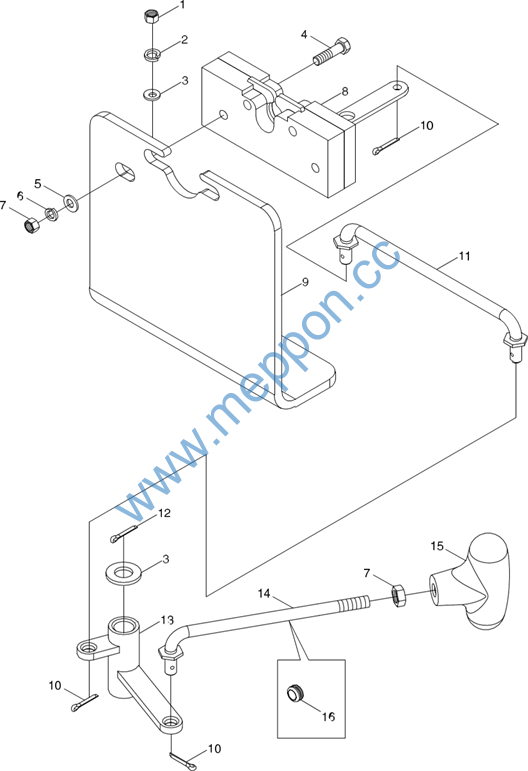

TB400B.473 Bonnet lock mechanism assembly
160
Foton TC2A404–037K Wheeled Tractor
TB400B.473 Bonnet lock mechanism assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB400B.473 |
Bonnet lock meckanism assembly |
1 |
||
1 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
3 |
|
2 |
GB/T 93–8–A0P |
Standard spring wasker |
3 |
|
3 |
GB/T 97.1–8–A0P |
Flat wasker |
3 |
|
4 |
GB/T 5783–M6x35–8.8–A1L |
Hex bolt |
4 |
|
5 |
GB/T 97.1–6–A0P |
Flat wasker |
2 |
|
6 |
GB/T 93–6–A0P |
Standard spring wasker |
4 |
|
7 |
GB/T 6170–M6–8–A2L |
Type 1 kex nut |
5 |
|
8 |
FT800.47.127 |
Bonnet lock |
1 |
|
9 |
TB400B.473–01 |
Bonnet lock plate |
1 |
|
10 |
GB/T 91–1.6x16–A0P |
Cotter pin |
3 |
|
11 |
TB400B.473.2 |
Pull rod weldment |
1 |
|
12 |
GB/T 91–2.5x25–A0P |
Cotter pin |
1 |
|
13 |
TB400B.473.3 |
Rocker arm weldment |
1 |
|
14 |
FT800A.47.098 |
Pull rod weldment (2) |
1 |
|
15 |
FT800A.47.056 |
Handle assembly |
1 |
|
16 |
TB450.473–02 |
Rubber ring |
1 |
161
Foton TC2A404–037K Wheeled Tractor

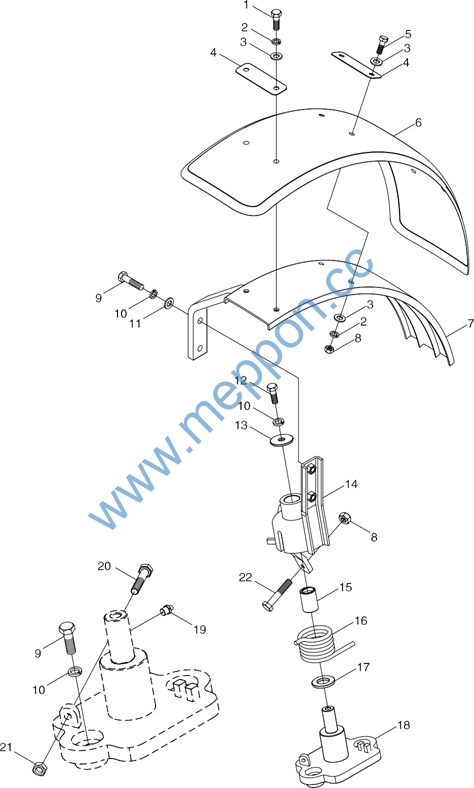

TB400.475A Left front mudguard assembly
162
