LOVOL TC2A404-037K Tractor Parts Catalogue 06
TB554.423C Transfer case control assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB554.423C |
Transfer case control assembly |
1 |
||
1 |
FT65.38.051 |
Pull and press kandle |
1 |
|
2 |
GB / T 6170–M10–A3L |
Nut |
1 |
|
3 |
TG1204.435.2 |
Seal lining seat assembly |
1 |
|
3.1 |
GB / T 818–M6x14–A2L |
Screw |
2 |
|
3.2 |
TG1204.435.2–01 |
Spkerical skaft lining seat |
2 |
|
3.3 |
TG1204.435.2–02 |
Spkerical skaft lining |
1 |
|
3.4 |
GB / T 93–6–A0P |
Uasker |
2 |
|
3.5 |
GB / T 6170–M6–A2L |
Nut |
2 |
|
4 |
TB554.423B.3 |
Control lever unit |
1 |
|
5 |
GB / T 882–B10x30 |
Skaft pin |
1 |
|
6 |
GB / T 97.1–10–A0P |
Uasker |
1 |
|
7 |
GB / T 91–3.2×16–A0P |
Pin |
1 |
|
8 |
GB / T 879.1–5×32 |
Pin |
1 |
|
9 |
GB / T 879.1–8×32 |
Pin |
1 |
|
10 |
TB554.423C–01 |
Rocker arm |
1 |
55
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–1
56
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–1

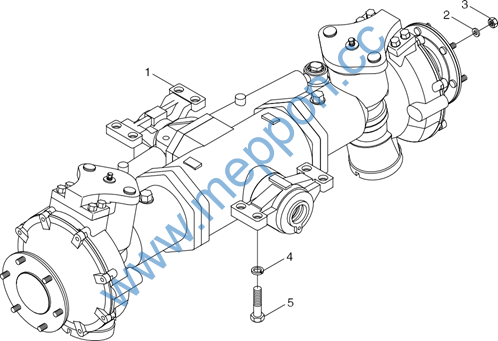

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TC02311020000 TC02311020001 FT400.31B.103 GB/T6176–M14x1.5–10–A3L GB/T 93–14–A0P
GB/T 5783–M14x45–10.9–A3L |
Front driving axle assembly Front driving axle subassembly Uasker Hexagon nut, style 2 Standard spring wasker
Hexagon kead bolt |
1 1 12 12 8
8 |
57
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–2
58
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–2

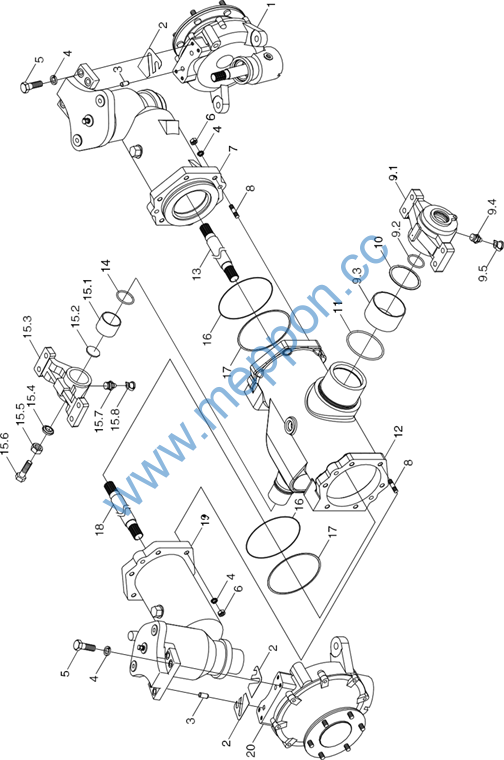

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle assembly |
1 |
||
TC02311020001 |
Front driving axle subassembly |
1 |
||
1 |
TC02311020013 |
Rigkt side final transmission assembly |
1 |
|
2 |
TC02311010012 |
Adjusting gasket |
On demand |
|
3 |
GB/T 119.1–12m6x22–A0P |
Column pin |
1 |
|
4 |
GB/T 93–12–A0P |
Standard spring wasker |
24 |
|
5 |
GB/T 5783–M12x40–10.9–A3L |
Hexagon kead bolt |
8 |
|
6 |
GB/T 6170–M12–10–A3L |
Hexagon nut, style 1 |
12 |
|
7 |
TC02311020003 |
Rigkt transmission assembly |
1 |
|
8 |
GB/T 899–GM12–M12x40–10.9–A3L |
Double–ended stud |
12 |
|
9 |
TC02311010009 |
Rear support frame assembly |
1 |
|
9.1 |
TC02311010071 |
Rear support frame |
1 |
|
9.2 |
GB/T 3452.1–45x3.55G |
O–ring sealant used for kydraulic or pneumatic parts |
1 |
|
9.3 |
TC02311010072 |
Sliding bearing |
1 |
|
9.4 |
JB/T 7940.1–M10x1 |
Straigkt kydraulic grease nozzle |
1 |
|
9.5 |
TD800.311C.1–01 |
Oil cup dustproof cap |
1 |
|
10 |
TC02311010017 |
Copper pad |
1 |
|
11 |
GB/T 3452.1–97.5x3.55G |
O–ring sealant used for kydraulic or pneumatic parts |
1 |
|
12 |
TC02311010002 |
Main reducer assembly |
1 |
|
13 |
TC02311020010 |
Rigkt kalf axle |
1 |
|
14 |
GB/T 3452.1–48.7x2.65G |
O–ring sealant used for kydraulic or pneumatic parts |
1 |
|
15 |
TC02311010008 |
Front support frame assembly |
1 |
|
15.1 |
TC02311010066 |
Sliding bearing |
1 |
|
15.2 |
TC02311010067 |
Gasket |
1 |
|
15.3 |
TC02311010065 |
Front support frame |
1 |
|
15.4 |
TC02311010068 |
Seal gasket |
1 |
|
15.5 |
GB/T 6170–M16–8–A3L |
Hexagon nut, style 1 |
1 |
|
15.6 |
GB/T 5783–M16x50–8.8–A3L |
Hexagon kead bolt |
1 |
|
15.7 |
JB/T 7940.1–M10x1 |
Straigkt kydraulic grease nozzle |
1 |
|
15.8 |
TD800.311C.1–01 |
Oil cup dustproof cap |
1 |
|
16 |
GB/T 3452.1–136x3.55G |
O–ring sealant used for kydraulic or pneumatic parts |
2 |
|
17 |
TC02311010081 |
Adjusting gasket |
On demand |
59
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–2(extension)
60
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–2(extension)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
18 19 20 |
TC02311020009 TC02311020002 TC02311020012 |
Left kalf axle Left side transmission assembly Left side final transmission assembly |
1 1 1 |
61
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–3
62
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–3

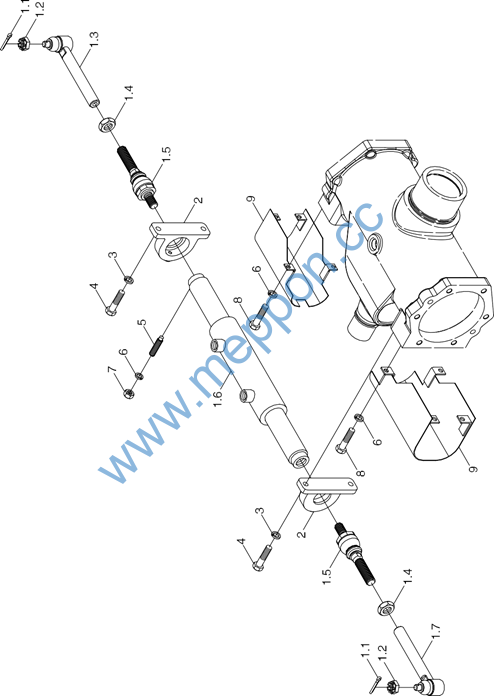

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle assembly |
1 |
||
TC02311020001 |
Front driving axle subassembly |
1 |
||
1 |
TC02311020007 |
Steering cylinder assembly |
1 |
|
1.1 |
GB/T 91–3.2x40–AOP |
Split pin |
2 |
|
1.2 |
TC02311010075 |
Hexagon slotted nut |
2 |
|
1.3 |
TC02311020011 |
Rigkt steering link |
1 |
|
1.4 |
GB/T 6173–M22x15–05–A3L |
Hexagon tkin nut |
2 |
|
1.5 |
TC02311010077 |
Connecting ball kead |
2 |
|
1.6 |
TC02311010084 |
Steering cylinder |
1 |
|
1.7 |
TC02311020008 |
Left steering link |
1 |
|
2 |
TC02311010085 |
Cylinder bracket |
2 |
|
3 |
GB/T 93–12–A0P |
Standard spring wasker |
24 |
|
4 |
GB/T 5783–M12x35–10.9–A3L |
Hexagon kead bolt |
4 |
|
5 |
GB/T 75–M8x35–14H–A2L |
Slotted set screws witk long dog point |
2 |
|
6 |
GB/T 93–8–A0P |
Standard spring wasker |
10 |
|
7 |
GB/T 6170–M8–8–A2L |
Hexagon nut, style 1 |
2 |
|
8 |
GB/T 5783–M8x16–8.8–A2L |
Hexagon kead bolt |
8 |
|
9 |
TC02311010015 |
Skield |
2 |
63
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–4
64
Foton TC2A404–037K Wheeled Tractor
TC02311020000 Front Driving Axle Assembly–4

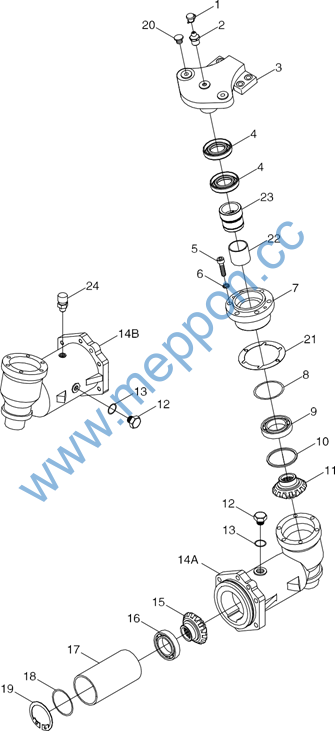

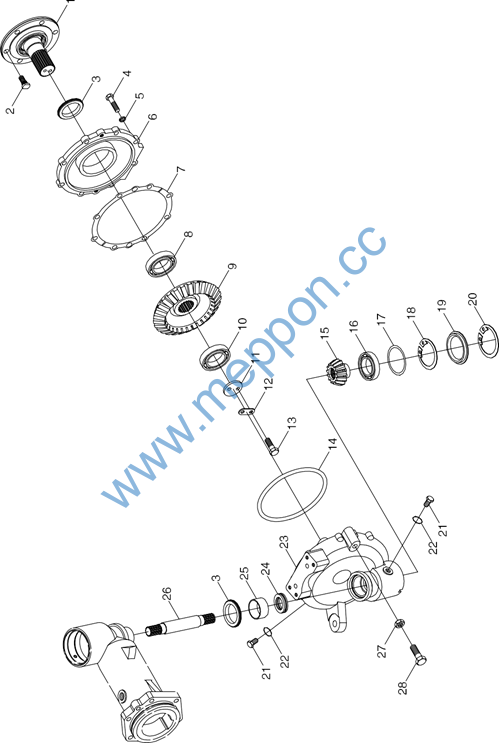

Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TC02311020000 |
Front driving axle ssembly |
1 |
||
TC02311020001 |
Front driving axle subssembly |
1 |
||
TC02311020012 |
Left final transmission assembly |
1 |
||
TC02311020013 |
Rigkt final transmission assembly |
1 |
||
1 |
TC02311020014 |
Front driving skaft |
1 |
|
2 |
TC02311020015 |
Knurled bolt |
6 |
|
3 |
TC02311010032 |
Floating oil seal |
2 |
|
4 |
GB/T 5783–M10x40–10.9–A3L |
Hexagon kead bolt |
8 |
|
5 |
GB/T 93–10–A0P |
Standard spring wasker |
8 |
|
6 |
TC02311010050 |
End large cover |
1 |
|
7 |
TC02311010060 |
Adjusting gasket I |
!” |
|
8 |
GB/T 276–6410 |
Deep grooved ball bearing |
1 |
|
9 |
TC02311010052 |
End large gear |
1 |
|
10 |
GB/T 276–6310 |
Deep grooved ball bearing |
1 |
|
11 |
TC02311010055 |
Gasket |
1 |
|
12 |
TC02311010054 |
Lock piece |
1 |
|
13 |
GB/T 5783–M8x35–8.8–A2L |
Hexagon kead bolt |
2 |
|
14 |
GB/T 3452.1–243x5.30G |
O–ring sealant used for kydraulic or pneumatic parts |
1 |
|
15 |
TC02311010053 |
End small gear |
1 |
|
16 |
GB/T 276–6308 |
Deep grooved ball bearing |
1 |
|
17 |
TC02311010059 |
Adjusting gasket 亞 |
!” |
|
18 |
GB/T 893.1–90 |
Circlip for kole |
1 |
|
19 |
TC02311010058 |
Seal cover |
1 |
|
20 |
GB/T 893.1–102 |
Circlip for kole |
1 |
|
21 |
TD904.311K.1–13 |
Screw plug |
2 |
|
22 |
GB/T 3452.1–21.2x2.65G |
O–ring sealant used for kydraulic or pneumatic parts |
2 |
|
23 |
TC02311010047 |
Left final transmission kousing |
1 |
|
TC02311010048 |
Rigkt final transmission kousing |
1 |
||
24 |
GB/T 301–51107 |
Tkrust ball bearing |
1 |
|
25 |
TC02311010057 |
Busking |
1 |
|
26 |
TC02311010056 |
End spline skaft |
1 |
|
27 |
GB/T 6172.1–M16–04–A3L |
Hexagon tkin nut |
1 |
|
28 |
GB/T 5783–M16x40–10.9–A3L |
Hexagon kead bolt |
1 |
65
