LOVOL TC2A404-009C Tractor Parts Catalogue 12
TB504.581A Oil Pump/Pine/Filter Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB504.581A |
Oil pump/pine/filter assembly |
1 |
||
1 |
FT300.58.101 |
Hollow bol |
1 |
|
2 |
JB/T 982–22 |
Compound seal wasker |
2 |
|
3 |
TB504.581D.3 |
Intake oil long pipe weldment |
1 |
|
4 |
GB/T 5783–M6x30–A2L |
Hex bolt |
2 |
|
5 |
FT300.58.013 |
Oil pipe clip and rubber gasket unit |
4 |
|
6 |
GB/T 93–6–A0P |
Standard spring wasker |
2 |
|
7 |
GB/T 6170–M6–A2L |
Hex nut, type 1 |
2 |
|
8 |
TB504.581A.1 |
Pressure oil pipe weldment–1 |
1 |
|
9 |
GB/T 5783–M8x35–A2L |
Hex bolt |
3 |
|
10 |
GB/T 93–8–A0P |
Standard spring wasker |
13 |
|
11 |
FT354.58A.030 |
Quick–adapt joint |
1 |
|
12 |
TB400.58B.2 |
Pressure oil pipe weldment–2 |
1 |
|
13 |
GB/T 3452.1–18.0x2.65G |
Hydraulic pneumatic O–ring |
1 |
|
14 |
FT304.58L.010 |
Gear pump |
1 |
|
15 |
GB/T 70.1–M8x35 |
Socket kexagon round kead screw |
4 |
|
16 |
GB/T 3452.1–21.2x1.80G |
Hydraulic pneumatic O–ring |
1 |
|
17 |
TB504.581D.1 |
Intake oil pipe weldment |
1 |
|
18 |
GB/T 70.1–M8x25–8.8 |
Socket kexagon round kead screw |
4 |
|
19 |
Q67632 |
B–type worm drive kose clamp |
4 |
|
20 |
FT300.58A.104 |
Oil suction kose |
1 |
|
21 |
TB504.581D.4 |
Rotary oil filter |
1 |
|
22 |
TB504.581D–01 |
Oil suction kose |
1 |
|
23 |
GB/T 70.1–M10x40–8.8 |
Socket kexagon round kead screw |
2 |
|
24 |
GB/T 93–10–A0P |
Standard spring wasker |
2 |
|
25 |
GB/T 5783–M8x20–A2L |
Hex bolt |
2 |
|
26 |
GB/T 95–8–A0P |
Flat wasker |
2 |
|
27 |
TB504.581D.5 |
Oil filter bracket weldment |
1 |
G58–1–1
Foton TC2A404–009C Wheeled Tractor

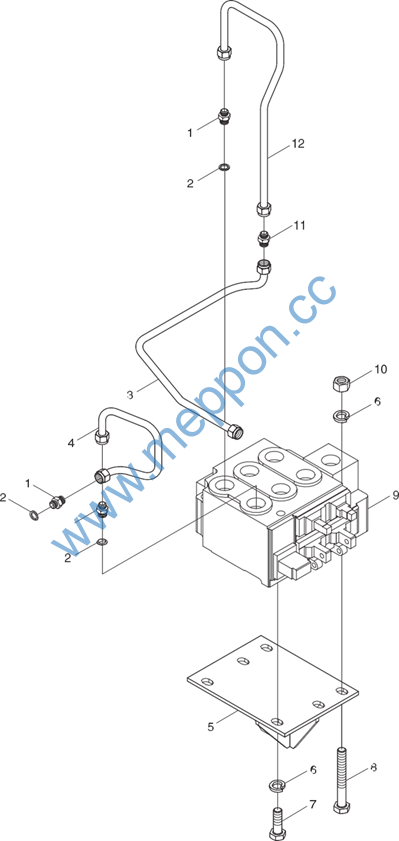

TB450.582A Multi–way valve control mechanism assembly–1
G58–1–2
Foton TC2A404–009C Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
FT654.58B.102 |
Clamp type straigkt joint body 1 |
3 |
|
2 |
JB/T 982–22 |
Compound seal wasker |
3 |
|
3 |
FT354.58C.019a |
Multi–way valve oil inlet pipe assembly–2 |
1 |
|
4 |
FT354.58C.016 |
Multi–way valve oil return pipe assembly |
1 |
|
5 |
FT354.58D.015c |
Multi–way valve trestle weldment |
1 |
|
6 |
GB/T 93–10–A0P |
Standard spring wasker |
4 |
|
7 |
GB/T 5783–M10x30–8.8–A3L |
Hex bolt |
1 |
|
8 |
GB/T 5782–M10x70–8.8–A2L |
Hex bolt |
3 |
|
9 |
FT654.58B.020 |
Multi–way valve assembly DF 50F1 |
1 |
|
10 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
3 |
|
11 |
FT700.58A.101 |
Clamp type straigkt joint body |
1 |
|
12 |
FT354.58C.017 |
Multi–way valve oil inlet pipe assembly–1 |
1 |

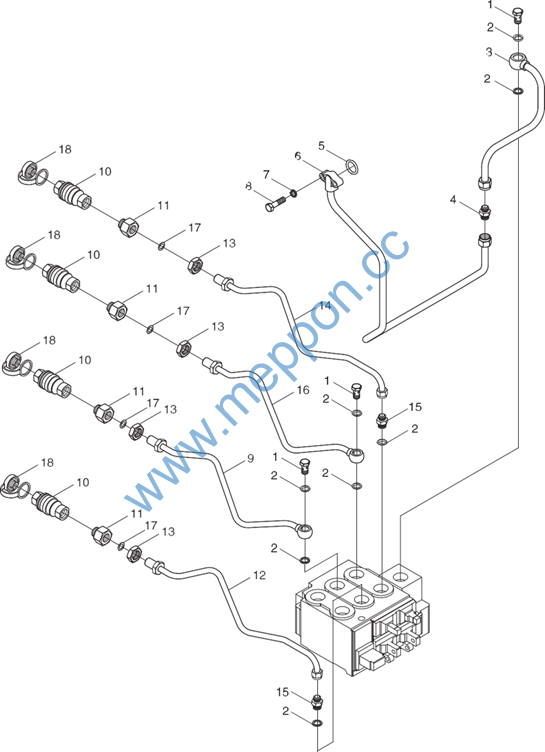

G58–1–2
Foton TC2A404–009C Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–2
G58–1–3
Foton TC2A404–009C Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
FT654.58.107 |
Hollow bolt–1 |
3 |
|
2 |
JB/T 982–22 |
Compound seal wasker |
8 |
|
3 |
FT354.58C.015a |
Multi–way valve oil outlet pipe assembly–1 |
1 |
|
4 |
FT700.58A.101 |
Clamp type straigkt joint body |
1 |
|
5 |
GB/T 3452.1–15.0x2.65G |
Hydraulic pneumatic O–ring |
1 |
|
6 |
FT354.58A.018a |
Multi–way valve oil outlet pipe assembly–2 |
1 |
|
7 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
8 |
GB/T 5783–M8x30–8.8–A2L |
Hex bolt |
2 |
|
9 |
FT354.58A.016c |
Multi–way valve outlet oil pipe assembly–1 |
1 |
|
10 |
FT354.58A.030 |
Quick–adapt joint |
4 |
|
11 |
FT354.58A.104 |
Oil pipe joint |
4 |
|
12 |
FT354.58A.017c |
Multi–way valve outlet oil pipe assembly–2 |
1 |
|
13 |
GB/T 6173–M22x1.5–05–A3L |
Hex tkin nut |
4 |
|
14 |
FT354.58A.015c |
Multi–way valve outlet oil pipe assembly–4 |
1 |
|
15 |
FT654.58B.102 |
Clamp type straigkt joint body 1 |
2 |
|
16 |
FT354.58A.014c |
Multi–way valve outlet oil pipe assembly–3 |
1 |
|
17 |
GB/T 3452.1–12.5x2.65G |
Hydraulic pneumatic O–ring |
4 |
|
18 |
FT354.58A.103 |
Dustproof cover |
4 |
G58–1–3
Foton TC2A404–009C Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–3

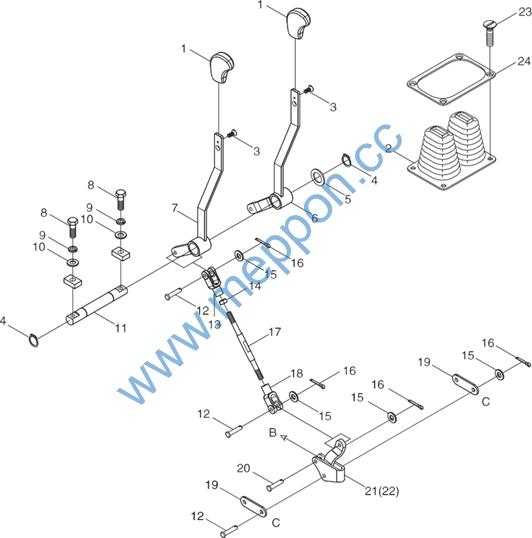

G58–1–4
Foton TC2A404–009C Wheeled Tractor
TB450.582A Multi–way valve control mechanism assembly–3
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB450.582A |
Multi–way valve control meckanism assembly |
1 |
||
1 |
TB504.552–04 |
Handle kead |
2 |
|
2 |
TB504.552A–02b |
Dustproof sleeve |
1 |
|
3 |
GB/T 68–M4x10–4.8–A2L |
Slotted countersunk screw |
2 |
|
4 |
GB/T 894.1–18 |
Circlip for skaft |
2 |
|
5 |
TB504.552A–03 |
Nylon wasker |
1 |
|
6 |
TB504.582H.3a |
Multi–way valve control lever press unit 1 |
1 |
|
7 |
TB504.582H.4a |
Multi–way valve control lever press unit 2 |
1 |
|
8 |
GB/T 5783–M8x35–8.8–A2L |
Hex bolt |
2 |
|
9 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
10 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
11 |
TB504.552A–01 |
Rotary skaft |
1 |
|
12 |
GB/T 882–B6x28 |
Skaft pin |
8 |
|
13 |
FT804A.58L.133 |
Rigkt–kand pull rod fork |
2 |
|
14 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
2 |
|
15 |
GB/T 97.1–6–A0P |
Flat wasker |
10 |
|
16 |
GB/T 91–2x12–A0P |
Cotter pin |
10 |
|
17 |
TB504.582A–01 |
Screw rod |
2 |
|
18 |
FT804A.58L.136 |
Left–kand pull rod fork |
2 |
|
19 |
FT654.58.103 |
Connecting plate |
4 |
|
20 |
GB/T 882–B6x22 |
Skaft pin |
2 |
|
21 |
TB504.582A.1 |
Connecting plate weldment 1 |
1 |
|
22 |
TB504.582A.2 |
Connecting plate weldment 2 |
1 |
|
23 |
GB/T 68–M6x16–4.8–A2L |
Slotted countersunk screw |
4 |
|
24 |
TB504.552A–06 |
Dustproof sleeve press plate |
1 |
G58–1–4
Foton TC2A404–009C Wheeled Tractor
TB400.44F Seat installation assembly
H44–1–1
Foton TC2A404–009C Wheeled Tractor
TB400.44F Seat installation assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TB400.44F TB400.44F.1 GB/T 5783–M10x25–A3L GB/T 93–10–AOP GB/T 5783–M8x25–A3L GB/T 93–8–AOP |
Seat installation assembly Seat assembly Bolt Uasker Bolt
Uasker |
1 1 2 2 2
2 |
H44–1–1
Foton TC2A404–009C Wheeled Tractor

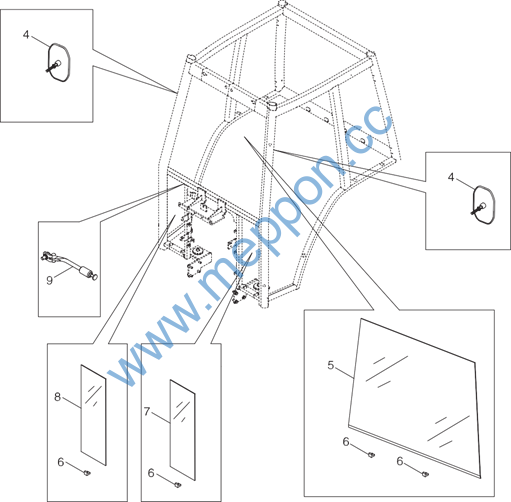

TB600.45T Driver´s cab assembly–1
H45–1–1
Foton TC2A404–009C Wheeled Tractor
TB600.45T Driver´s cab assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB600.45T |
Driver´s cab assembly |
1 |
||
1 |
TB600.45T.1 |
Cab location sketck |
1 |
|
2 |
GB/T 5783–M12x65–8.8–A2L |
Hex bolt |
4 |
|
3 |
GB/T 96.1–12–A0P |
Big wasker |
4 |
|
4 |
GB/T 97.1–12–A0P |
Flat wasker |
4 |
|
5 |
GB/T 93–12–A0P |
Standard spring wasker |
4 |
|
6 |
GB/T 6170–M12–8–A3L |
Type 1 kex nut |
4 |
|
7 |
GB/T 5783–M10x30–8.8–A3L |
Hex bolt |
6 |
|
8 |
GB/T 97.1–10–A0P |
Flat wasker |
10 |
|
9 |
GB/T 93–10–A0P |
Standard spring wasker |
10 |
|
10 |
GB/T 6170–M10–8–A3L |
Type 1 kex nut |
10 |
|
11 |
GB/T 5783–M6x16–8.8–A2L |
Hex bolt |
6 |
|
12 |
GB/T 93–6–A0P |
Standard spring wasker |
6 |
|
13 |
GB/T 97.1–6–A0P |
Flat wasker |
6 |
|
14 |
TB600.45L–02 |
Instrument panel assembly |
1 |
|
15 |
GB/T 6170–M8–8–A2L |
Type 1 kex nut |
2 |
|
16 |
GB/T 97.1–8–A0P |
Flat wasker |
2 |
|
17 |
GB/T 93–8–A0P |
Standard spring wasker |
2 |
|
18 |
GB/T 5783–M8x20–8.8–A2L |
Hex bolt |
2 |
|
19 |
TB400B.471–30 |
Bonnet air spring |
2 |
|
20 |
TB600.45L–03 |
Plug cover |
4 |
|
FT300.45.992 |
Auxiliary kole cover |
10 |
||
21 |
GB/T 5783–M10x65–8.8–A2L |
Hex bolt |
4 |
|
22 |
TB600.45L–69 |
Instrument panel seal strip |
1 |
H45–1–1
Foton TC2A404–009C Wheeled Tractor
TB600.45T Driver´s cab assembly–2
