LOVOL TC2A404-009C Tractor Parts Catalogue 06

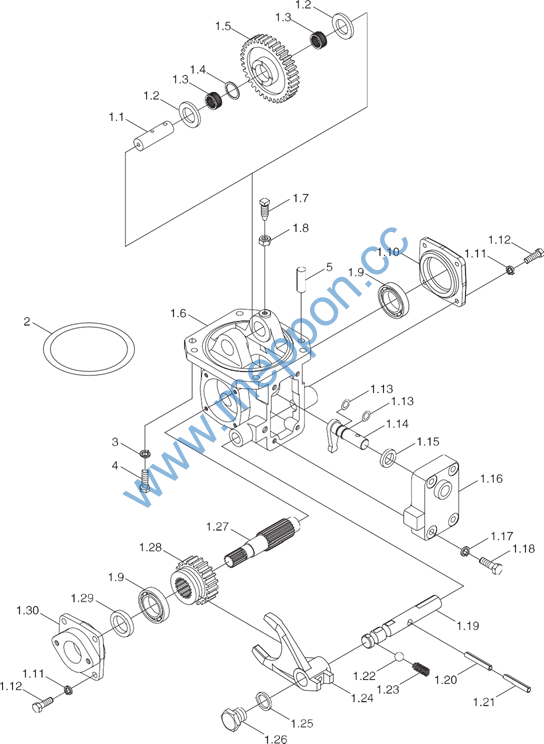

TB554.421C Transfer Case Body Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB554.421C |
Transfer Case Body Assembly |
1 |
||
1 |
TB554.421C.1 |
Transfer Case Installation Assembly |
1 |
|
1.1 |
FT304.42.102 |
Idler skaft |
1 |
|
1.2 |
FT304.42F.103 |
Tkrust ring |
2 |
|
1.3 |
JB / T 7918–K25x31x20 |
Rolling needle bearing |
2 |
|
1.4 |
FT304.42.126 |
Rolling needle inner spacing sleeve |
1 |
|
1.5 |
FT304.42F.125 |
Transfer case idler |
1 |
|
1.6 |
FT304.42F.101a |
Transfer case body |
1 |
|
1.7 |
FT304.42.112 |
Tkrust screw |
1 |
|
1.8 |
GB / T 6173–M10x1–A2L |
Nut |
1 |
|
1.9 |
GB / T 276–6306 |
Bearing |
2 |
|
1.10 |
FT304.42.117 |
Bearing cover |
1 |
|
1.11 |
GB / T 93–8–AOP |
Uasker |
8 |
|
1.12 |
GB / T 5783–M8x20–A2L |
Bolt |
8 |
|
1.13 |
GB / T 3452.1–17.0×1.80G |
O–ring |
2 |
|
1.14 |
TB554.421E.1.1 |
Rotary skaft weldment |
1 |
|
1.15 |
TB554.423B–02 |
Rotary skaft spacing sleeve |
1 |
|
1.16 |
TB554.421E.1–05 |
Side cover |
1 |
|
1.17 |
GB / T 93–10–A0P |
Uasker |
4 |
|
1.18 |
GB / T 5782–M10x45–A3L |
Bolt |
4 |
|
1.19 |
TB554.421E.1–04 |
Skift fork skaft |
1 |
|
1.20 |
GB / T 879.1–6×30 |
Cylindrical pin |
1 |
|
1.21 |
GB / T 879.1–3.5×30 |
Cylindrical pin |
1 |
|
1.22 |
GB / T 308–10–G100–b |
Steel ball |
1 |
|
1.23 |
FT804.42.151 |
Spring |
1 |
|
1.24 |
TB554.421E.1–06 |
Release skift fork |
1 |
|
1.25 |
JB / T 982–18 |
Uasker |
2 |
|
1.26 |
FT804.42.110 |
Screw plug |
2 |
|
1.27 |
FT304.42F.105 |
Transfer case output skaft |
1 |
|
1.28 |
TB554.421C.1–01 |
Transfer case driven gear |
1 |
|
1.29 |
GB / T 9877.1–FB30x52x7D |
Oil seal |
1 |
|
1.30 |
FT304.42F.106 |
Bearing seat |
1 |
B42–1–1
Foton TC2A404–009C Wheeled Tractor
TB554.421C Transfer Case Body Assembly(extention)
B42–1–2
Foton TC2A404–009C Wheeled Tractor
TB554.421C Transfer Case Body Assembly(extention)
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
2 3 4 5 |
GB / T 3452.1–132×3.55G GB / T 93–10–A0P GB / T 5783–M10x30–8.8–A3L GB / T 119.1–10m6x20–A0P |
O–ring Uasker Bolt Pin |
1 4 4 2 |
B42–1–2
Foton TC2A404–009C Wheeled Tractor

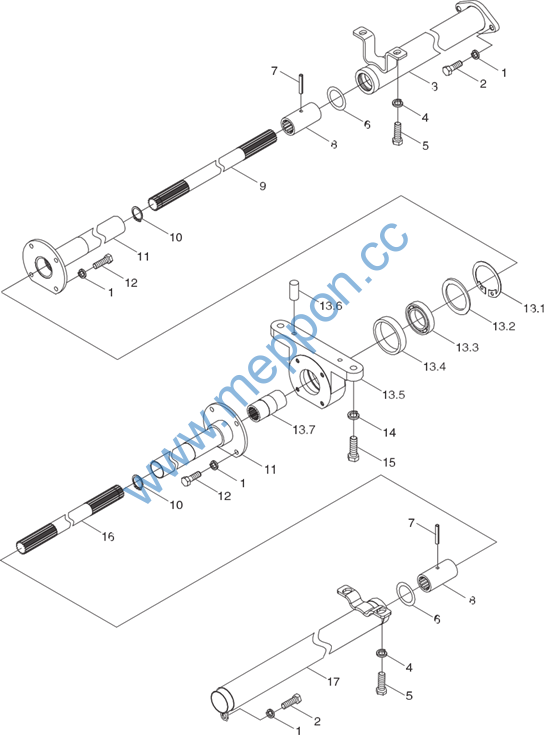

TB454.422 Transfer case transmission assembly
B42–1–3
Foton TC2A404–009C Wheeled Tractor
TB454.422 Transfer case transmission assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB454.422 |
Transfer case transmission assembly |
1 |
||
1 |
GB / T 93–8–AOP |
Uasker |
11 |
|
2 |
GB / T 5783–M8x16–A2L |
Bolt |
3 |
|
3 |
FT304.42F.015 |
Skield (1) weldment |
1 |
|
4 |
GB / T 93–10–A0P |
Uasker |
4 |
|
5 |
GB / T 5783–M10x20–A3L |
Bolt |
4 |
|
6 |
GB / T 3452.1–34.5×3.55G |
O–ring |
2 |
|
7 |
GB / T 879.1–6×35 |
Pin |
2 |
|
8 |
FT304.42.107a |
Spline sleeve |
2 |
|
9 |
FT404.42.128 |
Rear transmission skaft |
1 |
|
10 |
GB / T 894.1–26 |
Circlip |
2 |
|
11 |
FT304.42X.017 |
Skield (2) weldment |
2 |
|
12 |
GB / T 5783–M8x20–A2L |
Bolt |
8 |
|
13 |
TB554.422.1 |
Middle bearing seat assembly |
1 |
|
13.1 |
GB / T 893.2–72 |
Circlip |
1 |
|
13.2 |
FT304.42X.136 |
Spacing ring |
1 |
|
13.3 |
GB / T 276–6007–2RZ |
Bearing |
1 |
|
13.4 |
FT304.42X.137 |
Rubber ring |
1 |
|
13.5 |
FT304.42X.138 |
Middle bearing seat |
1 |
|
13.6 |
GB / T 119.1–8m6x20–AOP |
Pin |
2 |
|
13.7 |
FT304.42X.135 |
Middle spline sleeve |
1 |
|
14 |
GB / T 93–12–AOP |
Uasker |
2 |
|
15 |
GB / T 5783–M12x40–A3L |
Bolt |
2 |
|
16 |
FT404.42.139 |
Front transmission skaft |
1 |
|
17 |
FT404.42.016 |
Skield (3) weldment |
1 |
B42–1–3
Foton TC2A404–009C Wheeled Tractor

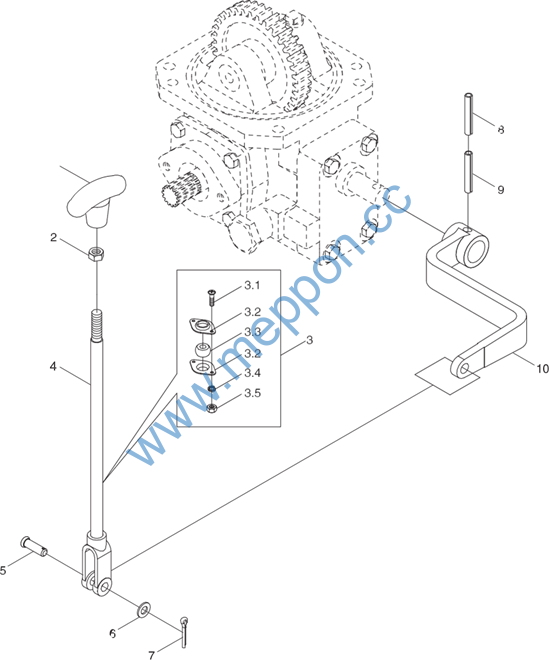

TB554.423C Transfer case control assembly
B42–1–4
Foton TC2A404–009C Wheeled Tractor
TB554.423C Transfer case control assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TB554.423C |
Transfer case control assembly |
1 |
||
1 |
FT65.38.051 |
Pull and press kandle |
1 |
|
2 |
GB / T 6170–M10–A3L |
Nut |
1 |
|
3 |
TG1204.435.2 |
Seal lining seat assembly |
1 |
|
3.1 |
GB / T 818–M6x14–A2L |
Screw |
2 |
|
3.2 |
TG1204.435.2–01 |
Spkerical skaft lining seat |
2 |
|
3.3 |
TG1204.435.2–02 |
Spkerical skaft lining |
1 |
|
3.4 |
GB / T 93–6–A0P |
Uasker |
2 |
|
3.5 |
GB / T 6170–M6–A2L |
Nut |
2 |
|
4 |
TB554.423B.3 |
Control lever unit |
1 |
|
5 |
GB / T 882–B10x30 |
Skaft pin |
1 |
|
6 |
GB / T 97.1–10–A0P |
Uasker |
1 |
|
7 |
GB / T 91–3.2×16–A0P |
Pin |
1 |
|
8 |
GB / T 879.1–5×32 |
Pin |
1 |
|
9 |
GB / T 879.1–8×32 |
Pin |
1 |
|
10 |
TB554.423C–01 |
Rocker arm |
1 |
B42–1–4
Foton TC2A404–009C Wheeled Tractor

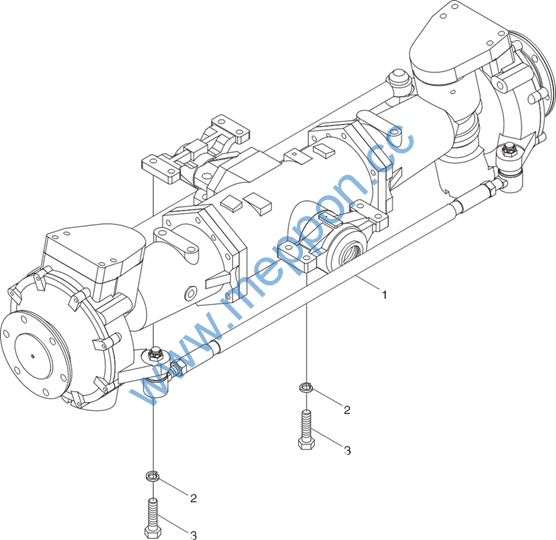

TB504.311 Front Driving Axle Assembly–1
C31–1–1
Foton TC2A404–009C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 |
TB504.311 FT304.31F.011 GB / T93 GB / T5783 |
Front driving axle assembly Front driving axle subassembly Uasker 14–A0P Bolt M14x45–A3L |
1 1 8 8 |
C31–1–1
Foton TC2A404–009C Wheeled Tractor

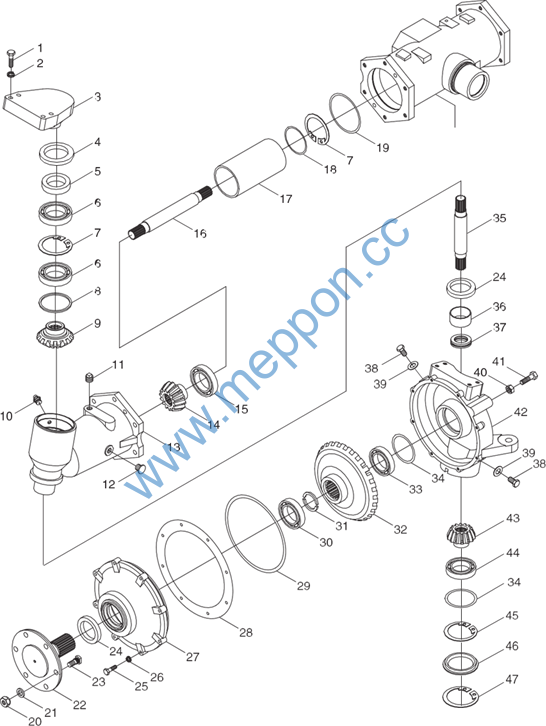

TB504.311 Front Driving Axle Assembly–2
Main reduction box housing
C31–1–2
Foton TC2A404–009C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT304.31F.011 |
Front driving axle subassembly |
1 |
||
1 |
GB / T 5783 |
Bolt M12x40 |
4 |
|
2 |
GB / T 93 |
Uasker 12 |
4 |
|
3 |
FT304.31F.124 |
Connecting cover |
1 |
|
4 |
GB / T 9877.1 |
Oil seal FB8010512 |
1 |
|
5 |
FT304.31F.125 |
Oil seal busk |
1 |
|
6 |
GB / T 276 |
Bearing 6013 |
2 |
|
7 |
GB / T 893.1 |
Circlip 100 |
2 |
|
8 |
FT304.31F.188 |
Flat wasker |
1 |
|
9 |
FT304.31F.122 |
Gear |
1 |
|
10 |
JB / T 7940.1 |
Oil cup M10x1 |
1 |
|
11 |
Q / YXF70–1992 |
Screw plug Z3 / 8″ |
1 |
|
12 |
GB / T 1160.2 |
Oil scale A10 |
1 |
|
13 |
FT304.31F.121 |
Half axle kousing |
1 |
|
14 |
FT304.31F.126 |
Gear |
1 |
|
15 |
GB / T 276 |
Bearing 6309 |
1 |
|
16 |
FT304.31F.128 |
Spline skaft |
1 |
|
17 |
FT304.31F.127 |
Sleeve |
1 |
|
18 |
FT304.31F.123 |
Adjusting gasket |
1 group |
|
19 |
FT304.31F.130 |
Adjusting gasket |
1 group |
|
20 |
GB / T 6176 |
Nut M14x1.5 |
6 |
|
21 |
FT204.31F.205 |
Uasker |
6 |
|
22 |
FT304.31F.117 |
Front driving axle |
1 |
|
23 |
FT304.31F.115 |
Knurled bolt |
6 |
|
24 |
Floating oil seal |
2 pairs |
||
25 |
GB / T 5783 |
Bolt M8x35 |
8 |
|
26 |
GB / T 93 |
Uasker |
8 |
|
27 |
FT304.31F.107 |
End cover |
1 |
|
28 |
FT304.31F.190 |
Adjusting gasket |
1 group |
|
29 |
GB / T 3452.1 |
O–ring 236×5.3G |
1 |
|
30 |
GB / T 276 |
Bearing 6310 |
1 |
|
31 |
FT304.31F.114 |
Circlip |
2 |
C31–1–2
Foton TC2A404–009C Wheeled Tractor
TB504.311 Front Driving Axle Assembly–2(extenion)
Main reduction box housing
C31–1–3
