LOVOL TC2A400-004K Tractor Parts Catalogue 06

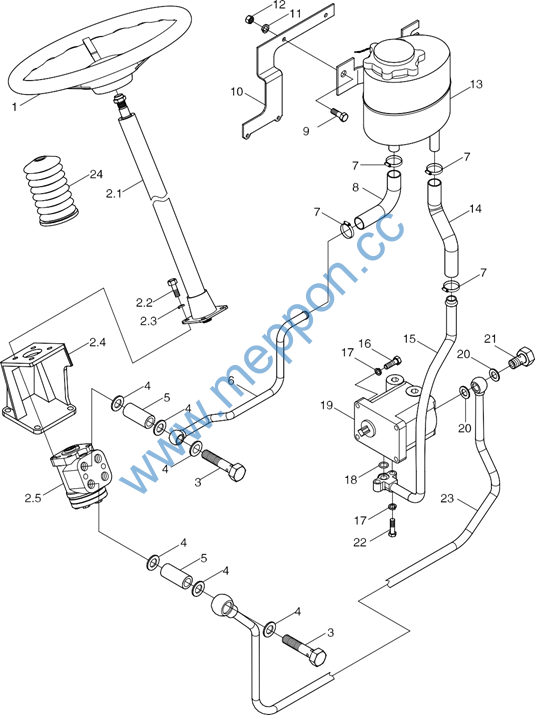

TB450.40X Full hydraulic steering assembly -1
60
Foton TC2A400-004K Wheeled Tractor
TB450.40X Full hydraulic steering assembly -1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.40X |
Full hydraulic steering assembly |
1 |
||
1 |
FT400.40.016 |
Steering wheel assembly |
1 |
|
2 |
FT354.40C.012 |
Steering gear and its housing assembly |
1 |
|
2.1 |
FT354.40C.016a |
Steering column assembly |
1 |
|
2.2 |
GB/T 5783-M10×30-A3L |
Screw |
4 |
|
2.3 |
GB/T 93-10-AOP |
Washer |
4 |
|
2.4 |
FT354.40C.111 |
Steering gear bracket |
1 |
|
2.5 |
FT354.40C.015 |
Hydraulic steering gear assembly |
1 |
|
3 |
FT354.40C.102 |
Hollow long bolt |
2 |
|
4 |
JB/T 982-20 |
Assembled seal washer |
6 |
|
5 |
FT354.40C.109 |
Long connecting pipe |
2 |
|
6 |
TB450.40X.7 |
Oil return outlet pipe welding joint |
1 |
|
7 |
JB/T 8870-d32 |
Hose clamp |
4 |
|
8 |
FT354.40C.107 |
Oil return hose |
1 |
|
9 |
GB/T 5783-M10×25-A3L |
Bolt |
2 |
|
10 |
TB450.40X-01 |
Steering fuel tank bracket |
1 |
|
11 |
GB/T 93-10-A0P |
Washer |
2 |
|
12 |
GB/T 6170-M10-A3L |
Nut |
2 |
|
13 |
FT354.40C.011 |
Steering fuel tank and respirator assembly |
1 |
|
14 |
FT400.40X.104 |
Oil absorbing hose |
1 |
|
15 |
FT450.40Y.011 |
Fuel pump oil absorbing steel pipe welding joint |
1 |
|
16 |
GB/T 5782-M8×60-A2L |
Bolt |
4 |
|
17 |
GB/T 93-8-A0P |
Washer |
6 |
|
18 |
GB/T 3452.1-19×2.65G |
O-seal ring |
1 |
|
19 |
FT354.40J.011 |
Permanent overflow pump |
1 |
|
20 |
JB/T 982-18 |
Assembled seal washer |
2 |
|
21 |
FT650.40.105 |
Bolt M18×1.5 |
1 |
|
22 |
GB/T 5783-M8×30-A2L |
Bolt |
2 |
|
23 |
FT450.40Y.020 |
Fuel pump oil outlet steel pipe welding joint |
1 |
|
24 |
TB504.401-01 |
Steering lever protection sleeve |
1 |
61
Foton TC2A400-004K Wheeled Tractor

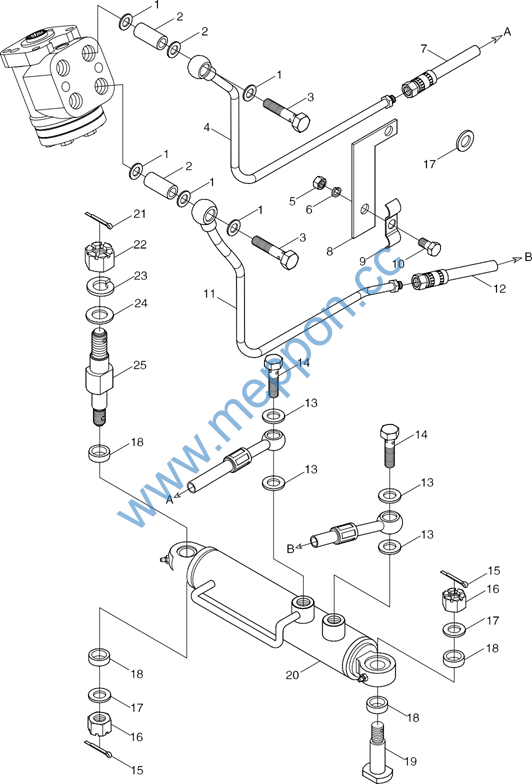

TB450.40X Full hydraulic steering assembly-2
62
Foton TC2A400-004K Wheeled Tractor
TB450.40X Full hydraulic steering assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.40X |
Full hydraulic steering assembly |
1 |
||
1 |
JB/T 982-20 |
Assembled seal washer |
6 |
|
2 |
FT354.40C.108 |
Short connecting pipe |
2 |
|
3 |
FT354.40C.119 |
Hollow short bolt |
2 |
|
4 |
FT400.40X.017a |
Left oil transfer pipe weldment |
1 |
|
5 |
GB/T 6170-M6-A2L |
Nut |
1 |
|
6 |
GB/T 93-6-A0P |
Washer |
1 |
|
7 |
FT400.40C.019a |
Cylinder right oil outlet hose assembly |
1 |
|
8 |
FT304.40L.122 |
Oil pipe trestle |
1 |
|
9 |
FT304.40L.121 |
Double hole clamp |
1 |
|
10 |
GB/T 5783-M6×25-A2L |
Bolt |
1 |
|
11 |
FT400.40X.018 |
Right oil transfer pipe weldment |
1 |
|
12 |
FT400.40C.024a |
Cylinder left oil outlet hose assembly |
1 |
|
13 |
JB/T 982-16 |
Assembled seal washer |
4 |
|
14 |
FT650.40.112 |
Hollow bolt M16×1.5 |
2 |
|
15 |
GB/T 91-4×28-A0P |
Pin |
2 |
|
16 |
GB/T 9459-M16×1.5-A3L |
Nut |
2 |
|
17 |
GB/T 97.1-16-A0P |
Washer |
3 |
|
18 |
FT400.40C.101 |
Bearing sleeve |
4 |
|
19 |
FT400.40C.103 |
Cylinder pin shaft (2) |
1 |
|
20 |
TB550.40Q.1a |
Steering cylinder assembly |
1 |
|
21 |
GB/T 91-4×36-A0P |
Pin |
1 |
|
22 |
GB/T 6181-M20-A9L |
Nut |
1 |
|
23 |
GB/T 93-20-A0P |
Washer |
1 |
|
24 |
GB/T 97.1-20-A0P |
Washer |
1 |
|
25 |
FT400.40C.102 |
Cylinder pin shaft (1) |
1 |
63
Foton TC2A400-004K Wheeled Tractor

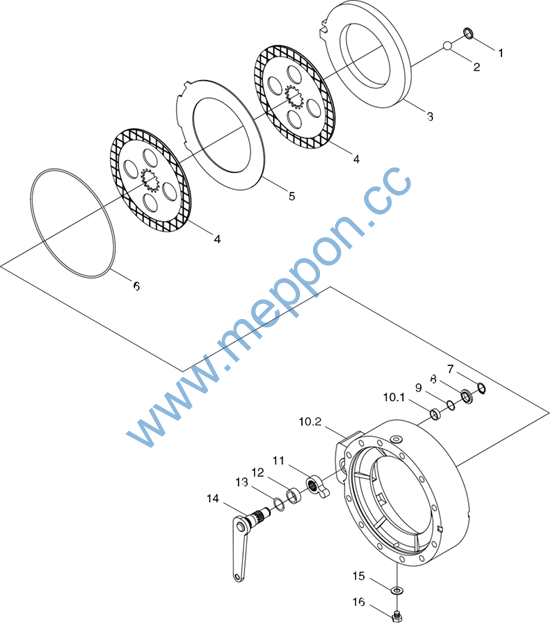

FT300.43.001 Brake assembly-1
64
Foton TC2A400-004K Wheeled Tractor
FT300.43.001 Brake assembly-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.43.001 |
Brake assembly |
1 |
||
1 |
FT300.43.102 |
Bowl plug |
6 |
|
2 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
3 |
FT300.43.103 |
Left brake platen |
1 |
|
4 |
FT300.43.011 |
Brake friction disk assembly |
2 |
|
5 |
FT300.43.105 |
Baffle |
1 |
|
6 |
FT300.43.101 |
O-Ring |
1 |
|
7 |
GB/T 894.1-18 |
Shaft elastic snap ring |
1 |
|
8 |
FT300.43.109a |
Washer |
1 |
|
9 |
GB/T 3452.1-82-18.0×2.65 |
O-Ring |
1 |
|
10 |
FT300.43.012 |
Left brake housing assembly |
1 |
|
10.1 |
FT300.43.114 |
Crank shaft bush |
1 |
|
10.2 |
FT300.43.121 |
Left brake housing |
1 |
|
11 |
FT300.43.106 |
Jaw |
1 |
|
12 |
FT300.43.107 |
Distance sleeve |
1 |
|
13 |
GB/T 3452.1-82-20.0×2.65 |
O-Ring |
1 |
|
14 |
FT300.43.014 |
Left crank assembly |
1 |
|
15 |
FT300.43.153 |
Final transmission oil filling port washer |
1 |
|
16 |
FT300.43.154 |
Screw plug |
1 |
65
Foton TC2A400-004K Wheeled Tractor

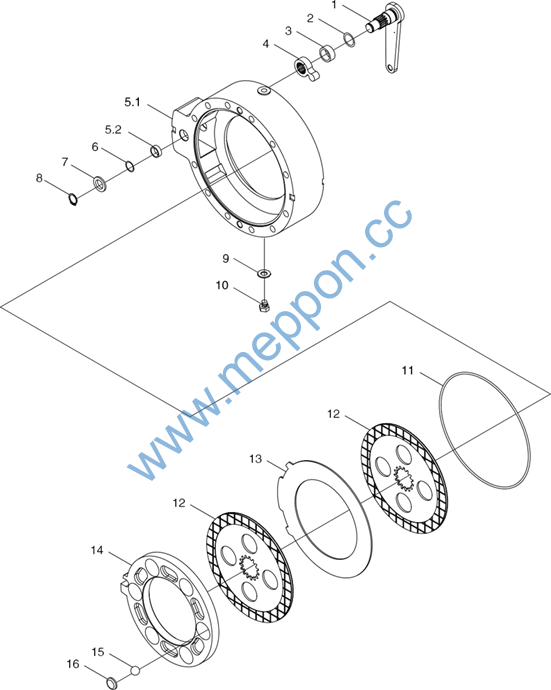

FT300.43.001 Brake assembly-2
66
Foton TC2A400-004K Wheeled Tractor
FT300.43.001 Brake assembly-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.43.001 |
Brake assembly |
1 |
||
1 |
FT300.43.022 |
Right crank assembly |
1 |
|
2 |
GB/T 3452.1-82-20.0×2.65 |
O-Ring |
1 |
|
3 |
FT300.43.107 |
Distance sleeve |
1 |
|
4 |
FT300.43.106 |
Jaw |
1 |
|
5 |
FT300.43.013 |
Right brake housing assembly |
1 |
|
5.1 |
FT300.43.122 |
Right brake housing |
1 |
|
5.2 |
FT300.43.114 |
Crank shaft bush |
1 |
|
6 |
GB/T 3452.1-82-18.0×2.65 |
O-Ring |
1 |
|
7 |
FT300.43.109a |
Washer |
1 |
|
8 |
GB/T 894.1-18 |
Shaft elastic snap ring 18 |
1 |
|
9 |
FT300.43.153 |
Final transmission oil filling port washer |
1 |
|
10 |
FT300.43.154 |
Screw plug |
1 |
|
11 |
FT300.43.101 |
O-Ring |
1 |
|
12 |
FT300.43.011 |
Brake friction disk assembly |
2 |
|
13 |
FT300.43.105 |
Baffle |
1 |
|
14 |
FT300.43.104 |
Right brake platen |
1 |
|
15 |
GB/T 308-18.000-G100-b |
Steel ball |
6 |
|
16 |
FT300.43.102 |
Bowl plug |
6 |
67
Foton TC2A400-004K Wheeled Tractor

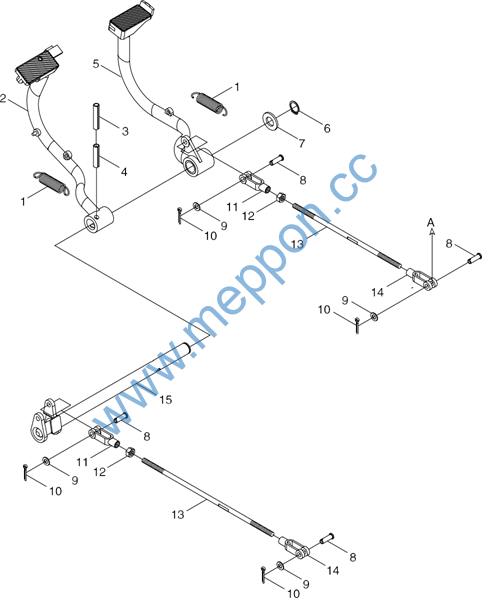

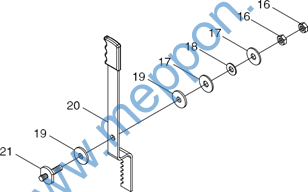

FT300.43.001 Brake assembly-3
68
Foton TC2A400-004K Wheeled Tractor
FT300.43.001 Brake assembly-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.43.001 |
Brake assembly |
1 |
||
1 |
FT300.43.130 |
Pedal return spring |
2 |
|
2 |
FT300.43.015a |
Left brake pedal assembly |
1 |
|
3 |
GB/T 879.1-6×40 |
Elastic straight pin |
1 |
|
4 |
GB/T 879.1-10×40 |
Elastic straight pin |
1 |
|
5 |
FT300.43.016 |
Right brake pedal assembly |
1 |
|
6 |
GB/T 894.1-25 |
Shaft elastic snap ring |
1 |
|
7 |
GB/T 97.1-24-A0P |
Flat washer |
1 |
|
8 |
GB/T 882-B10×28-A0P |
Pin shaft |
4 |
|
9 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
10 |
GB/T 91-3.2×16-A0P |
Split pin |
4 |
|
11 |
FT300.43.108 |
Tie rod front fork |
2 |
|
12 |
GB/T 6170-M10-A3L |
Hexagon nut, style I |
2 |
|
13 |
FT300.43.120 |
Tie rod |
2 |
|
14 |
FT300.43.110 |
Tie rod rear fork |
2 |
|
15 |
FT300.43.020a |
Pedal shaft assembly |
1 |
|
16 |
GB/T 6173-M12×1.5-A3L |
Hexagonal thin nut |
2 |
|
17 |
FT300.43.160 |
Large washer |
2 |
|
18 |
GB/T 955-1987-14 |
Waveform elastic washer |
1 |
|
19 |
FT300.43.159 |
Hand brake friction plate |
2 |
|
20 |
FT300.43.025a |
Brake locking plate assembly |
1 |
|
21 |
FT300.43.158 |
Connecting bolt |
1 |
69
Foton TC2A400-004K Wheeled Tractor

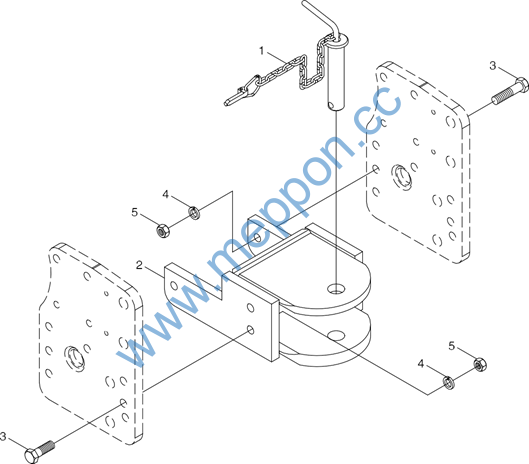

TB400.53D Tow Mechanism Assembly
70
Foton TC2A400-004K Wheeled Tractor
TB400.53D Tow Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TB400.53D TB400.53D.2 TB400.53D.1 GB/T 5783-M16×65-8.8-A3L GB/T 93-16-A0P
GB/T 6170-M16-8-A3L |
Tow mechanism assembly Tow pin and lock pin assembly Tow mechanism weldment Hex bolt Standard spring washer
Type 1 hex nut |
1 1 1 6 6
6 |
71
Foton TC2A400-004K Wheeled Tractor
TB500A.55 Lifter device assembly – 1
