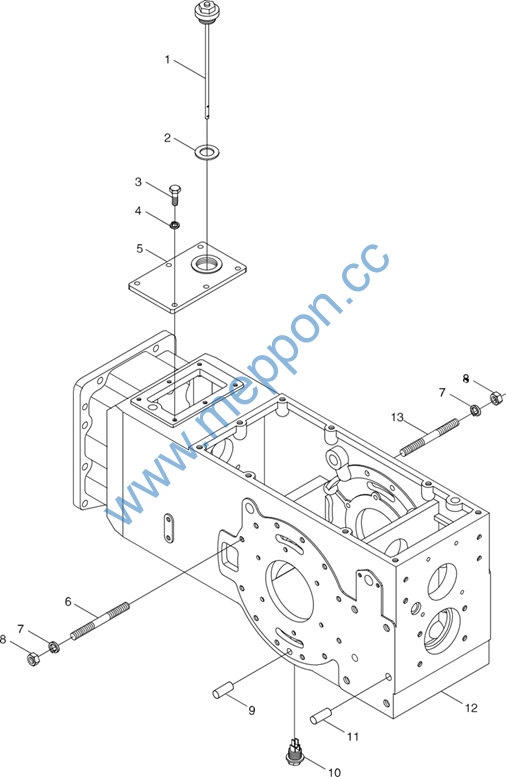

No.

Part code and specification

Part name

Quantity

Remark

TB400.384

Rear axle housing assembly

1

1

FT300.38.016a

Oil filling vent plug assembly

1

2

JB/T 982-36

Compound washer

1

3

GB/T 5783-M8×20-A2L

Bolt

6

4

GB/T 93-8-A0P

Washer

6

5

FT300.38.124a

Upper cover

1

6

GB/T 899-AM12-M12×1.25×150-8.8-A2L

Stud

22

7

GB/T 93-12-A0P

Washer

24

8

GB/T 6171-M12×1.25-A2L

Nut

24

9

GB/T 119.1-12m6×28

Pin

2

10

FT65.38.026

Oil plug assembly

1

11

TB554.384-02

Pin

4

12

FT300.38E.101

Rear axle housing assembly

1

13

GB/T 899-AM12-M12×1.25×160-8.8-A2L

Stud

2

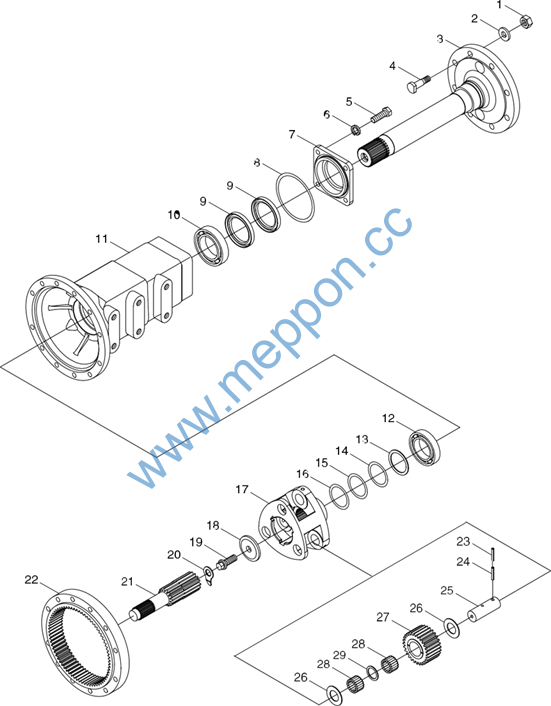

No.

Part code and specification

Part name

Quantity

Remark

FT300.39.001

Final transmission assembly

1

1

FT300.39.109

Rolling needle outer spacing ring

6

2

FT300.39.103

Planetary gear

3

3

GB/T 309-P5×23.8-G2

Rolling needle

132

4

FT300.39.105

Rolling needle inner spacing ring

3

5

GB/T 879.1-5×24

Pin

3

6

GB/T 879.1-8×24

Pin

3

7

FT300.39.106

Planetary gear shaft

3

8

FT300.39.107

Gear ring

1

9

FT300.39.101

Left half axle

1

10

FT300.39.110

Driving shaft lock piece

1

11

FT300.39.112

Driving shaft lock bolt

1

12

FT300.39.111

Stop block

1

13

FT300.39.104

Planetary bracket

1

14

FT300.39.123

Adjusting gasket

On demand

15

FT300.39.122

Adjusting gasket

On demand

16

FT300.39.121

Adjusting gasket

On demand

17

FT300.39.113

Spacing sleeve

1

18

GB/T 276-6211

Roller bearing

1

19

FT300.39.115

Left driving shaft housing

1

20

GB/T 276-6212

Roller bearing

1

21

GB/T 9877.1-FB70×95×10D

Skeleton oil seal

2

22

GB/T 3452.1-115×3.55G

O-ring

1

23

FT300.39.116

Oil seal seat

1

24

GB/T 93-12-AOP

Washer

4

25

GB/T 5783-M12×30-A2L

Bolt

4

26

FT300.39.136

Rear hub bolt (left)

8

27

FT300.39.118

Driving shaft

1

28

FT300.39.137

Washer

8

29

GB/T 6176-M16×1.5-LH-10-A3L

Nut

8

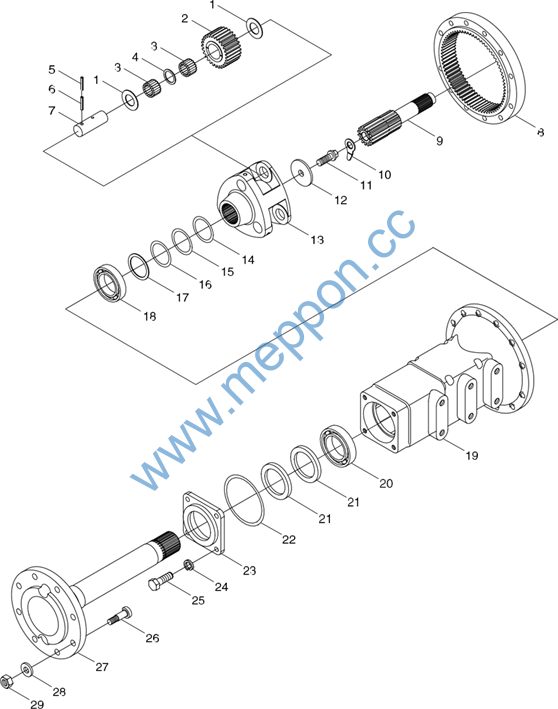

No.

Part code and specification

Part name

Quantity

Remark

FT300.39.001

Final transmission assembly

1

1

GB/T 6176-M16×1.5-10-A3L

Nut

8

2

FT300.39.137

Washer

8

3

FT300.39.118

Driving shaft

1

4

FT300.39.135

Rear hub bolt

8

5

GB/T 5783-M12×30-A2L

Bolt

4

6

GB/T 93-12-AOP

Washer

4

7

FT300.39.116

Oil seal seat

1

8

GB/T 3452.1-115×3.55G

O-ring

1

9

GB/T 9877.1-FB70×95×10D

Skeleton oil seal

2

10

GB/T 276-6212

Roller bearing

1

11

FT300.39.114

Right driving shaft housing

1

12

GB/T 276-6211

Roller bearing

1

13

FT300.39.113

Spacing sleeve

1

14

FT300.39.121

Adjusting gasket

On demand

15

FT300.39.122

Adjusting gasket

On demand

16

FT300.39.123

Adjusting gasket

On demand

17

FT300.39.104

Planetary bracket

1

18

FT300.39.111

Stop block

1

19

FT300.39.112

Driving axle lock bolt

1

20

FT300.39.110

Driving axle lock disc

1

21

FT300.39.102

Right half axle

1

22

FT300.39.107

Gear ring

1

23

GB/T 879.1-5×24

Pin

3

24

GB/T 879.1-8×24

Pin

3

25

FT300.39.106

Planetary gear shaft

3

26

FT300.39.109

Rolling needle outer spacing ring

6

27

FT300.39.103

Planetary gear

3

28

GB/T 309-P5×23.8-G2

Rolling needle

132

29

FT300.39.105

Rolling needle inner spacing ring

3

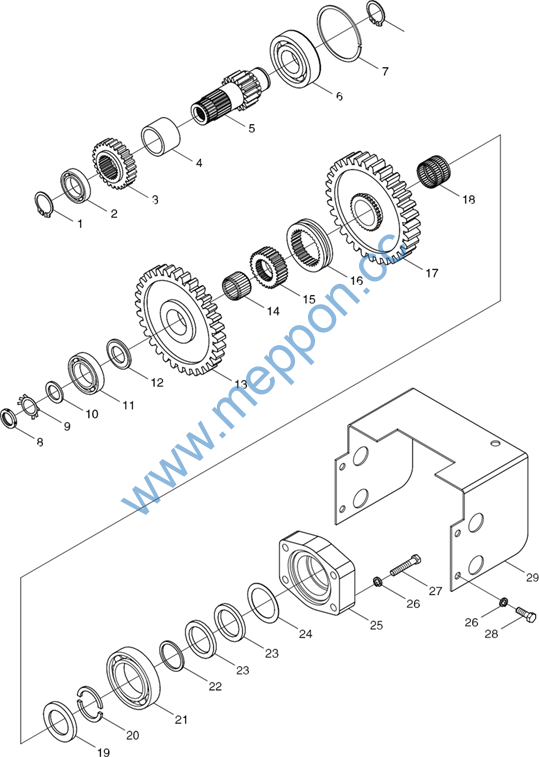

No.

Part code and specification

Part name

Quantity

Remark

TB400.411D

PTO gear assembly

1

1

GB/T 894.1-40

Circlip

2

2

GB/T 276-6208

Bearing

1

3

FT300.41E.120

PTO high-speed driving gear

1

4

FT300.41E.121

Spacing sleeve

1

5

FT300.41E.106

PTO low-speed driving gear

1

6

GB/T 276-6308N

Bearing

1

7

GB/T 305-90-96.5

Thrust ring

1

8

GB/T 812-M25×1.5

Round nut

1

9

GB/T 858-25

Thrust ring

1

10

FT300.41.122

Washer

1

11

GB/T 276-6306

Bearing

1

12

FT300.41C.118

PTO front circlip

1

13

FT300.41E.105

PTO driven pinion

1

14

JB/T 7918-K35×40×27

Bearing

1

15

FT300.41C.117

PTO joggle seat

1

16

FT300.41C.116

PTO joggle sleeve

1

17

FT300.41E.103

PTO driven gear

1

18

Q/LWZ B120-K40×46×34ZW

Needle bearing

1

19

FT300.41E.114

Rear circlip

1

20

FT300.41E.119

Thrust ring

1

21

GB/T 276-6309

Bearing

1

22

FT300.41E.113

PTO shaft bearing washer

1

23

GB/T 9877.1-FB50×72×8D

Oil seal

2

24

FT300.41E.115

Oil seal circlip

1

25

FT300.41E.101

Rear end cover I

1

26

GB/T 93-12-AOP

Washer

8

27

GB/T 5782-M12×55-A3L

Bolt

4

28

GB/T 5781-M12×25-A3L

Bolt

4

29

FT300.41.131a

Safety shield

1

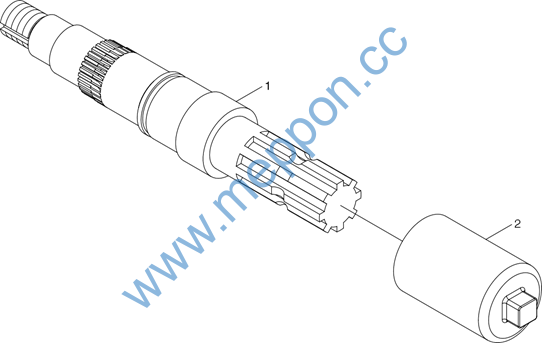

No.

Part code and specification

Part name

Quantity

Remark

1

2

TB550.412A TB550.412A-01 TB550.412-02

PTO shaft assembly Type I35 PTO shaft PTO shaft head shield

1

1

1

No.

Part code and specification

Part name

Quantity

Remark

TB550.413

PTO control assembly

1

1

FT300.41.015

PTO control handle assembly

1

2

GB/T 6170-M10-8-A3L

Hexagon nut , Style 1

2

3

FT300.41.013

Control lever assembly, PTO

1

3.1

FT300.41.014

Control lever welded unit, PTO

1

3.2

FT300.41.127

Bush

1

4

FT300.41.128

Spacer bush

1

5

GB/T 882-B10×30

Axis pin

2

6

FT300.43.108

Front fork, pull rod

1

7

FT300.41E.112

Control lever

1

8

FT300.41.130

Shaft sleeve

1

9

FT300.41.129

Washer

1

10

GB/T 93-12

Washer

1

11

TB550.413-02

Bolt M12×75

1

12

GB/T 97.1-10-A0P

Washer

2

13

GB/T 91-3.2×16-A0P

Pin

2

14

GB/T 91-2.5×32-A0P

Split pin

1

15

TB550.413-03

Screw

1

16

FT704.42B.163

Retaining spring, fork shaft

1

17

GB/T 308-9.5-G100-b

Steel ball

1

18

TB550.413-04

Finger-type driving lever

1

19

GB/T 3452.1-11.2×2.65G

O-ring

1

20

FT300.41E.109

Shift lever shaft sleeve

1

21

GB/T 93-8

Standard spring washer

2

22

GB/T 5783-M8×20-8.8-A2L

Hex head bolt

2

23

FT300.41.012

Gear shift lever welded unit, PTO

1

24

GB/T 879.1-6×26

Pin

1

25

GB/T 879.1-3.5×26

Resilient pin

1

26

TB550.413-01a

Gear shift fork, PTO

1

27

FT300.41C.107a

Fork shaft, PTO

1

28

FT300.43.110

Rear fork, pull rod

1

29

GB/T 3452.1-16.0×2.65G

Hydraulic and pneumatic O-ring

2
