LOVOL TB604-Q161Y2K Tractor Parts Catalogue 10
FT300.35A.001 Towing Mechanism Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.35A.001 |
Towing mechanism assembly |
1 |
||
1 |
GB/T5783 |
Bolt M16×60-A3L |
8 |
|
2 |
FT300.35A.012a |
Towing frame weldment |
1 |
|
3 |
GB/T93 |
Washer 16-A0P |
10 |
|
4 |
GB/T6170 |
Nut M16-A3L |
10 |
|
5 |
FT65.53.103 |
Spring Locking Pin |
2 |
|
6 |
FT300.35A.104 |
Location pin |
2 |
|
7 |
FT300.35A.102 |
Swing rod |
1 |
|
8 |
TB400.35.1-03 |
Bolt M16×75 |
2 |
|
9 |
FT300.35A.105 |
Swing pin |
1 |
|
10 |
FT300.35A.101 |
Connecting swing rod |
1 |
|
11 |
FT300.35A.131 |
Lock pin |
2 |
|
12 |
FT300.35A.103 |
Connecting pin |
1 |
103
Foton TB604-Q161Y2K Wheeled Tractor

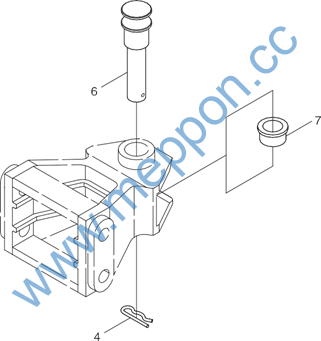

FT300.53.001 Traction Equipment Assembly
104
Foton TB604-Q161Y2K Wheeled Tractor
FT300.53.001 Traction Equipment Assembly
No. |
Part code and specification |
Part name |
Quantity |
Remark |
FT300.53.001 |
Traction equipment assembly |
1 |
||
1 |
FT300.53.106 |
Traction pin |
1 |
|
2 |
FT300.56.029 |
Lock pin assembly |
2 |
|
3 |
FT300.53.108a |
Traction frame |
1 |
|
4 |
FT65.53.103 |
Elastic lock pin |
2 |
|
5 |
FT300.53.101a |
Connecting pin |
2 |
|
6 |
FT300.53.102 |
Traction pin |
1 |
|
7 |
FT300.53.103 |
Supporting sleeve |
1 |
105
Foton TB604-Q161Y2K Wheeled Tractor

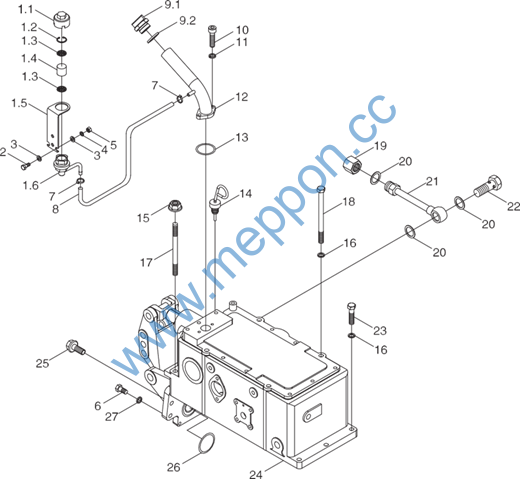

TB504.551A Lifter Assembling Assy-1
106
Foton TB604-Q161Y2K Wheeled Tractor
TB504.551A Lifter Assembling Assy-1
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assy |
1 |
||
1 |
FT300.55B.016c |
Breather assy |
1 |
|
1.1 |
FT700.55D.136 |
Breather cover |
1 |
|
1.2 |
GB/T 893.1-26 |
Hole circlip |
1 |
|
1.3 |
FT650.40.167 |
Base plate |
2 |
|
1.4 |
FT700.55D.109 |
Breather filter element |
1 |
|
1.5 |
FT300.55B.164 |
Respirator bracket |
1 |
|
1.6 |
FT300.55B.027A |
Connecting pipe weldment, breather |
1 |
|
2 |
GB/T 5783-M10×20-8.8-A3L |
Hex head bolt |
2 |
|
3 |
GB/T 97.1-10-A0P |
Flat washer |
4 |
|
4 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
5 |
GB/T 6170-M10-8-A3L |
Hexagon nut , Style 1 |
2 |
|
6 |
GB/T 5783-M8×30-10.9-A2L |
Hex head bolt |
2 |
|
7 |
Q67512 |
Worm driven hose hoop, type A |
2 |
|
8 |
FT300.55B.169 |
Connecting hose 2, respirator |
1 |
|
9 |
TA700.55A.7 |
Oil filler plug assembly |
1 |
|
9.1 |
TA700.55A.7-01 |
Oil filler screw cap |
1 |
|
9.2 |
TA700.55A.7-02 |
Rubber mat |
1 |
|
10 |
GB/T 70.1-M8×25-8.8-A2L |
Hexagon socket head cap screw |
2 |
|
11 |
GB/T 93-8-A0P |
Standard spring washer |
2 |
|
12 |
FT300.55B.026 |
Oil filler pipe weldment |
1 |
|
13 |
GB/T 3452.1-32.5×1.80G |
Hydraulic and pneumatic O-ring |
1 |
|
14 |
FT300.55B.022a |
Dipstick cluster |
1 |
|
15 |
SPL-CO-M12-10-F3 |
Hex flange nut |
2 |
|
16 |
TB404.312B-01 |
Washer |
7 |
|
17 |
GB/T 899-M12×100-10.9-A2L |
Stud |
2 |
|
18 |
FT300.55B.136 |
Bolt M12×235 |
4 |
|
19 |
FT300.55B.121a |
Delivery pipe nut |
1 |
|
20 |
JB/T 982-22 |
Combined seal gasket |
3 |
|
21 |
FT300.55B.024 |
Drain pipe welding assembly |
1 |
|
22 |
FT300.58.101 |
Hollow bolt |
1 |
|
23 |
GB/T 5783-M12×40-10.9-A3L |
Hex head bolt |
3 |
107
Foton TB604-Q161Y2K Wheeled Tractor
TB504.551A Lifter Assembling Assy-1(extension)
108
Foton TB604-Q161Y2K Wheeled Tractor
TB504.551A Lifter Assembling Assy-1(extension)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
24 25 26 27 |
TB504.551A.1a GB/T 16674.1-M12×35-10.9-A2L GB/T 3452.1-103×2.65G TB300.55-02 |
Lifter assy Hexagon flange bolt Rubber O-ring Washer |
1 4 1 2 |
109
Foton TB604-Q161Y2K Wheeled Tractor
TB504.551A Lifter Assembling Assy-2
110
Foton TB604-Q161Y2K Wheeled Tractor
TB504.551A Lifter Assembling Assy-2
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assy |
1 |
||
TB504.551A.1a |
Lifter assy |
1 |
||
1 |
TB504.551B.1.1 |
Distributor control mechanism assembly |
1 |
|
2 |
TB504.551A.1-01 |
Lifter shell |
1 |
|
3 |
FT300.55B.120a |
Hydraulic output pipe joint |
1 |
|
4 |
GB/T 3452.1-12.5×2.65G |
Hydraulic and pneumatic O-ring |
1 |
|
5 |
FT300.55B.121a |
Delivery pipe nut |
1 |
111
Foton TB604-Q161Y2K Wheeled Tractor

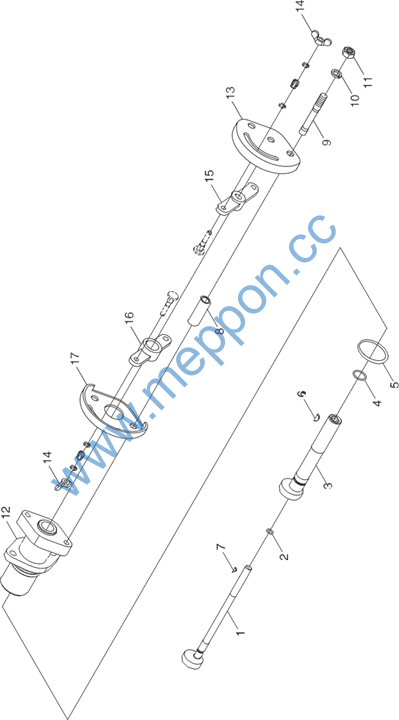

TB504.551A Lifter Assembling Assy-3
112
Foton TB604-Q161Y2K Wheeled Tractor
TB504.551A Lifter Assembling Assy-3
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB504.551A |
Lifter assembling assy |
1 |
||
TB504.551A.1a |
Lifter assy |
1 |
||
TB504.551B.1.1 |
Distributor control mechanism assembly |
1 |
||
1 |
TB504.551.1.1.4 |
Eccentric wheel welding assembly, force adjustment |
1 |
|
2 |
GB/T 3452.1-6.90×1.80G |
Hydraulic and pneumatic O-ring |
1 |
|
3 |
TB504.551.1.1.3 |
Eccentric wheel welding assembly, position adjustment |
1 |
|
4 |
GB/T 3452.1-17.0×1.80G |
Hydraulic and pneumatic O-ring |
1 |
|
5 |
GB/T 3452.1-41.2×3.55G |
Hydraulic and pneumatic O-ring |
1 |
|
6 |
GB/T 1099.1-3×5×13 |
Woodruff key |
1 |
|
7 |
GB/T 1099.1-2.5×3.7×10 |
Woodruff key |
1 |
|
8 |
TB504.551.1.1-04 |
Spacer bush |
2 |
|
9 |
GB/T 898-M10×65-A2L |
Stud |
2 |
|
10 |
GB/T 93-10-A0P |
Standard spring washer |
2 |
|
11 |
GB/T 6170-M10-A3L |
Hexagon nut , Style 1 |
2 |
|
12 |
TB504.551.1.1-01 |
Support |
1 |
|
13 |
TB504.551B.1.1-01 |
Sector plate, force adjustment |
1 |
|
14 |
GB/T 62-M6-A2L |
Butterfly nut |
2 |
|
15 |
TB504.551.1.1.2 |
Rocker-arm weldment, force adjustment |
1 |
|
16 |
TB504.551.1.1.1 |
Rocker-arm weldment, position adjustment |
1 |
|
17 |
TB504.551B.1.1-02 |
Sector plate, position adjustment |
1 |
113
Foton TB604-Q161Y2K Wheeled Tractor

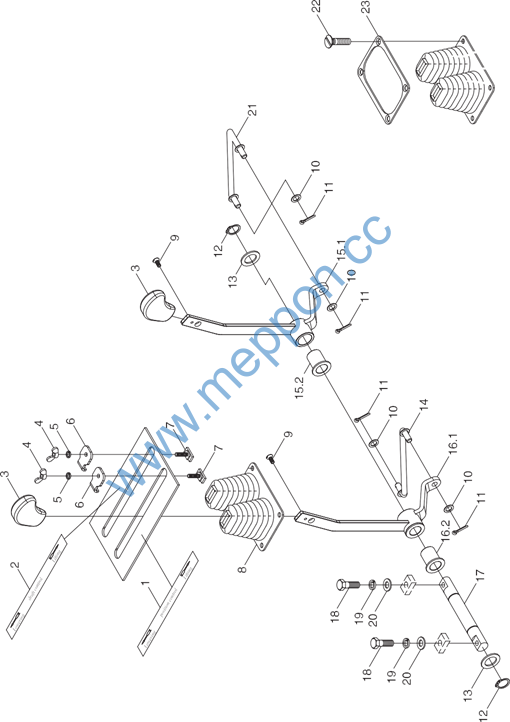

TB504.552C Lifter Control Mechanism Assembly
