LOVOL TB604-A161Y1K Tractor Parts Catalogue 17
TB450.483 Front Lamp Harness Installation Assembly(004)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.483 |
Front Lamp Harness Installation Assembly |
1 |
||
1 |
FT400.48.023 |
Front Lamp Harness Assembly |
1 |
|
2 |
FT65.48.097 |
Harness Fixing Clamp (2) |
6 |
|
3 |
GBT6170-M6-8-A2L |
Hexagon Nut, Type-1 |
3 |
|
4 |
GBT93-6-A0P |
Standard Spring Washer |
3 |
|
5 |
GBT97.1-6-A0P |
Flat Washer |
3 |
|
6 |
FT65.48.340 |
Horn Assembly |
1 |
|
7 |
GBT5783-M6X16-8.8-A2L |
Hexagon Bolt |
1 |
|
8 |
TB400.483A.1a |
Front Combined Lamp Assembly |
1 |
|
9 |
GBT97.1-8-A0P |
Flat Washer |
2 |
|
10 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
11 |
GBT5783-M8X16-8.8-A2L |
Hexagon Bolt |
2 |
155
Lovol TB604-A161Y1K Wheeled Tractor

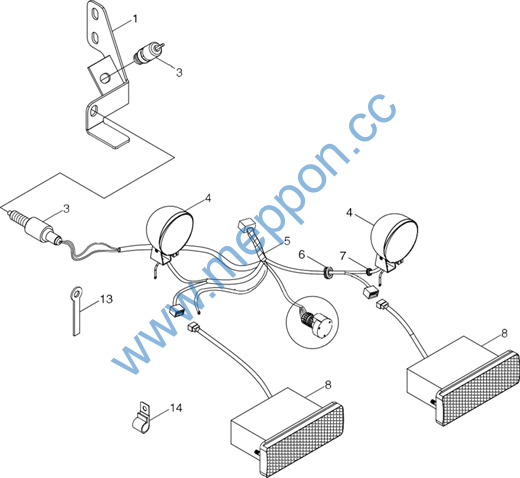

TB450.484G Rear Lamp Wire Harness Mounting Assy
156
Lovol TB604-A161Y1K Wheeled Tractor
TB450.484G Rear Lamp Wire Harness Mounting Assy
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.484G |
Rear Lamp Wire Harness Mounting Assy |
1 |
||
1 |
FT300.48C.211 |
Mounting Plate, Brake Switch |
1 |
|
2 |
GBT 6170-M5-8-A2L |
Hexagon Nut , Style 1 |
3 |
|
3 |
FT300.48.033 |
Brake Lamp Switch |
2 |
|
4 |
FT300.48.053a |
Rear Light |
2 |
|
5 |
TB450.484M.1a |
Rear Lamp Harness Assy |
1 |
|
6 |
FT65.48.093 |
Threading Rubber Ring (A) |
2 |
|
7 |
FT65.48.094 |
Threading Rubber Ring (B) |
2 |
|
8 |
FT300.48.052a |
Tail Lamp |
2 |
|
9 |
TD900.484.2 |
Rear Trailer Socket |
1 |
|
10 |
GBT 818-M5X35-4.8-A1L |
Cross Recessed Pan Head Screw |
3 |
|
11 |
GBT 97.1-5-A0P |
Washer |
3 |
|
12 |
GBT 93-5-A0P |
Washer |
3 |
|
13 |
TA600.486-01 |
Wire Harness Fixing Clamp |
2 |
|
14 |
FT800A.48L.106 |
Harness Clip |
1 |
157
Lovol TB604-A161Y1K Wheeled Tractor

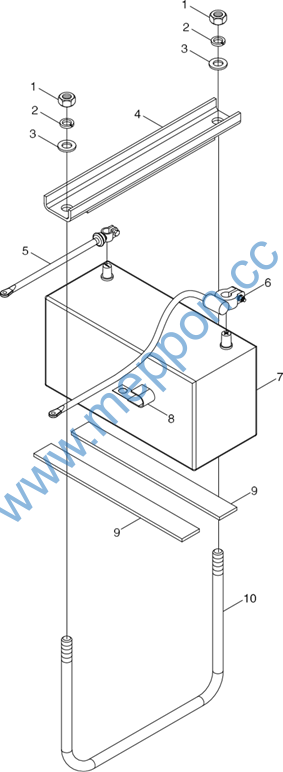

TB450.485A Battery Installation Assembly(007)
158
Lovol TB604-A161Y1K Wheeled Tractor
TB450.485A Battery Installation Assembly(007)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
TB450.485A |
Battery Installation Assembly |
1 |
||
1 |
GBT6170-M8-8-A2L |
Hex Nut, Style 1 |
2 |
|
2 |
GBT93-8-A0P |
Standard Spring Washer |
2 |
|
3 |
GBT97.1-8-A0P |
Flat Washer |
2 |
|
3.1 |
TG1204.485-02 |
Battery Press Plate |
1 |
|
3.2 |
TB400.485A.2 |
Battery Bonding |
1 |
|
4 |
TB400.485A.1 |
Power Source Wire Assembly |
1 |
|
5 |
FT450.48.010 |
Maintenance Free Lead Acid Battery |
1 |
|
6 |
TB450.485.2 |
Harness Fixing Clamp |
1 |
|
7 |
TB450.485.1 |
Battery Shock Absorbing Mat |
2 |
|
8 |
TG1204.485-01 |
Battery U-Shape Pull Rod |
1 |
|
9 |
Q67405200 |
Plastic Hoop Belt |
1 |
159
Lovol TB604-A161Y1K Wheeled Tractor

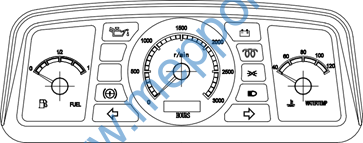

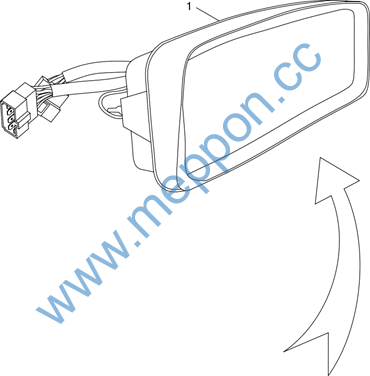

TB400.487 Combined Instrument Assembly (004)
160
Lovol TB604-A161Y1K Wheeled Tractor
TB400.487 Combined Instrument Assembly (004)
No. |
Part code and specification |
Part name |
Quantity |
Remark |
1 |
TB400.487 TB400.487.1 |
Combined Instrument Assembly Combined Instrument Assembly |
1 1 |
161
