LOVOL TA754-1F161H2K Tractor Parts Catalogue

Meppon Parts Posted on by

1004C-P4TRT75N06-17 10.17-水泵及节温器-17(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

31

T2431154

PLUG

1

2011-11_

32

T3164E061

CONNECTION

1

2011-11_

33

T3683N004

WASHER

1

2011-11_

34

T2314H004

BOLT

2

2011-11_

35

T33854114

RUBBER HOSE

1

2011-11_

36

T0180067A

CLAMP HOOP

2

2011-11_

4

T2314H003

BOLT

1

2011-11_

5

T2314H002

BOLT

2

2011-11_

6

T2314J002

BOLT

2

2011-11_

7

T4131E011C

WATER PUMP

1

2011-11_

8

T2531A112

SHAFT

1

2011-11_

9

T2415B155

O-RING

1

2011-11_

9

T2415B155

O-RING

1

2011-11_

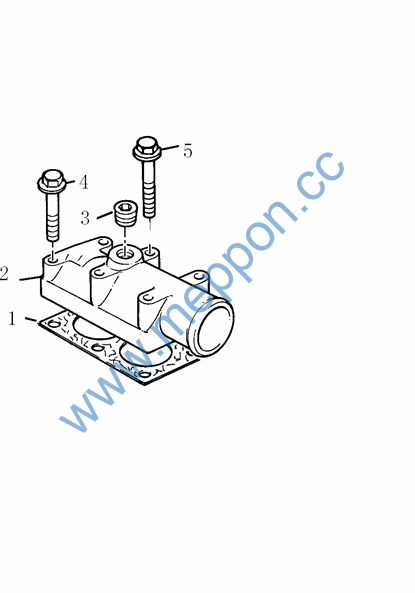

1004C-P4TRT75N06-18 10.18-出水口-18 WATER OUTLET-18



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

3

4



5

T3684A004 T3776E002 T0650593 T0650593 T2314K161



T2314H008

GASKET

Water outlet PLUG PLUG BOLT



BOLT

1

1

1

1

1



1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

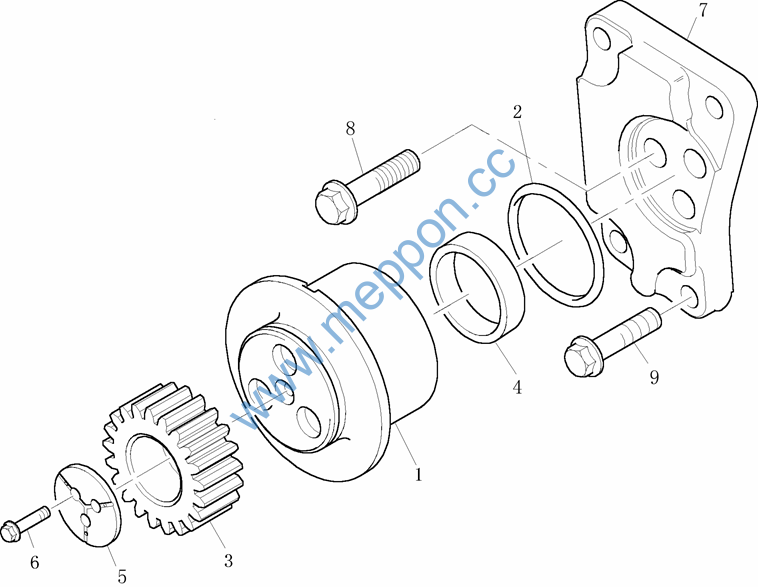

1004C-P4TRT75N06-19 10.19齿轮驱动/转向助力选用-19 GEAR DRIVE AUXILIARY DRIVE OPTION-19



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

2

3

4

5



6

7

8

9

T3272X021 T2415H213 T3117C161 T2551A289 T3241H011



T2314H002 T3753R241 T2311D081 T2311D560

HUB

O-RING GEAR BEARING FIXED PLATE



BOLT

SUPPOT BRACKET BOLT

BOLT

1

1

1

1

1



3

1

3

4

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

2011-11_

2011-11_

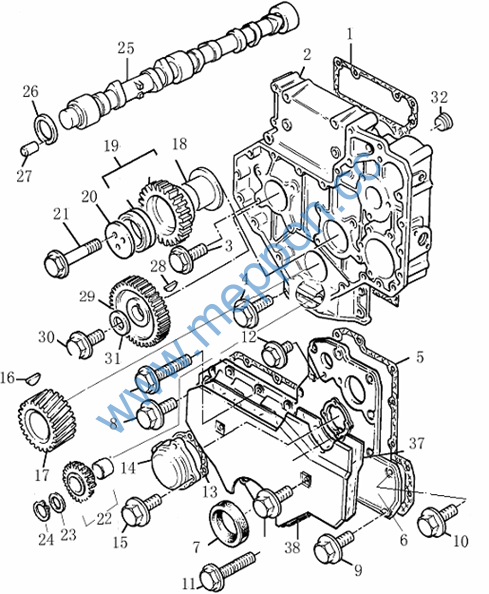

1004C-P4TRT75N06-2 10.2-正时齿轮及凸轮轴-2 TIMING GEAR & CAMSHAFT-2



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

T3681P009

WASHER

1

2011-11_

10

T2314H004

BOLT

1

2011-11_

11

T2314H004

BOLT

2

2011-11_

12

T2314H013

BOLT

6

2011-11_

13

T62204002

WASHER

1

2011-11_

14

T62204001

INSPECTION COVER

1

2011-11_

14

T62204001

INSPECTION COVER

1

2011-11_

15

T2314F036

BOLT

4

2011-11_

16

T0500012

KEY

1

2011-11_

17

T3117C061

GEAR

1

2011-11_

18

T33426161A

HUB

1

2011-11_

18

T33426161A

HUB

1

2011-11_

19

T4111A013

GEAR

1

2011-11_

2

T3716C133A

TIMING CASE

1

2011-11_

20

T3241H009

FIXED PLATE

1

2011-11_

21

T2314J010

BOLT

3

2011-11_

22

T4111A021

GEAR

1

2011-11_

23

T33123125

WASHER

1

2011-11_

24

T2722A206

CIRCLIP

1

2011-11_

24

T2722A206

CIRCLIP

1

2011-11_

25

T31415364

CAMSHAFT

1

2011-11_

26

T33153121

PLATE;THRUST

1

2011-11_

27

T2116053

PIN

1

2011-11_

28

T0500012

KEY

1

2011-11_

29

T3117L023

GEAR

1

2011-11_








1004C-P4TRT75N06-2 10.2-正时齿轮及凸轮轴-2(续)



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

3

30

31

31

4



5

6

7

8

9

T2314H003 T2314J606 T3321A003 T3321A003 T2314H004



T3681P034 T3716M091B T2418F436 T2314H005 T2314H034

BOLT BOLT WASHER WASHER BOLT



FRONT COVER JOINT FRONT COVER

OIL SEAL BOLT BOLT

8

1

1

1

4



1

1

1

10

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

2011-11_

2011-11_

2011-11_

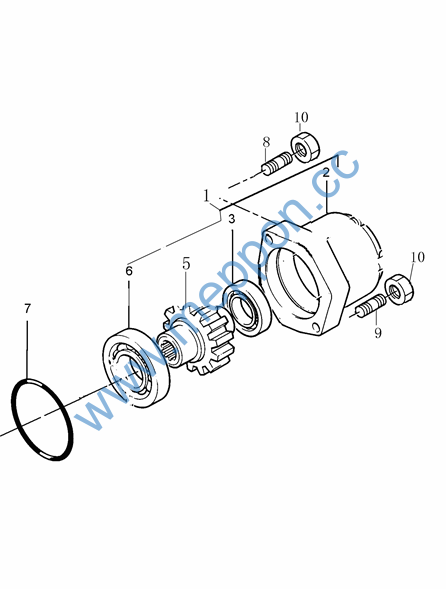

1004C-P4TRT75N06-20 10.20-齿轮驱动/转向助力选用-20 GEAR DRIVE AUXILIARY DRIVE OPTION-20



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

1

10

2

4



5

7

8

9

T4113H068A T4113H068A T2318A605 T3751K071A T2721A537



T3117C116A T2415H461 T2313H321 T3254T001

DRIVING ASSEMBLY DRIVING ASSEMBLY NUT

HOUSING CIRCLIP



GEAR O-RING STUD

8.8-A3L STUD

1

1

3

1

1



1

1

1

1

2011-11_

2011-11_

2011-11_

2011-11_

2011-11_



2011-11_

2011-11_

2011-11_

2011-11_

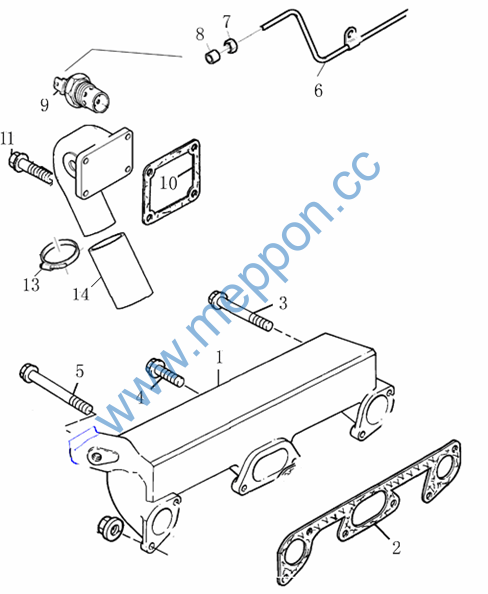

1004C-P4TRT75N06-21 10.21-进排气系统-21 MANIFOLDS & EXHAUST SYSTEM



标号 No.

代号 Code

名称 Description

数量 Quantity

备注 Remark

1

T3777E221B

INTAKE MANIFOLD

1

2011-11_

10

T3684N009

WASHER

1

2011-11_

11

T2314H004

BOLT

4

2011-11_

12

T3766P052C

AIR INLET SYPHON

1

2011-11_

13

T0180070A

Clip

2

2011-11_

14

T3383E008

RUBBER HOSE

1

2011-11_

2

T3688C024

WASHER

1

2011-11_

3

T2314J011

BOLT

1

2011-11_

4

T2314J004

BOLT

4

2011-11_

5

T2314J018

BOLT

1

2011-11_

6

T75001403

PIPE

1

2011-11_

6

T73306108

PIPE

1

2011-11_

7

T711070004

NUT

1

2011-11_

8

T714020004

OLIVE

1

2011-11_

9

T2666108A

FLAME WARM-UP PLUG

1

2011-11_
