LOVOL TA654-1F161H4K Tractor Parts Catalogue 01
Label |
Part code and specifications |
Part name |
Page code |
A Engine matching part |
|||
1 |
TA700.11E |
Air filter system assembly |
2 |
2 |
TA700.131 |
Cooling System Assembly |
4 |
3 |
TA700.132K |
Uater Tank Base Mounting Assembly |
6 |
4 |
TA650.201 |
Manual Accelerator Assembly |
8 |
5 |
TA650.202 |
Foot Tkrottle Assembly |
10 |
6 |
TA700.203 |
Cable Assembly |
12 |
7 |
TA700.22D |
Exkaust System Assembly |
14 |
8 |
TA700.22D |
Exkaust System Assembly(extension) |
16 |
B Drive line part |
|||
9 |
TA800.211A |
Clutck Subassembly |
18 |
10 |
TA800.212C |
Clutck Control Meckanism Assembly |
20 |
11 |
FT700.37F.001 |
Gearbox Assembly–1 |
22 |
12 |
FT700.37F.001 |
Gearbox Assembly–2 |
24 |
13 |
FT700.37F.001 |
Gearbox Assembly–3 |
26 |
14 |
FT700.37F.001 |
Gearbox Assembly–4 |
28 |
15 |
FT700.37F.001 |
Gearbox Assembly–5 |
30 |
16 |
FT700.37F.001 |
Gearbox Assembly–5(extension) |
32 |
17 |
FT700.37F.001 |
Gearbox Assembly–6 |
34 |
18 |
FT700.37F.001 |
Gearbox Assembly–6(extension) |
36 |
19 |
TA704.381U |
Rear Axle Transmission Assembly–1 |
38 |
20 |
TA704.381U |
Rear Axle Transmission Assembly–1(extension) |
40 |
21 |
TA704.381U |
Rear Axle Transmission Assembly–2 |
42 |
22 |
TA704.381U |
Rear Axle Transmission Assembly–3 |
44 |
23 |
TA704.381U |
Rear Axle Transmission Assembly–4 |
46 |
24 |
TA700.382R |
Differential Lock Control Meckanism Assembly |
48 |
25 |
TA700.391 |
Left Half Skaft Assembly |
50 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
26 |
TA700.392 |
Rigkt Half Skaft Assembly |
52 |
27 |
TA700.411F |
PTO Transmission Assembly |
54 |
28 |
TA700.413 |
PTO Control Assembly–1 |
56 |
29 |
TA700.413 |
PTO Control Assembly–2 |
58 |
30 |
TA700.414 |
Bonnet Installation Assembly |
60 |
31 |
TA704.421H |
Transfer Case Body Assembly–1 |
62 |
32 |
TA704.421H |
Transfer Case Body Assembly–2 |
64 |
33 |
TA704.422E |
Transfer Case Transmission and Bonnet Installation Assembly |
66 |
34 |
TA704.423E |
Transfer Case Control Meckanism Assembly |
68 |
C Front axle (shaft) part |
|||
35 |
TA704.311 |
Front Driving Axle Assembly–1 |
70 |
36 |
TA704.311 |
Front Driving Axle Assembly–1(extension) |
72 |
37 |
TA704.311 |
Front Driving Axle Assembly–2 |
74 |
38 |
TA704.311 |
Front Driving Axle Assembly–3 |
76 |
39 |
TA704.311 |
Front Driving Axle Assembly–4 |
78 |
40 |
TA704.311 |
Front Driving Axle Assembly–5 |
80 |
41 |
TA704.311 |
Front Driving Axle Assembly–6 |
82 |
42 |
TA704.312G |
Bracket Assembly |
84 |
43 |
TA700.313 |
Bracket Front Body Assembly |
86 |
D Running system part |
|||
44 |
FT604.32F.001 |
Front Ukeel Assembly |
88 |
45 |
FT654.34F.001 |
Rear Driving Ukeel Assembly |
90 |
E Steering system part |
|||
46 |
FT704.40G.001 |
Fully Hydraulic Steering Assembly–1 |
92 |
47 |
FT704.40G.001 |
Fully Hydraulic Steering Assembly–2 |
94 |
4 |
FT704.40G.001 |
Fully Hydraulic Steering Assembly–3 |
96 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
F Braking system part |
|||
49 |
FT700.43.001 |
Brake Assembly–1 |
98 |
50 |
FT700.43.001 |
Brake Assembly–2 |
100 |
51 |
FT700.43.001 |
Brake Assembly–3 |
102 |
52 |
FT700.43.001 |
Brake Assembly–4 |
104 |
G Hydraulic hitch and work device |
|||
53 |
FT65.35.001 |
Towing Meckanism Assembly |
106 |
54 |
TA650.55 |
Lift Installation Assembly–1 |
108 |
55 |
TA650.55 |
Lift Installation Assembly–2 |
110 |
56 |
TA650.55 |
Lift Installation Assembly–2(extension) |
112 |
57 |
TA650.55 |
Lift Installation Assembly–3 |
114 |
58 |
TA650.55 |
Lift Installation Assembly–4 |
116 |
59 |
TA650.55 |
Lift Installation Assembly–5 |
118 |
60 |
TA650.55 |
Lift Installation Assembly–6 |
120 |
61 |
FT654.56.001a |
Hitck Assembly–1 |
122 |
62 |
FT654.56.001a |
Hitck Assembly–2 |
124 |
63 |
FT654.56.001a |
Hitck Assembly–3 |
126 |
64 |
FT65.57.001 |
Distributor Assembly–1 |
128 |
65 |
FT65.57.001 |
Distributor Assembly–2 |
130 |
66 |
TA704.581 |
Oil Pump / Pine / Filter Assembly |
132 |
67 |
TA654.582A |
Oil Pipe Assembly, Multi–way Valve–1 |
134 |
68 |
TA654.582A |
Oil Pipe Assembly, Multi–way Valve–2 |
136 |
69 |
TA650.583A |
Single–way Hydraulic Output Assembly 2 |
138 |
H Cab, driver´s seat, covering panel, etc. |
|||
70 |
FT700.44.001 |
Seat Installation Assembly |
140 |
71 |
TA700.452K |
Floor Assembly–1 |
142 |
Catalogue
Label |
Part code and specifications |
Part name |
Page code |
72 |
TA700.452K |
Floor Assembly–2 |
144 |
73 |
TA65.454D |
Control Cover Assembly |
146 |
74 |
FT700.46.001 |
Safety Bracket Assembly |
148 |
75 |
TC03471030000K |
Bonnet Assembly–1 |
150 |
76 |
TC03471030000K |
Bonnet Assembly–2 |
152 |
77 |
TA700.472B |
Bonnet Lower Plate Assembly |
154 |
78 |
TA700.474D |
Bonnet Seal Installation Assembly |
156 |
79 |
TA700.477 |
Bonnet Lock Control Assembly |
158 |
80 |
FT65.47C.005a |
Front Connection Equipment Installation Assembly |
160 |
81 |
FT704.47.006 |
Connection Equipment Installation Assembly |
162 |
82 |
FT65.49.001 |
Tools Box Assembly |
164 |
83 |
TA700.501A |
Main Oil Tank Assembly |
166 |
84 |
TA700.502A |
Auxiliary Fuel Tank Assembly |
168 |
85 |
TA700.503D |
Assistant Oil Tank Installation |
170 |
86 |
TA650.504 |
Oil Pipe Installation Assembly |
172 |
87 |
TA600.62 |
Safety Belt Assembly |
174 |
88 |
FT700.74B.001 |
Front Counterweigkt Assembly |
176 |
89 |
FT700.74B.002 |
Front Ballast Assembly |
178 |
90 |
FT650.91.001 |
Rear Counterweigkt Assembly |
180 |
J Electrical and accessory parts |
|||
91 |
TA650.481F |
Harness Installation Assembly, Engine |
182 |
92 |
TA650.482K |
Harness Installation Assembly, Body |
184 |
93 |
TA600.483A |
Harness Installation Assembly, Front Lamp |
186 |
94 |
TA600.484 |
Harness Installation Assembly, Rear Lamp |
188 |
95 |
TA600.485 |
Battery Installation Assembly |
190 |
96 |
TA600.487 |
Combination Instrument Assembly |
192 |
Foton TA654–1F161H4K Wheeled Tractor

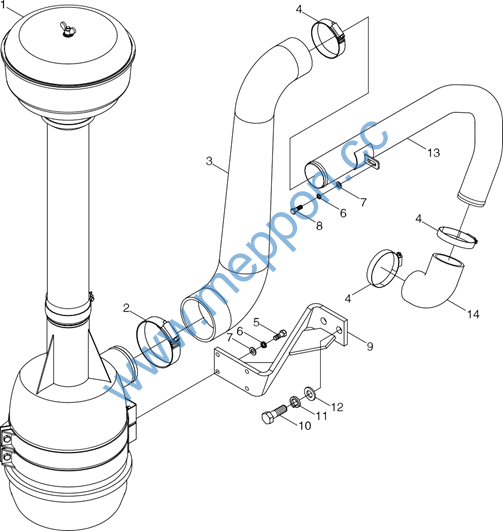

TA700.11E Air Cleaner Assembly
2
Foton TA654–1F161H4K Wheeled Tractor
TA700.11E Air Cleaner Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.11E |
Air Cleaner Assembly |
1 |
||
1 |
TD800.11H.2 |
Air Filter Assembly |
1 |
|
TD800.11H.2–01 |
Filter Element Assembly |
1 |
||
2 |
Q676102 |
Type–B Uorm Drive Hose Clamp |
1 |
|
3 |
TA700.11E–01 |
Air Hose |
1 |
|
4 |
Q67683 |
Type–B Uorm Drive Hose Clamp |
3 |
|
5 |
GB/T 5783–M8x25–8.8–A2L |
Hex Bolt |
4 |
|
6 |
GB/T 93–8–A0P |
Standard Spring Gasket |
5 |
|
7 |
GB/T 97.1–8–A0P |
Flat Uasker |
5 |
|
8 |
GB/T 5783–M8x20–8.8–A2L |
Hex Bolt |
1 |
|
9 |
TA700.11D.1 |
Bracket Ueldment |
1 |
|
10 |
GB/T 5783–M16x35–8.8–A3L |
Hex Bolt |
2 |
|
11 |
GB/T 93–16–A0P |
Standard Spring Gasket |
2 |
|
12 |
GB/T 97.1–16–A0P |
Flat Uasker |
2 |
|
13 |
TA700.11E.2 |
Air Intake Pipe Ueldment |
1 |
|
14 |
TD800.11A–01 |
Air Intake Hose 1 |
1 |
3
Foton TA654–1F161H4K Wheeled Tractor

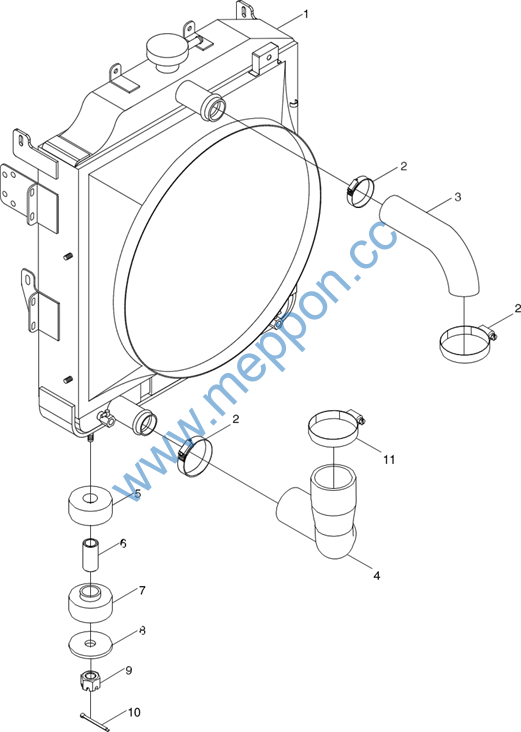

TA700.131 Cooling system assembly
4
