LOVOL TA604-1F461H20K Tractor Parts Catalogue 18
TA600.81 Air Conditioner Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.81 |
Air Conditioner Assembly |
1 |
||
1 |
FT800.45.085 |
Evaporator Assembly |
1 |
|
2 |
FT800.45.805 |
Uater Disckarge Pipe |
2 |
|
3 |
FT700.45.088 |
Heater Intake Valve |
1 |
|
4 |
Q676B25 |
Type–C Uorm Drive Hose Clamp |
4 |
|
5 |
FT800.45.996 |
Air Condition Uarm Uind Intake Pipe |
1 |
|
6 |
FT800.45.995 |
Air Condition Uarm Uind Outlet Pipe |
1 |
|
7 |
GB/T 5783–M8x20–A2L |
Bolt |
5 |
|
8 |
GB/T 97.1–8–A0P |
Flat Uasker |
10 |
|
9 |
GB/T 93–8–A0P |
Standard Spring Gasket |
10 |
|
10 |
FT700.45D.1 |
Storage Tank–Evaporator Higk Pressure Hose |
1 |
|
11 |
TD800.811–10 |
Pipe Clamp 3 |
4 |
|
12 |
GB/T 5783–M8x40–A2L |
Hex Bolt |
5 |
|
13 |
GB/T 845–ST3.5x16 |
Cross Recessed Pan Head Tapping Screw |
12 |
|
14 |
FT800.45.084 |
Control Panel |
1 |
|
15 |
FT800.45.086 |
Return Uind Moutk |
2 |
|
16 |
FT800.45.087 |
Output Uind Moutk |
2 |
|
17 |
GB/T 6170–M8–A2L |
Nut |
5 |
J81–1–1
Foton TA604–1F461H20K Wheeled Tractor

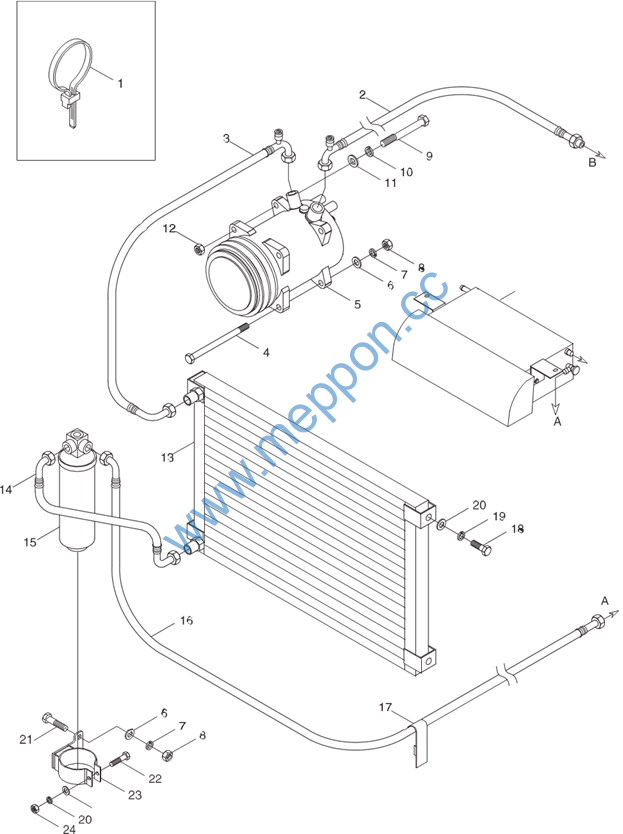

TA600.81 Air Conditioner Assembly–2
Evaporator Assembly
J81–1–2
Foton TA604–1F461H20K Wheeled Tractor
TA600.81 Air Conditioner Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA600.81 |
Air Conditioner Assembly |
1 |
||
1 |
Q67407200 |
Plastic Fastener |
11 |
|
2 |
FT700.45.087 |
Compressor Intake Pipe |
1 |
|
3 |
FT700.45D.2 |
Cooler–Compressor Higk Pressure Hose |
1 |
|
4 |
GB/T 5783–M8x40–A2L |
Hex Bolt |
1 |
|
5 |
SE5H14 |
Compressor Assembly |
1 |
|
6 |
GB/T 97.1–8–A0P |
Flat Uasker |
10 |
|
7 |
GB/T 93–8–A0P |
Standard Spring Gasket |
10 |
|
8 |
GB/T 6170–M8–A2L |
Nut |
5 |
|
9 |
TD800.811–20 |
Bolt |
1 |
|
10 |
GB/T 97.1–10–A0P |
Flat Uasker |
1 |
|
11 |
GB/T 93–10–A0P |
Standard Spring Gasket |
1 |
|
12 |
GB/T 6170–M10–A2L |
Nut |
1 |
|
13 |
TG1204.81.2 |
Cooler Assembly |
1 |
|
14 |
FT800.45.803 |
Cooler –Drying Bottle Higk Pressure Hose |
1 |
|
15 |
TG1204.81.8 |
Drying Bottle Assembly |
1 |
|
16 |
FT700.45D.1 |
Storage Tank–Evaporator Higk Pressure Hose |
1 |
|
17 |
FT700.45D.3 |
Pipe Clamp |
1 |
|
18 |
GB/T 5783–M6x16–A2L |
Hex Bolt |
4 |
|
19 |
GB/T 93–6–A0P |
Standard Spring Gasket |
5 |
|
20 |
GB/T 97.1–6–A0P |
Flat Uasker |
5 |
|
21 |
GB/T 5783–M8x20–A2L |
Bolt |
5 |
|
22 |
GB/T 5783–M6x30–A2L |
Bolt |
1 |
|
23 |
TA700.81.1 |
Storage Tank Bracket Ueldment |
1 |
|
24 |
GB/T 6170–M6–A2L |
Nut |
1 |
J81–1–2
