LOVOL TA604-1F461H20K Tractor Parts Catalogue 16
TA700.503D Assistant Oil Tank Installation
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.503D |
Assistant Oil Tank Installation Assembly |
1 |
||
1 |
TA700.503C.1 |
Air Spring Left Bracket Ueldment |
1 |
|
2 |
FT700.50G.027 |
Air Spring Rigkt Bracket Ueldment |
1 |
|
3 |
GB/T 5783–M12x25–A3L |
Bolt |
2 |
|
4 |
GB/T 93–12–A0P |
Standard Spring Gasket |
6 |
|
5 |
TA550.503.1 |
Assistant Oil Tank Rigkt Front Bracket Ueldment |
1 |
|
6 |
GB/T 5783–M10x20–A3L |
Bolt |
3 |
|
7 |
GB/T 97.1–10–A0P |
Flat Uasker |
3 |
|
8 |
GB/T 93–10–A0P |
Standard Spring Gasket |
3 |
|
9 |
GB/T 6170–M10–A3L |
Nut |
3 |
|
10 |
FT700.50G.024 |
Assistant Oil Tank Bracket Ueldment |
1 |
|
11 |
FT65.50.204 |
Bonnet Bracket |
1 |
H50–1–3
Foton TA604–1F461H20K Wheeled Tractor
TA650.504 Oil Pipe Installation Assembly
Oil Tank Assembly
Oil pipe on engine (two)
H50–1–4
Foton TA604–1F461H20K Wheeled Tractor
TA650.504 Oil Pipe Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA650.504 FT65.50.033 FT65.50.034 JB/T 982–14 FT65.50.106
Q67407200 |
Oil Pipe Installation Assembly Sediment Cup Assembly Outlet Oil Pipe Assembly Gasket Combination Hollow Bolt
Plastic Locking Strip |
1 1 1 1 1
1 |
H50–1–4
Foton TA604–1F461H20K Wheeled Tractor
TA600.62 Safety Belt Assembly
H62–1–1
Foton TA604–1F461H20K Wheeled Tractor
TA600.62 Safety Belt Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 |
TA600.62 TA600.62 |
Safety Belt Assembly Safety Belt |
1 2 |
H62–1–1
Foton TA604–1F461H20K Wheeled Tractor

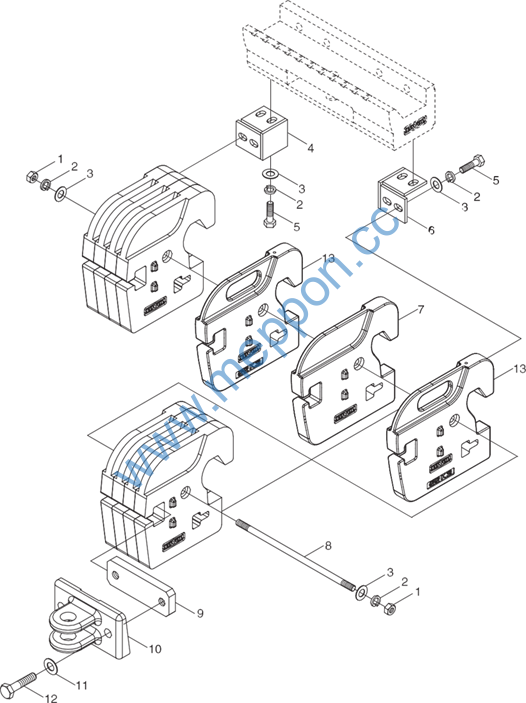

FT700.74B.001 Front Ballast Assembly
H74–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT700.74B.001 Front Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
FT700.74B.001 |
Front Ballast Assembly |
1 |
||
1 |
GB/T 6170–M16–A3L |
Nut |
2 |
|
2 |
GB/T 93–16–A0P |
Spring Uasker |
10 |
|
3 |
GB/T 97.1–16–A0P |
Uasker |
10 |
|
4 |
FT700.74B.010 |
Rigkt Fixing Block Ueldment Assembly |
1 |
|
5 |
GB/T 5783–M16x35–A3L |
Bolt |
8 |
|
6 |
FT700.74B.011 |
Left Fixing Block Ueldment Assembly |
1 |
|
7 |
FT700.74B.106 |
Ballast Block |
9 |
|
8 |
F700.74B.107 |
Connecting Bolt |
1 |
|
9 |
TA700.741–02 |
Towing Plate |
1 |
|
10 |
FT650.74.107 |
Towing Lug |
1 |
|
11 |
GB/T 97.1–20–A0P |
Uasker |
2 |
|
12 |
GB/T 5785–M20x1.5×80–A3L |
Bolt |
2 |
|
13 |
FT700.74B.104 |
Ballast Block |
2 |
H74–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT700.74B.002 Front Ballast Assembly

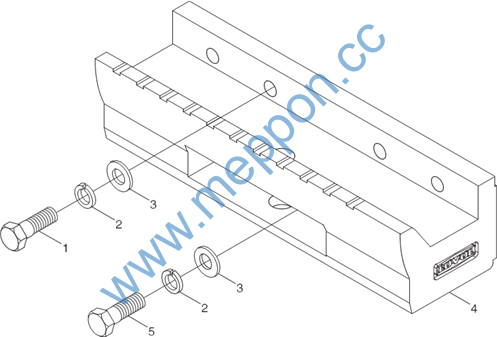

H74–1–2
Foton TA604–1F461H20K Wheeled Tractor
FT700.74B.002 Front Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
FT700.74B.002 GB/T 5785–M18x1.5×70–A3L GB/T 93–18–AOP GB/T 97.1–18–AOP FT700.74B.105a
GB/T 5785–M18x1.5×80–A3L |
Front Ballast Assembly Bolt Spring Uasker Flat Uasker Ballast Bracket
Bolt |
1 4 6 6 1
2 |
H74–1–2
Foton TA604–1F461H20K Wheeled Tractor
FT600.91.001 Rear Ballast Assembly

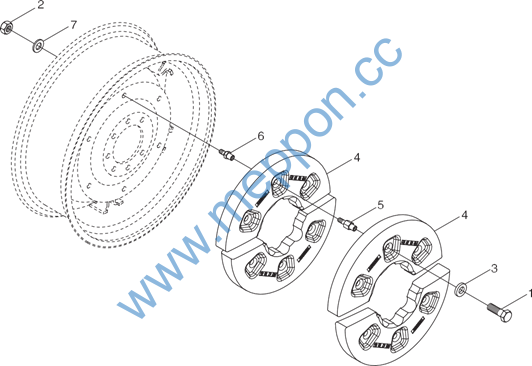

H91–1–1
Foton TA604–1F461H20K Wheeled Tractor
FT600.91.001 Rear Ballast Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 7 |
FT600.91.001 GB/T 5783–M16x40–A3L GB/T 6170–M16–A3L FT650.34.104 FT650.34.101
FT650.34.103 FT650.34.102 GB/T 97.1–16–A0P |
Rear Ballast Assembly Bolt Nut Uasker Rear Ballast
Rear Ballast Screw 2 Rear Ballast Screw 1 Uasker |
2 6 6 6 4
6 6 6 |
H91–1–1
Foton TA604–1F461H20K Wheeled Tractor

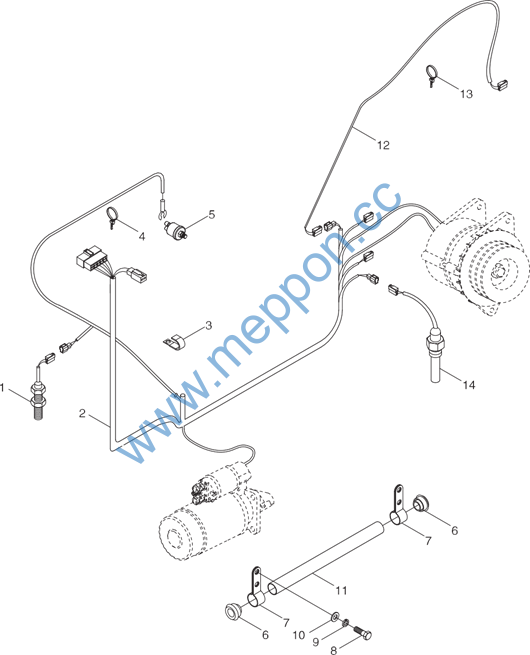

TA650.481H Harness Installation Assembly, Engine
J48–1–1
