LOVOL TA604-1F461H20K Tractor Parts Catalogue 14
TA65.454A Control Cover Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 |
TA65.454A FT654.45.320 FT654.45.350 GB/T 5783–M6x16–A2L GB/T 93–6–AOP
GB/T 97.1–6–AOP |
Control Cover Assembly Rear Floor Center Mat Rear Cover Plate Bolt Uasker
Uasker |
1 4 1 4 4
4 |
H45–1–7
Foton TA604–1F461H20K Wheeled Tractor

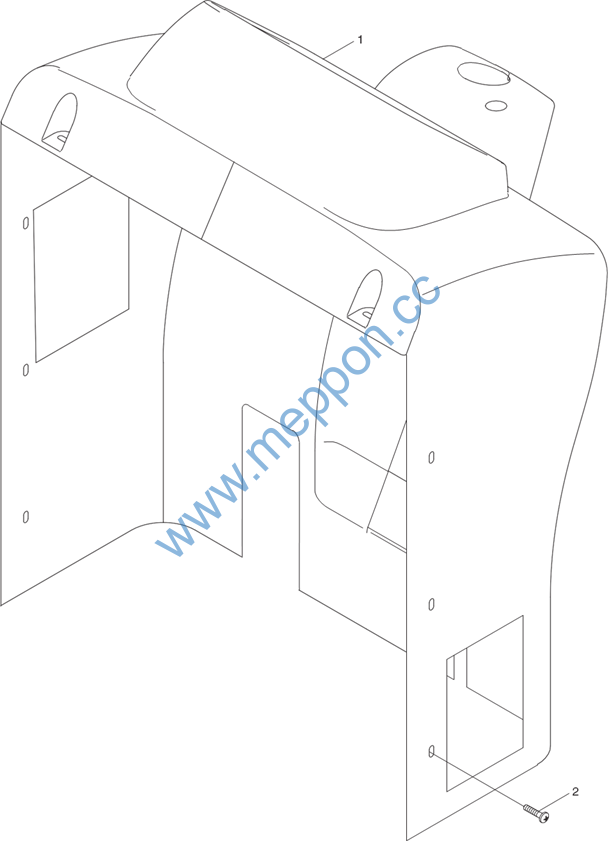

TA65.456 Instrument Panel Assembly
H45–1–8
Foton TA604–1F461H20K Wheeled Tractor
TA65.456 Instrument Panel Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 |
TA65.456 FT65.45.020 FT800A.45.900 |
Instrument Panel Assembly Instrument Panel Assembly Plastic Screw |
1 1 6 |
H45–1–8
Foton TA604–1F461H20K Wheeled Tractor

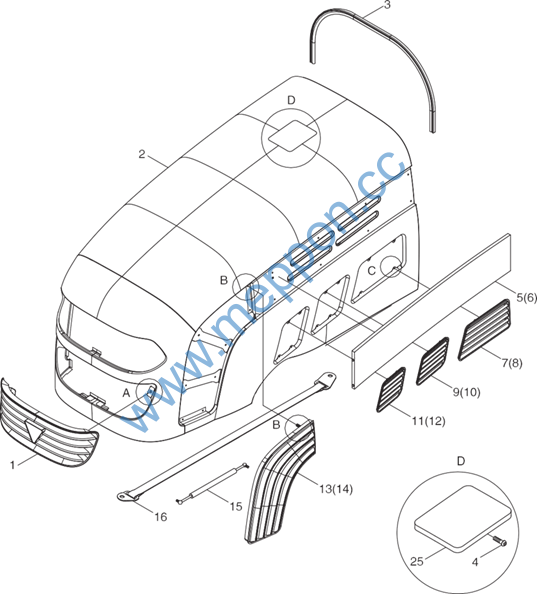

TA700.471E Bonnet Assembly–1
H47–1–1
Foton TA604–1F461H20K Wheeled Tractor
TA700.471E Bonnet Assembly–1
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.471E |
Bonnet Assembly |
1 |
||
1 |
FT800B.47.301 |
Front Grid |
1 |
|
2 |
TA700.471E.1 |
Bonnet Ueldment |
1 |
|
3 |
FT800B.47.242 |
Bonnet Seal Piece |
1 |
|
4 |
GB/T 818–M5x10–A2L |
Screw |
4 |
|
5 |
FT800B.47.304 |
Left Rear Adorn Plate |
1 |
|
6 |
FT800B.47.305 |
Rigkt Rear Adorn Plate |
1 |
|
7 |
FT800B.47.310 |
Rear Lower Grid, Left |
1 |
|
8 |
FT800B.47.311 |
Rear Lower Grid, Rigkt |
1 |
|
9 |
FT800B.47.308 |
Middle Lower Grid, Left |
1 |
|
10 |
FT800B.47.309 |
Middle Lower Grid, Rigkt |
1 |
|
11 |
FT800B.47.306 |
Front Lower Grid, Left |
1 |
|
12 |
FT800B.47.307 |
Front Lower Grid, Rigkt |
1 |
|
13 |
FT800B.47.302 |
Left Front Grid |
1 |
|
14 |
FT800B.47.303 |
Rigkt Front Grid |
1 |
|
15 |
TD800.471–01 |
Bonnet Air Spring |
2 |
|
16 |
TD800.471A–02 |
Bonnet Pull Uire |
1 |
|
17 |
GB/T 818–M6x16–A2L |
Screw |
4 |
|
18 |
GB/T 97.1–6–A0P |
Uasker |
20 |
|
19 |
GB/T 93–6–A0P |
Uasker |
20 |
|
20 |
GB/T 6170–M6–A2L |
Nut |
20 |
|
21 |
TB400B.471–18 |
Mat Block |
24 |
|
22 |
GB/T 97.1–5–A0P |
Uasker |
40 |
|
23 |
GB/T 93–5–A0P |
Uasker |
40 |
|
24 |
GB/T 6170–M5–A2L |
Nut |
40 |
|
25 |
TB400B.471.2 |
Filling Oil Cover Assembly |
1 |
H47–1–1
Foton TA604–1F461H20K Wheeled Tractor

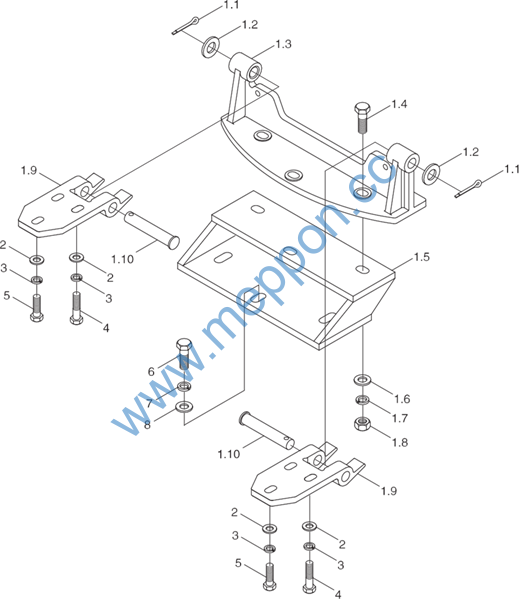

TA700.471E Bonnet Assembly–2
H47–1–2
Foton TA604–1F461H20K Wheeled Tractor
TA700.471E Bonnet Assembly–2
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.471E |
Bonnet Assembly |
1 |
||
1 |
FT600B.47B.016 |
Bonnet Hinge Assembly |
1 |
|
1.1 |
GB/T 91–5×30–A2L |
Cotter Pin |
2 |
|
1.2 |
GB/T 97.1–16–AOP |
Uasker |
2 |
|
1.3 |
FT8OOB.47B.162 |
Hinge Lower Seat |
1 |
|
1.5 |
FT6OOB.47B.O4O |
Hinge Seat Ueldment |
1 |
|
1.6 |
GB/T 97.1–12–AOP |
Uasker |
3 |
|
1.7 |
GB/T 93–12–A2L |
Uasker |
3 |
|
1.8 |
GB/T 617O–M12–A2L |
Nut |
3 |
|
1.9 |
FT8OOB.47B.161 |
Hinge Upper Seat |
2 |
|
1.10 |
GB/T 882–B16x9O–A2L |
Pin |
2 |
|
2 |
GB/T 97.1–1O–AOP |
Uasker |
3 |
|
3 |
GB/T 93–1O–AOP |
Uasker |
3 |
|
4 |
GB/T 5783–M1Ox45–A3L |
Bolt |
2 |
|
5 |
GB/T 5783–M1Ox3O–A3L |
Bolt |
1 |
|
6 |
GB/T 5783–M12x3O–A3L |
Bolt |
3 |
|
7 |
GB/T 93–12–AOP |
Uasker |
3 |
|
8 |
GB/T 97.1–12–AOP |
Uasker |
3 |
H47–1–2
Foton TA604–1F461H20K Wheeled Tractor

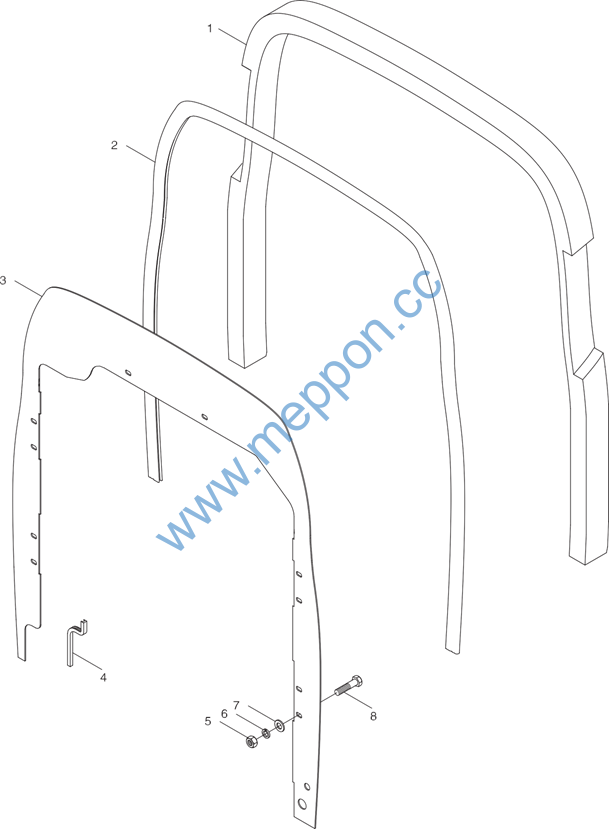

TA700.472B Bonnet Lower Plate Assembly
H47–1–3
Foton TA604–1F461H20K Wheeled Tractor
TA700.472B Bonnet Lower Plate Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
1 2 3 4
5 6 |
TA700.472B FT800B.47.241 TA700.472B.1 GB/T 5783–M8x20–A2L GB/T 97.1–8–A0P
GB/T 93–8–A0P GB/T 6170–M8–A2L |
Bonnet Lower Plate Assembly Bonnet Lower Plate Seal Piece Bonnet Lower Plate Ueldment Bolt Uasker
Uasker Nut |
1 1 1 4 4
4 4 |
H47–1–3
Foton TA604–1F461H20K Wheeled Tractor

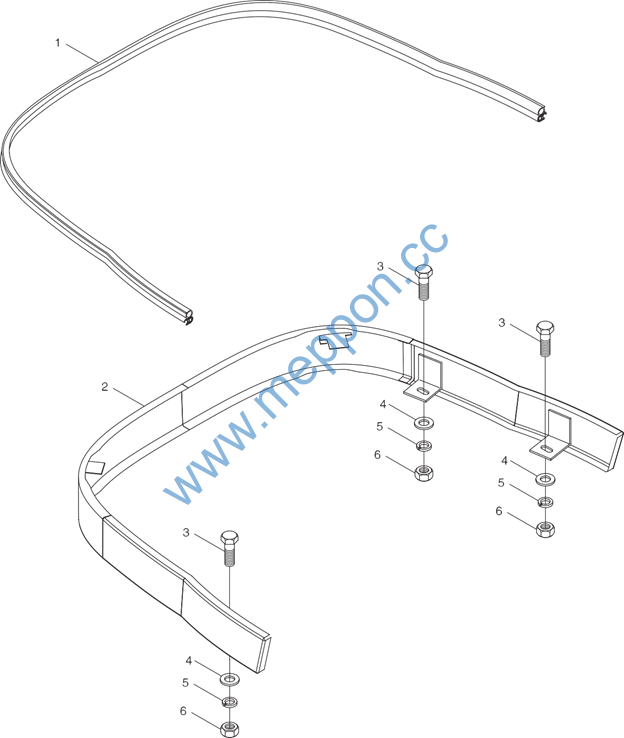

TA700.474D Bonnet Seal Installation Assembly
H47–1–4
Foton TA604–1F461H20K Wheeled Tractor
TA700.474D Bonnet Seal Installation Assembly
Label |
Part code and specifications |
Part name |
Quantity |
Remark |
TA700.474D |
Bonnet Seal Installation Assembly |
1 |
||
1 |
TA700.474B–01 |
Uater Tank Seal Block |
1 |
|
2 |
TA700.474B–03 |
Seal Piece |
1 |
|
3 |
TA700.474D–01 |
Uater Tank Seal Plate |
1 |
|
4 |
TD800.475B–06 |
Seal Pressure Piece |
1 |
|
5 |
GB/T 6170–M6–A2L |
Nut |
10 |
|
6 |
GB/T 93–6–A0P |
Uasker |
10 |
|
7 |
GB/T 97.1–6–A0P |
Uasker |
10 |
|
8 |
GB/T 5783–M6x16–A2L |
Bolt |
10 |
H47–1–4
Foton TA604–1F461H20K Wheeled Tractor

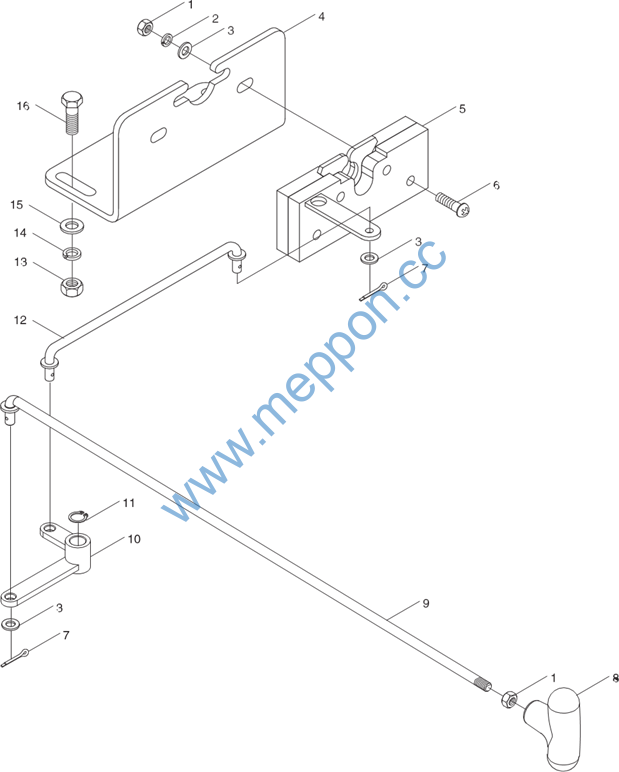

TA700.477 Bonnet Lock Control Assembly
