Description

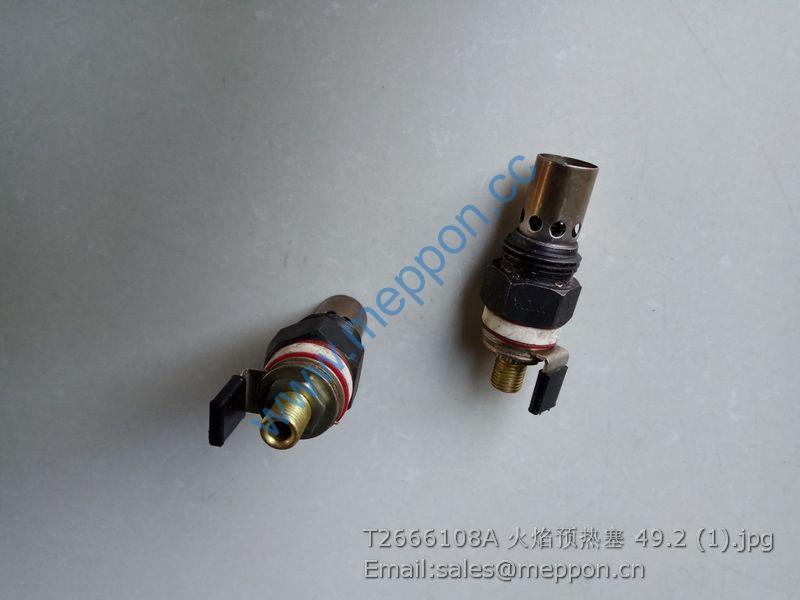

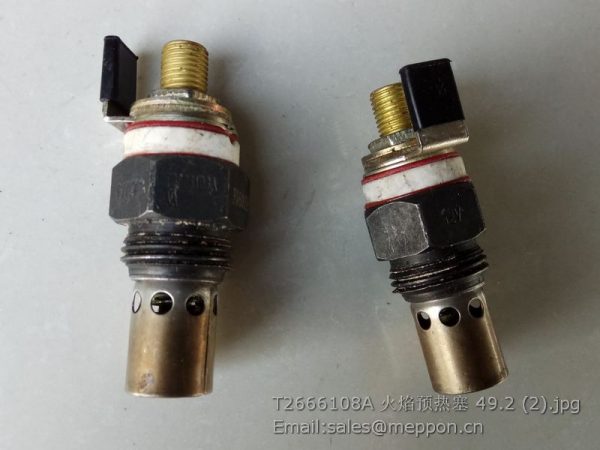

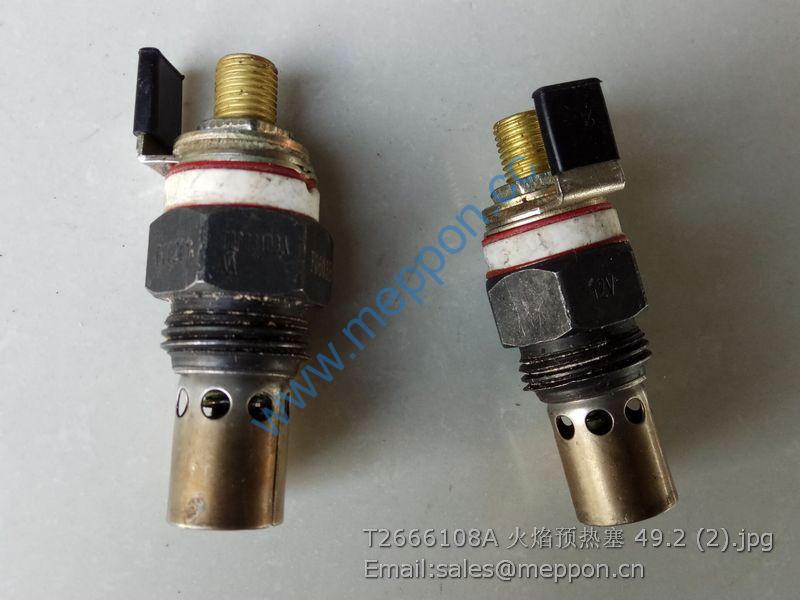

T2666108A FLAME WARM-UP PLUG LOVOL
TD950.372K Main/Auxiliary Shifting Assembly 1
1 GBT 5783-M10X20-8.8-A3L Bolt 1
2 GBT 93-10 Washer 1
3 FT800.37.197 Locking Plate, Reverse Shaft 1
4 Q72114 Patch 1
5 FT800.37.136a Reverse Shaft 1
6 FT800.37.019a Reverse Countershaft Gear Assembly 1
6.1 GBT 895.1-45 Retainer Ring 2
6.2 FT800.37.401 Needle Roller Bearing Retainer Ring 2
6.3 GBT 5846-K35X45X43 Needle Bearing 1
6.4 FT800.37.134a Reverse Countershaft Gear 1
TC05373030000 Gearbox Control Mechanism Assembly 1
TS06373010004 Creeper Gear Control Mechanism Assembly 1
1 TS06373010010 Creeper Gear Shift Handle Assembly 1
2 GBT93-6-A0P Standard Spring Washer 2
3 TS06373010011 Creeper Gear Control Lever Weldment 1
4 GBT879.3-8X35 Spring-Type Straight Pin 1
5 GBT5786-M10X1X25-8.8-A2L Hexagon Head Bolt 3
6 TS06373010025 Rotary Shaft Weldment 1
7 TS06373010007 Bracket Weldment 1
8 TS06373010017 Soft Shaft Unit 1
8.1 GBT6173-M8X1-05-A2L Hexagon Thin Nut 2
8.2 GBT97.1-16-A0P Plain Washer 4
8.3 GBT6173-M16X1.5-05-A3L Hexagon Thin Nut 4
8.4 TS06373010018 Soft Shaft Body 1
9 GBT5782-M10X80-8.8-A2L Hexagon Head Bolt 1
10 GBT93-10-A0P Standard Spring Washer 5
11 TG1654.373B.1-01 Pin 2
12 GBT91-3.2X20-A0P Split Pin 2
13 GBT97.1-8-A0P Plain Washer 5
14 TD950.373E.1.2 Rotary Shaft Weldment 1
15 GBT879.1-8X35 Spring-Type Straight Pin 1
16 GBT879.1-5X35 Spring-Type Straight Pin 1
17 TD950.373E.1.4 Rocker Arm Weldment 1
18 TD950.373E.1.3 Cable Bracket Weldment 1
19 TD950.373.2-02 Liner 2
20 GBT3452.1-17.0X1.80G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
21 GBT93-8-A0P Standard Spring Washer 5
22 GBT5783-M8X30-8.8-A2L Hexagon Head Bolt 3
23 TG1204.373.1.1.1 Soft Shaft Bracket Assembly 1
23.1 TG1204.373.1.1.1-01 Soft Shaft Bracket 1
23.2 FT250.36.102 Rocker Arm Shaft Liner 2
24 GBT97.1-20-A0P Plain Washer 2
25 GBT70.1-M6X20-10.9-A3L Hexagon Socket Head Cap Screw 2
26 GBT5782-M10X60-8.8-A2L Hexagon Head Bolt 1
27 FT800A.48L.101 Wire Through Ring (1) 1
28 TS06373010024 Installation Bracket 1
29 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 1
30 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
31 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 1
TC05373030000 Gearbox Control Mechanism Assembly 1
1 FT800.37.154 Ⅰ – Ⅱ Shift Lever 1
2 FT800A.37.322 Ⅰ – Ⅱ Gear Shift Head 1
3 FT800.37.194 Fastening Screw 6
4 FT800A.37A.244 Hot-Dip Galvanized Steel Wire Ⅰ -1.4 6
5 FT800A.37.318 Ⅰ – Ⅱ Shift Fork Shaft 1
6 FT800.37.158 Ⅲ – Ⅳ Shift Fork 1
7 FT800A.37.323 Ⅲ – Ⅳ Shift Head 1
8 TD1000.373B-01 Ⅲ – Ⅳ Shift Fork Shaft 1
9 FT800A.37.324a Assistant Shift Lever 1
10 FT800.37.177 Interlock Pin 2
11 TD1000.373B-02 Assistant Shift Fork Shaft 1
12 FT800A.37.325a Reverse Gear Shift Fork 1
13 FT800A.37.321a Reverse Gear Shift Fork Shaft 1
14 FT800.37.139 Spring 4
15 GBT308-10-G100-b Steel Ball 4
