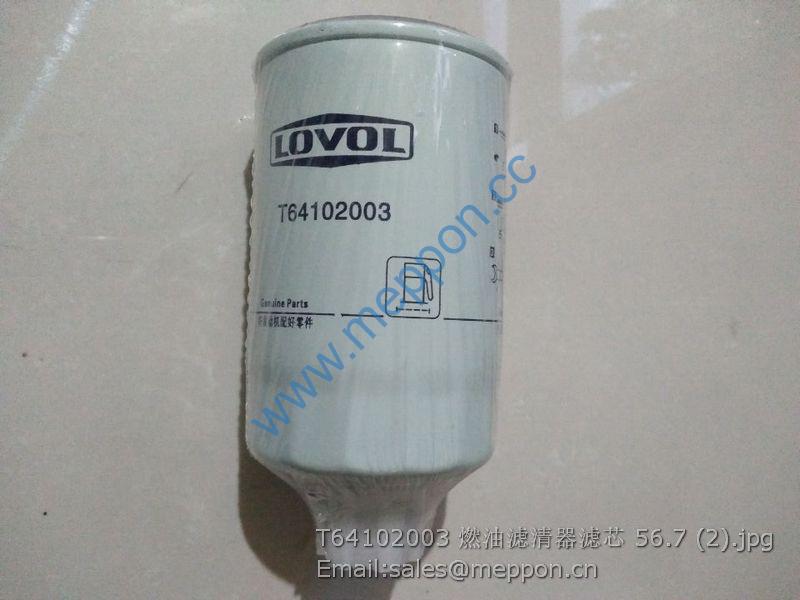

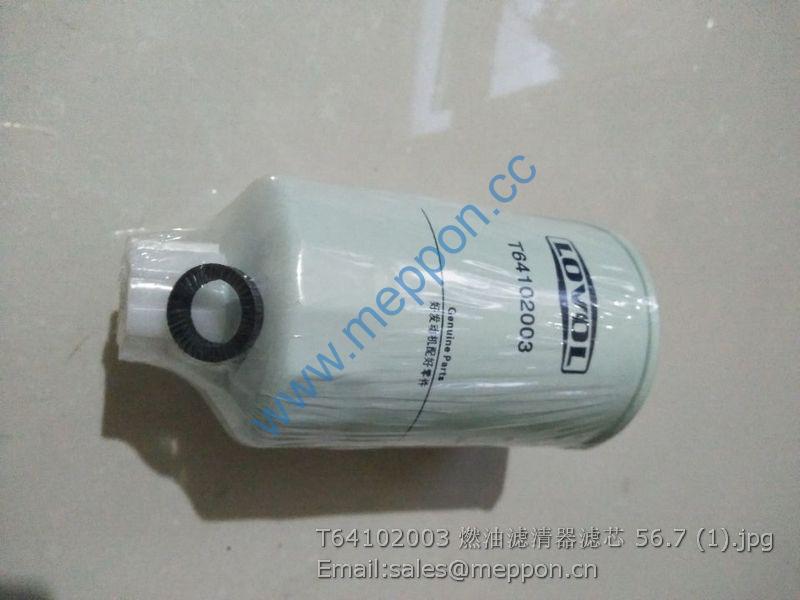

T64102003 LOVOL FOTON FUEL FILTER

Description

T64102003 LOVOL FOTON FUEL FILTER

TS06423010000 Transfer Case Control Assembly 1
1 GBT 879.1-5X32 Spring-Type Cylindrical Pin 2
2 GBT 879.1-8X32 Spring-Type Cylindrical Pin 2
3 TS06423010012 Transfer Case Rocker Arm Weldment 1
4 GBT 882-B10X28 Pivot 2
5 FT300.43.108 Pull Rod Front Fork 2
6 GBT 6170-M10-8-A3L Hexagon Nut, Style 1 1
7 TS06423010007 Connecting Pull Rod 1
8 GBT 97.1-10-A0P Plain Washer 2
9 GBT 91-3.2X20-A0P Split Pin 2
10 TS06423010008 Rotary Shaft Trestle Assembly 1
11 TS04423010001 Transfer Case Control Lever 1
12 GBT 6172.1-M10-04-A3L Hexagon Thin Nut 1
13 TS06423010001 Transfer Case Control Lever Weldment 1
14 GBT 823-M6X12-4.8-A2L Cross Recessed Small Pan Head Screw 2
15 TS04423010013 Press Plate 1
16 TS04423010012 Seal Gasket 1
17 GBT 93-8-A0P Standard Spring Washer 4
18 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 4
19 TS06423010005 Rocker Arm Weldment 1
20 FT804.42B.160 Spacing Sleeve 1
21 GBT 894.1-20 Circlip For Shaft 1

TD904.311 Front Axle Assembly 1
1 TD804.311.2 Front Driving Axle Front Bracket Assembly 1
1.1 FT804.31.108 Front Driving Axle Front Bracket 1
1.2 FT804.31.109 Front Driving Axle Front Bracket Bush 1
2 GBT 119.1-12h8X24-AOP Pin 4
3 JBT 7940.1-M10X1 Oil Cup 3
4 GBT 93-18-AOP Washer 4
5 GBT 5786-M18X1.5X60-A3L Bolt 4
6 TD804.311-01-52.6X3.55G O-Ring 1
7 FT804.31.110 Washer 1
8 GBT 119.1-5h8X12-AOP Pin 1
9 TD904.311.1 Front Driving Axle Assembly 1
10 TD804.311-02-99.6X5.3G O-Ring 2
11 TD804.311.1 Front Driving Axle Rear Bracket Assembly 1
11.1 FT804.31.104 Front Driving Axle Rear Bracket 1
11.2 FT804.31.103 Front Driving Axle Rear Bracket Bush 1
12 FT654.32.104 Washer 16
13 GBT 5786-M16X1.5X40-10.9-A3L Bolt 16

TD904.311.1 Front Axle Assembly 1
1 10305114/14530 Screw Plug M22x1.5 2
2 JBT 982-22 Compound Seal Washer 2
3 20101010044 Axle Housing Combination 1
3.1 4966244/1.41.016 Location Pin 5X15 1
3.2 11/5140017 Front Axle Swing Pin 1
3.3 30101030013 Axle Housing 1
3.4 4988170/1.40.021 Location Pin 10X20 2
4 5100194/1.40.045 Limitation Screw M12x1.25×55 2
5 14048814/10128 Nut M12x1.25 2
6 13413290/24628 Vent Plug Assembly 1
7 5119699/1.40.240 Main Pin Ball Hinge Pair 4
8 5121471/1.40.232 Seal Ring 4
9 11068376/12245 Circlip 35 2
10 GBT 276-6007 (35X62X14) Bearing 2
11 11061076/12246 Circlip 62 4
12 4996755/1.40.038 Half Axle Bearing Seat 2
13 5136002/1.41.538 Oil Seal 40X62x10 2
14 4996762/1.41.537 Half Axle Oil Seal Circlip 2
15 4966231/1.40.023 O-Ring 80X2.62 2
16 8A5142040/20 Right Universal Transmission Shaft Assembly 1
17 8A5142043/20 Left Universal Transmission Shaft Assembly 1
18 4996750/1.41.008 Adjusting Nut M100x2x13 2
19 GBT 5786-M10X1.25X20 Bolt 2
20 562659/1.41.032 Adjusting Nut Lock Piece 2
21 4996751/1.41.015 Adjusting Nut Thrust Piece 2
22 14274634/10357/04 Lock Bolt M12x1.25×35 10
23 5144526/15 Bevel Drive Bracket Unit 1
23.1 14275334/10357/04 Lock Bolt M12x1.25×70 4
23.2 4996748/1.41.005 Bevel Gear Bracket Cover 2
23.3 4966244/1.41.016 Location Pin 5X15 5
23.4 5144525/15 Bevel Gear Bracket 1
23.5 5136119/15 Rear Friction Reduction Ring 1
23.6 5136120/15 Bevel Drive Bracket Bush 1

TD904.311.1 Front Driving Axle Assembly 1
1004.31.013 Left Hub Reducer Assembly 1
1004.31.012 Right Hub Reducer Assembly 1
1 8A5133799/1.41.539 Driving Fork Shaft Oil Seal 42X62x17 1
2 5104199/1.40.228 Steering Knuckle Bush 1
3 5126628-FT/1.40.211 Limitation Bolt M12x1.25×42 1
4 5148495-FT/12 Spacing Sleeve On Demand
5 12/5142002-FT Left Steering Knuckle 1
6 12/5142001-FT Right Steering Knuckle 1
7 8A5137109/12 Hub Oil Seal 165X190x17 1
8 5136951/12 Front Hub Bearing 2
9 8A5142013/13 Front Driving Hub 1
10 4985063/1.21.067 Location Pin 12X20 2
11 5137457/12 Adjusting Gasket 0.15Mm On Demand
5137458/12 Adjusting Gasket 0.20Mm On Demand
5137460/12 Adjusting Gasket 0.30Mm On Demand
12 5137239/12 Steering Knuckle King Pin 2
13 14274534/10357/04 Bolt M12x1.25×30 6
14 GBT 1152-M10X1 Oil Cup 2
15 5140018/20 Circlip For Shaft 30 2
16 5137107/20 Sun Wheel 1
17 4997571/1.41.549 Gear Ring Circlip 1
18 5142047/20 Gear Ring Seat 1
19 5108749/1.41.543 Gear Ring 1
20 5142020/12 Gear Ring Seat Nut 1
21 5137724/20 Planet Carrier Combination 1
21.1 5137689/20 Planet Carrier 1
21.2 4997509/1.41.547 Planet Gear Shaft 3
21.3 4997510/1.41.552 Planet Gear Bearing Circlip 6
21.4 5101693/1.41.546 Needle Bearing 3
21.5 5108747/1.41.545 Planetary Gear 3
22 JBT 982-22 Compound Seal Washer 1
23 10305114/14530 Screw Plug M22x1.5 1
24 14233634/10357/04 Bolt M10x1.25×30 12

TD904.311.1 Front Driving Axle Assembly 1
1 5143242/16 Lock Nut 1
2 4997451/1.41.143 Oil Seal Circlip 1
3 5135294/16 Oil Seal 45X75x10 1
4 GBT 3452.1-31.5X1.8 O Seal Ring 1
5 GBT 308-6.35 Steel Ball 1
6 5142026/16 Small Bevel Gear Shaft Oil Seal Ring 1
7 5133776/16 Rear Bearing 1
8 5143109/16 Front Bearing 1
9 5142032/16 Adjusting Washer 3.0Mm 1
10.1 5142024/16 Small Bevel Gear Shaft Oil Seal Ring 1
10.2 5111094/16 Big Bevel Gear 1
11 GBT 297-32012 (60X95X23) Bearing 2
12 5117219/1.41 Differential Assembly 1
12.1 4987975/1.32.425 Planetary Gear Thrust Washer 2
12.2 885103870/1.32.415B Planetary Gear 2
12.3 5148935/1.32.416 Differential Planetary Gear Shaft 1
12.4 5148936/1.32.424 Half Axle Gear Thrust Washer 1.6Mm 2
5148937/1.32.424 Half Axle Gear Thrust Washer 1.8Mm
5148938/1.32.424 Half Axle Gear Thrust Washer 1.7Mm
12.5 885103868/1.32.413 Left Half Axle Gear 1
12.6 885110716/1.41.502 Right Half Axle Gear 1
12.7 4996747/1.41.402 Differential Housing 1
12.8 4987976/1.32.428 Pin 1
13 14274434/10357/04 Bolt M12x1.25×25 8

TD904.311.1 Front Driving Axle Assembly 1
804.31B.017 Steering Cylinder Assembly 1
1 11066870/12245 Circlip 20 2
2 5100730/1.63.589 Cylinder Pin Washer 4
3 4987671/1.63.584 Cylinder Pin 2
4 GBT 1152-M10X1 Oil Cup 4
5 Plastic Tie Rope 2
6 1004 Cylinder Shield 2
7 JK-3X Clamp (Φ50~Φ70) 4
8 5142046/22 Steering Cylinder 2
9 JBT 982-14 Compound Seal Washer 8
10 10184314/14256 Hollow Bolt M14 4
11 5142048/22 Cylinder Pin Assembly 2
12 GBT 7244-8 Washer 2
13 GBT 5783-M8X16 Bolt 2
14 5142223/22 Cylinder Pin Spacing Sleeve 2
15 804.31.022 Left Cylinder Right Steering Transfer Pipe Assembly 1
16 804.31.021 Left Cylinder Left Steering Transfer Pipe Assembly 1
17 5145419A/22 Cylinder Hose (D=8X470) 2
18 1004.31.022 Right Cylinder Left Steering Transfer Pipe Assembly 1
19 1004.31.023 Right Cylinder Right Steering Transfer Pipe Assembly 1
20 GBT 5783-M6X16 Bolt 2
21 GBT 7244-6 Spring Washer 2
22 4999554/1.63.583 Oil Pipe Clip 2
23 5138294/1.63.22 Support Plate 2
5142233 Steering Tie Rod Assembly 1
24 12576014/10125 Lock Nut M18x1.5 2
25 5117314/1.40.516B Ball Joint Assembly 1
26 10726914/10114 Lock Thin Nut M24x1.5 1
27 5142234/14 Steering Tie Rod Unit 1
