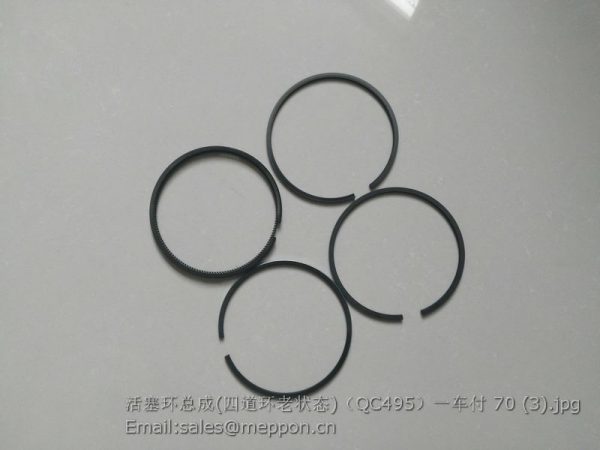

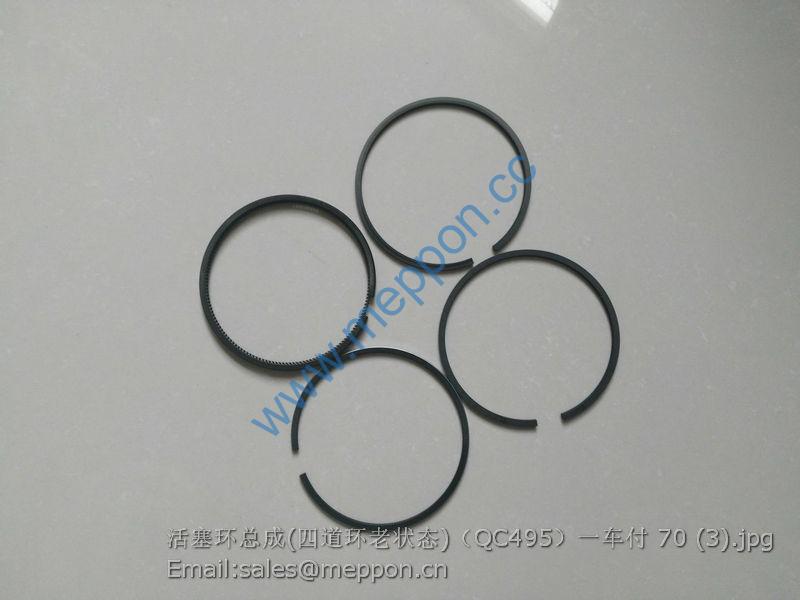

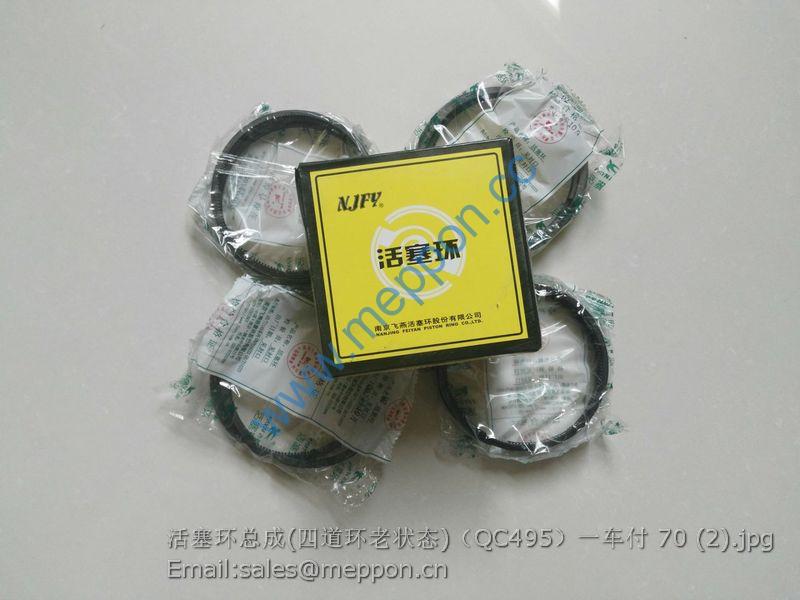

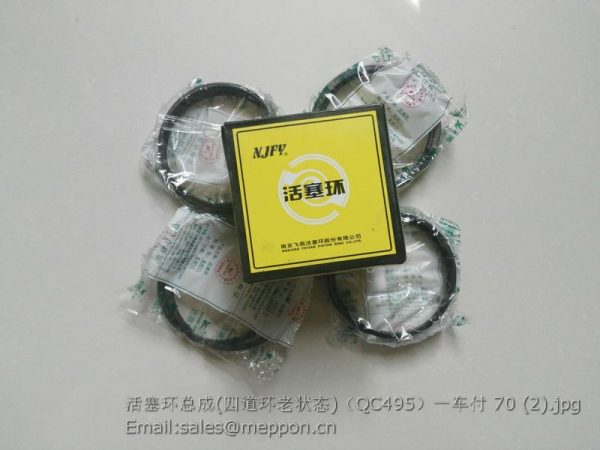

QC495 PISTON RING QC495Q(DI)-04004 QC495Q(DI)-04005 QC495Q(DI)-04004

12 FT800.21.207 Adjusting screw lever 1
13 GBT 6170-M8-8-A2L Hexagon nut, style 1 3
14 TS10212010014 Retraction spring fixing frame 1
15 GBT 93-12-A0P Standard spring washer 2
16 GBT 5783-M12X30-8.8-A3L Hexagon head bolt 2

TS10212010000 Clutch control mechanism assembly 1
1 GBT 894.1-30 Circlip for shaft 1
2 GBT 97.1-30-A0P Plain washer 2
3 TS10212010001 Pedal pressing unit 1
4 TS10212010004 Clutch pedal support shaft weldment 1
5 JBT 7940.1-M8X1 Straight hydraulic grease nozzle 2
6 TD800.311C.1-01 Oil cup dustproof cap 2
7 GBT 5783-M8X40-8.8-A2L Hexagon head bolt 1
8 GBT 93-8-A0P Standard spring washer 6
9 FT800A.21.373 Retraction spring 1
10 GBT 882-B10X30-A0P Pin 3
11 TS10212010006 Short pull rod weldment 1
12 GBT 97.1-10-A0P Plain washer 6
13 GBT 91-3.2X28-A0P Split pin 4
14 FT800A.21.353 Middle lever 1
15 GBT 6171-M10X1-8-A2L Hexagon nut, style 1 1
16 TD800.452-09 Seal sleeve 1
17 FT800.43.030 Ajdusting screw unit 1
18 GBT 6170-M10-8-A3L Hexagon nut, style 1 1
19 GBT 93-10-A0P Standard spring washer 1
20 GBT 97.1-22-A0P Plain washer 2
21 TS10212010008 Transit lever pressing unit 1
22 TS10212010011 Transit lever support shaft weldment 1
23 GBT 5783-M8X16-8.8-A2L Hexagon head bolt 1
24 GBT 882-B10X32-A0P Pin 1
25 FT800A.21.335a Fork-shape joint 1
26 FT800A.21.383 Retraction spring 2
27 TS10212010013 Retraction spring fixing plate 1
28 FT800A.43B.116 Right-hand pull rod fork 1
29 TF1004.212E.4 Short pull rod weldment 1

TS10360010000 Transmission shaft assembly 1
1 TS10360010001 Cardan joint transmission shaft assembly 1
1.1 TS10360010005 Cardan transmission shaft component 1
1.2 JBT 7940.1-M10X1 Straight hydraulic grease nozzle 1
2 GBT 5783-M10X30-10.9-A3L Hexagon head bolt 4
3 GBT 93-10-A0P Standard spring washer 4
4 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 2
5 GBT 93-8-A0P Standard spring washer 4
6 TS10360010002 Front shield weldment 1
7 TD800.311C.1-01 Oil cup dustproof cap 1
8 GBT 5783-M8X30-8.8-A2L Hexagon head bolt 2
9 GBT 97.1-8-A0P Plain washer 2
10 TS10360010004 Backing block 2
11 TS10360010003 Rear shield 1

TS10371010000 Chassis assembly 1
1 GB/T 5783-M12×50-10.9-A3L Hexagon head bolt 3
2 GB/T 93-12-A0P Standard spring washer 15
3 GB/T 97.1-12-A0P Plain washer 3
4 TS10371010001 Chassis subassembly 1
5 GB/T 899-M12×90-10.9-A3L Double-ended stud 6
6 GB/T 6170-M12-10-A3L Hexagon nut, style 1 12
7 GB/T 899-M12×110-10.9-A3L Double-ended stud 6

TS10373010000 Gearbox control mechanism assembly 1
1 TD1000.373.1.1a Main gear shift control handle assembly 1
2 TS10373010001 Main gear shift control lever weldment 1
3 TS10373010006 Assistant gear shift control handle assembly 1
4 TS10373010004 Assistant gear shift control lever weldment 1
5 GBT 879.1-3.5X24 Spring column pin 2
6 GBT 879.1-6X24 Spring column pin 2
7 GBT 818-M8X16-4.8-A2L Cross recessed pan head screw 6
8 GBT 93-8-A0P Standard spring washer 6
9 TS10373010008 Pressing plate 1
10 TS10373010007 Gearshift lever seal sleeve 1
11 GBT 6172.1-M10-04-A3L Nut 2

TS10374010000 Shuttle shift control mechanism assembly 1
1 TD950.373.2.7 Handle ball assembly 1
2 GBT 6173-M10X1-05-A3L Hexagon thin nut 1
3 TS10374010004 Control lever weldment 1
4 TD950.373.2-03 Fastening screw 1
5 FT800A.37A.244 Galvanized steel wire Ⅰ -1.4X250 1
6 TD950.373.2.2 Rotary shaft weldment 1
7 TD950.373.2.1 Trestle weldment 1
8 TS10374010002 Soft shaft unit 1
8.1 GBT 6173-M16X1.5-A3L Nut 4
8.2 GBT 6173-M8X1-A3L Nut 2
8.3 TS10374010003 Soft shaft body 1
8.4 GBT 97.1-16-A0P Plain washer 4
9 GBT 5783-M10X35-8.8-A3L Bolt 2
10 GBT 97.1-10-A0P Plain washer 4
11 GBT 93-10-A0P Standard spring washer 2
12 GBT 6170-M10-A0P Hexagon head nut 2
13 GBT 91-3.2X20-AOP Cotter pin 1
14 GBT 97.1-8-A0P Plain washer 1
15 TG1654.373B.1-01 Pin 1
16 TD950.373.2-02 Bushing 2
17 FT800A.48L.101 Wire through ring (1) 1
18 TS10374010001 Pin 1
19 GBT 97.1-6-A0P Plain washer 1
20 GBT 91-2X20-AOP Cotter pin 1

TS10383010000 Differential control assembly 1
1 TG1204.383.4 Seal seat assembly 1
1.1 GBT 818-M6X14-A2L Screw 2
1.2 GBT 93-6-A0P Standard spring washer 2
1.3 TG1204.435.2-01 Spherical bearing seat 2
1.4 TG1204.383.4-01 Spherical bush 1
2 TF1004.383.1 Differential lock pedal weldment 1
3 GBT 91-3.2X25-A0P Split pin 3
4 GBT 97.1-8-A0P Plain washer 1
5 GBT 882-B8X24 Pin 1
6 GBT 95-10-A0P Plain washer 2
7 TS10383010013 Differential rocker pressing 1
8 TS10212010025 Support sleeve 1
9 GBT 96.1-12-A0P Large washer 1
10 GBT 93-12-A0P Standard spring washer 1
11 GBT 5782-M12X60-10.9-A3L Hexagon head bolt 1
12 TS10383010010 Pull rod weldment 1
