Description

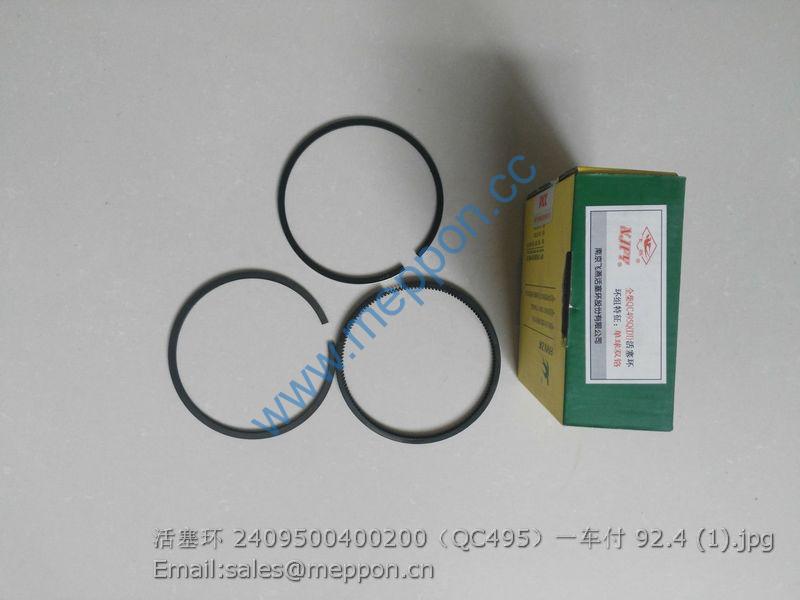

QC495 QUANCHAI PISTON RING 2409500400200/300/10000

TG1204.56F Suspension mechanism assembly 1
1 TG1204.56F.4 Lift link assembly 1
1.1 TG1204.56F.4.1 Upper clevis weldment, lift link 1
1.2 TG1204.56.4.2 Adjustment solenoid weldment 1
1.3 TG1204.56F.4.3 Sheath weldment 1
1.4 TG1204.56F.4.4 Lower clevis weldment, lift link 1
2 TG1654.56B.5 Upper connecting pin weldment, lift link 1
3 GBT93-8-A0P Standard spring washer 1
4 GBT5783-M8X25-8.8-A2L Hex head bolt 1
5 GBT6176-M20X1.5-10-A3L Hexagon nut , Style 2 6
6 TG1204.56.9 Lower connecting pin weldment, lift link 1
7 TG1204.56-05 Position-limit plate 1
8 GBT91-5X63-A0P Split pin 3
9 TG1204.56F.2a Lower link assembly 1
10 TG1204.56-07 Rear fixed pin, position-limit link 1
11 TG1204.56-08 Rear support, position-limit link 1
12 GBT95-24-A0P Flat washer 1
13 GBT5782-M16X80-A3L Hex head bolt 2
14 GBT93-16-A0P Standard spring washer 2
15 GBT6170-M16-A3L Hexagon nut , Style 1 2
16 TG1204.56.5 Position-limit link assembly 1
16.1 TG1204.56.5.1 Position-limit link extrusion assembly 1
16.2 TG1204.56.5.2 Lockpin assembly 1
16.3 TG1204.56.5-01 Position-limit pipe 1
16.4 TG1204.56.1-01 Front locknut, upper link 1
16.5 TG1204.56.5-02 Adjusting screw 1
17 TG1204.56-06 Front fixed pin, position-limit link 1
18 TG1204.56.6a Left position-limit link support assembly 1
19 GBT899-AM20-M20X1.5X50-10.9-A3L Stud 6
20 FT800.39.130 Washer 6

TG1204.56F Suspension mechanism assembly 1
1 GBT6170-M16-8-A3L Hexagon nut , Style 1 2
2 GBT5783-M8X25-8.8-A2L Hex head bolt 1
3 GBT93-8-A0P Standard spring washer 1
4 TG1654.56B.5 Upper connecting pin weldment, lift link 1
5 TG1204.56F.4 Lift link assembly 1
6 GBT899-AM20-M20X1.5X50-10.9-A3L Stud 6
7 TG1204.56.7a Right position-limit link support assembly 1
8 FT800.39.130 Washer 6
9 GBT6176-M20X1.5-10-A3L Hexagon nut , Style 2 6
10 TG1204.56-06 Front fixed pin, position-limit link 1
11 GBT91-5X63-A0P Split pin 3
12 TG1204.56.9 Lower connecting pin weldment, lift link 1
13 TG1204.56-05 Position-limit plate 1
14 TG1204.56-07 Rear fixed pin, position-limit link 1
15 TG1204.56.5 Position-limit link assembly 1
16 GBT5782-M16X80-8.8-A3L Hex head bolt 2
17 TG1204.56-08 Rear support, position-limit link 1
18 GBT95-24-A0P Flat washer 1
19 TG1204.56F.2a Lower link assembly 1
20 GBT93-16-A0P Standard spring washer 2

TG1204.56F Suspension mechanism assembly 1
1 GBT5783-M10X30-8.8-A3L Hex head bolt 4
2 GBT93-10-A0P Standard spring washer 4
3 TG1204.56-02a Lower link articulated shaft 2
4 TG1204.56-03a Position-limit plate 2
5 GBT899-AM20-M20X1.5X110-10.9-A3L Stud 6
6 FT800.39.130 Washer 6
7 GBT6176-M20X1.5-10-A3L Hexagon nut , Style 2 6
8 TG1204.56E-01 Lower link bracket 1
9 GBT5783-M12X25 Hex head bolt (Full thread) 2
10 GBT93-12-A0P Standard spring washer 2
11 TG1204.56F.8 Mounting base assembly, fixed clip 1
11.1 GBT6170-M8-A2L Hexagon nut , Style 1 2
11.2 GBT93-8-A0P Standard spring washer 2
11.3 TG1204.56F.8.1 Mounting base weldment, fixed clip 1
11.4 GBT882-B8X48 Axis pin 1
11.5 TG1204.56F.8-02 Fixed clip base 2
11.6 GBT5783-M8X20-8.8-A2L Hex head bolt 2
11.7 TG1204.56F.8.2 Fixed card weldment 1
11.8 TG1204.56F.8-01 Torsion spring 1
11.9 GBT97.1-8-A0P Flat washer 1
11.10 GBT91-3.2X16-A0P Split pin 1
12 TG1204.56F.1a Upper link assembly 1
12.1 TG1204.56F.1.5 Lockpin assembly 1
12.2 TG1204.56F.1-03 Front clevis, upper link 1
12.3 TG1204.56F.1-05 Connecting axis pin, upper link 1
12.4 TG1204.56F.1.1 Front connecting pin weldment, upper link 1
12.5 GBT894.2-28 Circlip for shaft 1
12.6 TG1204.56F.1-04 Front adjusting screw, upper link 1
12.7 GBT882-B10X60 Axis pin 1
12.8 TG1204.56F.1a.2 Fixed clip weldment 1
12.9 GBT91-3.2X16-A0P Split pin 1

12.10 GBT97.1-10-A0P Flat washer 1
12.11 TG1204.56F.1a.3 Adjustment solenoid weldment, upper link 1
12.12 TG1204.56F.1-01 Rear locknut, upper link 1
12.13 TG1204.56F.1.4 Rear adjusting screw extrusion assembly, upper link 1
12.14 TG1204.56F.1a.6 Pin and lockpin assembly, upper link 1
