Description

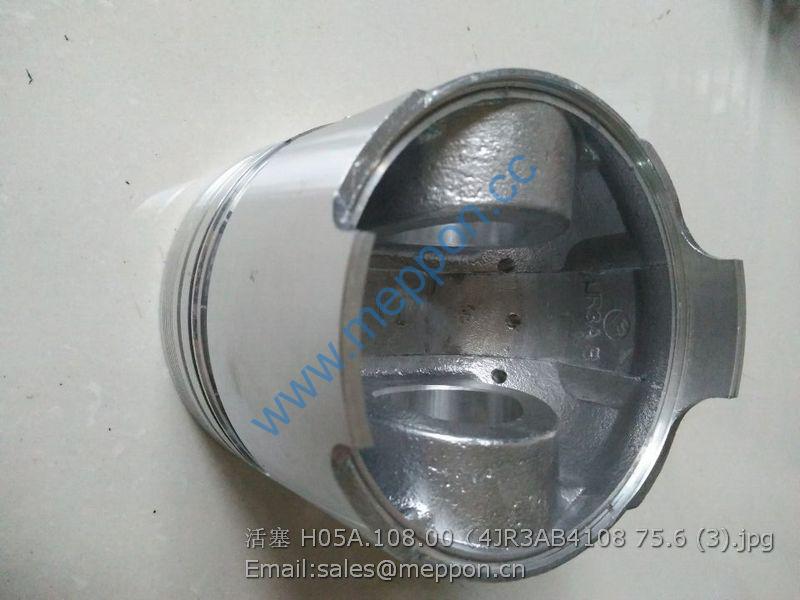

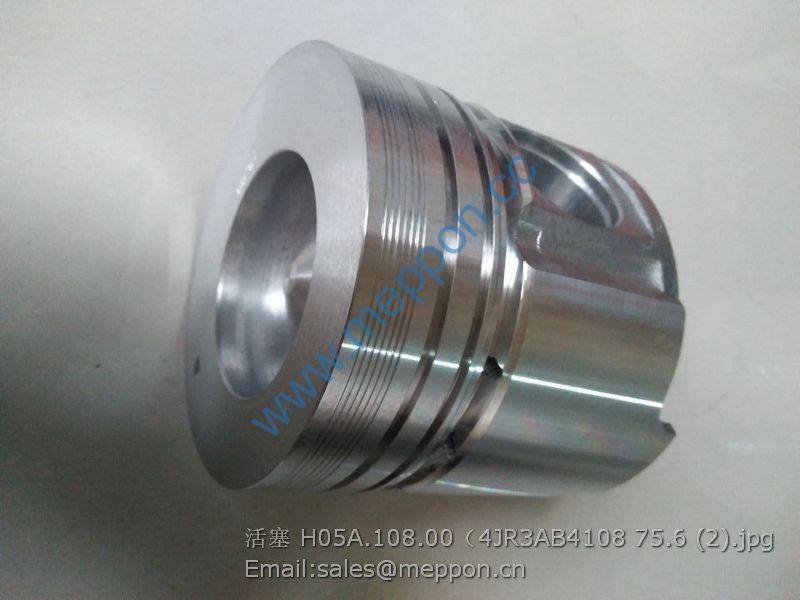

H05A.108.00 4JR3AB4108 quanchai piston

TS08402020000K Steering pipe assembly 1
1 GBT70.1-M12X25-8.8 Hexagon socket head cap screw 2
2 GBT93-12-A0P Standard spring washer 4
3 GBT3452.1-38.7X2.65G Hydraulic and pneumatic O-ring 1
4 TG1454.402G.2 Oil absorption pipe weldment 1, radiator 1
5 Q67638 Worm driven hose hoop, type B 6
6 TG1854.581-12 Oil absorption hose 3 1
7 GBT5783-M10X20-8.8-A3L Hex head bolt 2
8 GBT6170-M8-8-O Hexagon nut , Style 1 2
9 GBT5783-M8X30-8.8-A2L Hex head bolt 1
10 TG1854.402F.17 Dual-hole pipe clamp combination 2
11 TG1454.402G.7 Oil-absorption filter 1
12 GBT3452.1-23.6X1.80G Hydraulic and pneumatic O-ring 1
13 TG1454.402G.24 Oil absorption pipe weldment II 1
14 GBT93-6-A0P Standard spring washer 4
15 GBT70.1-M6X25-8.8 Hexagon socket head cap screw 4
16 GBT3452.1-28.0X2.65G Hydraulic and pneumatic O-ring 1
17 TG1454.402G.23 Oil absorption pipe weldment I 1
18 GBT93-8-A0P Standard spring washer 6
19 GBT70.1-M8X25-8.8-A2L Hexagon socket head cap screw 4
20 TG1454.402G-06 Oil absorption hose 1
21 Q67632 Worm driven hose hoop, type B 2
22 TS08402020015K Hose 1 1
23 TS08402020002K Hydraulic cooling oil return pipe assembly 1
24 TS08402020005K Hydraulic cooling oil return pipe assembly 1 1
25 TG1854.582A-05 Oil return hose 1

TS08402020000K Steering pipe assembly 1
1 GBT70.1-M6X50-8.8-A2L Hexagon socket head cap screw 4
2 GBT93-6-A0P Standard spring washer 6
3 TS08402020017K Oil outlet pipe weldment 1
4 TG1854.581.18 Bypass-valve assembly 1
5 JBT982-22 Combined seal gasket 2
6 TG1454.402G-01 T-junction body 1
7 TG1454.402G.5 Steel pipe 1
8 Q67638 Worm driven hose hoop, type B 4
9 TG1854.402F-05 Hose 1
10 GBT3452.1-33.5X2.65G Hydraulic and pneumatic O-ring 1
11 TG1454.402G.3 Oil return pipe weldment 1
12 GBT93-10-A0P Standard spring washer 5
13 GBT70.1-M10X25-8.8 Hexagon socket head cap screw 2
14 GBT6170-M8-8-O Hexagon nut , Style 1 1
15 GBT93-8-A0P Standard spring washer 1
16 TG1854.402F-04 Single-hole pipe clamp 4
17 TG1454.402G-02 Bracket 1
18 GBT5782-M8X45-8.8-A2L Hex head bolt 1
19 TS08402020004K Oil return pipe assembly, radiator 1
20 Q67632 Worm driven hose hoop, type B 4
21 TS08402020016K Hose 2 1
22 TG1454.402G-03 Snap-fitting through-joint body 1
23 GBT3452.1-19.0X2.65G Hydraulic and pneumatic O-ring 1
24 TG1454.402G-07 Hose 1
25 TS08402020003K Oil inlet pipe assembly, radiator 1
26 GBT5783-M6X40-8.8-A1L Hex head bolt 1
27 TS08402020013K Pipe clamp 2
28 GBT6170-M6-8-A2L Hexagon nut , Style 1 2
29 TS08402020006K Pipe clamp bracket weldment assembly 1
30 GBT5783-M10X35-8.8-A3L Hex head bolt 2
31 GBT97.1-10-A0P Flat washer 2
32 GBT70.1-M10X20-8.8-A3L Hexagon socket head cap screw 1
33 TD800.485A-03 Fixing clamp 1

TG1204.431 Brake assembly, LH 1
1 TG1204.431.1 Friction lining cluster 1
2 TG1204.431-04 Brake piston 1
3 TG1204.431-03 O-ring seal 1
4 GBT3452.1-10.0X1.80G O-ring 1
5 FT800.43.130 Joint body 1
6 JBT982-16 Combined seal gasket 1
7 GBT119.1-10m6X22-A0P Pin 3
8 FT800.43.173 Spring 6
9 TG1204.431-08 Hexagon head plug screw M10X1 1
10 JBT982-10 Combined seal gasket 1
11 TG1204.431-06 Bolt M18X170-A3L 3
12 GBT93-18 Standard spring washer 3
13 TG1204.431-01b Brake cylinder, LH 1
14 TD950.43.5-04 Air bleed screw 1
15 TG1204.431-02 O-ring seal 1
16 TD950.43.5-05 Dust cover 1

TG1204.432 Brake assembly, RH 1
1 TG1204.431.1 Brake lining cluster 1
2 TG1204.431-04 Brake piston 1
3 TG1204.431-03 Seal gasket (368) 1
4 GBT119.1-10m6X22-A0P Cylindrical pin 3
5 TG1204.431-06 Bolt M18X170-A3L 3
6 GBT93-18 Standard spring washer 3
7 FT800.43.173 Spring 6
8 TG1204.431-08 Hexagon head plug screw M10X1 1
9 JBT982-10 Combined seal gasket 1
10 TG1204.432-01b Brake cylinder, RH 1
11 GBT3452.1-10.0X1.80G Hydraulic and pneumatic O-ring 1
12 FT800.43.130 Joint body 1
13 JBT982-16 Combined seal gasket 1
14 TD950.43.5-04 Air bleed screw 1
15 TG1204.431-02 Seal gasket (310) 1
16 TD950.43.5-05 Dust cover 1

TS08433010000K Control mechanism assembly, service brake 1
1 GBT5782-M16X90-8.8-A2L Hex head bolt 2
2 GBT93-16-A0P Standard spring washer 2
3 GBT894.1-17 Circlip for shaft 1
4 TG1204.433-02 Retainer ring 1
5 GBT6170-M16-8-A3L Hexagon nut , Style 1 2
6 TG1654.433.3 Brake pump press-fit assembly 1
6.1 TG1654.433.3.1 Brake pump assembly 1
6.2 TG1204.433.6-02 Bush (B) 1
6.3 TG1204.433.6-01 Bush (A) 1
7 GBT894.1-40 Circlip for shaft 1
8 TG1204.433-06 Big retainer ring 1
9 TG1204.433-07 Revolving shaft 1
10 TD800.43-01 Pedal return spring 2
11 GBT6171-M10X1-8-A2L Hexagon nut , Style 1 4
12 TG1204.433-05 Adjusting screw 2
13 TG1204.433-09 Limiting screw 2
14 TG1204.433.3 Left brake pedal press-fit 1
14.1 TG1204.433.3.1 Left brake pedal weldment 1
14.2 TG1654.212B.1-01 Bush 1
15 TF1004.433-01 Nylon sleeve 1
16 TG1204.433.4 Right brake pedal press-fit 1
16.1 TG1654.212B.1-01 Bush 1
16.2 TG1204.433.4.1 Right brake pedal weldment 1
16.3 GBT879.1-5X16 Elastic cylindrical pin 1
16.4 FT800A.43.065 Brake interlocking lever weldment 1
17 FT800A.43.401 Lockpin 1

TS08433010000K Control mechanism assembly, service brake 1
1 TG1654.433.1a Brake pipe weldment, LH 1
2 TG1654.433.2a Brake pipe weldment, RH 1
3 GBT5783-M8X40-8.8-A2L Hex bolt 2
4 TG1204.433-11 Dual-hole pipe clamp 4
5 GBT97.1-8-A0P Flat washer 2
6 GBT93-8-A0P Standard spring washer 2
7 GBT6170-M8-8-A2L Hexagon nut , Style 1 2
8 F600190 Pipe clamp combination (E) 5
8.1 F600209 Single-hole pipe clamp (B) 2
8.2 GBT5783-M8X40 Bolt 1
8.3 GBT93-8-AOP Standard spring washer 1
8.4 GBT95-8-AOP Flat washer level-C 1
8.5 GBT6170-M8 Nut 1
9 TG1204.433-12 Oil pipe bracket C 1
10 TG1204.433-10 Oil pipe bracket B 3
11 TG1204.433-01 Oil pipe bracket A 1

TS08433010000K Control mechanism assembly, service brake 1
1 TG1204.433.2-01 Protective sleeve, brake tank 1
2 TC05430040003K Brake tank 1
3 GBT5783-M6X20-8.8-A2L Hex bolt 1
4 GBT93-6-A0P Standard spring washer 1
5 QCT39018 Strip elastic hoop 2
6 TS08433010001K Oil-delivery hose assembly 2
7 FT800.43.115 Oil pipe joint screw 4
8 JBT982-12 Combined seal gasket 8
9 TD800.43B.2 Pipe joint welded unit 2

TG1204.434 Handle brake block assembly 1
1 TG1204.434-07 Handle brake pressure plate 1
2 TG1204.434.1 Wearing piece unit 3
3 TG1204.434-08 Handle brake steel piece 2
4 TG1204.434-01 Brake camshaft 1
5 GBT3452.1-15X2.65G O-ring 4
6 TG1204.434-02 Handle brake block 1
7 GBT854-12 Stopping washer 2
8 TG1204.434-06 Bolt 2
9 TG1204.434-10-10X25 Pin 2
10 GBT93-12-AOP Washer 4
11 GBT5783-M12X35-A3L Bolt 4
12 TG1204.434-09 Fork shaft 1
13 TG1204.434-05 Locating sleeve 1
14 GBT879.1-5X40 Pin 1
15 GBT879.1-8X40 Pin 1
16 TG1204.434-04 Fork head block 1
17 TG1204.434-03 Fork block 1
