Description

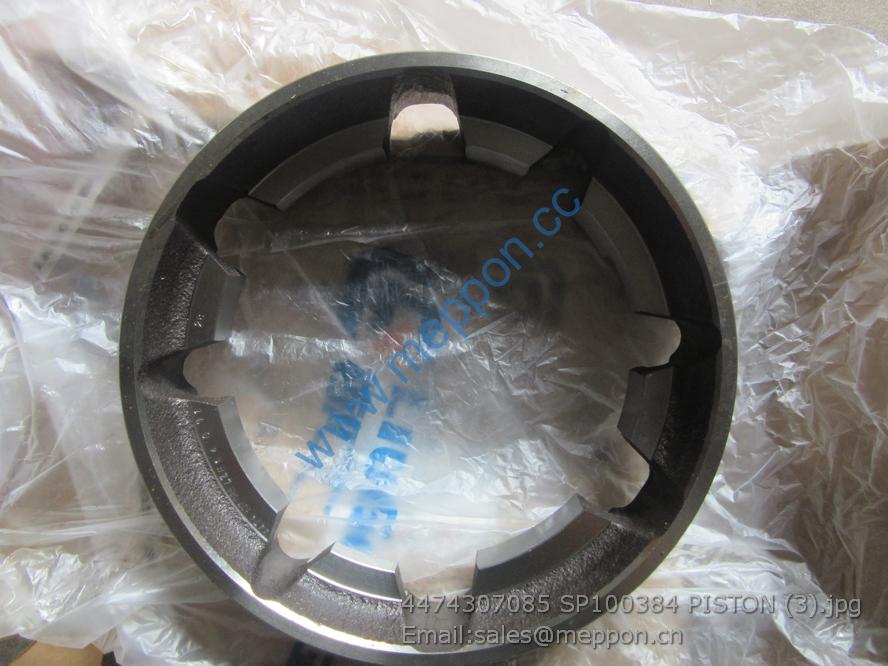

4474307085 SP100384 PISTON

1 90011400002 2 Hexagon Flange Bolt
2 13583790P 1 Non-return Valve
3 13614100K 1 Gasket
4 90017510013 1 O-ring
5 15041260W 1
Pre-luburicationg Pump
Oil Pipe
6 77707780D 1 Gasket
7 13601280A 1 Screw Plug
8 90013550012 4
Inner Hexagon Socket Head
Cap Screw
9 77718890E 1 Pipe Joint
10 77718910B 1 Valve Core
11 1000120356 1 Pipe Joint
12 90011350076 2 Hexagon Head Bolt
13 1000126238 1 Flange
14 77717510E 1 Hand oil pump assembly
15 90011350087 2 Hexagon Head Bolt
16 11204940H 1 Gasket
17 1000664623 1
Pre-luburicationg Pump
Oil Pipe
18 90003871248 2 Hexagon Nut
19 90003802444 2 Hexagon Head Bolt
20 77720280Q 1 Bolt
21 13034050 2 Assembled Sealing Washer
22 15041240Z 2 Washer
23 9000000462 1 O-ring
24 15040760C 1
Pre-luburicationg Pump
Oil Pipe

1 330204000206 1
Ferrule 24° Cone Connectors,
Nut
2 330204000205 1 Ferrule
3 330204000204 1 Joint Body

1 15041170Y 1 Oil Cooler Cap Gasket
2 15540420L 1 Oil Cooler
3 90017550004 2 O-Ring
4 15041180J 1 Oil Filter Seat
5 15041160M 1 Oil Cooler Oil Pipe
6 90017510015 1 O-ring
7 90013050036 2
Inner Hexagon Socket Head
Cap Screw
8 77752540F 2
9 77752430L 8
Inner Hexagon Socket Head
Cap Screw
10 90013550031 1
Inner Hexagon Socket Head
Cap Screw
11 13050495 1 Back-up Block

1 15540570Z 2 Oil Cooler
2 15041140Q 1 Cover
3 1001312338 1 Water Draining Valve
