Description

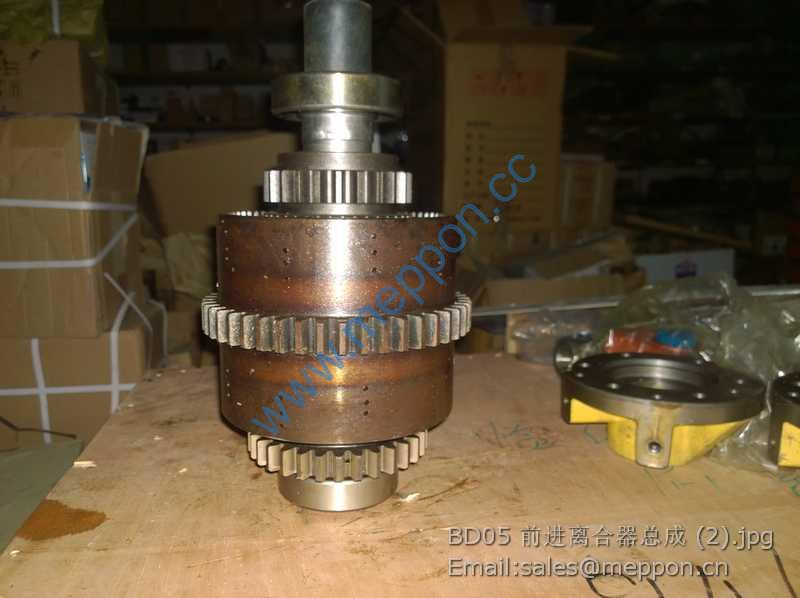

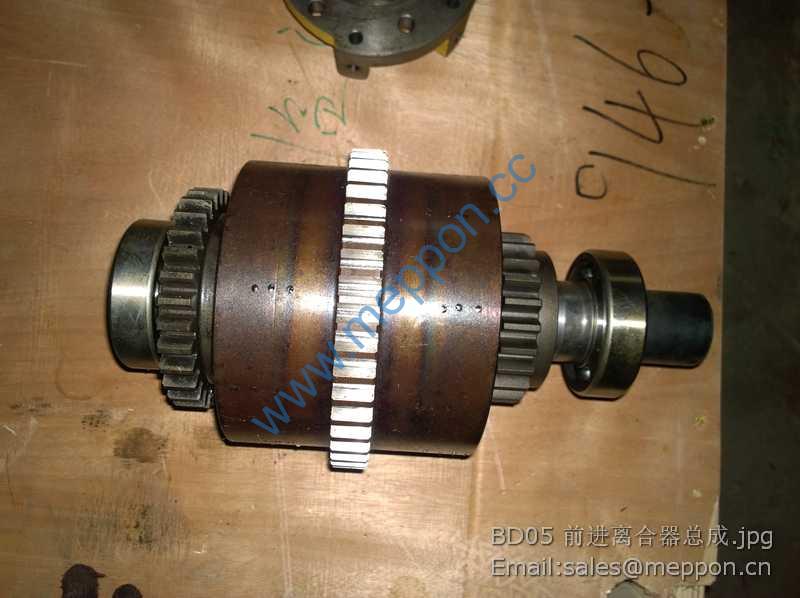

BD05-01200 GO FORWARD LOW-END CLUTCH ASSEMBLY BD05 GEARBOX PARTS
1 4110000218029 挡圈 BD05-01012 SNAP RING BD05-01012 Y 1
2 4021000190 止动环GB305-80/86.6 SNAP RING GB305-80/86.6 N 2
3 4021000170 P轴承GB276-6208N BEARING GB276-6208N Y 2
4 4110000218028 挡圈 BD05-01001 SNAP RING BD05-01001 Y 1
5 4015000046 挡圈GB894.1-50-65Mn SNAP RING GB894.1-50-65Mn N 2
6 4110000218016 齿轮 BD05-01002 GEAR BD05-01002 Y 2
7 4110000218023 弹簧支承座 BD05-01010 SPRING SEAT BD05-01010 Y 2
8 4110000218077 离合器弹簧 BD05-01005 CLUTCH SPRING BD05-01005 Y 2
9 4015000300 挡圈GB893.1-150-65Mn SNAP RING GB893.1-150-65Mn N 2
10 4110000218078 离合器活塞压板BD05-01003 CLUTCH PISTONG PLATE BD05-01003 Y 2
11 4110000218036 垫板 BD05-01004 FILLER BD05-01004 Y 8
12 4110000218095 磨擦片 BD05-01300 WEARING PLATE BD05-01300 Y 8
13 4030000035 O形圈GB3452.1-53.0*5.30G O-RING GB3452.1-53.0*5.30G Y 2
14 4110000218068 活塞 BD05-01101 PISTONG BD05-01101 Y 2
15 4110000218094 密封环 BD05-01103 SEAL RING BD05-01103 Y 2
16 4110000218096 前进低档离合器壳体 BD05-01200 GO FORWARD LOW-END CLUTCH SHELL BD05-01200 Y 1
17 4110000218085 停用-螺塞 07043-00108 PLUG SCREW 07043-00108 Y 2
18 4110000218017 齿轮 BD05-01006 GEAR BD05-01006 Y 1
19 kongbai kongbai N 0
20 kongbai kongbai N 0
21 4110000218093 密封环 BD05-01008 SNAP RING BD05-01008 Y 3
22 4021000009 滚动轴承 GB276-6008 BEARING GB276-6008 Y 2
23 4015000199 挡圈 GB893.1-68-65Mn SNAP RING GB893.1-68-65Mn N 2
24 4110000218024 挡环 BD05-01007 BAFFLE RING BD05-01007 Y 1
25 4021000021 滚动轴承 GB276-6308 ROLLING BEARING GB276-6308 Y 2
26 4110000218025 挡环 BD05-01009 BAFFLE RING BD05-01009 Y 1
