Description

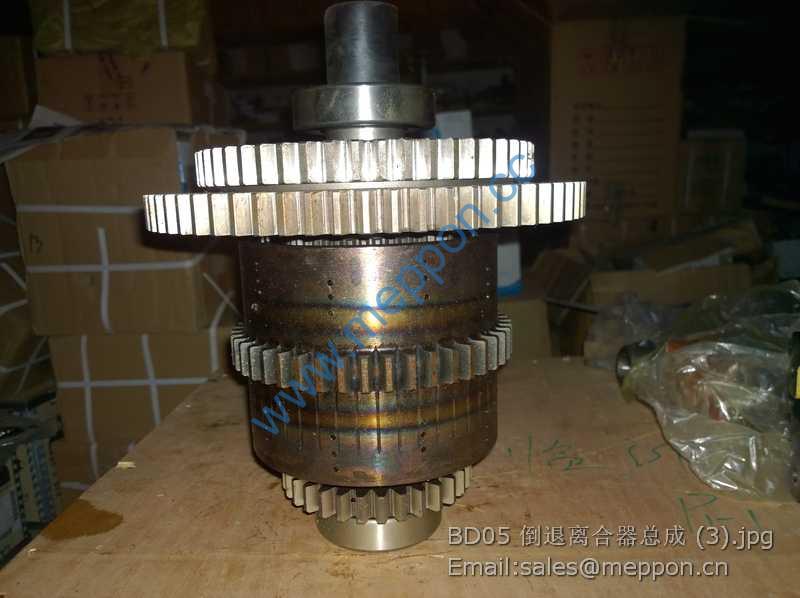

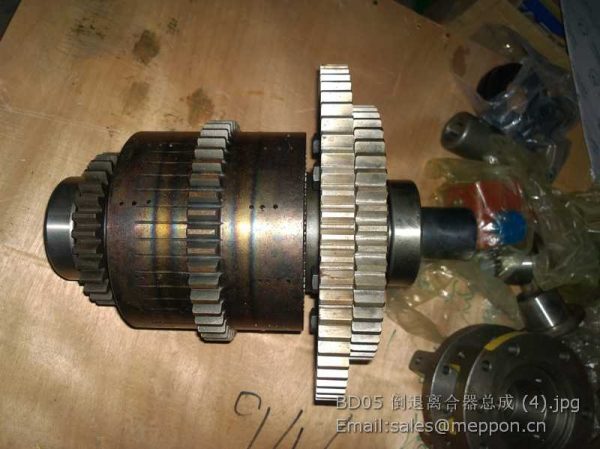

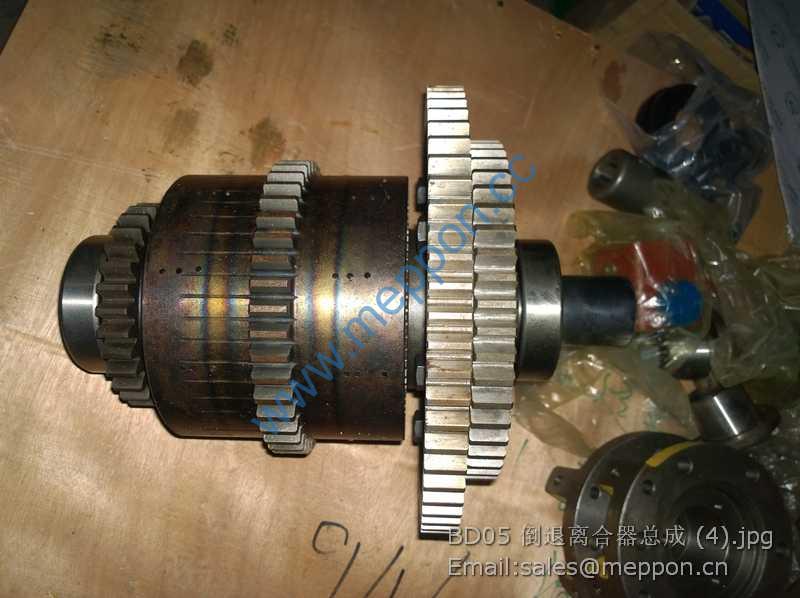

BD05-02100 BACKWARD HIGH-END CLUTCH ASSEMBLY
1 4110000218029 挡圈BD05-01012 SNAP RING BD05-01012 Y 1
2 4021000190 止动环GB305-80/86.6 SNAP RING GB305-80/86.6 N 2
3 4021000170 P轴承GB276-6208N BEARING GB276-6208N Y 2
4 4110000218028 挡圈BD05-01001 SNAP RING BD05-01001 Y 1
5 4015000046 挡圈GB894.1-50-65Mn SNAP RING GB894.1-50-65Mn N 2
6 4110000218016 齿轮BD05-01002 GEAR BD05-01002 Y 1
7 4110000218023 弹簧支承座BD05-01010 SPRING SEAT BD05-01010 Y 2
8 4110000218077 离合器弹簧BD05-01005 CLUTCH SPRING BD05-01005 Y 2
9 4015000300 挡圈GB893.1-150-65Mn SNAP RING GB893.1-150-65Mn N 2
10 4110000218078 离合器活塞压板BD05-01003 CLUTCH PISTONG PLATE BD05-01003 Y 2
11 4110000218036 垫板BD05-01004 FILLER BD05-01004 Y 8
12 4110000218095 磨擦片BD05-01300 WEARING PLATE BD05-01300 Y 8
13 4030000035 O形圈GB3452.1-53.0*5.30G O-RING GB3452.1-53.0*5.30G Y 1
14 4110000218068 活塞BD05-01101 PISTONG BD05-01101 Y 2
15 4110000218094 密封环BD05-01103 SEAL RING BD05-01103 Y 2
16 4110000218030 倒退高档离合器壳体BD05-02100 BACKWARD HIGH-END CLUTCH SHELL BD05-02100 Y 1
17 4110000218082 螺塞07043-00108 PLUG SCREW 07043-00108 Y 2
18 kongbai kongbai N 0
19 kongbai kongbai N 0
20 kongbai kongbai N 0
21 4110000218093 密封环BD05-01008 SNAP RING BD05-01008 Y 3
22 4021000021 滚动轴承GB276-6308 ROLLING BEARING GB276-6308 Y 2
23 4015000199 挡圈GB893.1-68-65Mn SNAP RING GB893.1-68-65Mn N 2
24 4110000218026 挡环BD05-02001 BAFFLE RING BD05-02001 Y 1
25 4021000021 滚动轴承GB276-6308 ROLLING BEARING GB276-6308 Y 2
26 4110000218090 螺栓01010-31225 M12*25 BOLT 01010-31235 M12*25 Y 6
27 4110000218018 齿轮BD05-02201 GEAR BD05-02201 Y 1
28 4110000218019 齿轮BD05-02202 GEAR BD05-02202 Y 1
29 4110000218027 挡环BD05-02002 BAFFLE RING BD05-02002 Y 1
30 4110000218104 止动垫BD05-02203 STOP WASHER BD05-02203 Y 3
