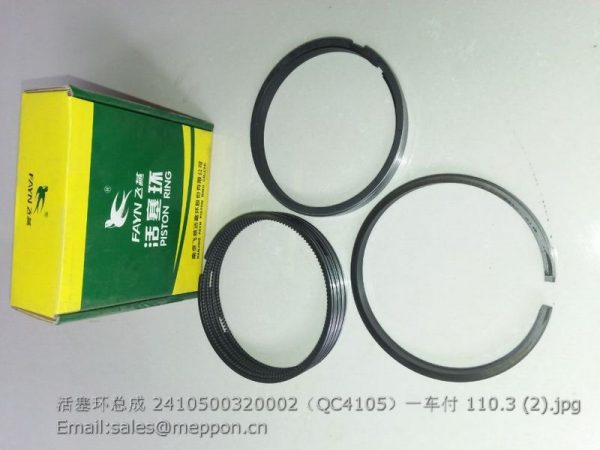

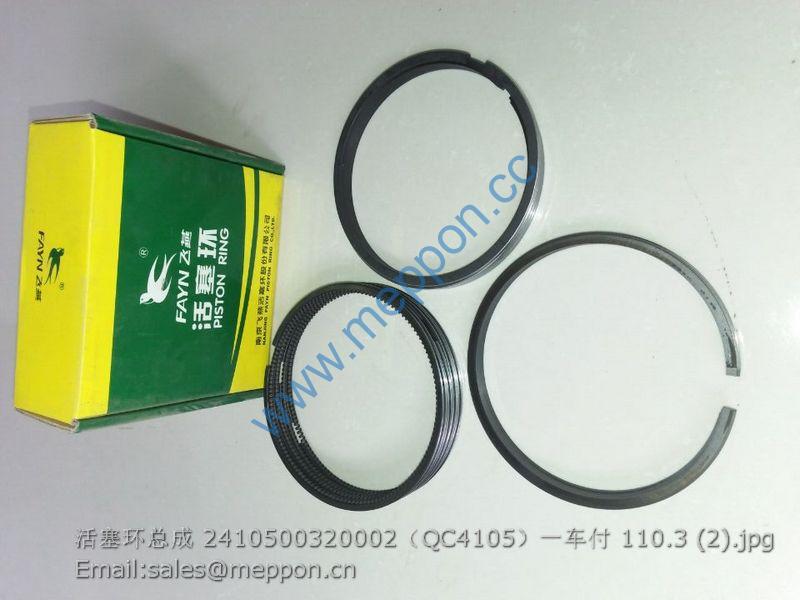

2410500320002 QC4105 quanchai piston ring

TS10132010000K Water tank base plate mounting assembly 1
1 GB/T 5783-M8×25-8.8-A2L Hexagon head bolt 2
2 GB/T 93-8-A0P Standard spring washer 6
3 GB/T 97.1-8-A0P Plain washer 4
4 GB/T 6170-M8-8-A2L Hexagon nut, type 1 2
5 TS10132010001K Water tank pull rod 2
6 GB/T 5783-M8×20-8.8-A2L Hexagon head bolt 2
7 TS10131010003 Right shield plate weldment 1
8 GB/T 5783-M10×20-8.8-A3L Hexagon head bolt 3
9 GB/T 93-10-A0P Standard spring washer 3
10 GB/T 97.1-10-A0P Plain washer 2
11 TS10132010001 Water tank base plate welding 1
12 GB/T 5783-M12×25-8.8-A3L Hexagon head bolt 4
13 GB/T 93-12-A0P Standard spring washer 4
14 GB/T 5783-M14×25-8.8-A3L Hexagon head bolt 1
15 GB/T 93-14-A0P Standard spring washer 1
16 TS10131010002 Left shield plate weldment 1

TD800.201D Handle throttle assembly 1
1 TB400.201C-01 Handle 1
2 GBT 6172.1-M12-04-A3L Hex thin nut 3
3 TD800.201D-01 Hand throttle control lever 1
4 GBT 879.1-5X14 Spring-type straight pin 1
5 GBT 879.1-5X20 Spring-type straight pin 1
6 TD800.201D.1 Limiting plate weldment 1
7 TD800.201D-02 Friction disc assembly 2
8 GBT 95-12-A0P Flat washer 1
9 GBT 955-12 Spring washer 1
10 TD800.201D.2 Rocker weldment 1
11 GBT 93-8-A0P Standard spring washer 1
12 GBT 6172.1-M8-04-A2L Hex thin nut 1

TS10202010000 Foot throttle assembly 1
1 FT650.20.101 Foot pedal 1
2 GBT 879.1-5X20-A0P Spring column pin 1
3 TS10202010001 Foot throttle control subassembly 1
3.1 FT650.20.107 Rubber plug 1
3.2 FT800.20.013 Pedal rocker arm weldment 1
3.3 FT650.20.108 Throttle trestle 1
3.4 TS10202010002 Washer 1
3.5 FT650.20.011 Foot throttle rocker arm weldment 1
3.6 GBT 879.1-5X20-A0P Spring column pin 1
3.7 GBT 6172.1-M8-04-A2L Hexagon thin nut 1
3.8 GBT 5781-M8X45-4.8-A2L Hexagon head bolt 1
3.9 FT650.20.104 Torsion spring 1
4 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 2
5 GBT 93-8-A0P Standard spring washer 2
6 GBT 6172.1-M8-04-A2L Hexagon thin nut 2
7 GBT 5783-M5X12-8.8-A2L Hexagon head bolt 3
8 GBT 97.1-5-A0P Plain washer 3
9 FT65.45.393 Throttle pedal seal sleeve 1
10 FT65.45.394 Throttle pedal seal sleeve pressing plate 1

TS10203010000K Throttle wire assembly 1
1 TS10203010002K Hand throttle pull wire assembly 1
2 TS10203010001K Foot throttle pull wire assembly 1
3 GB/T 97.1-6-A0P Plain washer 3
4 GB/T 91-2×12-A0P Split pin 3
5 TB400.20C-01 Flameout pull wire fixing hole plug cover 1
6 GB/T 882-B5×20 Pin 1

TS10220010000 Exhaust system assembly 1
1 TS10220010001 Muffler assembly 1
1.1 TS10220010002 Muffler rear exhaust pipe weldment 1
1.2 TS10220010004 Connecting pipe weldment 1
1.3 SPL6177.1-M8-F3 Hexagon flange nut 8
1.4 FT65.22.130 Sealing gasket combination 2
1.5 GBT 5783-M8X25-8.8-A2L Hexagon head bolt 8
1.6 TA700.22G.1.1 Muffler body 1
2 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 1
3 GBT 93-8-A0P Standard spring washer 1
4 GBT 96.1-8-A0P Large washer 1
5 TD900.22.4 Sealing gasket combination 1
6 GBT 93-10-A0P Standard spring washer 7
7 GBT 5783-M10X30-8.8-A3L Hexagon head bolt 7
8 GBT 5782-M12X50-8.8-A3L Hexagon head bolt 1
9 GBT 97.1-12-A0P Plain washer 1
10 TS10220010011 Clamp 2
11 TD900.22B-03 Upper rubber pad 1
12 TS10220010007 Trestle fixing plate 1
13 GBT 96.1-12-A0P Large washer 1
14 SPL6177.1-M12-F3 Hexagon flange nut 1
15 GBT 6170-M6-8-A2L Hexagon nut, style 1 2
16 GBT 93-6-A0P Standard spring washer 2
17 GBT 5783-M6X16-8.8-A2L Hexagon head bolt 1
18 GBT 97.1-6-A0P Plain washer 2
19 GBT 5783-M6X20-8.8-A2L Hexagon head bolt 1
20 TS10220010006 Muffler mounting trestle weldment 1
21 GBT 93-20-A0P Standard spring washer 2
22 GBT 5783-M20X40-8.8-A3L Hexagon head bolt 2
23 GBT 97.1-10-A0P Plain washer 4

TS10212010000 Clutch control mechanism assembly 1
1 TS10212010041 Assistant clutch control assembly 1
1.1 TS10552010016 Handle end (light yellow) 1
1.2 GBT 68-M4X10-4.8-A2L Slotted countersunk screw 1
1.3 TS10212010038 Assistant clutch main control lever weldment 1
1.4 GBT 879.1-5X32 Spring column pin 1
1.5 GBT 879.1-8X32 Spring column pin 1
1.6 GBT 5785-M12X1.5X65-8.8-A2L Hexagon head bolt 1
1.7 GBT 97.1-12-A0P Plain washer 1
1.8 TS10212010044 Right support plate pressing 1
1.9 TS10212010045 Assistant control rocker pressing 1
1.10 TS10212010025 Support sleeve 1
1.11 TS10212010043 Left support plate prssing 1
1.12 TS10212010031 Assistant clutch control rocker weldment 1
1.13 GBT 5786-M8X1X20-8.8-A2L Hexagon head bolt 4
1.14 GBT 93-8-A0P Standard spring washer 4
1.15 GBT 97.1-8-A0P Plain washer 4
1.16 GBT 91-3.2X25-A0P Split pin 3
1.17 GBT 97.1-10-A0P Plain washer 3
1.18 GBT 882-B10X28-A0P Pin 3
1.19 TS10212010030 Assistant clutch control transit lever 2
1.20 TS10212010039 Assistant clutch control soft shaft unit 1
2 GBT 5786-M8X1X20-8.8-A2L Hexagon head bolt 4
3 GBT 93-8-A0P Standard spring washer 6
4 GBT 97.1-8-A0P Plain washer 5
5 TS10212010019 Assistant clutch control mechanism protection plate weldment 1
6 TS10212010021 Assistant clutch control mechanism protection plate rubber strip 1
7 GBT 882-B10X35-A0P Pin 1
8 GBT 97.1-10-A0P Plain washer 6
9 GBT 91-3.2X25-A0P Split pin 1
10 TS10212010015 Retraction spring hanging plate weldment 1
11 FT800A.21.383 Retraction spring 2
