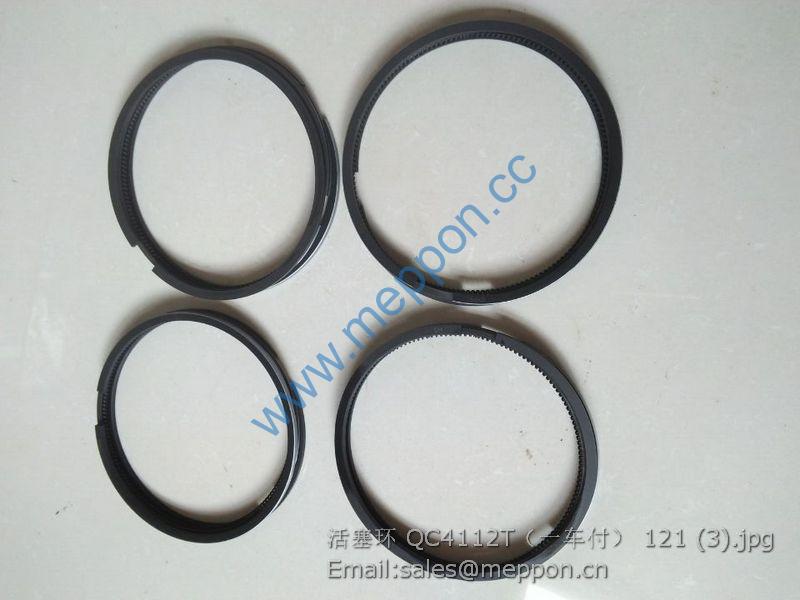

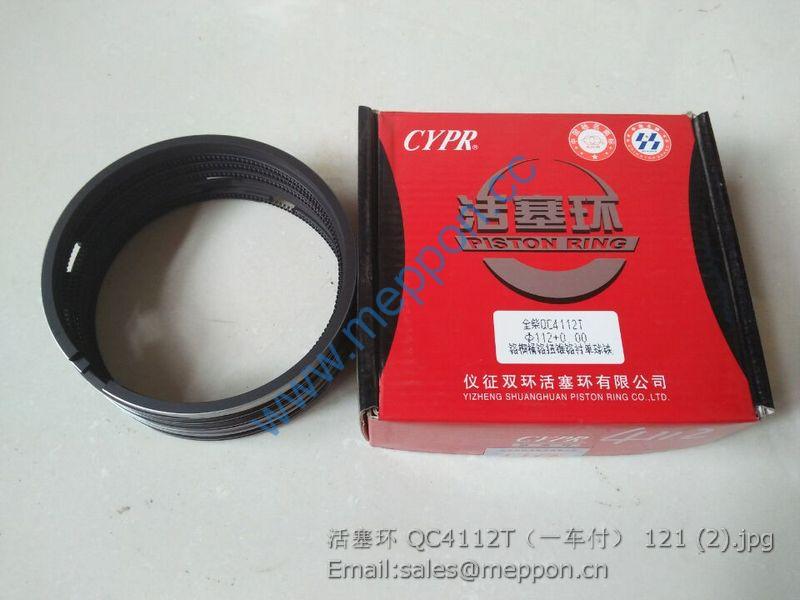

QC4112T QUANCHAI PISTON RING

TS08456010000K Instrument panel assembly 1
1 GBT5783-M6X30-8.8-A2L Hex bolt 3
2 GBT93-6-A0P Standard spring washer 7
3 GBT95-6-A0P Flat washer 3
4 GBT823-M6X25-4.8-A2L Cross recessed countersunk head screw 4
5 GBT96.1-6-A0P Big washer 4
6 TS08456010001K Instrument panel assembly 1
7 GBT95-8-A0P Flat washer 4
8 GBT93-8-A0P Standard spring washer 4
9 GBT823-M8X25-4.8-A2L Cross recessed small head screw 4

TS08461010000K Safety frame assembly 1
1 FT800A.46.048 Sun shield assembly 1
2 TB400.46C-01 Plug cover 8
3 TS08461010001K Safety frame assembly 1
3.1 TS08461010002K Safety frame upper beam assembly 1
3.2 GBT5782-M16X100-10.9-A2L Hex bolt 6
3.3 TS08461010005K Left support beam assembly 1
3.4 GBT95-16-A0P Flat washer 6
3.5 GBT93-16-A0P Standard spring washer 6
3.6 GBT802-M16-6 Compound cap nut 6
3.7 TS08461010004K Right support beam assembly 1
4 GBT5782-M16X100-10.9-A2L Hex bolt 8
5 GBT93-16-A0P Standard spring washer 8
6 GBT97.1-16-300HV-A0P Flat washer 8

TS08471010000K Engine hood assembly 1
1 TG1204.471A.2 Front face mesh panel weldment, engine hood 1
2 TS08471010001K Engine hood weldment 1
3 TG1204.471A-02 Sealing strip, engine hood 1
4 FT800B.47.304 Rear left trim panel 1
5 FT800B.47.305 Rear right trim panel 1
6 FT800B.47.310 Rear left lower grid 1
7 FT800B.47.311 Rear right lower grid 1
8 FT800B.47.308 Left middle lower grid 1
9 FT800B.47.309 Right middle lower grid 1
10 FT800B.47.306 Front left lower grid 1
11 FT800B.47.307 Front right lower grid 1
12 TG1204.471A-03 Left mesh panel, engine hood 1
13 TG1204.471A-04 Right mesh panel, engine hood 1
14 TD800.471-01 Gas spring, engine hood 2
15 TA820.471A-01 Bracing cable, engine hood 1
16 GBT5783-M6X16-8.8-A2L Hex head bolt 14
17 GBT96.1-6-A0P Big washer 20
18 TD800.471A-05 Front handle gasket cluster, engine hood 2
19 QCT864-M6 Hex flange nut 20
20 TB400B.471-18 Cushion block 24
21 GBT96.1-5-A0P Big washer 40
22 TD800.471A-04 Front handle, engine hood 1
23 QCT864-M5 Hex flange nut 40
24 GBT5783-M6X12-8.8-A2L Hex head bolt 4
25 GBT96.1-12-A0P Big washer 2
26 GBT93-12-A0P Standard spring washer 2
27 GBT6170-M12-8-A3L Hexagon nut , Style 1 2
28 GBT6170-M8-8-A2L Hexagon nut , Style 1 1
29 GBT93-8-A0P Standard spring washer 1
30 GBT97.1-8-A0P Flat washer 1
31 GBT5783-M8X20-8.8-A2L Hex head bolt 1

TG1204.472F Lengthening plate assembly, engine hood 1
1 GBT6170-M8-8-A2L Hexagon nut , Style 1 2
2 GBT93-8-A0P Standard spring washer 2
3 GBT97.1-8-A0P Flat washer 2
4 GBT5783-M8X25-8.8-A2L Hex head bolt 2
5 GBT6170-M10-8-A3L Hexagon nut , Style 1 2
6 GBT93-10-A0P Standard spring washer 2
7 GBT97.1-10-A0P Flat washer 2
8 GBT5783-M10X35-8.8-A3L Hex head bolt 2
9 TG1204.471A-02 Sealing strip, engine hood 1
10 TG1204.472F.1 Lengthening plate, engine hood 1
11 TG1204.472F-01 Sealing strip 1
