Description

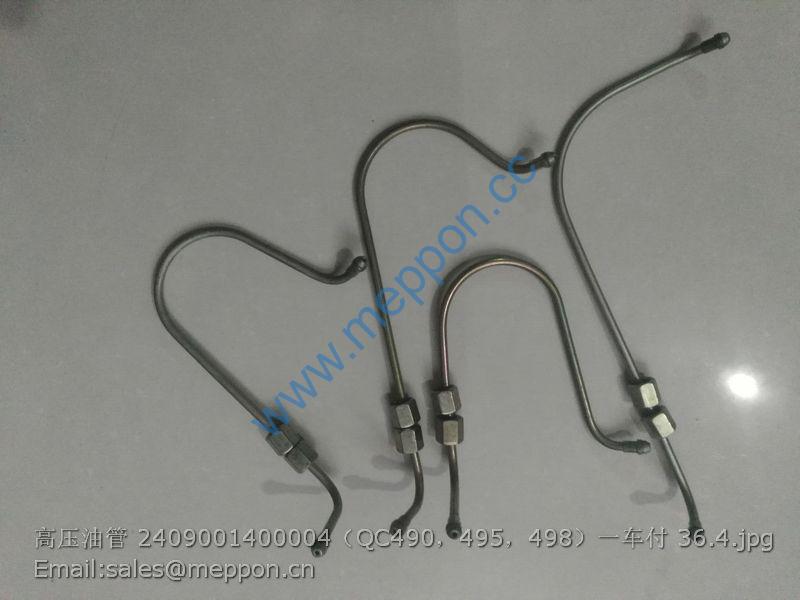

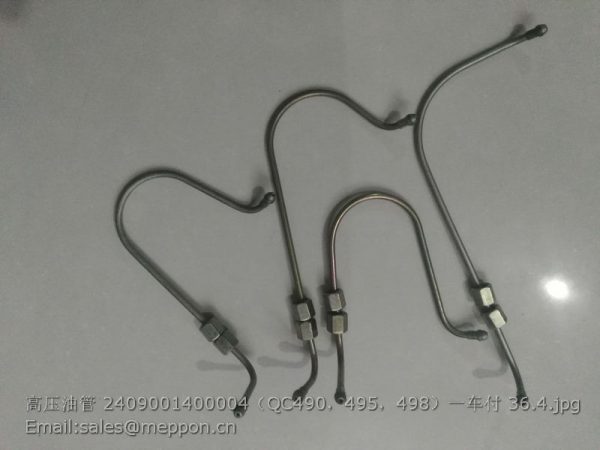

2409001400004 QC490 QC495 QC498 QUANCHAI HIGH PRESSURE PIPE

TC02411010000K Pto Gear Assembly 1
1 GBT894.1-40 Circlip For Shaft 2
2 GBT276-6208 Deep-Grooved Ball Bearing 1
3 FT300.41E.120 Pto High-Speed Driving Gear 1
4 FT300.41E.121 Spacing Sleeve 1
5 FT300.41E.106 Pto Low-Speed Driving Gear 1
6 GBT276-6308N Deep-Grooved Ball Bearing 1
7 GBT305-90-96.5 Thrust Ring 1
8 GBT812-M25X1.5 Round Nut 1
9 GBT858-25 Thrust Ring For Round Nut 1
10 FT300.41.122 Washer 1
11 GBT276-6306 Deep-Grooved Ball Bearing 1
12 FT300.41C.118 Pto Front Circlip 1
13 FT300.41E.105 Pto Driven Pinion 1
14 JBT7918-K35X40X27 Radial Roller Needle And Retainer Subassembly 1
15 FT300.41C.117 Pto Joggle Seat 1
16 FT300.41C.116 Pto Joggle Sleeve 1
17 FT300.41E.103 Pto Driven Gear 1
18 QLWZB120-K40X46X34ZW Needle Bearing 1
19 FT300.41E.114 Rear Circlip 1
20 FT300.41E.119 Thrust Ring 1
21 GBT276-6309 Deep-Grooved Ball Bearing 1
22 FT300.41E.113 Pto Shaft Bearing Washer 1
23 GBT9877.1-FB50X72X8D Rubber Covered Rotary Shaft Lip Seal 2
24 GBT5783-M12X25-8.8-A3L Hexagon Head Bolt 4
25 FT300.41E.115 Oil Seal Circlip 1
26 FT300.41E.101 Rear End Cover I 1
27 GBT93-12-A0P Standard Spring Washer 8
28 GBT5782-M12X55-8.8-A3L Hexagon Head Bolt 4
29 TC02411010001K Pto Protection Shield Weldment 1

TB550.412A Pto Shaft Assembly 1
1 TB550.412A-01 Type I35 Pto Shaft 1
2 TB550.412-02 Pto Shaft Head Shield 1

TS04413010000 Pto Control Assembly 1
1 GBT6170-M10-8-A3L Hexagon Nut, Style 1 1
2 TB704.413A-02 Dustproof Ring 1
3 TB504.413A.2 Pto Control Lever Weldment 1
4 GBT879.1-6X32 Spring-Type Straight Pin 1
5 GBT879.1-3.5X32 Spring-Type Straight Pin 1
6 TS04413010003 Support Seat Press 1
6.1 TB480.413A.1-01 Nylon Bush 2
6.2 TB704.413A.3.1 Support Seat Weldment 1
7 GBT97.1-8-A0P Plain Washer 4
8 GBT93-8-A0P Standard Spring Washer 6
9 GBT6170-M8-8-A2L Hexagon Nut, Style 1 4
10 TS04413010004 Control Rocker Arm Weldment 1
11 GBT91-3.2X16-A0P Split Pin 2
12 GBT97.1-10-A0P Plain Washer 2
13 TS04413010005 Intermediate Drawbar 1
14 GBT6171-M10X1-LH-8-A2L Hexagon Nut, Style 1 1
15 FT800A.21.353 Countershaft 1
16 GBT6171-M10X1-8-A2L Hexagon Nut, Style 1 1
17 TB504.413A.5 Short Pull Rod Weldment 1
18 GBT882-B10X30 Pin Shaft 1
19 TB480.413.2 Rocker Arm Weldment 1
20 GBT879.1-6X26 Spring-Type Straight Pin 1
21 GBT879.1-3.5X26 Spring-Type Straight Pin 1
22 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 2
23 FT300.41E.109 Dial Lever Bush 1
24 GBT3452.1-16.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
25 TB550.413-04 Finger-Shaped Dial Lever 1
26 GBT308-9.5-G100-b Steel Ball 1
27 FT704.42B.163 Shift Fork Shaft Locating Spring 1
28 TB550.413-03 Screw 1
29 GBT91-2.5X32-A0P Split Pin 1
30 TB550.413-01a Pto Control Shift Fork 1
31 GBT3452.1-11.2X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
32 FT300.41C.107a Pto Shift Fork Shaft 1

TB554.421E Transfer Case Body Assembly 1
1 TB554.421E.1 Transfer Case Assembing 1
1.1 FT304.42.102 Idler Shaft 1
1.2 FT304.42F.103 Thrust Ring 2
1.3 JBT7918-K25X31X20 Needle Bearing 2
1.4 FT304.42.126 Rolling Needle Inner Spacing Sleeve 1
1.5 TB554.421E.1-02 Transfer Case Idler 1
1.6 TB554.421E.1-01 Transfer Case Housing 1
1.7 FT304.42.112 Thrust Screw 1
1.8 GBT6173-M10X1-A2L Nut 1
1.9 GBT276-6306 Bearing 2
1.10 FT304.42.117 Bearing Cover 1
1.11 GBT93-8-AOP Washer 8
1.12 GBT5783-M8X20-A2L Bolt 8
1.13 GBT3452.1-17.0X1.80G O-Ring 2
1.14 TB554.421E.1.1 Revolving Shaft Weldment 1
1.15 TB554.423B-02 Revolving Shaft Spacing Sleeve 1
1.16 TB554.421E.1-05 Side Cover 1
1.17 GBT93-10-A0P Washer 4
1.18 GBT5782-M10X45-A3L Bolt 4
1.19 TB554.421E.1-04 Shift Fork Shaft 1
1.20 GBT879.1-6X30 Column Pin 1
1.21 GBT879.1-3.5X30 Column Pin 1
1.22 GBT308-10-G100-b Steel Ball 1
1.23 FT800.37.139 Spring 1
1.24 TB554.421E.1-06 Release Shift Fork 1
1.25 JBT982-18 Washer 2
1.26 FT804.42.110 Screw Plug 2
1.27 FT304.42F.105 Transfer Case Output Shaft 1
1.28 TB554.421E.1-03 Transfer Case Driven Gear 1
1.29 GBT9877.1-FB30X52X7D Oil Seal 1
1.30 FT304.42F.106 Bearing Seat 1

2 GBT3452.1-132X3.55G O-ring 1
3 GBT93-10-A0P Washer 4
4 GBT5783-M10X30-8.8-A3L Bolt 4
5 GBT119.1-10m6X20-A0P Pin 2

TB454.422 Transfer Case Transmission Assembly 1
1 GBT93-8-AOP Washer 11
2 GBT5783-M8X16-A2L Bolt 3
3 FT304.42F.015 Shield (1) Weldment 1
4 GBT93-10-A0P Washer 4
5 GBT5783-M10X20-A3L Bolt 4
6 GBT3452.1-34.5X3.55G O-Ring 2
7 GBT879.1-6X35 Pin 2
8 FT304.42.107a Spline Sleeve 2
9 FT404.42.128 Rear Transmission Shaft 1
10 GBT894.1-26 Circlip 2
11 FT304.42X.017 Shield (2) Weldment 2
12 GBT5783-M8X20-A2L Bolt 8
13 TB554.422.1 Middle Bearing Seat Assembly 1
13.1 GBT893.2-72 Circlip 1
13.2 FT304.42X.136 Spacing Ring 1
13.3 GBT276-6007-2RZ Bearing 1
13.4 FT304.42X.137 Rubber Ring 1
13.5 FT304.42X.138 Middle Bearing Seat 1
13.6 GBT119.1-8m6X20-AOP Pin 2
13.7 FT304.42X.135 Middle Spline Sleeve 1
14 GBT93-12-AOP Washer 2
15 GBT5783-M12X40-A3L Bolt 2
16 FT404.42.139 Front Transmission Shaft 1
17 FT404.42.016 Shield (3) Weldment 1

ts04423010000k Transfer Case Control Assembly 1
1 GBT879.1-5X32 Elastic Cylindrical Pin 1
2 GBT879.1-8X32 Elastic Cylindrical Pin 1
3 GBT95-24-A0P Plain Washer 1
4 GBT882-B10X30-A0P Pin Shaft 2
5 FT300.43.108 Pull Rod Front Fork 2
6 GBT6170-M10-8-A3L Hexagon Nut, Style 1 3
7 TS04423010002K Pull Rod 1
8 GBT97.1-10-A0P Plain Washer 2
9 GBT91-3.2X16-A0P Cotter Pin 2
10 TS04423010003 Support Seat Press 1
11 TS04423010001K Transfer Case Control Handle 1
12 GBT894.1-22 Circlip For Shaft 2
13 TS04423010003K Control Rotary Shaft Weldment 1
14 GBT823-M6X12-4.8-A2L Cross Recessed Small Pan Head Screw 2
15 TS04423010013 Press Plate 1
16 TS04423010012 Seal Gasket 1
17 GBT93-8-A0P Standard Spring Washer 4
18 GBT6170-M8-8-A2L Hexagon Nut, Style 1 4
19 TS04423010005 Rocker Arm Weldment 1
20 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 4
