Description

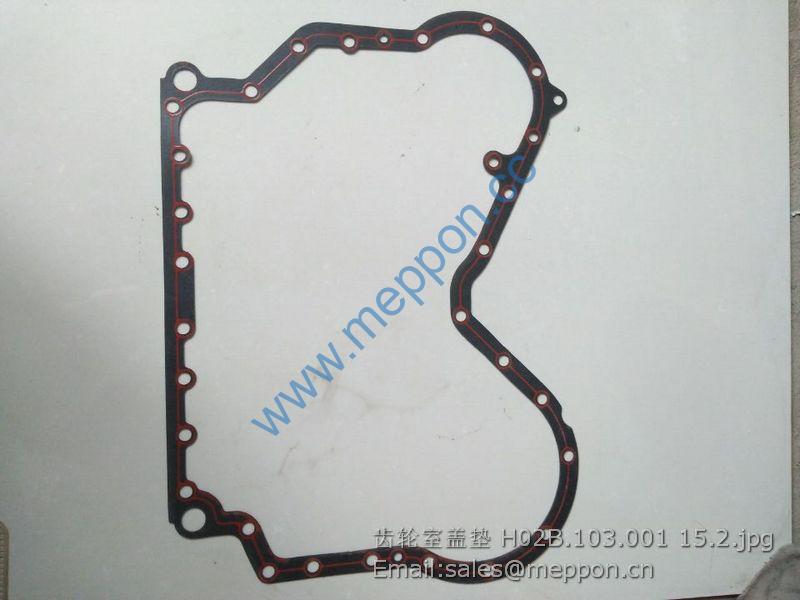

H02B.103.001 QUANCHAI GASKET
TB454.422 Transfer case transmission assembly 1
1 GBT 93-8-AOP Washer 11
2 GBT 5783-M8X16-A2L Bolt 3
3 FT304.42F.015 Shield (1) weldment 1
4 GBT 93-10-A0P Washer 4
5 GBT 5783-M10X20-A3L Bolt 4
6 GBT 3452.1-34.5X3.55G O-ring 2
7 GBT 879.1-6X35 Pin 2
8 FT304.42.107a Spline sleeve 2
9 FT404.42.128 Rear transmission shaft 1
10 GBT 894.1-26 Circlip 2
11 FT304.42X.017 Shield (2) weldment 2
12 GBT 5783-M8X20-A2L Bolt 8
13 TB554.422.1 Middle bearing seat assembly 1
13.1 GBT 893.2-72 Circlip 1
13.2 FT304.42X.136 Spacing ring 1
13.3 GBT 276-6007-2RZ Bearing 1
13.4 FT304.42X.137 Rubber ring 1
13.5 FT304.42X.138 Middle bearing seat 1
13.6 GBT 119.1-8m6X20-AOP Pin 2
13.7 FT304.42X.135 Middle spline sleeve 1
14 GBT 93-12-AOP Washer 2
15 GBT 5783-M12X40-A3L Bolt 2
16 FT404.42.139 Front transmission shaft 1
17 FT404.42.016 Shield (3) weldment 1
TB554.423C Transfer case control assembly 1
1 FT65.38.051 Pull and press handle 1
2 GBT 6170-M10-A3L Nut 1
3 TG1204.435.2 Seal lining seat assembly 1
3.1 GBT 818-M6X14-A2L Screw 2
3.2 TG1204.435.2-01 Spherical shaft lining seat 2
3.3 TG1204.435.2-02 Spherical shaft lining 1
3.4 GBT 93-6-A0P Washer 2
3.5 GBT 6170-M6-A2L Nut 2
4 TB554.423B.3 Control lever unit 1
5 GBT 882-B10X30 Shaft pin 1
6 GBT 97.1-10-A0P Washer 1
7 GBT 91-3.2X16-A0P Pin 1
8 GBT 879.1-5X32 Pin 1
9 GBT 879.1-8X32 Pin 1
10 TB554.423C-01 Rocker arm 1
TC02311020000 Front driving axle assembly 1
1 TC02311020001 Front driving axle subassembly 1
2 FT400.31B.103 Washer 12
3 GBT6176-M14X1.5-10-A3L Hexagon nut, style 2 12
4 GBT93-14-A0P Standard spring washer 8
5 GBT5783-M14X45-10.9-A3L Hexagon head bolt 8
TC02311020000 Front driving axle assembly
TC02311020001 Front driving axle subassembly
1 TC02311020013 Right side final transmission assembly
2 TC02311010012 Adjusting gasket
3 GBT119.1-12m6X22-A0P Column pin
4 GBT93-12-A0P Standard spring washer
5 GBT5783-M12X40-10.9-A3L Hexagon head bolt
6 GBT6170-M12-10-A3L Hexagon nut, style 1
7 TC02311020003 Right transmission assembly
8 GBT899-GM12-M12X40-10.9-A3L Double-ended stud
9 TC02311010009 Rear support frame assembly
9.1 TC02311010071 Rear support frame
9.2 GBT3452.1-45X3.55G O-ring sealant used for hydraulic or pneumatic parts
9.3 TC02311010072 Sliding bearing
9.4 JBT7940.1-M10X1 Straight hydraulic grease nozzle
9.5 TD800.311C.1-01 Oil cup dustproof cap
10 TC02311010017 Copper pad
11 GBT3452.1-97.5X3.55G O-ring sealant used for hydraulic or pneumatic parts
12 TC02311010002 Main reducer assembly
13 TC02311020010 Right half axle
14 GBT3452.1-48.7X2.65G O-ring sealant used for hydraulic or pneumatic parts
15 TC02311010008 Front support frame assembly
15.1 TC02311010066 Sliding bearing
15.2 TC02311010067 Gasket
15.3 TC02311010065 Front support frame
15.4 TC02311010068 Seal gasket
15.5 GBT6170-M16-8-A3L Hexagon nut, style 1
15.6 GBT5783-M16X50-8.8-A3L Hexagon head bolt
15.7 JBT7940.1-M10X1 Straight hydraulic grease nozzle
15.8 TD800.311C.1-01 Oil cup dustproof cap
16 GBT3452.1-136X3.55G O-ring sealant used for hydraulic or pneumatic parts
17 TC02311010081 Adjusting gasket
18 TC02311020009 Left half axle
19 TC02311020002 Left side transmission assembly
20 TC02311020012 Left side final transmission assembly
TC02311020000 Front driving axle assembly 1
TC02311020001 Front driving axle subassembly 1
1 TC02311020007 Steering cylinder assembly 1
1.1 GBT91-3.2X40-AOP Split pin 2
1.2 TC02311010075 Hexagon slotted nut 2
1.3 TC02311020011 Right steering link 1
1.4 GBT6173-M22X15-05-A3L Hexagon thin nut 2
1.5 TC02311010077 Connecting ball head 2
1.6 TC02311010084 Steering cylinder 1
1.7 TC02311020008 Left steering link 1
2 TC02311010085 Cylinder bracket 2
3 GBT93-12-A0P Standard spring washer 4
4 GBT5783-M12X35-10.9-A3L Hexagon head bolt 4
5 GBT75-M8X35-14H-A2L Slotted set screws with long dog point 2
6 GBT93-8-A0P Standard spring washer 10
7 GBT6170-M8-8-A2L Hexagon nut, style 1 2
8 GBT5783-M8X16-8.8-A2L Hexagon head bolt 8
9 TC02311010015 Shield 2
