Description

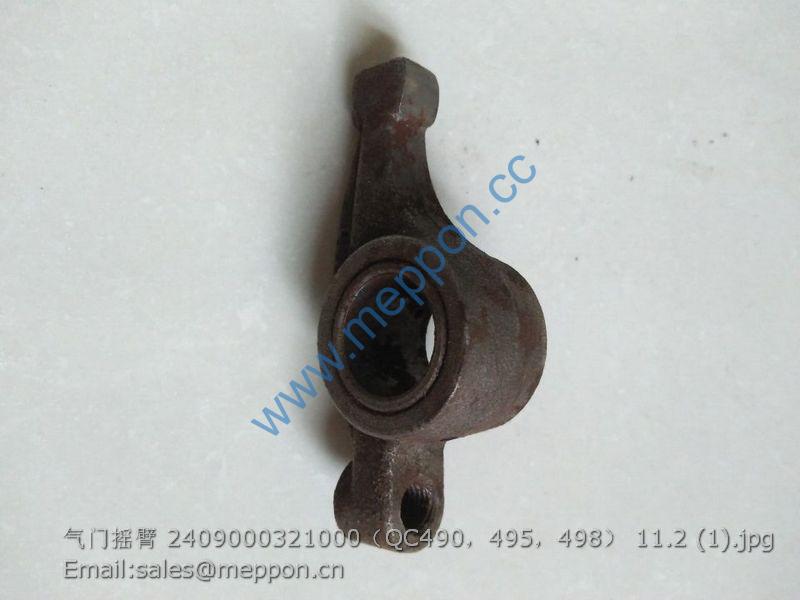

2409000321000 QC490 QC495 ROCKER ARM

1 KM385BT-1F-1 10.1-机体总成 CYLINDER BLOCK 1
2 KM385BT-1F-10 10.10-冷却系统总成-10 COOLING SYSTEM ASSY 5
3 KM385BT-1F-11 10.11-进气系统总成-11 INTAKE MANIFOLD ASSY 9
4 KM385BT-1F-12 10.12-排气管总成-12 EXHAUST MANIFOLD ASSY 11
5 KM385BT-1F-13 10.13-润滑系统总成-13 LUBRICATING SYSTEM ASSY 13
6 KM385BT-1F-14 10.14-燃油系统总成-14 FUEL SYSTEM ASSY 15
7 KM385BT-1F-15 10.15-电器系统总成 FUEL SYSTEM ASSY 17
8 KM385BT-1F-2 10.2-机体总成（2） ENGINE BLOCK ASSY (TWO) 19
9 KM385BT-1F-3 10.3-机体总成（3） ENGINE BLOCK ASSY（3） 21
10 KM385BT-1F-4 10.4-机体总成（4） ENGINE BLOCK ASSY（FOUR） 23
11 KM385BT-1F-5 10.5-机体总成（5） ENGINE BLOCK ASSY（FIVE） 25
12 KM385BT-1F-6 10.6-凸轮轴总成 CAMSHAFT ASSY 29
13 KM385BT-1F-7 10.7-气缸盖总成 CYLINDER HEAD ASSY 31
14 KM385BT-1F-8 10.8-活塞连杆总成 PISTON CONNECTING ROD ASSEMBLY 35
15 KM385BT-1F-9 10.9-曲轴飞轮总成 CRANKSHAFT FLYWHEEL ASSEMBLY 37
16 TE250.11A 11-空气滤清系总成 11-AIR CLEANER ASSEMBLY 39
17 TE250.13B 13-冷却系总成 13-COOLING SYSTEM ASSEMBLY 41
18 TE254.20-1 20.1-发动机操纵机构总成-1 20.1ENGINE CONTROL MECHANISM ASSEMLBY-1 43
19 TE254.20-2 20.2-发动机操纵机构总成-2 20.2ENGINE CONTROL MECHANISM ASSEMLBY-2 45
20 TE250.211 21.1-离合器分总成 21.1-CLUTCH SUBASSEMBLY 49
21 TE250.212B 21.2-离合器操纵总成 21.2-CLUTCH CONTROL ASSEMBLY 51
22 FT250.21B.011 21离合器分总成 21CLUTCH SUBASSEMBLY 53
23 TE250.22 22-排气系总成 22-EXHAUST SYSTEM ASSEMBLY 57
24 TE254.311J-1 31.1-前驱动桥总成-1 FRONT DRIVING AXLE ASSEMBLY-1 59
25 TL01312010000 31.2-托架总成 31.2-BRACKET ASSEMBLY 63

26 TE254.311J-2.1 31.2.1-前驱动桥总成-2.1 FRONT DRIVING AXLE ASSEMBLY-2.1 65
27 TE254.311J-2.2 31.2.2-前驱动桥总成-2.2 FRONT DRIVING AXLE ASSEMBLY-2.2 69
28 TE254.313G 31.3-前支撑座总成 31.3-FRONT SUPPORT SEAT ASSEMBLY 73
29 TE254.311J-3.1 31.3.1-前驱动桥总成-3.1 FRONT DRIVING AXLE ASSEMBLY-3.1 75
30 TE254.311J-3.2 31.3.2-前驱动桥总成-3.2 FRONT DRIVING AXLE ASSEMBLY-3.2 79
31 TE254.314G 31.4-后支撑座总成 31.4-REAR SUPPORTING SEAT ASSEMBLY 81
32 TE254.311J-4.1 31.4.1-前驱动桥总成-4.1 FRONT DRIVING AXLE ASSEMBLY-4.1 83
33 TE254.311J-4.2 31.4.2-前驱动桥总成-4.2 FRONT DRIVING AXLE ASSEMBLY-4.2 87
34 TE254.311J-5 31.5-前驱动桥总成-5 FRONT DRIVING AXLE ASSEMBLY-5 91
35 TE254.311J-6 31.6-前驱动桥总成-6 FRONT DRIVING AXLE ASSEMBLY-6 95
36 TE284.32F 32-前驱动轮总成 32-FRONT DRIVING WHEEL ASSEMBLY 99
37 FT250.34F.001 34-后驱动轮总成 34-REAR DRIVE WHEEL ASSEMBLY 101
38 TE254.361F-1 36.1-梭行档总成-1 SHUTTLE SHIFT ASSEMBLY-1 103
39 TE250.362F 36.2-梭式换档操纵机构总成 36.2-SHUTTLE SHIFT CONTROL MECHANISM 107
40 TE254.361F-2 36.2-梭行档总成-2 SHUTTLE SHIFT ASSEMBLY-2 111
41 FT250.37.028 37-右半轴总成 37-RIGHT HALF SHAFT ASSEMBLY 115
42 FT250.37.029 37-左半轴总成 37-LEFT HALF SHAFT ASSEMBLY 117
43 TE250.371B-1 37.1.1-传动箱总成-1 37.1TRANSMISSION ASSEMBLY-1 119
44 TE250.371B-2 37.1.2-传动箱总成-2 37.1TRANSMISSION ASSEMBLY-2 123
45 TE250.372B-1 37.2.1-传动箱后中央总成-1 TRANSMISSION REAR CENTER ASSEMBLY-1 127
46 TE250.372B-2 37.2.2-传动箱后中央总成-2 TRANSMISSION REAR CENTER ASSEMBLY-2 131
47 TE250.373B-1 37.3.1-传动箱操纵机构总成-1 TRANSMISSION CONTROL MECHANISM ASSEMBLY-1 135
48 TE250.373B-2 37.3.2-传动箱操纵机构总成-2 TRANSMISSION CONTROL MECHANISM ASSEMBLY-2 137
49 TE250.373B-3 37.3.3-传动箱操纵机构总成-3 TRANSMISSION CONTROL MECHANISM ASSEMBLY-3 141
50 TE254.402D-1 40.2.1-转向管路总成-1 STEERING PIPE ASSEMBLY-1 143

51 TE254.402D-2 40.2.2-转向管路总成-2 STEERING PIPE ASSEMBLY-2 147
52 TE250.403B 40.3-转向管柱总成 40.3-STEERING PIPE COLUMN ASSEMBLY 149
53 TE250.411B 41.1-动力输出轴总成 41.1-PTO SHAFT ASSEMBLY 151
54 TE250.412B 41.2-动力输出齿轮总成 41.2-PTO GEAR ASSEMBLY 153
55 TE250.413B 41.3-动力输出操纵机构总成 41.3-PTO CONTROL MECHANISM ASSEMBLY 155
56 TE254.421B 42.1-分动箱总成 42.1-TRANSFER CASE ASSEMBLY 159
57 TE254.422A 42.2-分动箱传动轴总成 42.2-TRANSFER CASE TRANSMISSION SHAFT 163
58 TE254.423A 42.3-分动箱操纵总成 42.3-TRANSFER CASE CONTROL ASSEMBLY 165
59 FT250.43.001-2 43.2-制动器及操纵机构-2 43BRAKE AND CONTROL MECHANISM-2 169
60 FT250.43.001-1 43制动器及操纵机构 43BRAKE AND CONTROL MECHANISM 173
61 FT250.44B.001 44-座椅总成 44-SEAT ASSEMBLY 175
62 TE250.45E 45-地板装配总成 45-FLOOR INSTALLATION ASSEMBLY 177
63 TE250.471D 47.1-机罩装配总成 47.1-BONNET INSTALLATION ASSEMBLY 179
64 TE250.472A 47.2-仪表台装配总成 47.2-DASHBOARD INSTALLATION ASSEMBLY 183
65 TE250.475A 47.5-龙门架安装总成 47.5-PORTAL FRAME INSTALLATION ASSEMBLY 185
66 TE250.476 47.6-气弹簧安装总成 47.6-PNEUMATIC SPRING INSTALLATION ASSEMBLY 187
67 TE250.477 47.7-机罩锁装配总成 47.7-BONNET LOCK INSTALLATION ASSEMBLY 189
68 TE250.481 48.1-发动机线束安装总成 48.1-ENGINE HARNESS INSTALLATION ASSEMBLY 191
69 TE250.483 48.3-前灯线束安装总成 48.3-FRONT LAMP HARNESS INSTALLATION 193
70 TE300.485B 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY 195
71 TE250.485C 48.5-蓄电池安装总成 48.5-BATTERY INSTALLATION ASSEMBLY 197
72 FT250.49.001 49-工具箱安装总成 49-TOOL BOX INSTALLATION ASSEMBLY 199
73 TE300.50E 50-燃油箱总成 201
74 TE250.53B 53-拖挂装置装配总成 53-TOW EQUIPMENT INSTALLATION ASSEMBLY 203
75 TE250.55-1 55.1-提升器装配总成-1 LIFTER INSTALLATION ASSEMBLY-7-1 205

76 TE250.55-2 55.2-提升器装配总成-2 LIFTER INSTALLATION ASSEMBLY-7-2 213
77 FT250.56.001-1 56.1-悬挂机构总成-1 SUSPENSION MECHANISM ASSEMBLY-1 217
78 FT250.56.001-2 56.2-悬挂机构总成-2 SUSPENSION MECHANISM ASSEMBLY-2 221
79 FT250.57.001 57-分配器总成 225
80 TE250.58A 58-液压输出管路总成 58-HYDRAULIC OUTPUT PIPE ASSEMBLY 229
81 TE254.581F 58.1-油泵油管总成 58.1-OIL PUMP PIPE ASSEMBLY 231
82 TE254.582F 58.2-滤油器油管总成 58.2-OIL FILTER PIPE ASSEMBLY 233
83 FT250.74.001 74-前配重总成 74-FRONT BALLAST ASSEMBLY 235
84 FT250.91B.001 91-后配重总成 91-REAR BALLAST ASSEMBLY 237
85 TL01482090000K 车身线束安装总成 BODY HARNESS INSTALLATION ASSEMBLY 239
