Description

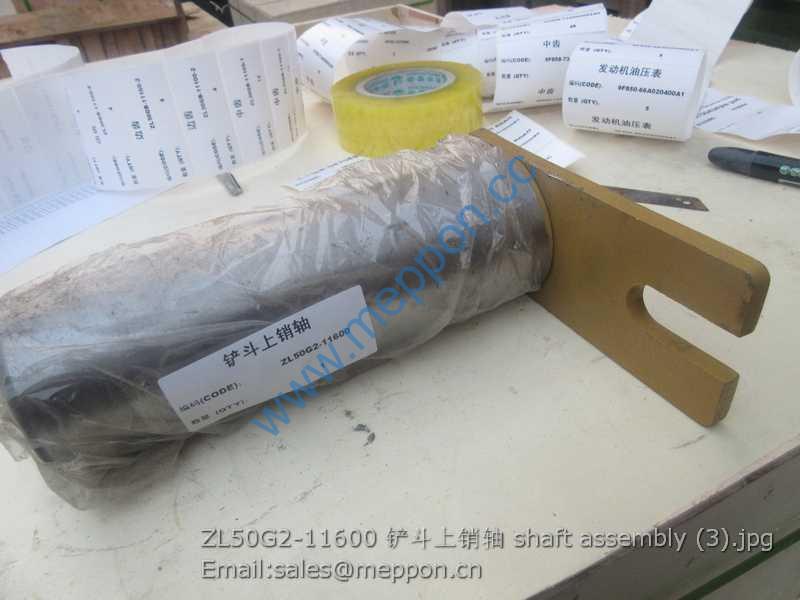

ZL50G2-11600 SHANTUI shaft assembly

Y221-83A-010040 O 形圈 O-RING 8
2 Y221-83C-090000 软管 HOSE 1
3 Y221-83A-010050 法兰 FLANGE 8
4 07372-21035 螺栓 M10 x 35 BOLT 32
5 Y221-83C-080000 软管 HOSE 1
6 01643-51232 垫圈 12 WASHER 32
7 07002-12434 O 形圈 O-RING 1
8 Y221-83A-020010 接头 JOINT 1
9 Y221-83A-020020 管夹 CLIP 2
10 Y221-85A-000020 缓冲套 CUSHION COVER 1
11 01010-51230 螺栓 M12 x 30 BOLT 4
12 01643-51232 垫圈 12 WASHER 4
13 Y221-83A-025000 软管 HOSE 1
14 Y221-83A-024000 软管 HOSE 1
15 21Y-83-00005 法兰 FLANGE 8

Y221-87C-030000 接头 JOINT 2
2 Y221-81A-020000 接头 JOINT 2
3 Y221-81A-030000 弯接头 JOINT 2
4 Y221-83A-010050 法兰 FLANGE 16
5 Y221-83A-010040 O 形圈 O-RING 8
6 07372-21035 螺栓 M10 x 35 BOLT 16
7 01643-51032 垫圈 10 WASHER 16
8 Y221-87A-000020 护套 GROMMET 2
9 Y220-87A-030000 软管 HOSE 2
10 Y221-83A-031000 三通接头 TEE JOINT 1
11 Y220-87A-040001 软管 HOSE 2
12 Y220-87A-020001 软管 HOSE 2
13 Y221-87A-030000 三通接头 TEE JOINT 1
14 Y220-87A-010000 软管 HOSE 2
15 Y221-87A-090000 罩 COVER 2
16 08034-00536 箍带 BAND 8
17 Y221-87A-080000 罩 COVER 6
18 Y221-84A-046000 接头 JOINT 1
19 Y221-83A-032000 接头 JOINT 1
20 Y221-87A-020000 接头 JOINT 4

07000-12011 O 形圈 O-RING 3
2 Y221-81A-020000 接头 JOINT 3
3 Y221-82A-020000 三通接头 TEE JOINT 3
4 07401-002A9 软管 HOSE 1
5 Y221-81A-030000 弯管接头 JOINT 2
6 Y221-83A-021000 软管 HOSE 1
7 Y221-83A-031000 接头 JOINT 1
8 Y221-83A-039000 软管 HOSE 1
9 Y223-83A-031000 接头 JOINT 1
10 Y221-83A-010020 法兰 FLANGE 4
11 07372-21035 螺栓 M10 x 35 BOLT 16
12 13Y-84A-00005L 接头 JOINT 2
13 21Y-83-08000D 胶管 HOSE 8
14 13Y-84A-16000L 弯接头 JOINT 1
15 07400-00216 软管 HOSE 1
16 07000-13029 O 形圈 O-RING 2
17 Y221-83A-010040 O 形圈 O-RING 2
18 Y220-83A-020000 软管 HOSE 1
19 Y220-83A-010000 软管 HOSE 1
20 21Y-83-00005 法兰 FLANGE 4
21 Y221-83A-020010 接头 JOINT 1
22 07002-12434 O 形圈 O-RING 1
23 01643-51032 垫圈 WASHER 16
24 Y221-83A-010010 O 形圈 O-RING 2
