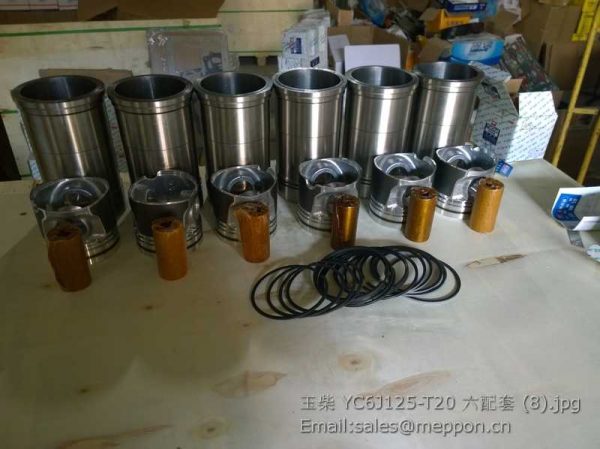

YC6J125-T20 YUCHAI PISTON GROUP

Y233-33A-300110 把手 GRIP 1
2 01023-10820 十字螺钉 SCREW 2
3 01252-80610 内六角螺钉 SCREW 2
4 01252-80812 螺钉 SCREW 7
5 01641-20812 垫圈 8 WASHER 7
6 Y233-33A-300000-11 盖板 PLATE 1
7 01252-80812- 螺钉 SCREW 3
8 Y233-33A-300000-12 门锁总成 DOOR ASS’Y 1
9 Y233-33A-300000-13 门锁开关 LOCK 1
10 01252-80516 螺栓 BLOT 3
11 Y233-33A-300000-14 门锁把手总成 DOOR GRIP ASS’Y 1
12 Y233-33A-300000-15 锁紧总成 LOCK ASS’Y 1
13 Y233-33A-300120 玻璃 GLASS 1
14 Y233-33A-300130 锁杆 SNAP 1
15 Y233-33A-300000-16 密封 SEAL 1
16 Y233-33A-300000-17 玻璃 GLASS 1
17 01580-11008 螺母 NUT 2
18 Y233-33A-300000-18 盖 COVER 2
19 01016-51025 螺栓 BOLT 6
20 Y233-33A-300000-19 铰链 HING 2
21 01641-21016 垫圈 10 WASNER 6
22 Y233-33A-300000-20 密封 SEAL 1
23 Y233-33A-300000-21 玻璃 GLASS 1

21Y-34-30000 行走控制阀 FOOT VALVE 1
2 01010-81030 螺栓 M10 x 30 BOLT 4
3 01642-21016 垫圈 10 WASHER 4
4 13Y-34A-00002 手柄(右) HANDLE(R.H.) 1
5 01602-21030 垫圈 10 WASHER 4
6 01252-71016 螺钉 M10 x 16 BOLT 4
7 21Y-34-10000 左操纵杆 CONTROL LEVER(L.H.) 1
8 21Y-34-20000 右操纵杆 CONTROL LEVER(R.H.) 1
9 01235-40410 螺钉 M4 x 10 BOLT 2
10 13Y-34A-00001 手柄(左) HANDLE(L.H.) 1

Y233-37A-020001 座椅 SEAT 1
2 01016-50825 螺栓 M8 x 25 BOLT 4
3 Y233-37A-010080 支架拉杆 BAR 1
4 Y233-37A-013000 支架滑道 SLIDEWAY 1
5 Y233-37A-010050 支架外壳 FRAME 1
6 Y233-37A-011000 座椅支架 FRAME 1
7 01252-41025 螺钉 M10 x 25 BOLT 6
8 01643-31032 垫圈 WASHER 6
9 Y233-37A-010060 抽屉滑道 PATH 1
10 01023-20616 十字螺钉 SCREW 4
11 Y233-37A-014000 盖板 PLATE 1
12 01252-50820 内六角螺钉 SCREW 12
13 Y233-37A-010010 支架拉杆 BAR 1
14 01643-30823 垫圈 8 WASHER 4
15 Y233-37A-010040 后盖板 PLATE 2
16 Y233-37A-020000-01 文件袋 DOCUMENT BAG 1
17 Y233-37A-020000-02 体重调节把手
WEIGHT ADJUSTMENT
HANDLE
1
18 Y233-37A-020000-03 座椅拉杆
FORE AND AFTER
ADJUSTMENT
HANDLE
1
19 Y233-37A-010030 抽屉 DRAWER 1
20 Y233-37A-010020 支架滑道 SLIDEWAY 1
21 Y233-37A-010070 垫圈 WASHER 4
22 Y233-37A-012000 支架滑道 SLIDEWAY 1
23 01252-71025 螺钉 M10X25 BOLT 1
24 01641-21016 垫圈 10 WASHER 1
25 01252-70820 螺钉 M8X20 BOLT 4
26 01580-10806 螺母 M8 NUT 4
27 01023-20620 螺钉 M6X20 BOLT 4
28 01643-30623 垫圈 6 WASHER 4

01010-81025 螺栓 M10 x 25 BOLT 15
2 01643-31032 垫圈 WASHER 10
3 Y246-38A-100000 蒸发器总成 EVAPORIMETER 1
4 01235-40512 螺钉 M5x 12 BOLT 4
5 Y246-38A-000040 控制面板 CONTROL UNIT 1
6 07281-00229 喉箍 CLAMP 4
7 Y246-38A-000010 接头 JUNCTION 1
8 08035-03010 线夹 CLIP 5
9 Y221-38A-010000 压缩机安装 COMPRESSOR’SET UP 1
10 Y221-38A-020001 压-冷软管 HOSE 1
11 Y221-38A-030001 压-蒸软管 HOSE 1
12 Y221-38A-070000 冷凝器支架
CONDENSATOR
BRACKET
2
13 01016-50616 螺栓 M6 x 16 BOLT 2
14 01643-30623 垫圈 6 WASHER 2
15 Y246-38A-090000 冷凝器 CONDENSATOR 1
16 Y221-38A-040001 冷-储软管 HOSE 1
17 Y246-38A-070000 储液罐 LIQID STORAGE TANK 1
18 Y221-38A-050000 软管（储液罐-蒸发器） HOSE 1
19 Y221-38A-060001 热水管 HOT HOSE 1
20 01010-80835 螺栓 M8 x 35 BOLT 4
21 01643-30823 垫圈 8 WASHER 4
22 Y221-38A-000010 接头 JOINT 1
23 Y221-38A-000000-1 橡胶垫 RUBBER PAD 1
24 Y221-38A-080001 热水管 HOT HOSE 1
25 Y221-38A-100000 过孔盖板 PLATE 1
