Description

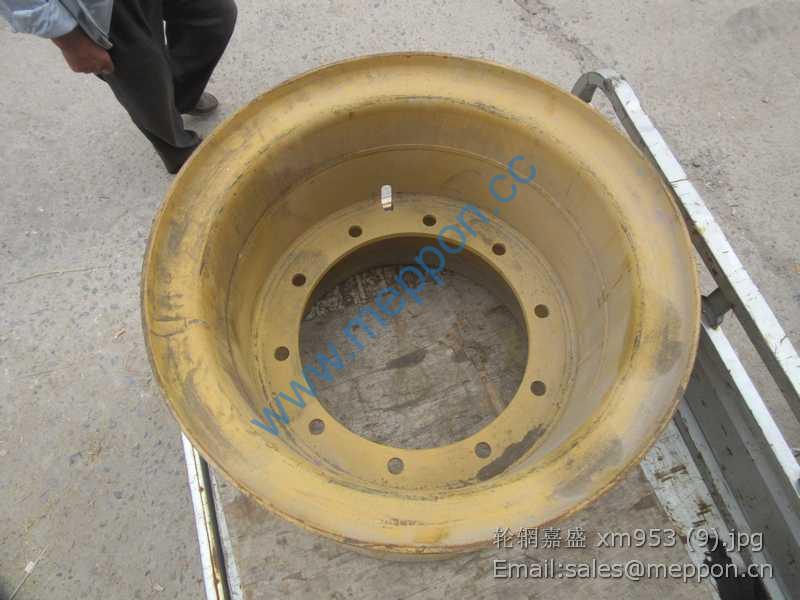

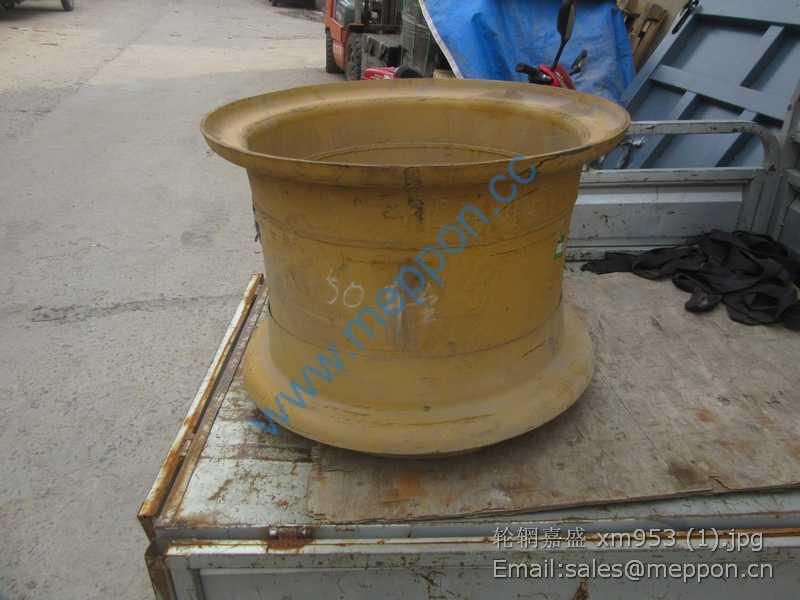

XM953 XG951 XG953 WHEEL RIM

前排气歧管 Exhaust manifold VG2600111290
后排气歧管 Exhaust manifold VG2600110855
前隔热罩 Insulation cover VG2600111144 1
后隔热罩 Insulation cover VG2600111145 1
隔热罩螺栓 Bolt VG260110683 8
隔热罩螺栓 Bolt VG260110962 6
排气管密封环 Seal ring VG260110162 4
排气管垫片 Gasket VG1560110111 6
排气管紧固螺栓 Bolt VG1560110104 11
排气管紧固螺栓 Bolt VG1560110105 1
止推垫圈 gasket VG609070067 1
支架 Support HG99974200
六角头螺栓 Bolt VG1560110241 4
废气涡轮增压器 Turbo charger VG1560118227/1 1
增压器密封垫 Gasket VG1560110210 1
双头螺柱 Stud VG1560110187 6
自锁螺母 Self-locking nut 90003888470 6
增压器进油管 Hose VG1560070001 1
进油管法兰 Flange VG1560110152 1
进油管垫片 Gasket VG609E110050 1
内六角圆柱头螺钉 Bolt 90003862428 2
自锁垫圈 Retaining ring VG188250083 4
增压器回油管 Oil return tube assembly VG1560079361 1
回油管法兰垫片 Gasket VG2600110048 1
回油管螺栓 Bolt VG1460070014 2

软管卡箍 Clamp 90003989340 2
增压器回油用软管 Hose VG2600070071 1
大垫圈 Washer 90003936109 14

水冷单缸空压机总成 Air compressor assembly HG1560139099 1
传动轴 Drive shaft VG2600130122 1
滚柱轴承 Roller bearing 90003320154 1
双列径向止推滚柱轴承 Ball bearing 161500080158J 2
衬套 Bush VG2600130047 1
挡油盘 Bearing shield VG2600130073 1
夹紧螺母 Compression nut VG2600130046 1
压紧块 Pressure ring VG2600130123 1
盖 Cover VG1500080165 1
六角头螺栓 Hex head bolt 90003802432 4
空压机齿轮 Air compressor gear VG1560130012 1
六角螺母 Hexagon nut VG2600130001 1
支撑环 Flat washer VG609070161 1
空压机传动轴油封 Oil seal VG0003070092 1
油封座 Oil seal carrier VG1500130097 1
六角头螺栓 Hex head bolt 90003802415 4
密封圈 Sealing ring VG192320002 1
喷油泵齿轮 Injection pump gear VG1560130064 1
垫片 Washer VG409020045 1
六角螺母 Hexagon nut VG2600130045 1
水冷空压机水管接头 Pipe connection VG2600130026 1
密封垫圈 Sealing ring 90003098014 1
带纤维夹层橡胶软管 Hose VG2600130027 1
软管卡箍 Hose clamp 90003989336 4
带纤维夹层橡胶软管 Hose VG2600130024

带纤维夹层橡胶软管 Hose VG2600130025 1
六角头螺栓 Hex head bolt 90003802419 7
六角头螺栓 Hex head bolt 90003800458 1
六角头螺栓 Hex head bolt Q150B0865 1
六角头螺栓 Hex head bolt 90003800569 2
六角头螺栓 Hex head bolt 90003802561 1
波形弹簧垫圈 Wave spring washer 90003932023 17
波形弹簧垫圈 Wave spring washer 90003931122 3
