Description

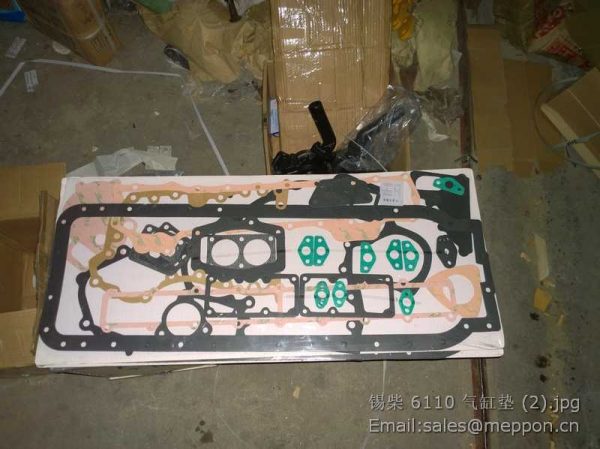

XICHAI CA6110 REPAIR KITS

Y233-33A-300000 驾驶室 CAB 1
2 01643-32060 垫圈 20 WASHER 4
3 01580-12016 螺母 M20 NUT 4
4 01016-51245 螺栓 M12 x 45 BOLT 10
5 01643-31232 垫圈 12 WASHER 10

Y233-33A-100010 底板 FLOOR FRAME 1
2 01643-32060 垫圈 20 WASHER 6
3 01580-12016 螺母 M20 NUT 6
4 Y233-33A-100020 垫板 PLATE 6
5 01144-52040 螺柱 BLOT 6
6 Y233-33A-600000 减震器 CUSHION 3
7 01016-51035 螺栓 M10 x 35 BOLT 24
8 01643-51032 垫圈 10 WASHER 24
9 Y233-33A-500000 减震器 CUSHION 3

Y233-33A-300000-01 右侧锁紧总成 LOCK ASS’Y 1
2 Y233-33A-300010 玻璃 GLASS 1
3 Y233-33A-300020 玻璃 GLASS 1
4 01252-50610- 内六角螺钉 SCREW 2
5 Y233-33A-300000-02 遮板 PLATE 1
6 Y233-33A-300000 驾驶室 CAB 1
7 01252-50610 内六角螺钉 SCREW 4
8 Y233-33A-300030 把手 GRIP 1
9 Y233-33A-300040 把手 GRIP 1
10 01250-51025 内六角螺钉 SCREW 3
11 01252-50812 内六角螺钉 SCREW 3
12 Y233-33A-300050 挡板 PLATE 1
13 Y233-33A-300000-03 密封 SEAL 1
14 01016-50812 螺栓 M8 x 12 BOLT 2
15 Y233-33A-300000-04 左侧锁紧总成 LOCK ASS’Y 1
16 Y233-33A-300000-05 室外灯 LIGHT 2
17 01023-20610 螺钉 M6 x 10 SCREW 4

Y233-33A-300090 玻璃 GLASS 1
2 Y233-33A-300000-06 车顶 ROOF 1
3 Y233-33A-300000-07 锁紧总成 LOCK ASS’Y 1
4 Y233-33A-300100 把手 GRIP 1
5 01023-10610 螺钉 M6 x 10 BOLT 6
6 Y233-33A-300000-08 铰链总成 HINGE 2
7 Y233-33A-300000-10 气弹簧总成 GAS SPRING ASS’Y 2
8 Y233-33A-300000-09 密封 SEAL 1

Y233-33A-300080 玻璃 GLASS 1
2 Y233-33A-300060 玻璃 GLASS 1
3 Y233-33A-300070 玻璃 GLASS 1
