Description

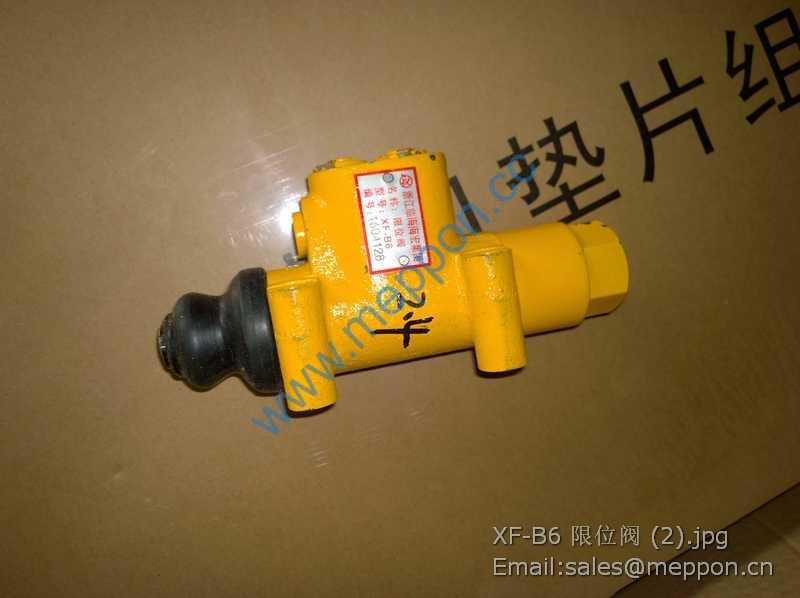

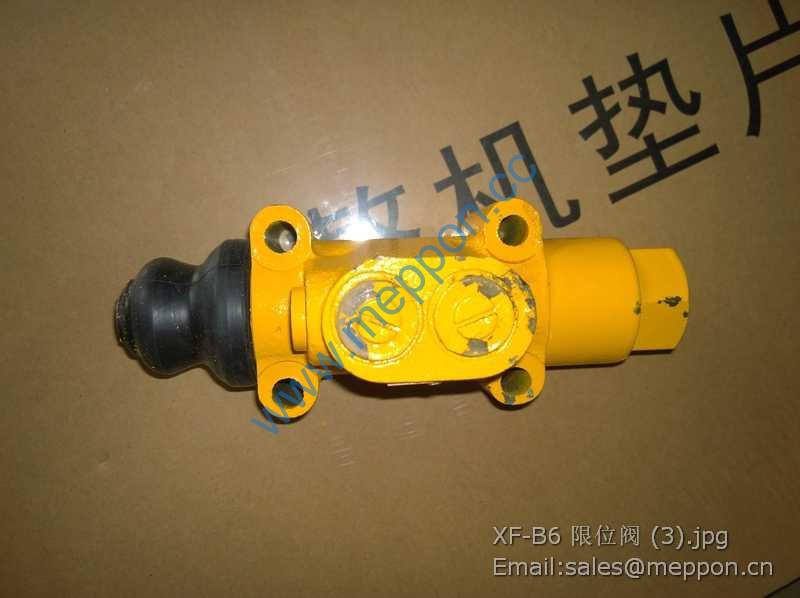

XF-B6 xcmg valve 803004042 5000399 2080900199

1 04050-13216 销 PIN 1
2 04205-11028 销 PIN 1
3 J221-38A-050020 双向螺母 NUT 1
4 01582-11210 螺母 NUT 1
5 J221-38A-050040 限位套 LIMIT COVER 1
6 J221-38A-050030 限位栓 BOLT 1
7 J221-38A-050050 限位套 LIMIT COVER 1
8 J221-38A-050060 销轴 PIN 1
9 J213-38A-091000 压缩机 COMPRESSOR 1
10 01580-11008 螺母 NUT 1
11 01643-31032 垫圈 WASHER 5
12 J221-38A-050080 限位套 LIMIT COVER 1
13 J221-38A-050100 螺母 NUT 2
14 J221-38A-050010 限位栓 BOLT 1
15 J221-38A-050070 销轴 PIN 1
16 01016-51020 螺栓 BOLT 1
17 J221-38A-051000 皮带 BELT 1
18 01016-51235 螺栓 BOLT 2
19 01643-31232 垫圈 GROMMET 2
20 J221-38A-052000 支架 BRACKET 1
21 J221-38A-050090 板 PLATE 1

1 J213-92A-040000 灯 LAMP 2
2 01016-51225 螺栓 BOLT 2
3 01643-31232 垫圈 GROMMET 2
4 J213-92A-000060 支架 BRACKET 2

1 J213-92A-090000 支杆 BRACKER 3
2 01643-31032 垫圈 WASHER 3
3 01602-21030 垫圈 WASHER 3
4 01016-51020 螺栓 BOLT 3
5 J213-92A-000100 板 PLATE 1
6 01023-10512 螺钉 SCREW 2
7 01601-20513 垫圈 WASHER 2
8 01643-30516 垫圈 WASHER 2
9 J213-92A-170000 空调继电器
AIR CONDITIONER
RELAY
2
10 J213-92A-120000 电气控制盒 RELAY AND FUSE BOX 1
11 01023-10614 螺钉 BOLT 2
12 01643-30623 垫圈 WASHER 2

1 J213-92A-140000 喇叭 HORN 1
2 01643-30823 垫圈 WASHER 1
3 01016-50820 螺栓 BOLT 1

1 J213-92A-100000 水温传感器
WATER TEMPERATURE
SENSOR
1
2 J213-92A-000070 水温传感器座
WATER TEMPERATURE
SENSOR SEAT
1
3 J213-92A-240000 转速传感器 SENSOR 1
4 J213-92A-080000 机油压力开关 SENSOR,OIL PRESSURE 1
