Description

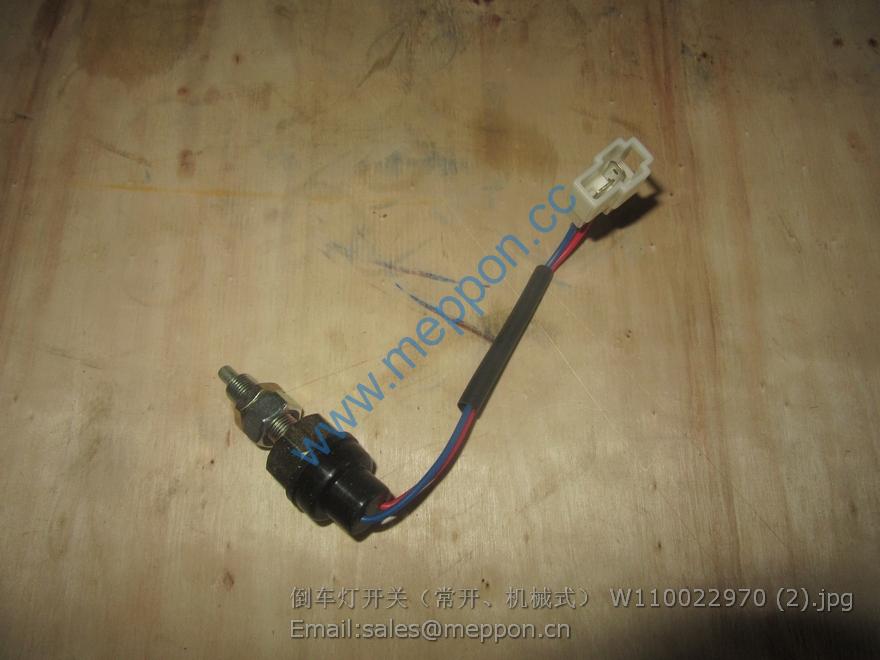

W110022970 SEM WHEEL LOADER reverse lamp switch

W-02-00427 1 排气尾管CA106033 Pipe exhaust
W-02-00428 1 消声器CA106 Muffler
WZ30.1C-1 1 排气接管 Pipe
XS9009 1 消声器卡箍（柴油机附件） Clamp
B-G057830-00010 1 螺栓M10×30ZnD Bolt
B-Q020490-00001 1 垫圈10 Washer
B-Q020490-00023 1 垫圈8 Washer
B-G057830-00143 1 螺栓M8×25ZnD Bolt
WZ30.1G.1 2 支架 Bracket
B-G061700-00036 1 螺母M8ZnD Nut
WZ30.1G-12 1 螺柱 Bolt
B-G061700-00004 1 螺母M12 Nut
B-Q020490-00003 1 垫圈12 Washer

W-02-00429 1 预滤器A01-01640 Cap
B-G057830-00143 1 螺栓M8X25ZnD Bolt
B-G00097B-00023 1 垫圈8ZnD Bolt
B-J088700-00003 1 喉箍d110 Clamp
B-G000930-00017 1 垫圈8 Washer
WZ30.1G.3 1 空气滤清器总成A01-02050 Bracket
B-G061700-00036 1 螺母 Nut
B-J088700-00003 1 喉箍d110 Clamp
W-02-00430 1 空滤器 Air filter
W-02-00249 1 预紧力弹簧卡箍105 Clamp
WZ30.1G-6 1 进气胶管 Hose
W-02-00159 1 预紧力弹簧卡箍85 Clamp

B-G057820-00262 1 螺拴M16×140-10.9ZnD Bolt
B-Q020490-00007 1 垫圈16 Washer
630.1A.2 1 柴油机右支座 Engine support
W-02-00529 1 减震器13Y-03-50000A Insulator
B-G008890-00013 1 螺母M16ZnD Nut
B-Q020490-00003 1 垫圈12 Washer
B-G057830-00042 1 螺拴M12×20 Bolt
630.1A.1 1 柴油机右支座 Engine support
W-02-00145 1 康明斯柴油机|B4.5T-C99 Engine

B-G057830-00132 1 螺栓M6×25ZnD Bolt
B-G000930-00015 1 垫圈6 Washer
B-G00097B-00021 1 垫圈6ZnD Washer
W-02-00165 1 油门控制器总成|104-110C(联动) Throttling controller
WZ30.1E-2 1 调整垫 Washer
Z30.1A.1 1 球铰接头 Joint
B-G00097B-00023 1 垫圈8ZnD Washer
B-G000930-00017 1 垫圈8 Washer
B-G057830-00147 1 螺栓M8×35ZnD Bolt
WZ30.1C.1-1 1 软轴支架 Bracket
B-Q020490-00023 1 垫圈8 Washer
B-G057830-00139 1 螺栓M8×20ZnD Bolt
B-G061700-00034 1 螺母M6ZnD Nut
B-G00097B-00021 1 垫圈6ZnD Washer

B-J009990-00001 1 螺栓M14X1.5X32 Bolt
B-J010020-00003 1 垫圈14 Washer
630.1A-3 1 棉线编织胶管输油胶管Φ10×2200 Pipe
630.1A-4 1 棉线编织胶管输油胶管Φ8×2400 Pipe
190C.1A.5 2 接头 Joint
B-G057830-00139 1 螺栓M8x20ZnD Bolt
B-G000930-00017 1 垫圈8 Washer
B-G00097B-00023 1 垫圈8ZnD Washer
WZ30.14.4-4 2 盖板 Cover board
WZ30.14.4-5 1 纸垫 Washer
620CH.1.1.2 1 法兰 Flange
WZ30.1.5-1 1 垫 Washer
B-G057830-00101 1 螺拴M20x60ZnD Bolt
WZ30.1-13 1 垫圈 Washer
B-Q020490-00011 1 垫圈20 Washer
WZ30.1-15 1 垫圈 Washer
W-12-00007 1 防滑布(50×600) Grip
620CH.1.1-1 1 法兰 Flange
W-15-00013 1 带锁液压空气滤清器SAF-50A-L85 Air sieve
B-J07757B-00001 1 O形圈S10（26501600） O-ring
Z50B.1-14 1 螺塞 Plug
620CH.1.1.1 2 柴油箱 Fuel Ark
630.1A.3 1 油水分离器支架 Bracket
B-Q020490-00003 1 垫圈12 Washer
B-G057830-00026 1 螺拴M12×20 Bolt
WZ30.1C-3 1 接头 Joint
B-G057830-00143 1 螺栓M8×25ZnD Bolt
B-Q020490-00023 1 垫圈8 Washer
630.1A-2 1 棉线编织胶管输油胶管Φ10×800 Pipe
W-02-00431 1 油水分离器F122-B-001 Oil-water Separator
190C.1E.1.3 1 接头 Joint
